Toyota Lexus RX350/450H(Jpp
2008-12 → 2015-09 · chassis GGL1#,GYL1# · catalogue 521430 · United States
Supported model
Data version 2016-03

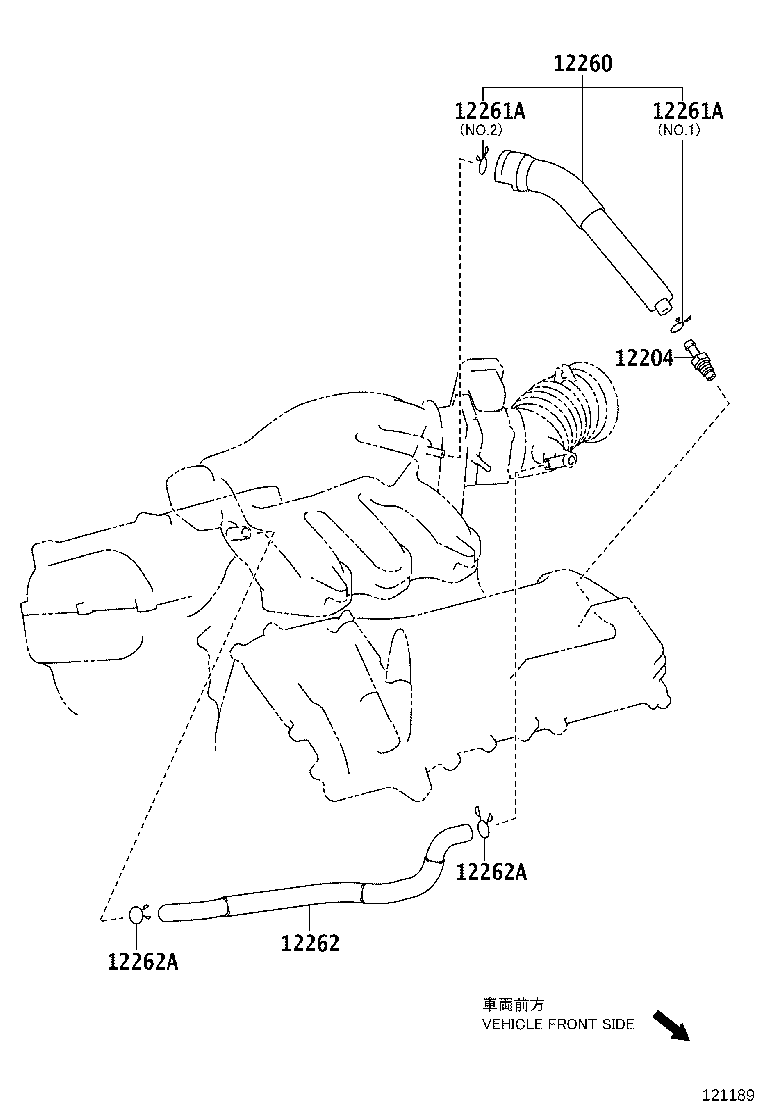

Ventilation Hose
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12204 | Valve Sub-assy, Ventilation |
| 12260 | Hose Assy, Ventilation |
| 12261A | Clip OR Clamp(FOR VENTILATION HOSE) |
| 12262 | Hose, Ventilation, NO.2 |
| 12262A | Clip(FOR VENTILATION HOSE NO.2) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
