Toyota Lexus RX350/450H(Jpp
2008-12 → 2015-09 · chassis GGL1#,GYL1# · catalogue 521430 · United States
Supported model
Data version 2016-03
Front Spring & Shock Absorber
37 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

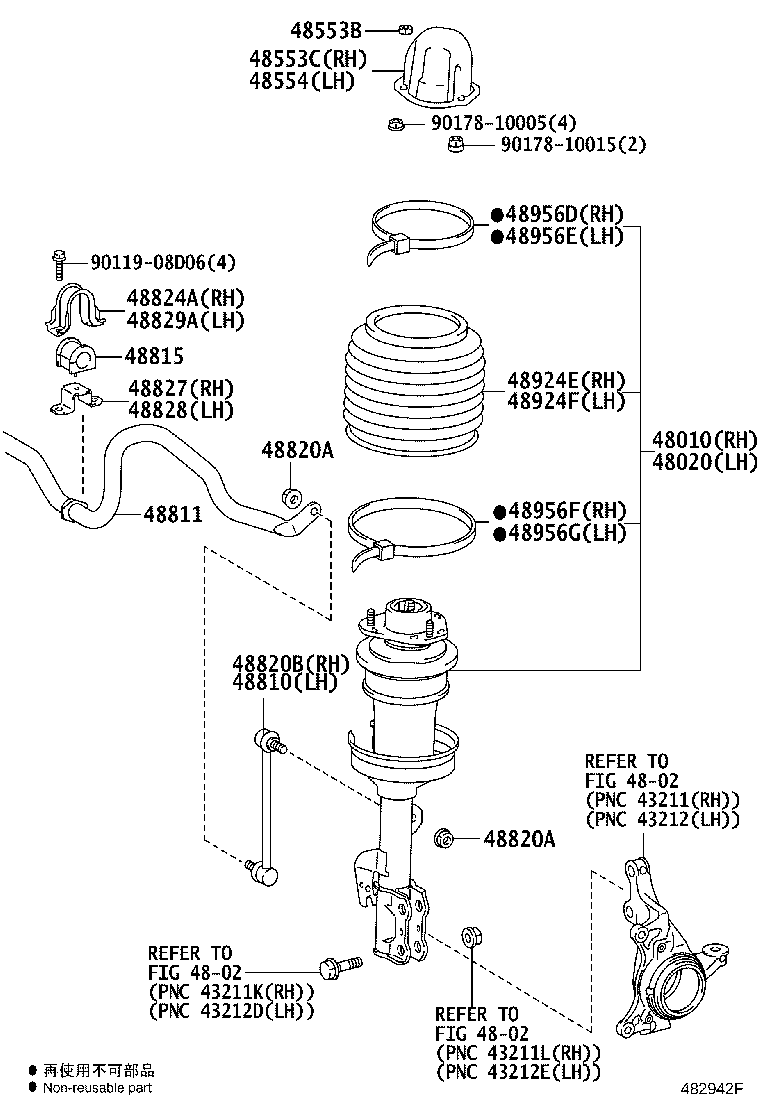

| 48010 | Cylinder Assy, Pneumatic, Front RH W/Shock Absorber |
| 48020 | Cylinder Assy, Pneumatic, Front LH W/Shock Absorber |

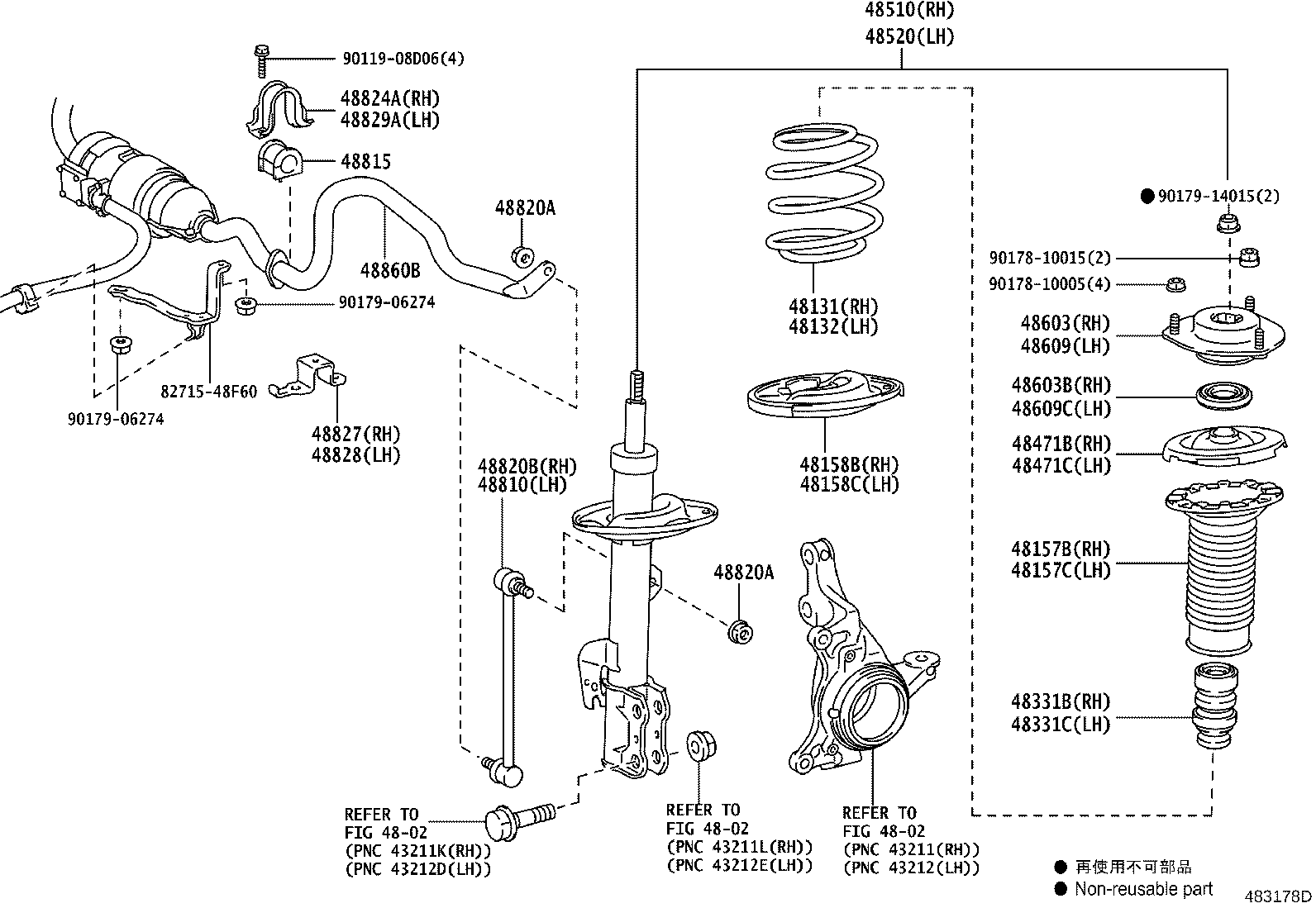

| 48131 | Spring, Front Coil, RH |
| 48132 | Spring, Front Coil, LH |
| 48157B | Insulator, Front Coil Spring, Upper RH |
| 48157C | Insulator, Front Coil Spring, Upper LH |
| 48158B | Insulator, Front Coil Spring, Lower RH |
| 48158C | Insulator, Front Coil Spring, Lower LH |
| 48331B | Bumper, Front Spring, RH |
| 48331C | Bumper, Front Spring, LH |
| 48471B | Seat, Front Coil Spring, Upper RH |
| 48471C | Seat, Front Coil Spring, Upper LH |
| 48510 | Absorber Assy, Shock, Front RH |
| 48520 | Absorber Assy, Shock, Front LH |
| 48553B | Nut(FOR FRONT SHOCK ABSORBER CAP) |
| 48553C | Cap, Front Shock Absorber, RH |
| 48554 | Cap, Front Shock Absorber, LH |
| 48603 | Support Sub-assy, Front Suspension, RH |
| 48603B | Bearing(FOR FRONT SUSPENSION SUPPORT RH) |
| 48609 | Support Sub-assy, Front Suspension, LH |
| 48609C | Bearing(FOR FRONT SUSPENSION SUPPORT LH) |
| 48810 | Link Assy, Front Stabilizer, LH |
| 48811 | Bar, Stabilizer, Front |
| 48815 | Bush, Front Stabilizer Bar, NO.1 |
| 48820A | Nut(FOR FRONT STABILIZER LINK) |
| 48820B | Link Assy, Front Stabilizer, RH |
| 48824A | Bracket, Front Stabilizer, NO.1 RH |
| 48827 | Bracket, Front Stabilizer, NO.2 RH |
| 48828 | Bracket, Front Stabilizer, NO.2 LH |
| 48829A | Bracket, Front Stabilizer, NO.1 LH |
| 48860B | Actuator Assy, Front Active Stabilizer Control |
| 48924E | Cover, Front Pneumatic Cylinder, Inner RH |
| 48924F | Cover, Front Pneumatic Cylinder, Inner LH |
| 48956D | Band, Front Pneumatic Cylinder Cover, Upper RH |
| 48956E | Band, Front Pneumatic Cylinder Cover, Upper LH |
| 48956F | Band, Front Pneumatic Cylinder Cover, Lower RH |
| 48956G | Band, Front Pneumatic Cylinder Cover, Lower LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
