Toyota Lexus RX350/450H(Jpp
2008-12 → 2015-09 · chassis GGL1#,GYL1# · catalogue 521430 · United States
Supported model
Data version 2016-03

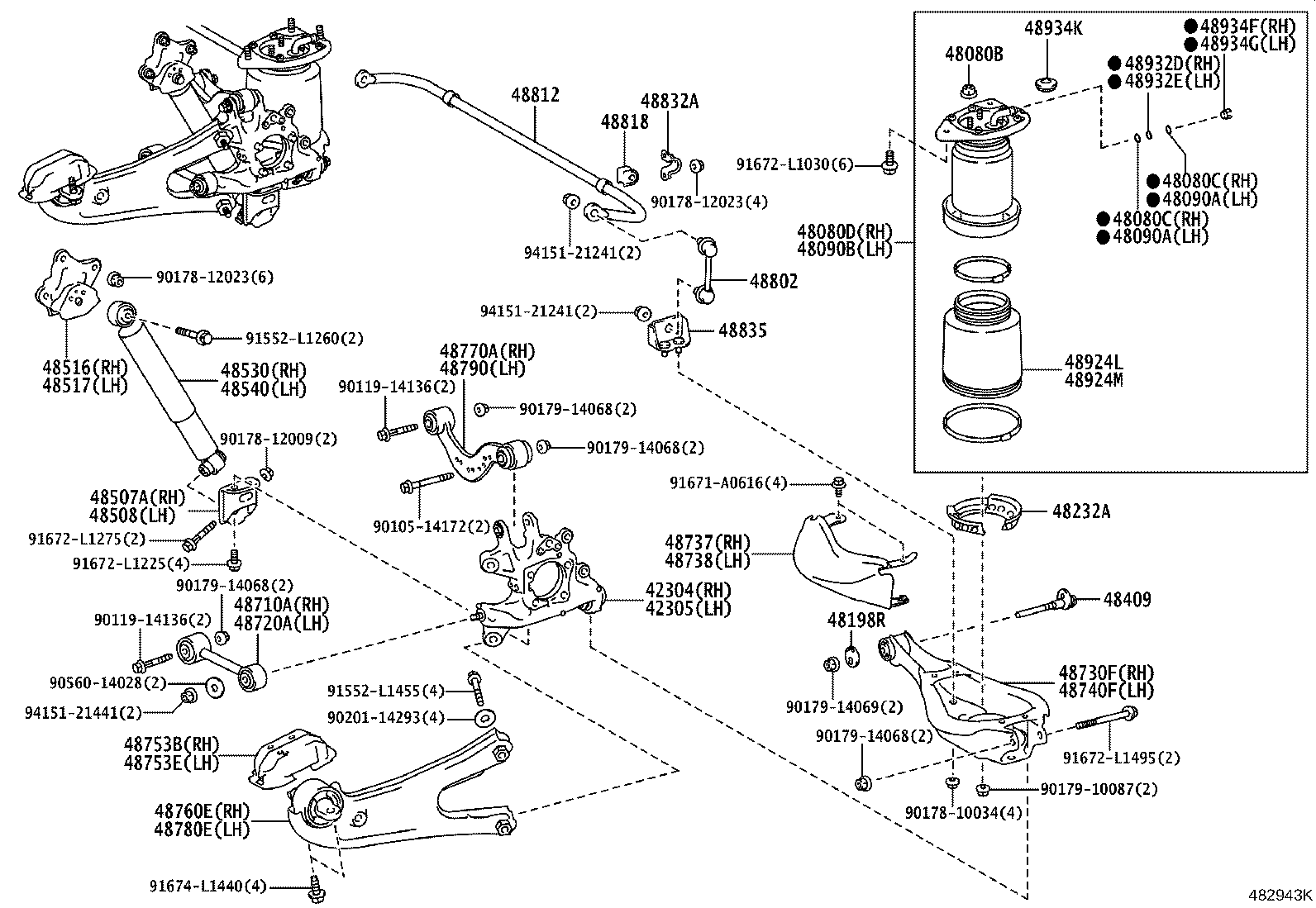

Rear Spring & Shock Absorber
49 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 42304 | Carrier Sub-assy, Rear Axle, RH |
| 42305 | Carrier Sub-assy, Rear Axle, LH |
| 48048A | Seat Sub-assy, Spring, RH |
| 48049A | Seat Sub-assy, Spring, LH |
| 48080B | Nut(FOR PNEUMATIC CYLINDER REAR) |
| 48080C | Ring, O(FOR REAR PNEUMATIC CYLINDER RH) |
| 48080D | Cylinder Assy, Pneumatic, Rear RH |
| 48090A | Ring, O(FOR REAR PNEUMATIC CYLINDER LH) |
| 48090B | Cylinder Assy, Pneumatic, Rear LH |
| 48198R | Cam, Rear Suspension Camber Adjust, NO.2 |
| 48231A | Spring, Coil, Rear RH |
| 48231B | Spring, Coil, Rear LH |
| 48232A | Plate, Rear Spring Set |
| 48257C | Insulator, Rear Coil Spring, Upper RH |
| 48258B | Insulator, Rear Coil Spring, Lower RH |
| 48258C | Insulator, Rear Coil Spring, Lower LH |
| 48259A | Insulator, Rear Coil Spring, Upper LH |
| 48409 | Cam Sub-assy, Rear Suspension Toe Adjust |
| 48507A | Bracket Sub-assy, Rear Shock Absorber, Lower RH |
| 48508 | Bracket Sub-assy, Rear Shock Absorber, Lower LH |
| 48516 | Bracket, Rear Shock Absorber, Upper RH |
| 48517 | Bracket, Rear Shock Absorber, Upper LH |
| 48530 | Absorber Assy, Shock, Rear RH |
| 48540 | Absorber Assy, Shock, Rear LH |
| 48710A | Arm Assy, Rear Suspension, NO.1 RH |
| 48720A | Arm Assy, Rear Suspension, NO.1 LH |
| 48730F | Arm Assy, Rear Suspension, NO.2 RH |
| 48737 | Cover, Rear Suspension Arm, RH |
| 48738 | Cover, Rear Suspension Arm, LH |
| 48740F | Arm Assy, Rear Suspension, NO.2 LH |
| 48753B | Cover, Rear Suspension Supoport, NO.1 RH |
| 48753E | Cover, Rear Suspension Supoport, NO.2 LH |
| 48760E | Arm Assy, Trailing, Rear RH |
| 48770A | Arm Assy, Upper Control, Rear RH |
| 48780E | Arm Assy, Trailing, Rear LH |
| 48790 | Arm Assy, Upper Control, Rear LH |
| 48802 | Link Sub-assy, Stabilizer |
| 48812 | Bar, Stabilizer, Rear |
| 48818 | Bush, Stabilizer, Rear |
| 48832A | Bracket, Rear Stabilizer Bar, NO.1 |
| 48835 | Bracket, Rear Stabilizer, Lower |
| 48870A | Acutuator Assy, Rear Active Stabilizer Control |
| 48924L | Cover, Rear Pneumatic Cylinder, RH |
| 48924M | Cover, Rear Pneumatic Cylinder, LH |
| 48932D | Plate, Height Control Tube, RH |
| 48932E | Plate, Height Control Tube, LH |
| 48934F | Connector, Height Control Tube, RH |
| 48934G | Connector, Height Control Tube, LH |
| 48934K | Plug, Height Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
