Mat & Carpet

6 part groups · 4 illustrations

Illustrations

Figure 583453A

583453A 2008-12 → 2012-03

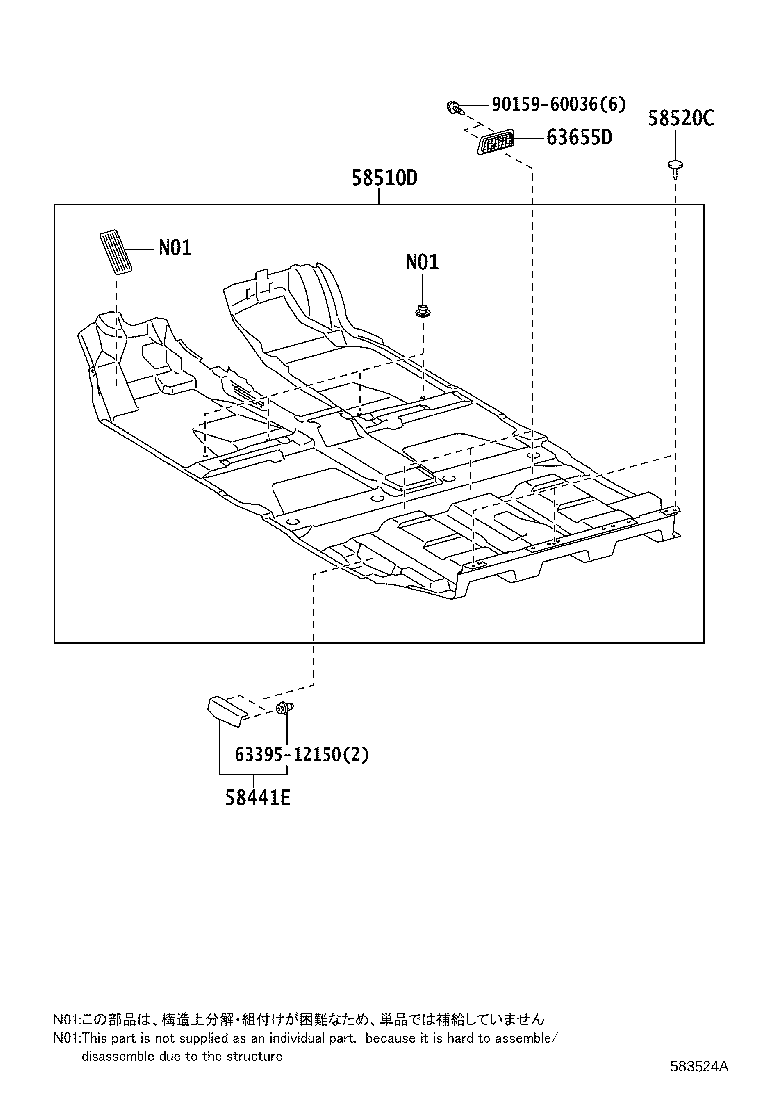

Figure 583524A

583524A 2009-03 → 2012-03

Figure 584434B

584434B 2012-03 → —

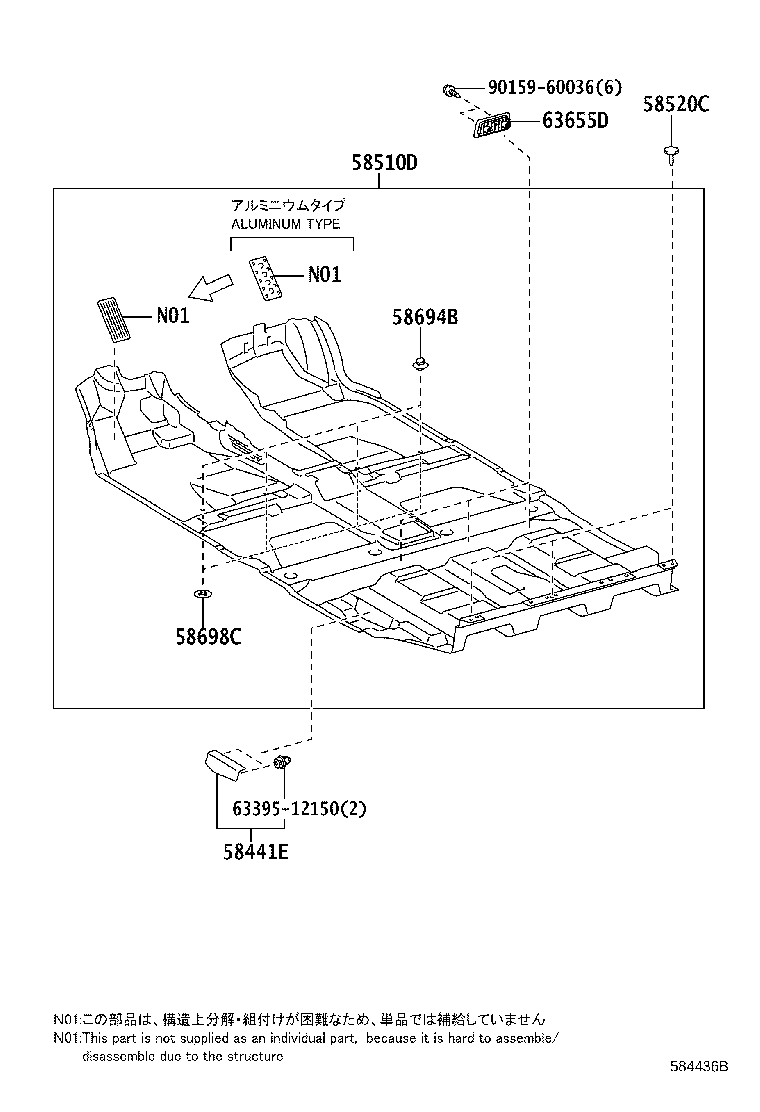

Figure 584436B

584436B 2012-03 → —

Part groups

PNC	Description
58441E	Cover, Battery Service Hole
58510D	Carpet Assy, Floor, Front
58520C	Clip(FOR FRONT FLOOR CARPET)
58694B	Plate, Mat Set, Upper
58698C	Plate, Mat Set, Lower
63655D	Cover, Air Intake

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
