Toyota Lexus RX350/450H(Jpp
2008-12 → 2015-09 · chassis GGL1#,GYL1# · catalogue 521430 · United States
Supported model
Data version 2016-03

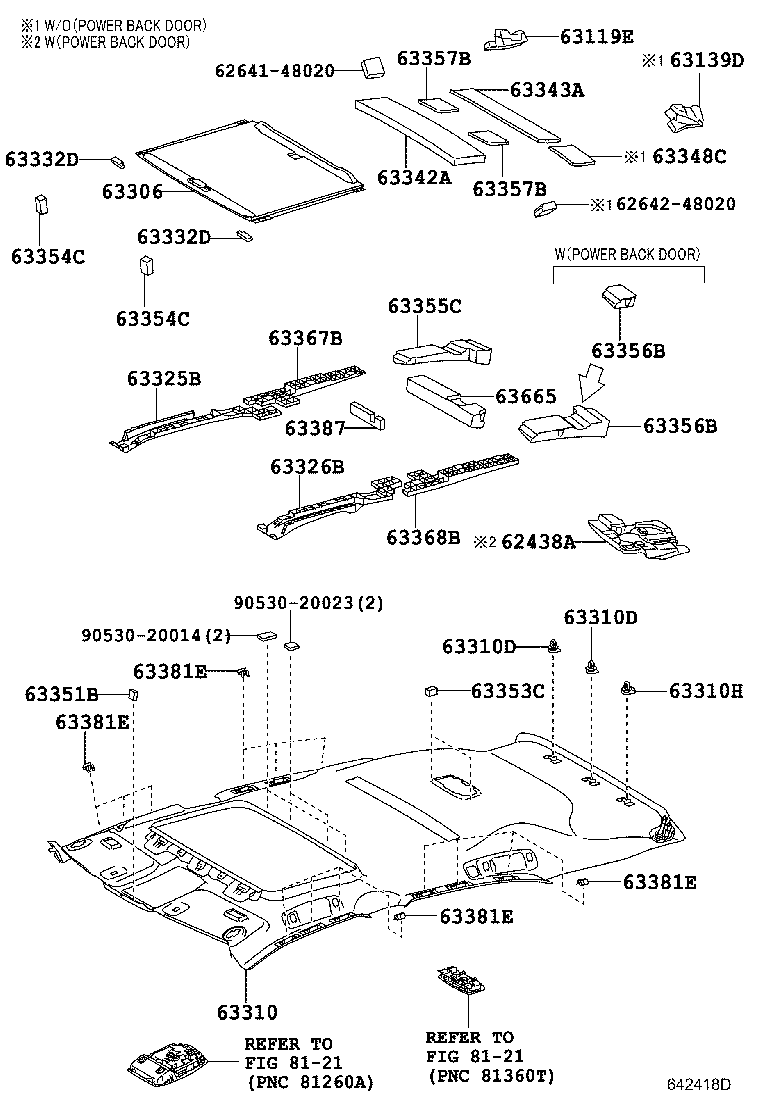

Roof Headlining & Silencer Pad
31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62438A | Pad, Roof Side Rail, Rear LH |
| 63119E | Pad, Roof Panel, NO.1 |
| 63139D | Pad, Roof Panel, NO.3 |
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63325B | Plate, Roof Headlining Set, RH |
| 63326B | Plate, Roof Headlining Set, LH |
| 63332D | Pad, Sun Roof Headlining |
| 63333B | Protector, Sunshade Trim |
| 63341A | Silencer, Roof, NO.1 |
| 63342A | Silencer, Roof, NO.2 |
| 63343A | Silencer, Roof, NO.3 |
| 63345D | Pad, Roof Silencer, Center |
| 63348C | Pad, Roof Side Rail Silencer, LH |
| 63351B | Pad, Roof Headlining |
| 63353C | Pad, Roof Headlining, Center |
| 63354C | Pad, Roof Headlining Front Side |
| 63355C | Pad, Roof Headlining, RH |
| 63356B | Pad, Roof Headlining, LH |
| 63357B | Silencer, Roof |
| 63367B | Plate, Roof Headlining Set, NO.2 RH |
| 63368B | Plate, Roof Headlining Set, NO.2 LH |
| 63381E | Retainer, Roof Headlining Trim, Front |
| 63387 | Pad, Roof Headlining Forming |
| 63665 | Spacer, Roof Headlining |
| 66413B | Spacer, Side Rail, Front RH |
| 66414A | Spacer, Side Rail, Rear RH |
| 66423 | Spacer, Side Rail, Front LH |
| 66424 | Spacer, Side Rail, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
