Toyota Lexus RX350/450H(Jpp

2008-12 → 2015-09 · chassis GGL1#,GYL1# · catalogue 521430 · United States

Supported model Data version 2016-03

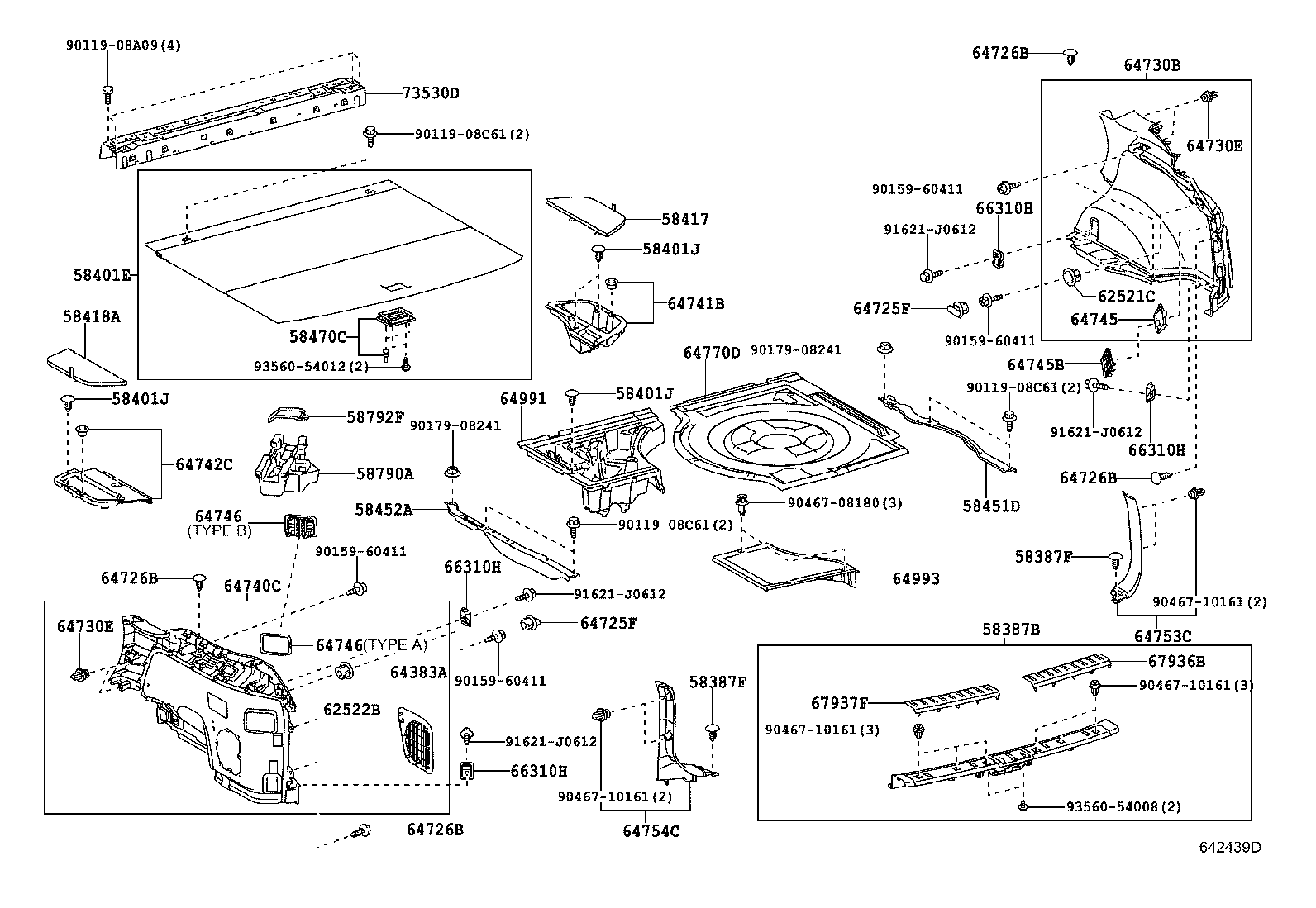

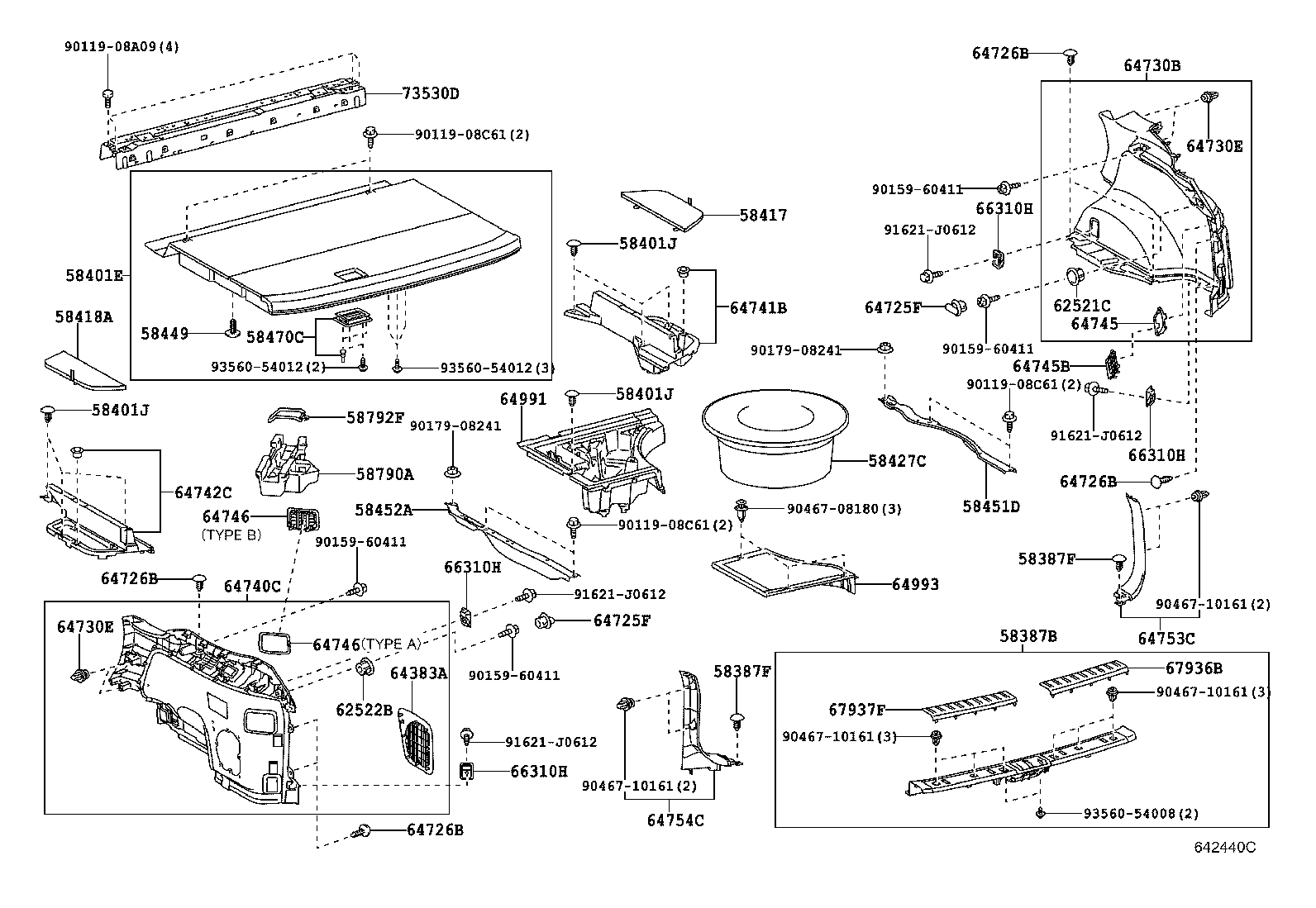

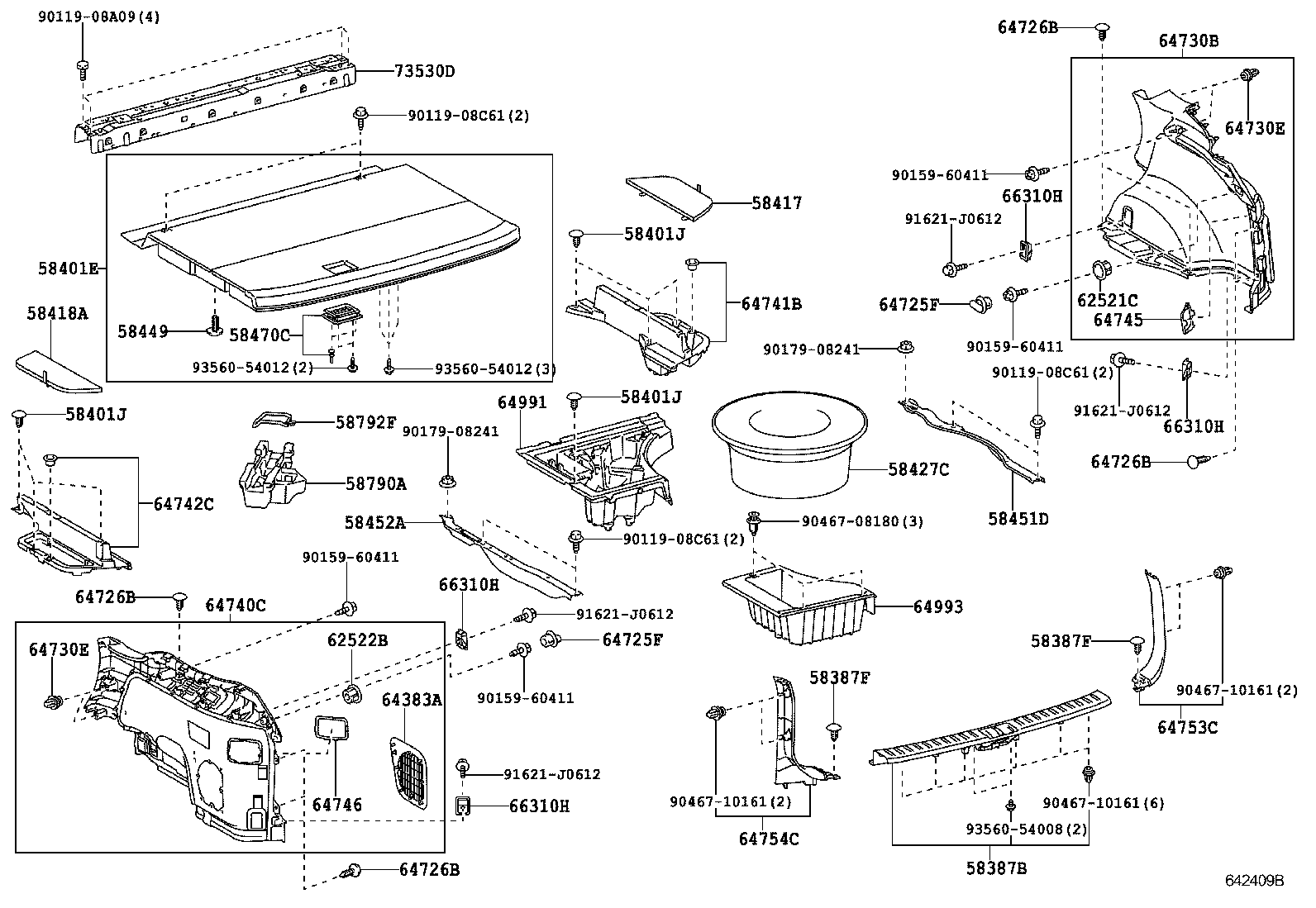

Deck Board & Deck Trim Cover

42 part groups · 6 illustrations

PNC	Description
58387B	Plate, Rear Floor Finish
58387F	Clip, Rear Floor Finish Plate
58401E	Board Sub-assy, Deck
58401J	Clip(FOR DECK BOAD)
58417	Board, Rear Floor, NO.3
58418A	Board, Rear Floor, NO.4
58427C	Spacer, Rear Floor Board
58449	Clip, Deck Board
58451D	Reinforcement, Deck Board, NO.1
58452A	Reinforcement, Deck Board, NO.2
58470C	Handle Assy, Deck Board
58790A	Carrier Assy, Jack
58792F	Support, Jack Carrier
62521C	Cover, Quarter Trim RH
62522B	Cover, Quarter Trim LH
64383A	Grille, Speaker, Rear(FOR DECK TRIM)
64725F	Hook, Luggage Compartment Trim, NO.1
64726B	Clip, Deck Rear Trim
64730B	Panel Assy, Deck Trim Side, RH
64730E	Clip(FOR DECK TRIM SIDE BOARD)
64740C	Panel Assy, Deck Trim Side, LH
64741B	Box, Deck Side Trim, RH
64742C	Box, Deck Side Trim, LH
64745	Cover, Rear Combination Lamp Service, RH
64745B	Cover, Rear Combination Lamp Service, NO.2, RH
64746	Cover, Rear Combination Lamp Service, LH
64753C	Plate, Rear Floor Finish Side, RH
64754C	Plate, Rear Floor Finish Side, LH
64770D	Cover Assy, Spare Wheel
64902B	Cover Sub-assy, Tonneau
64910J	Cover Assy, Tonneau
64928	Holder, Tonneau Cover Hook
64931B	Hanger, Tonneau Cover, RH
64932B	Hanger, Tonneau Cover, LH
64957	Retainer, Tonneau Cover, RH
64958	Retainer, Tonneau Cover, LH
64991	Box, Deck Floor, Front
64993	Box, Deck Floor, Rear
66310H	Hook Assy, Rope
67936B	Cover, Back Door Scuff Side, RH
67937F	Cover, Back Door Scuff Side, LH
73530D	Panel Assy, Rear Seat Sub Floor

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
