Toyota Lexus RX350/450H(Jpp

2008-12 → 2015-09 · chassis GGL1#,GYL1# · catalogue 521430 · United States

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

14 part groups · 2 illustrations

Illustrations

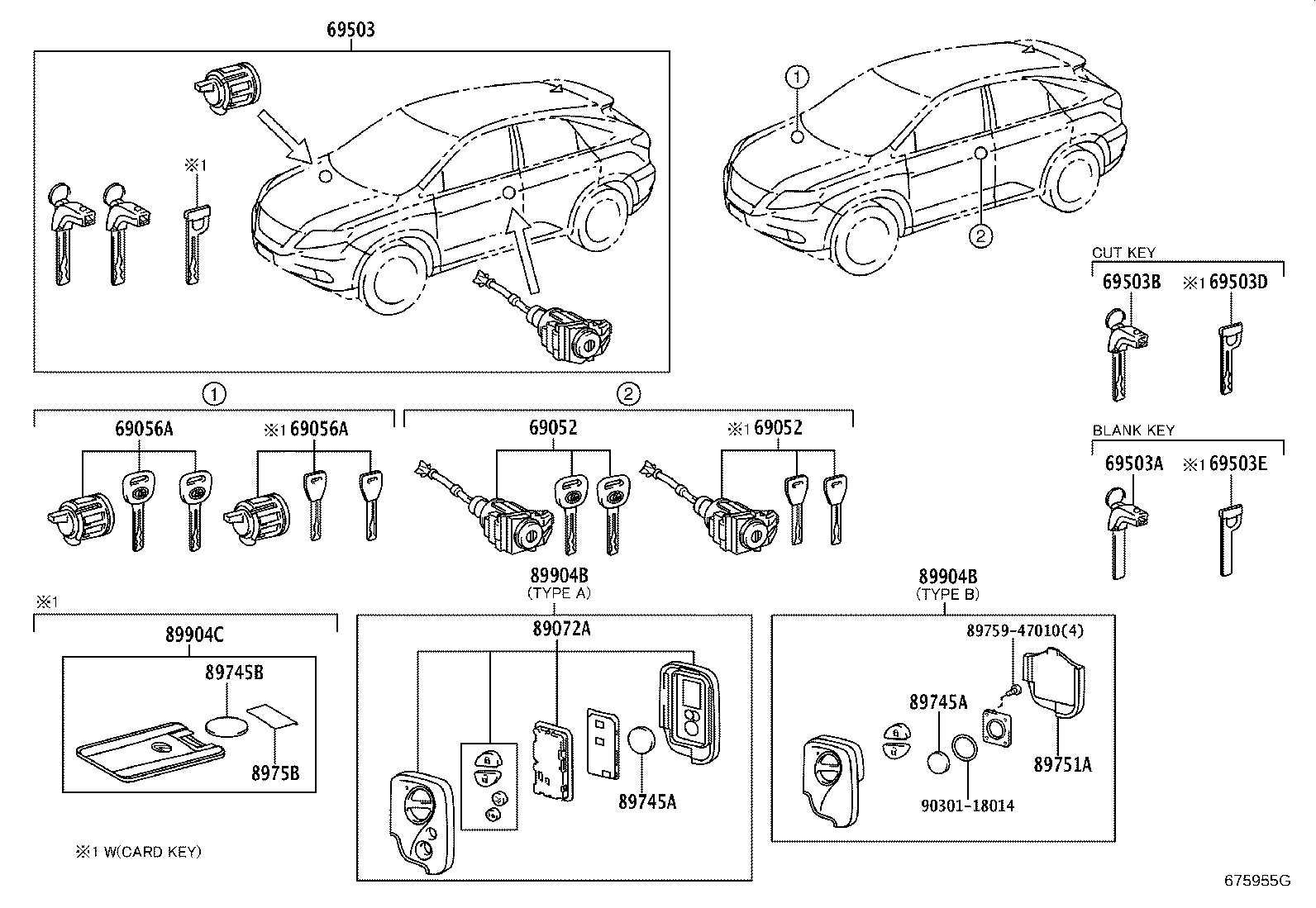

Figure 677452D 677452D 2008-12 → 2012-03 Figure 675955G 675955G 2012-03 → —

Part groups

PNCDescription
69052 Cylinder & Key Set, Door Lock, LH
69056A Cylinder & Key Set, Glove Compartment Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69503B Key, Cut
69503D Key, Cut(CARD KEY)
69503E Key, Blank(CARD KEY)
89072A Housing Set, Door Control Transmitter
89745A Battery, Transmitter
89745B Battery, Transmitter(CARD KEY)
89751A Cover, Transmitter Housing
8975B Cover, Transmitter Battery Housing
89904B Transmitter Sub-assy, Electrical Key
89904C Transmitter Sub-assy, Electrical Key(CARD KEY)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
