Toyota Lexus RX350/450H(Jpp

2008-12 → 2015-09 · chassis GGL1#,GYL1# · catalogue 521430 · United States

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

7 part groups · 2 illustrations

Illustrations

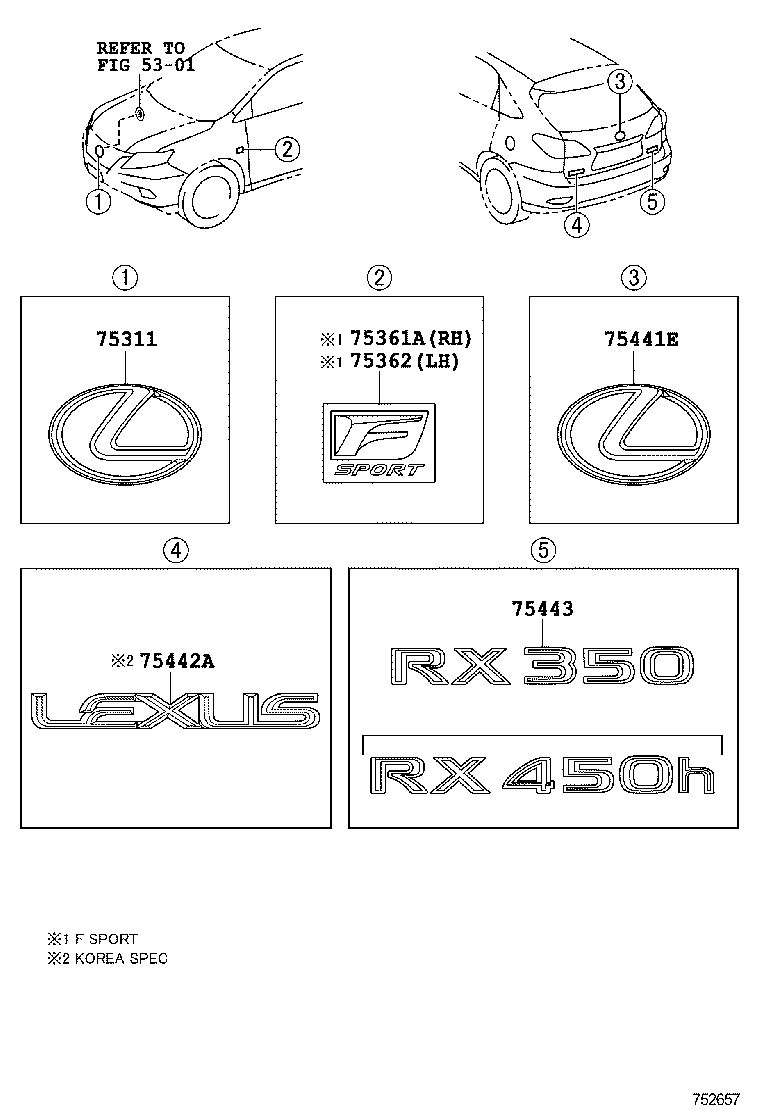

Figure 752158A 752158A 2008-12 → 2012-03 Figure 752657 752657 2012-03 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75312D Base, Radiator Grille Emblem
75361A Plate, Front Fender Name, NO.1
75362 Plate, Front Fender Name, NO.2
75441E Plate, Back Door Name, NO.1
75442A Plate, Back Door Name, NO.2
75443 Plate, Back Door Name, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
