Rear Moulding

5 part groups · 2 illustrations

Illustrations

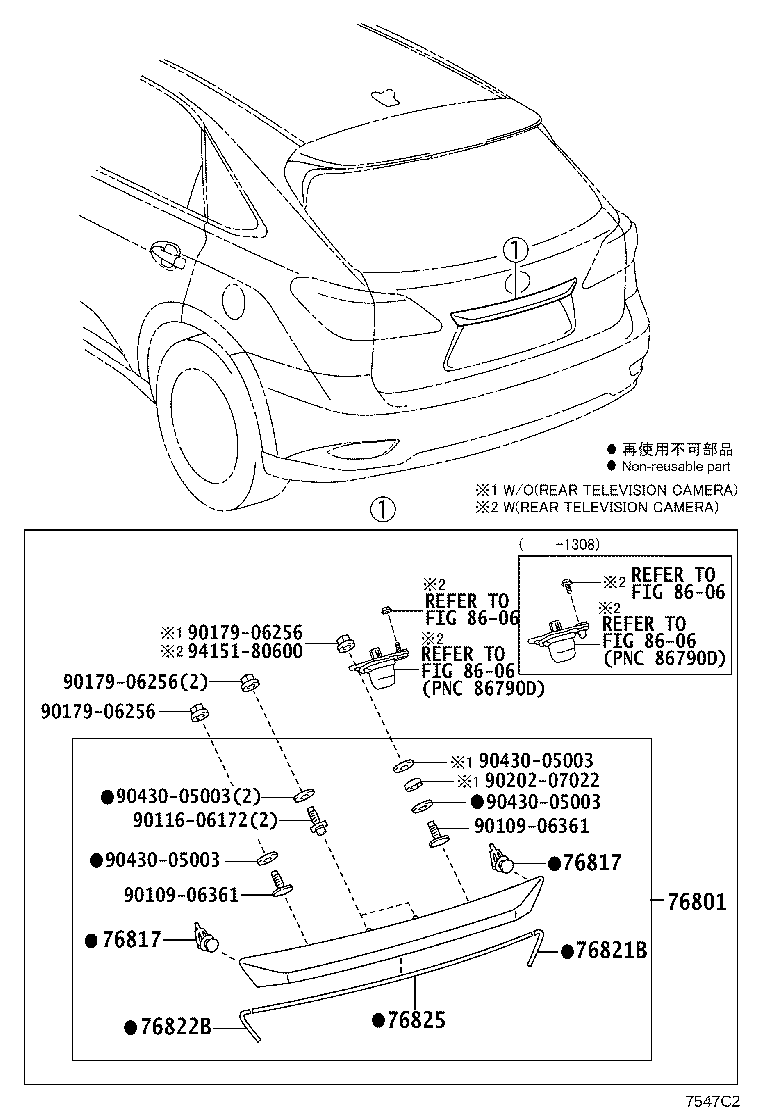

Figure 7547C1 7547C1 2008-12 → 2013-04 Figure 7547C2 7547C2 2013-04 → —

Part groups

PNCDescription
76801 Garnish Sub-assy, Back Door, Outside
76817 Clip, Back Door Outside Garnish
76821B Protector, Back Door Garnish Side, RH
76822B Protector, Back Door Garnish Side, LH
76825 Protector, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
