Toyota Lexus RX350/450H(Jpp

2008-12 → 2015-09 · chassis GGL1#,GYL1# · catalogue 521430 · United States

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

90 part groups · 18 illustrations

Illustrations

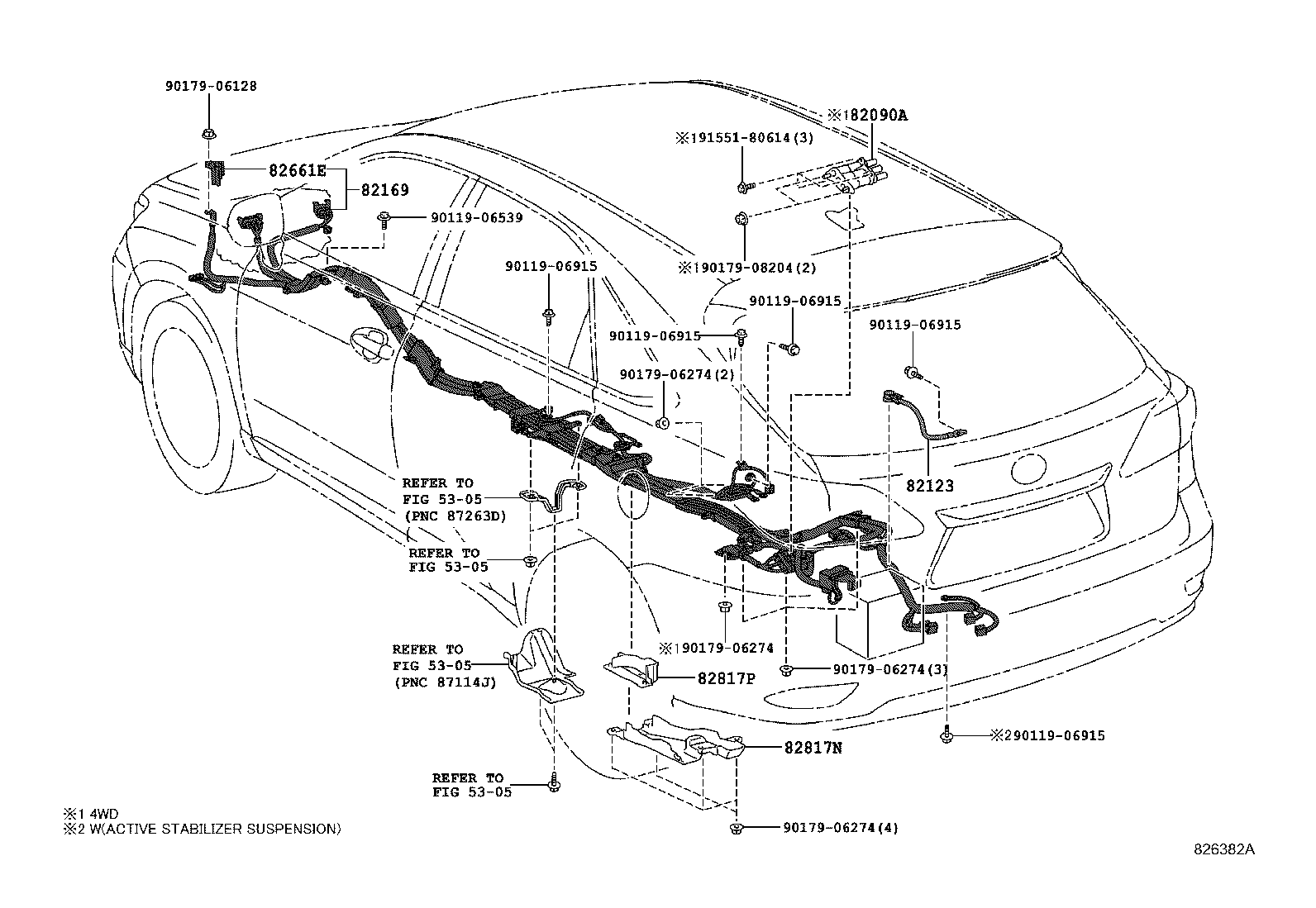

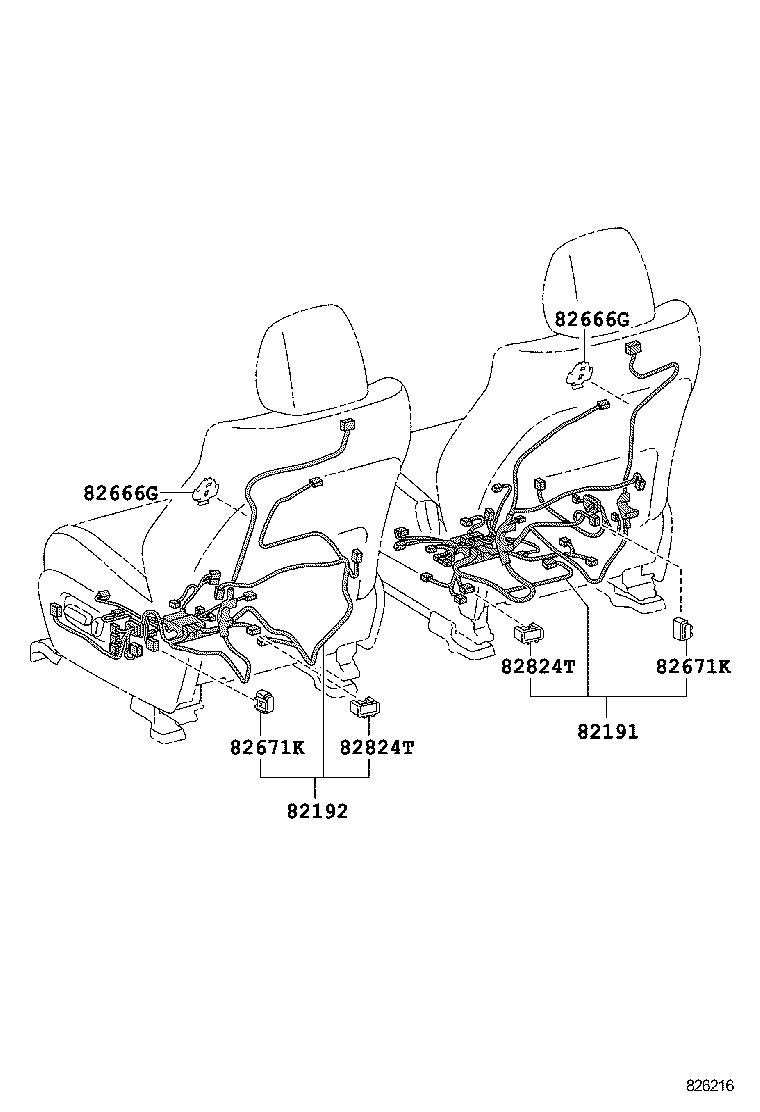

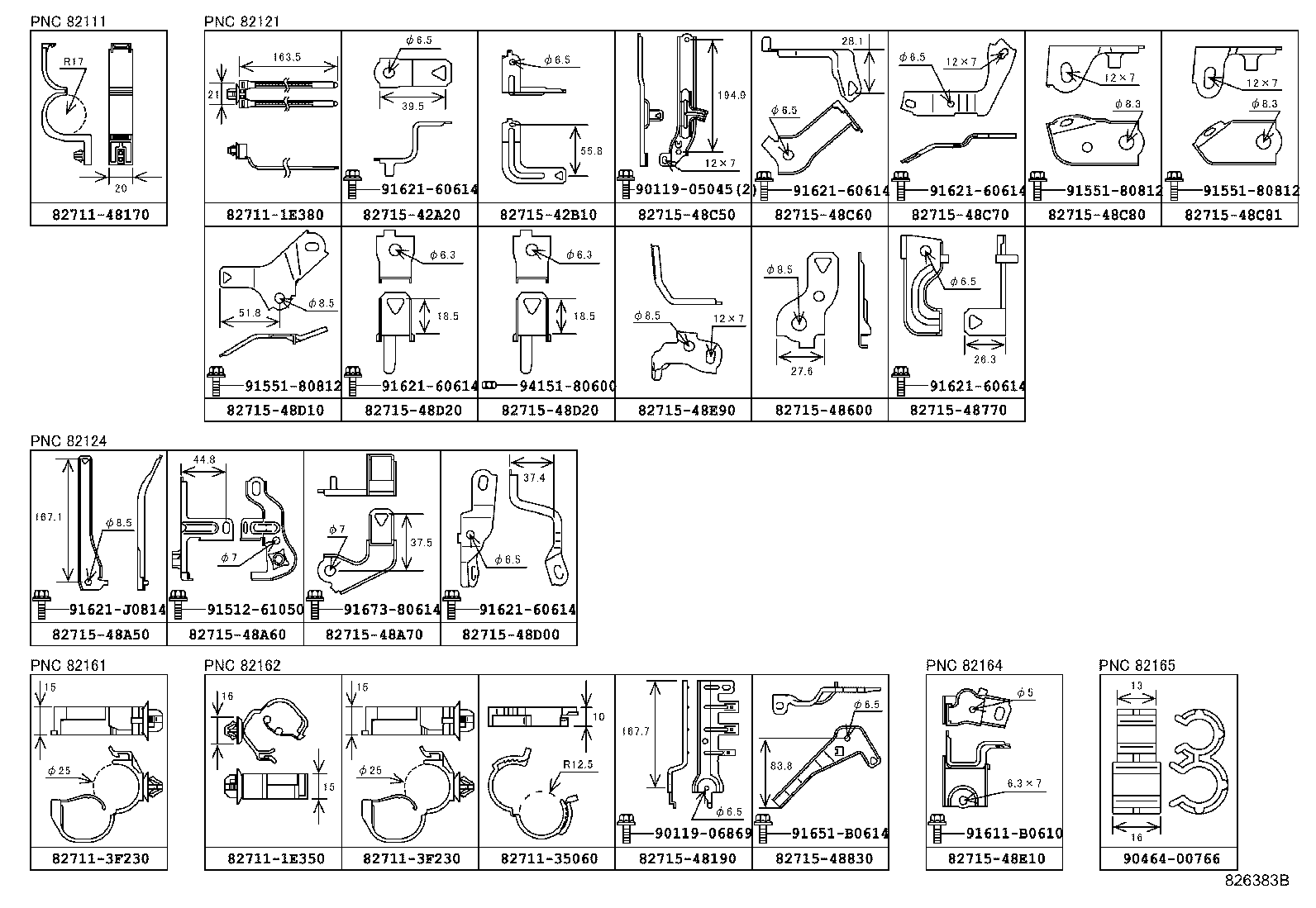

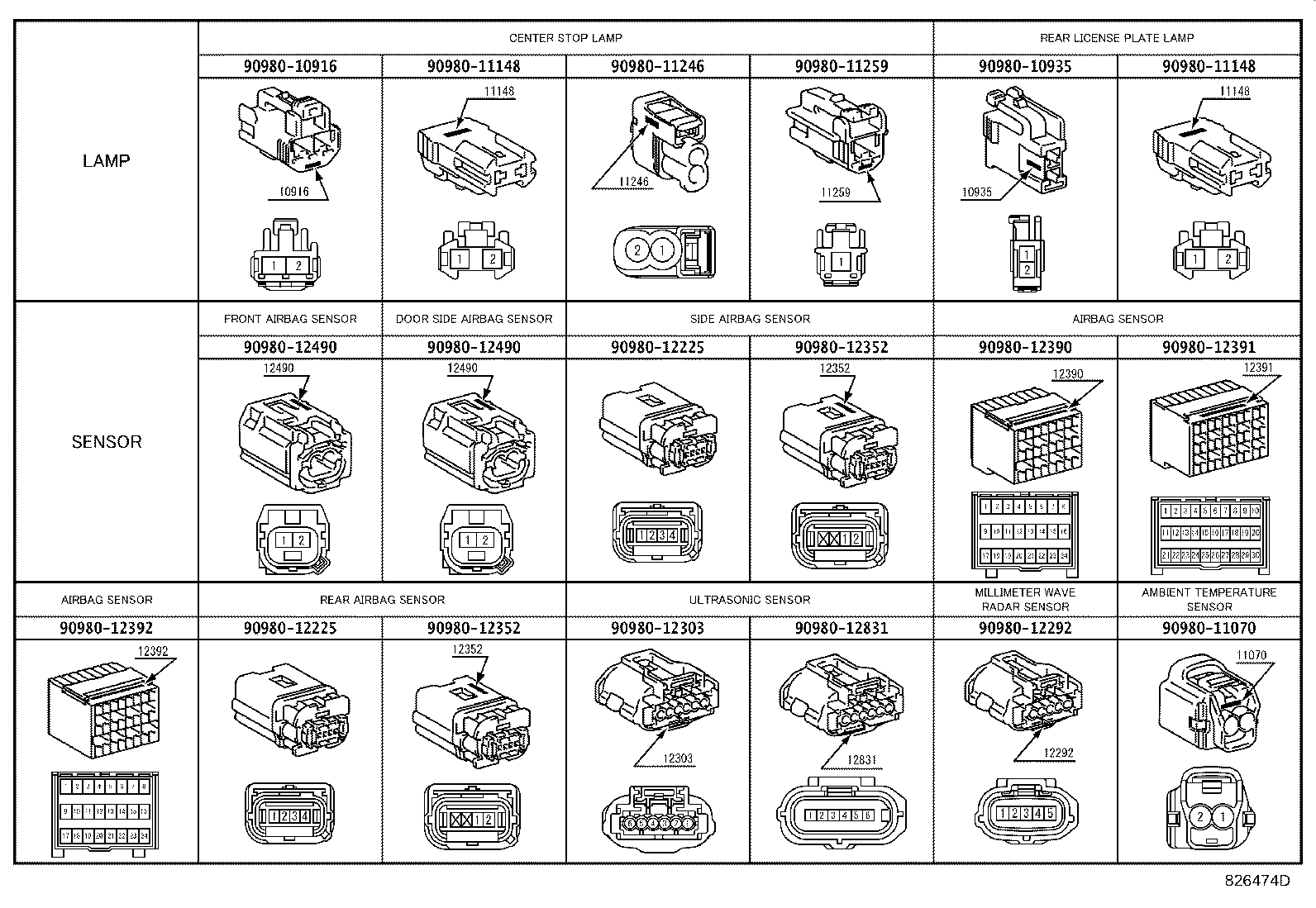

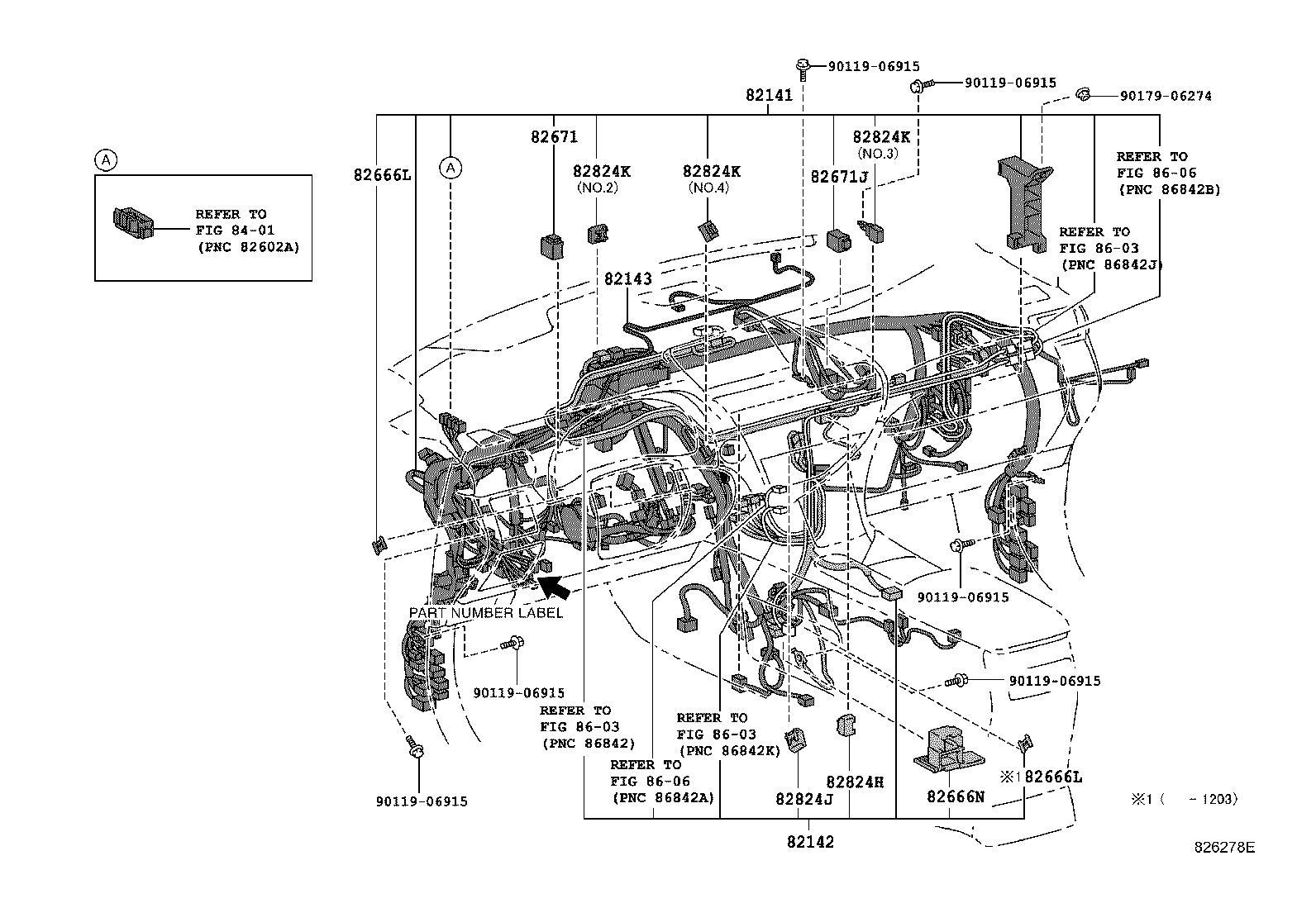

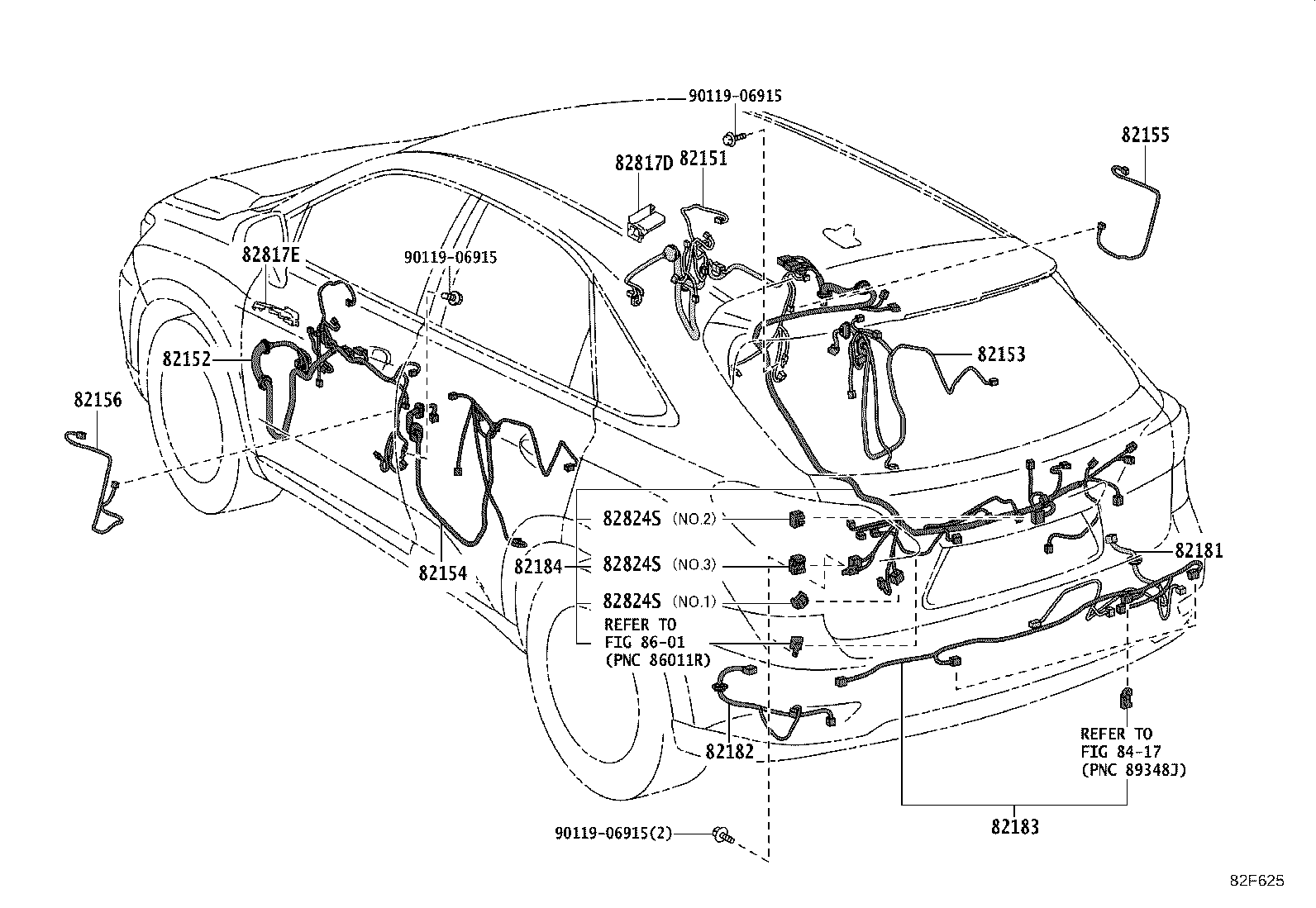

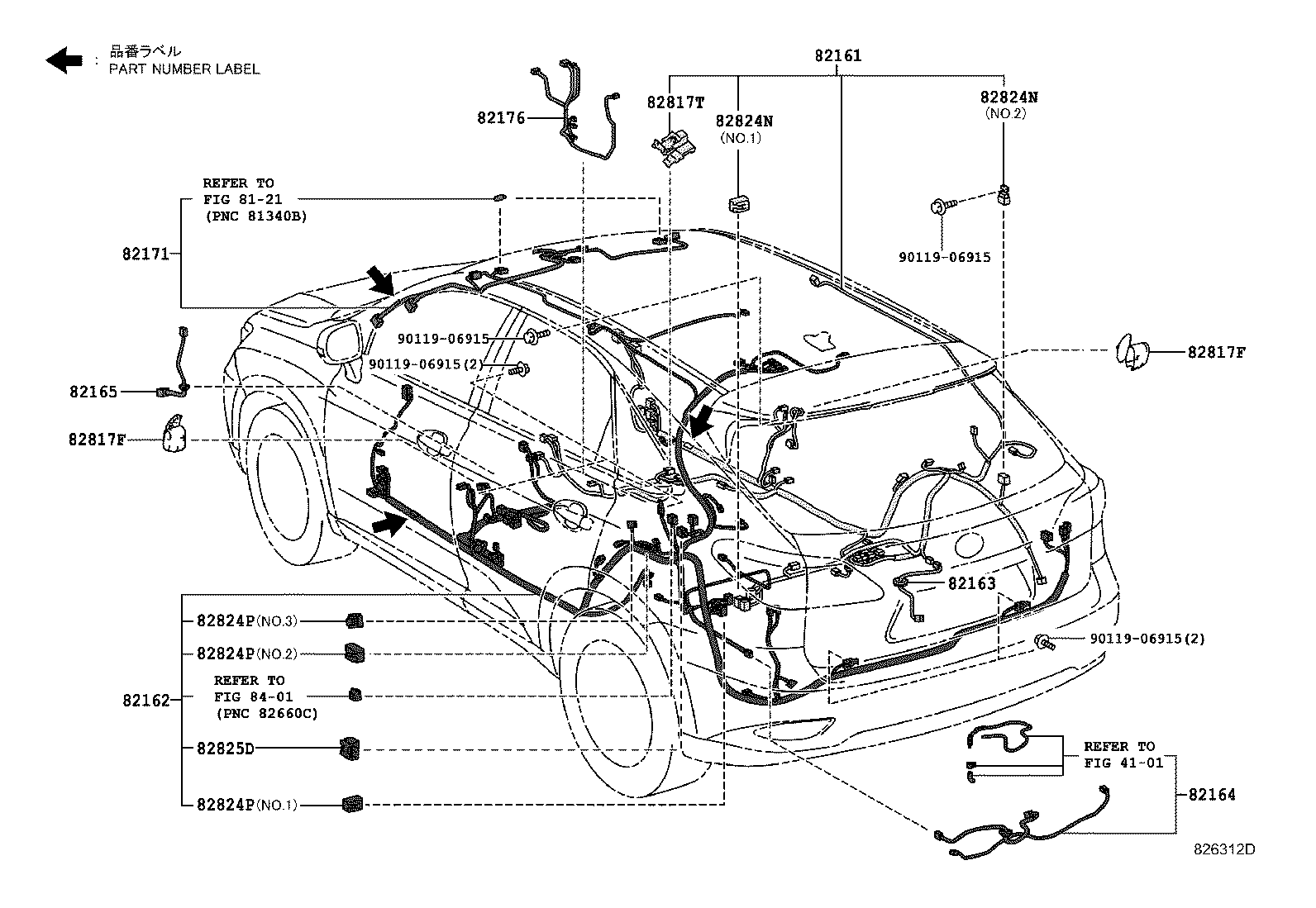

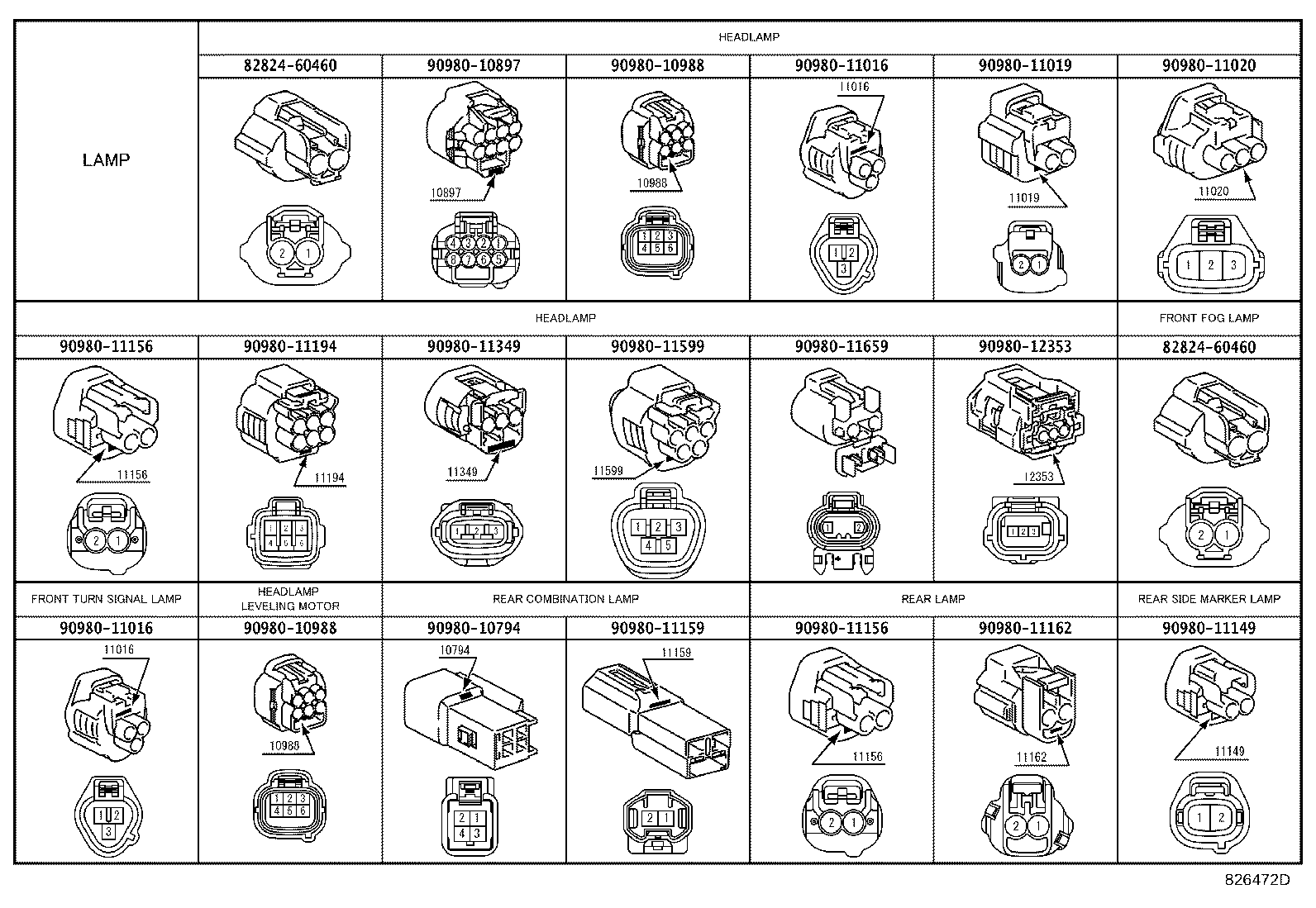

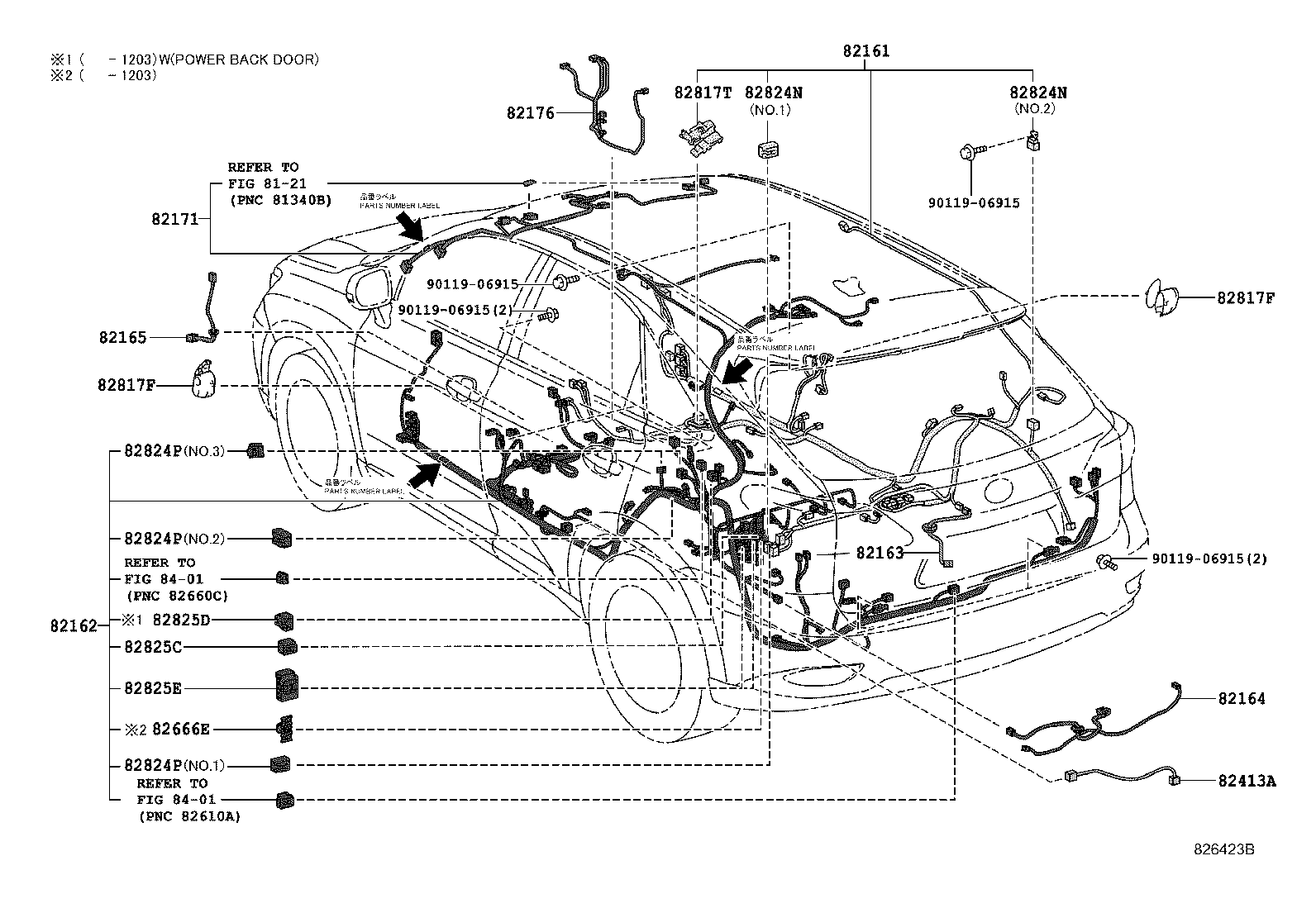

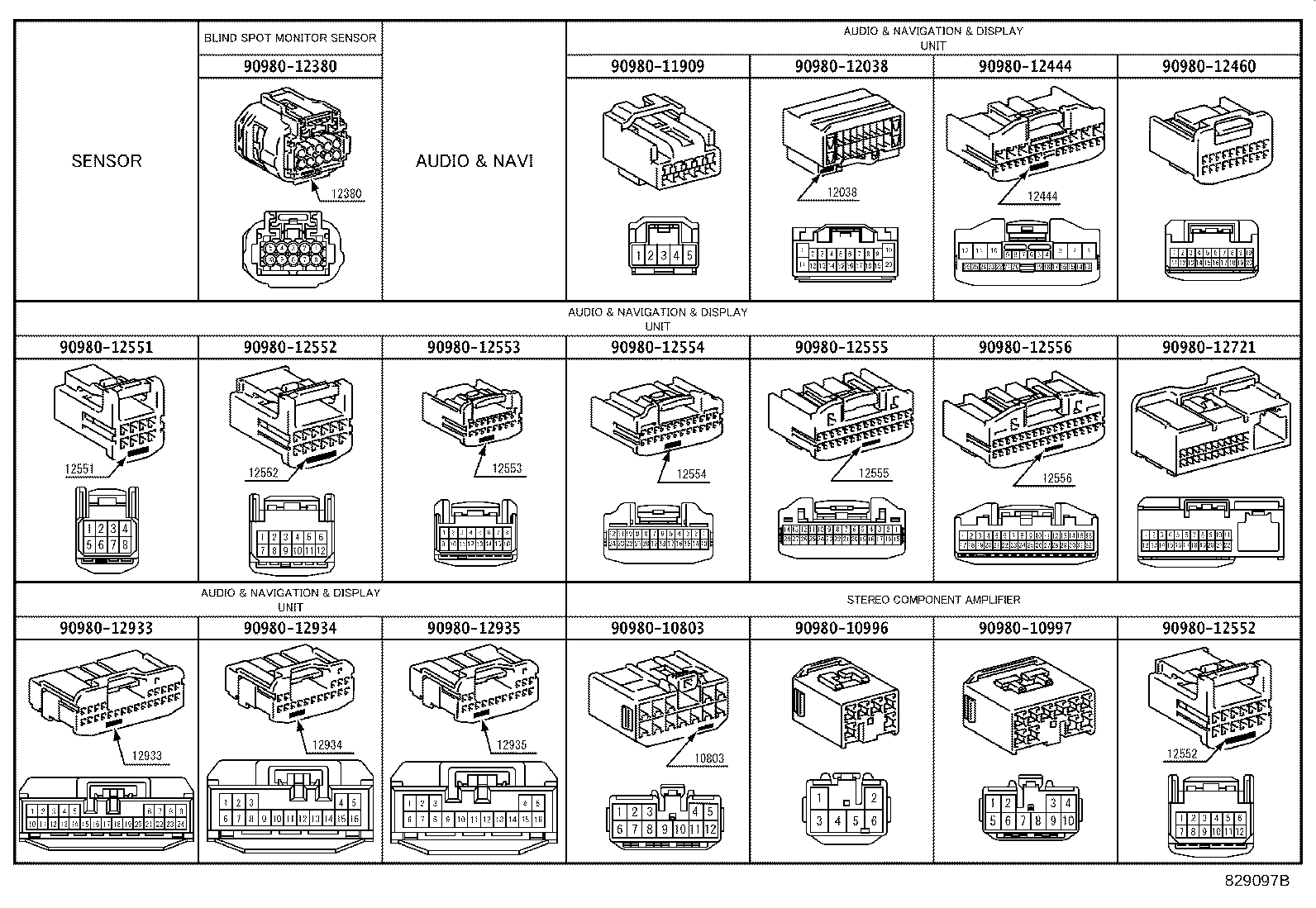

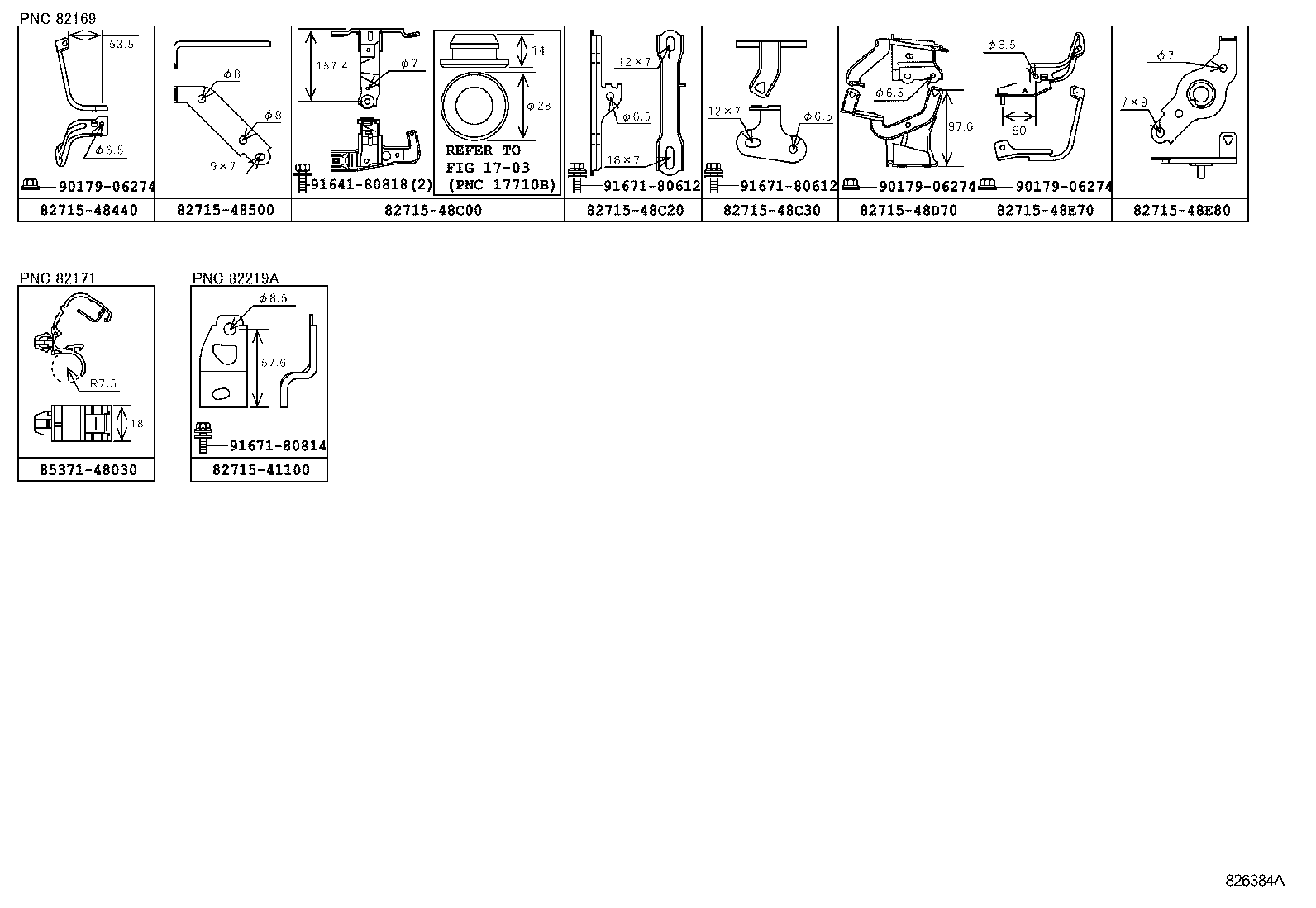

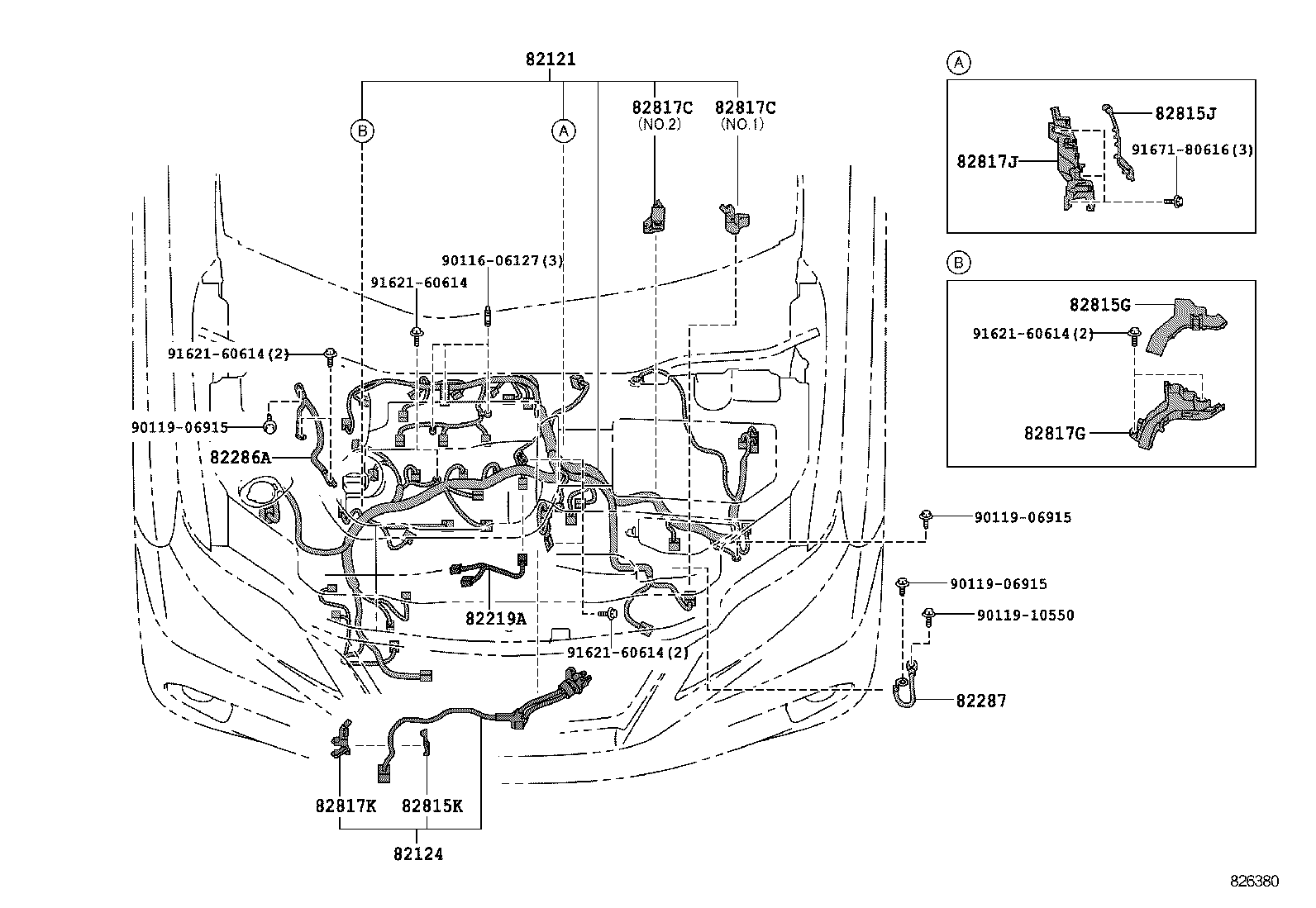

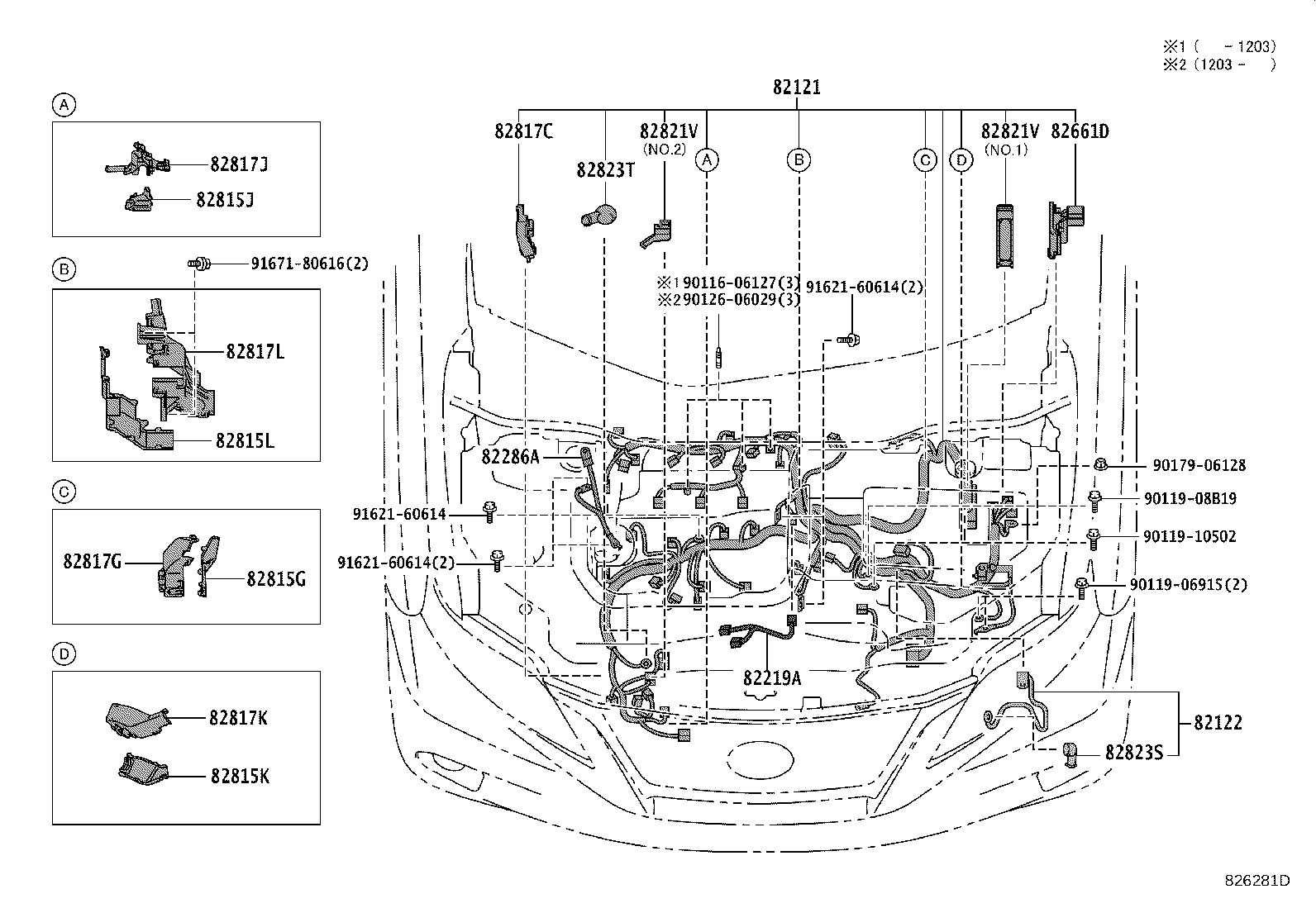

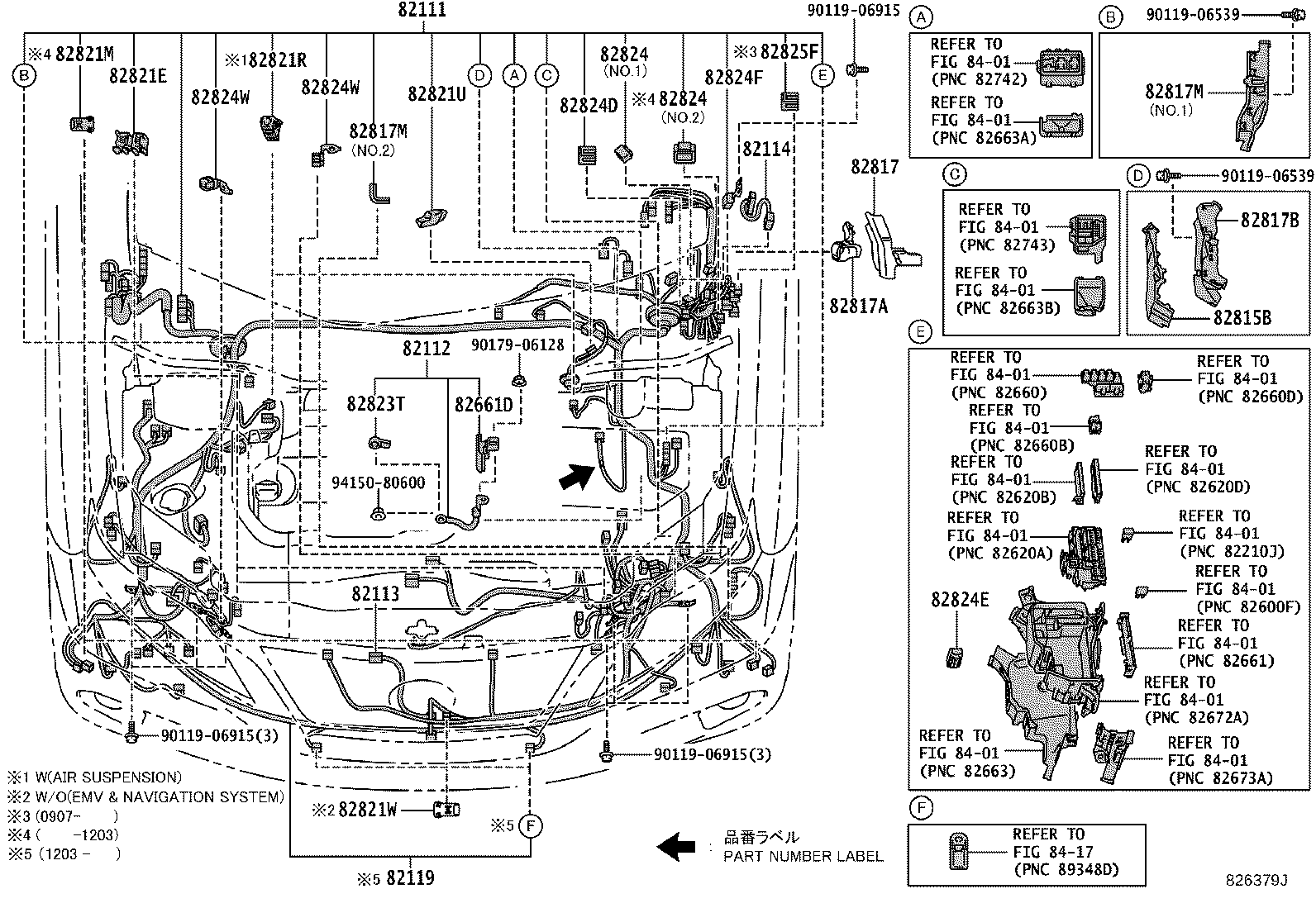

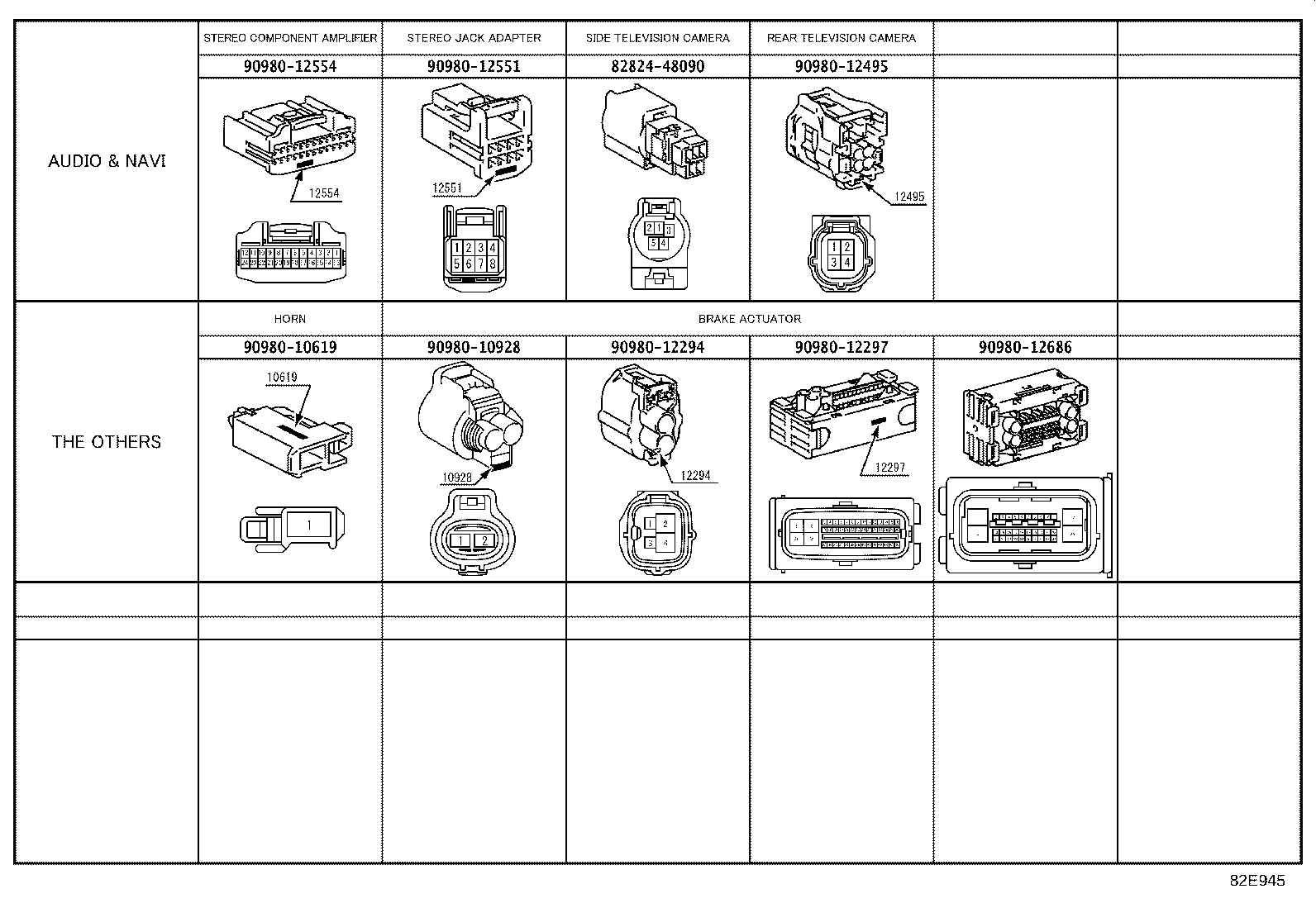

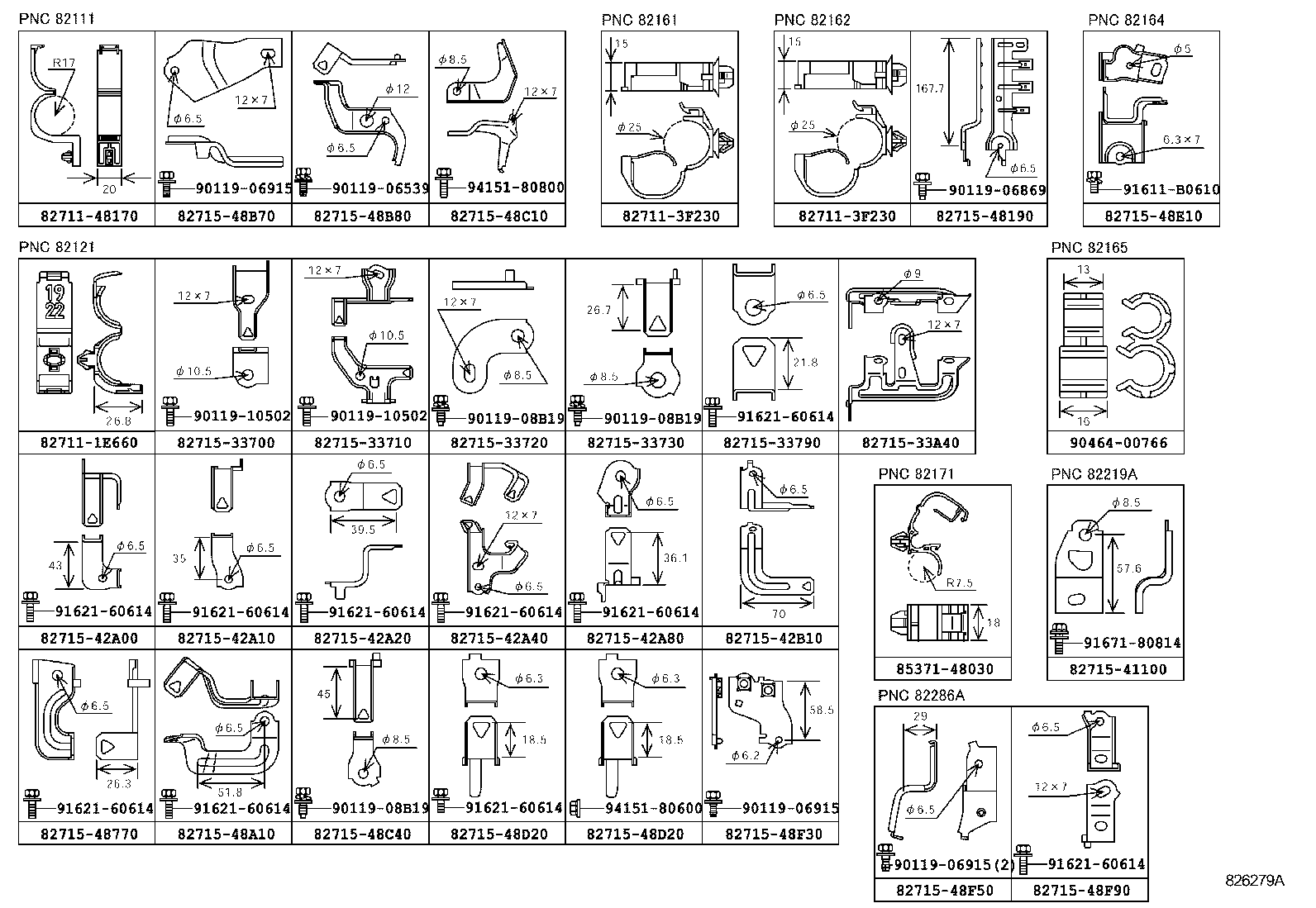

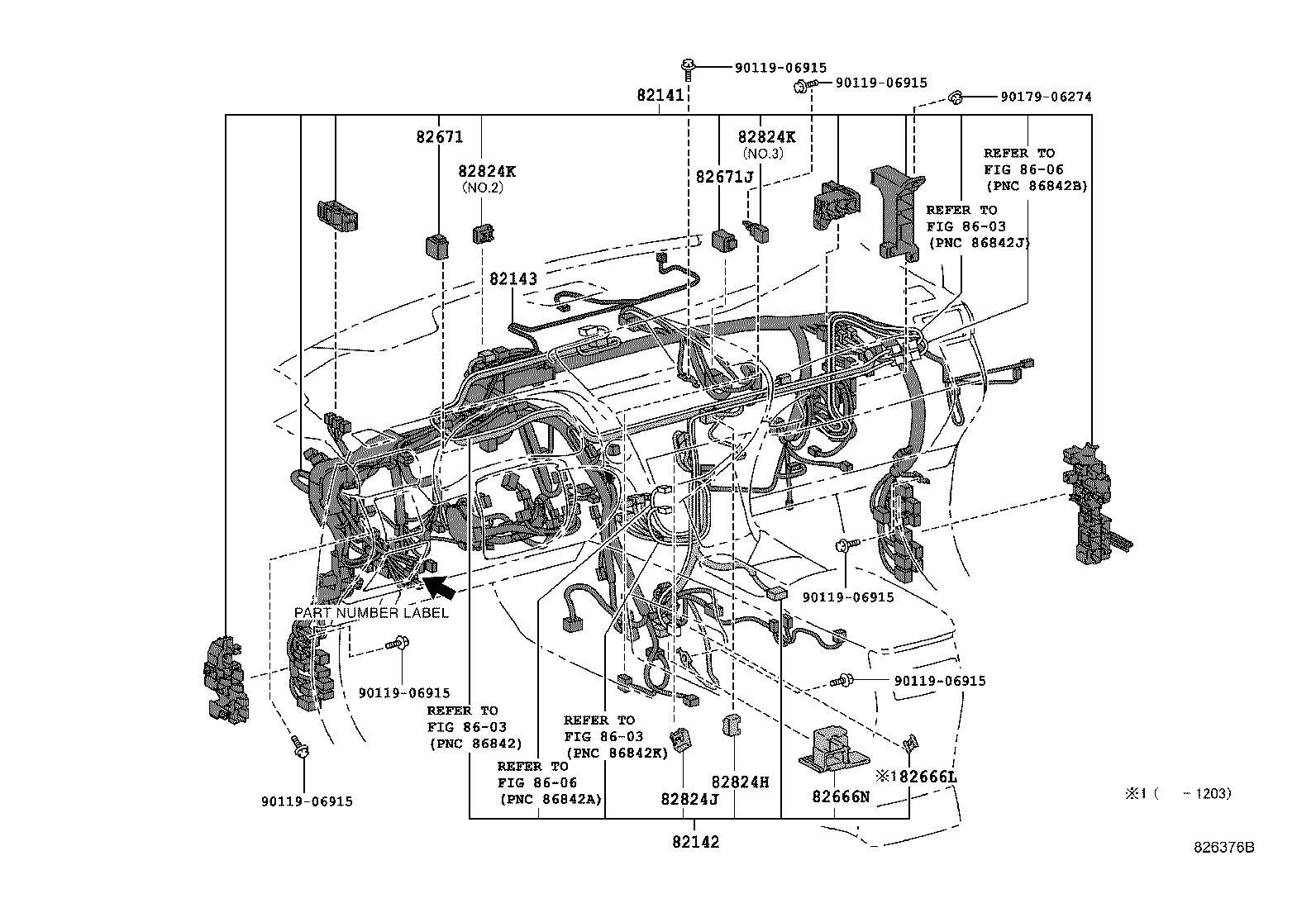

Figure 826277I 826277I 2008-12 → — Figure 826379J 826379J 2009-03 → — Figure 826281D 826281D 2008-12 → — Figure 826380 826380 2009-03 → — Figure 826278E 826278E 2008-12 → — Figure 826376B 826376B 2009-03 → — Figure 82F625 82F625 2008-12 → — Figure 826312D 826312D 2008-12 → — Figure 826423B 826423B 2009-03 → — Figure 826382A 826382A 2009-03 → — Figure 826216 826216 2008-12 → — Figure 826279A 826279A 2008-12 → — Figure 826383B 826383B 2009-03 → — Figure 826384A 826384A 2009-03 → — Figure 826472D 826472D 2008-12 → — Figure 826474D 826474D 2008-12 → — Figure 829097B 829097B 2008-12 → — Figure 82E945 82E945 2008-12 → —

Part groups

PNCDescription
82090A Wire Assy, Extension
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82119 Wire, Sensor
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82155 Wire, Center Piller, NO.1
82156 Wire, Slide Door
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82176 Wire, Rear Console Box
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82219A Wire, Sensor
82286A Wire, Earth, NO.2
82287 Wire, Earth, NO.3
82413A Wire, Fuel Tank
82661D Cover, Relay Block, Side NO.1
82661E Cover, Relay Block, Side NO.2
82666E Holder, Connector NO.6
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82671 Block, Junction
82671J Block, Junction, NO.2
82671K Block, Junction, NO.3
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82821E Cover, Connector
82821M Cover, Connector
82821R Cover, Connector
82821U Cover, Connector
82821V Cover, Connector
82821W Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824H Connector, Wiring Harness
82824J Connector, Wiring Harness
82824K Connector, Wiring Harness
82824N Connector, Wiring Harness
82824P Connector, Wiring Harness
82824S Connector, Wiring Harness
82824T Connector, Wiring Harness
82824W Connector, Wiring Harness
82825C Connector, Wiring Harness
82825D Connector, Wiring Harness
82825E Connector, Wiring Harness
82825F Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
