Toyota Lexus RX350/450H(Jpp

2008-12 → 2015-09 · chassis GGL1#,GYL1# · catalogue 521430 · United States

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

15 part groups · 9 illustrations

Illustrations

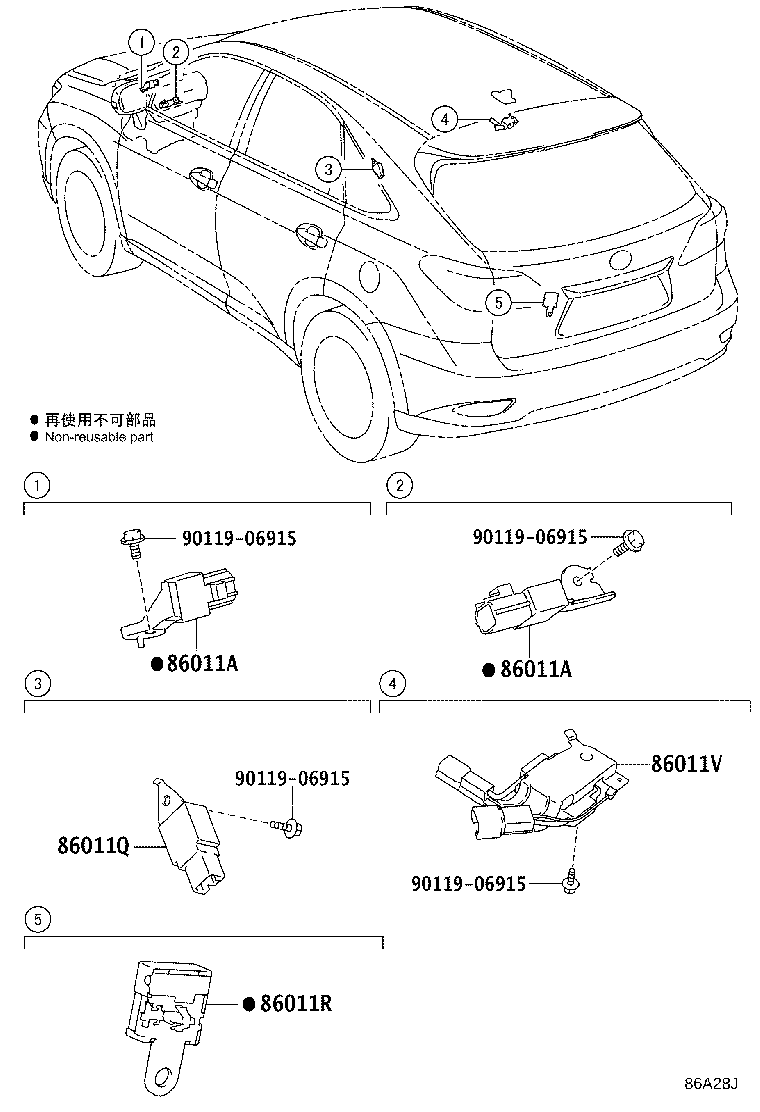

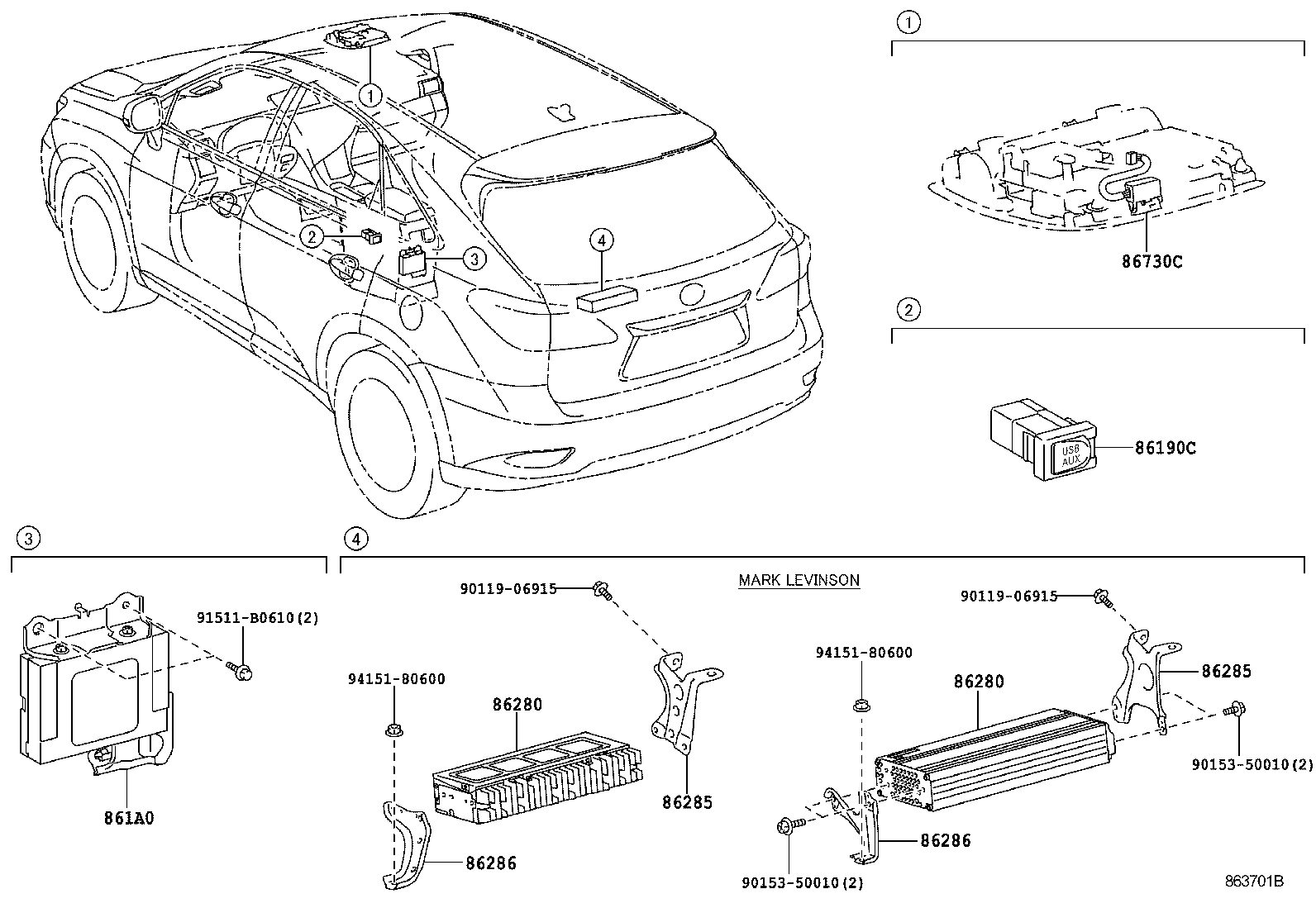

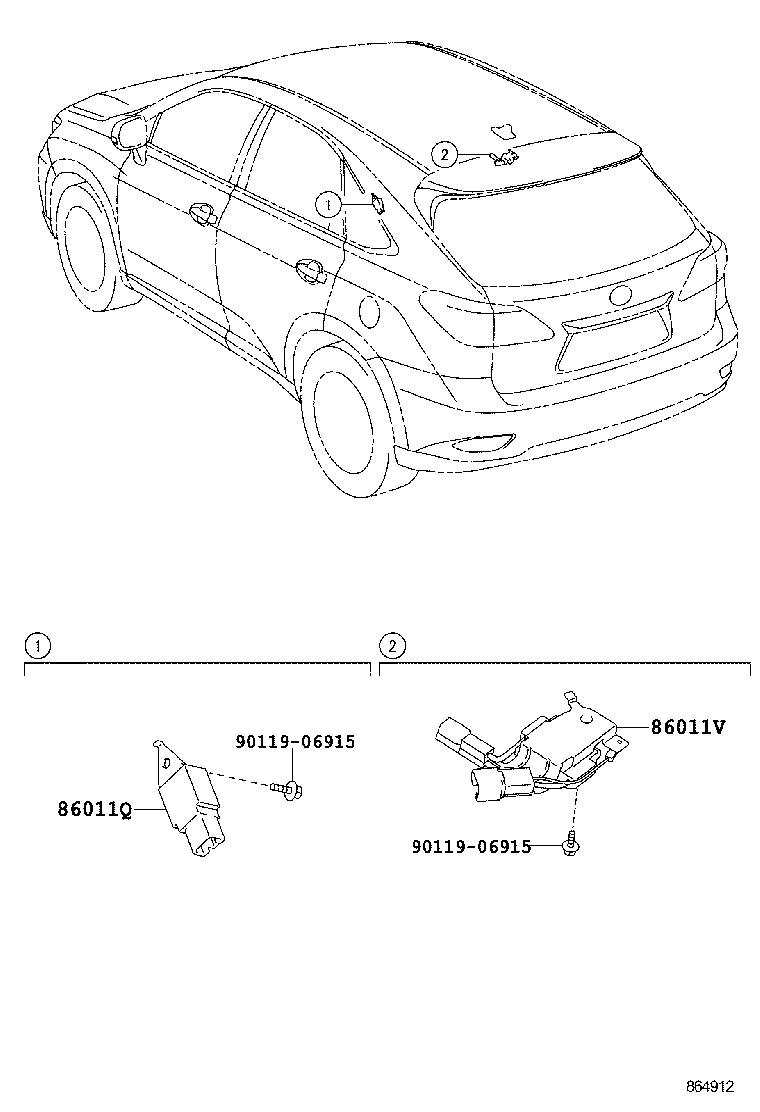

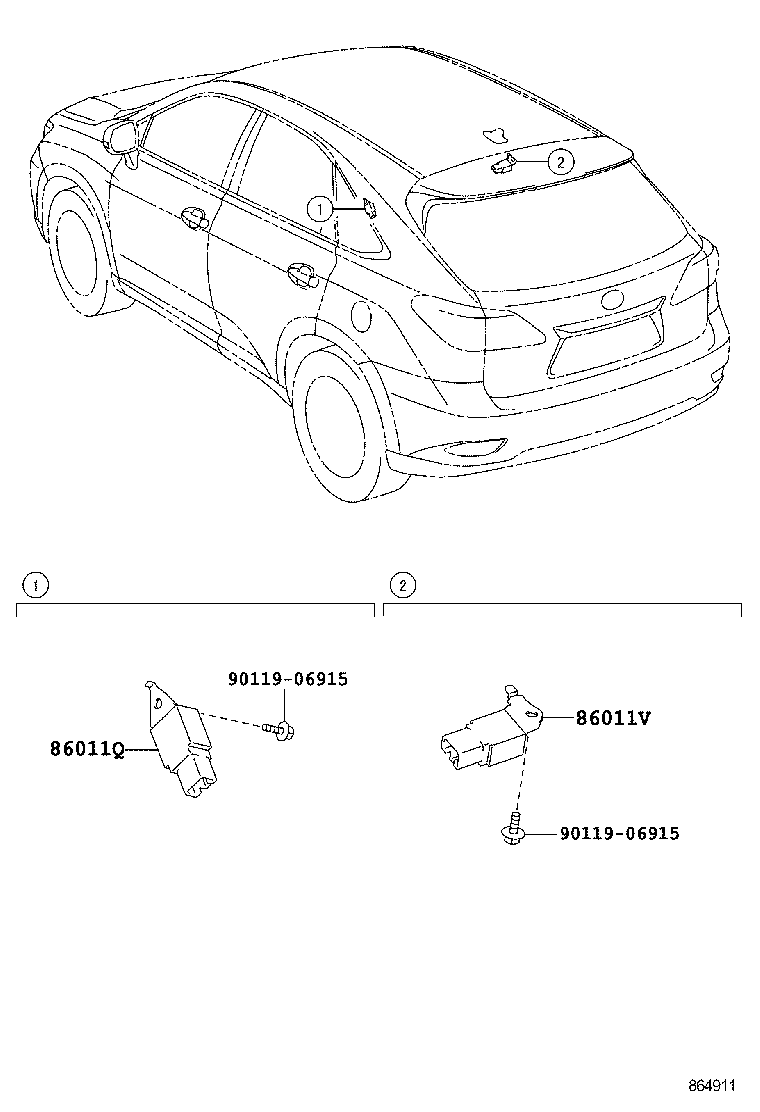

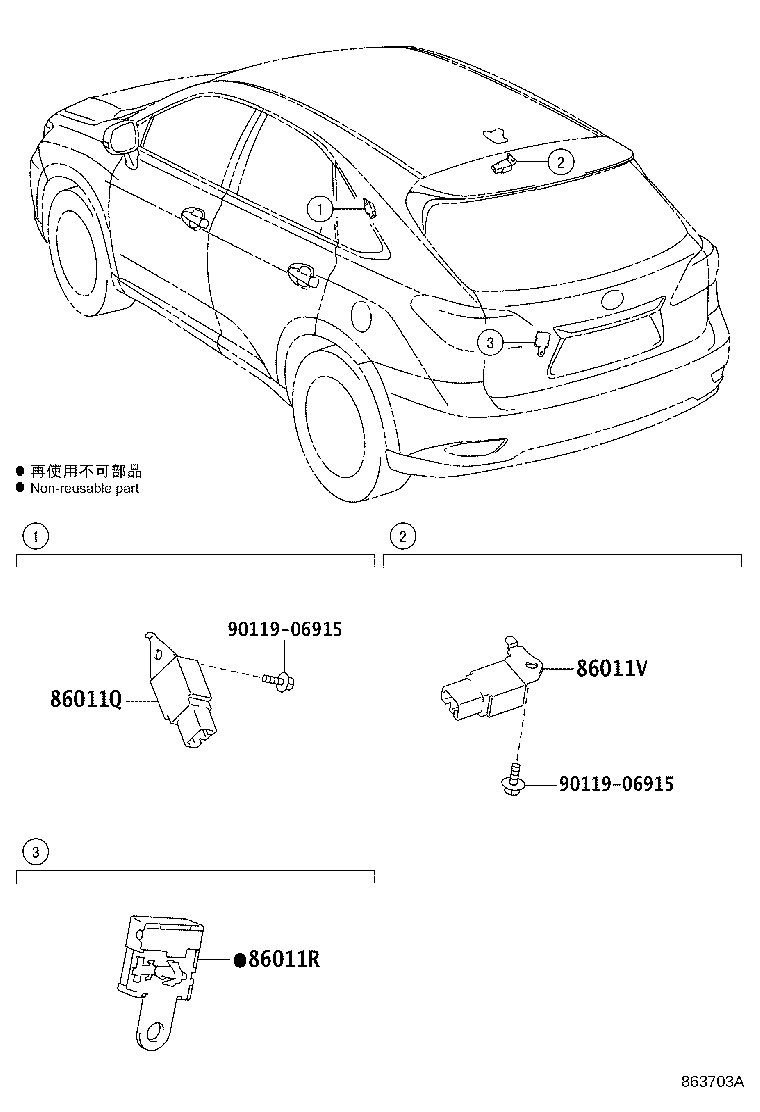

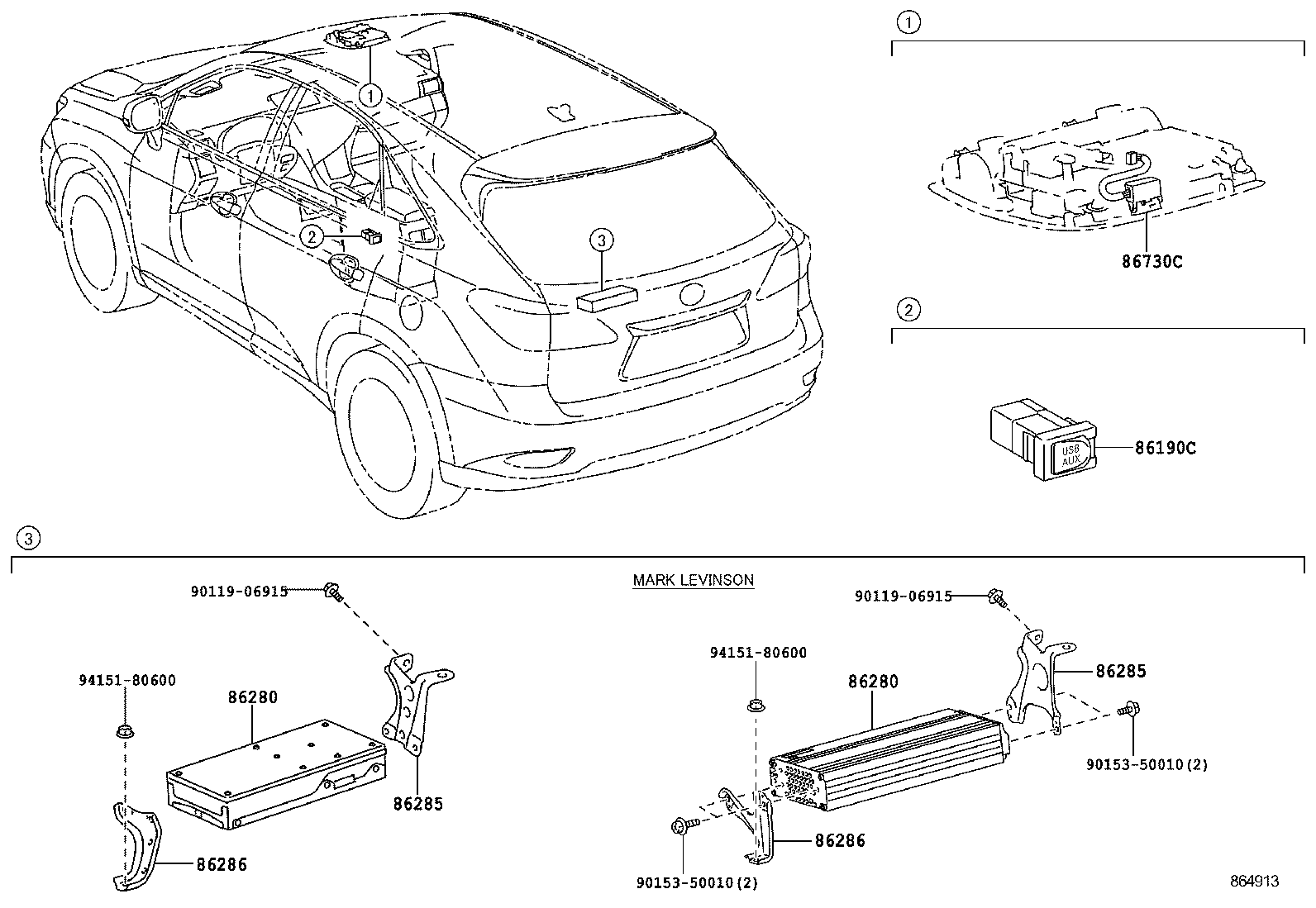

Figure 864898D 864898D 2008-12 → — Figure 863653A 863653A 2008-12 → — Figure 864899 864899 2012-03 → — Figure 863701B 863701B 2008-12 → 2012-03 Figure 864913 864913 2012-03 → — Figure 863703A 863703A 2008-12 → 2012-03 Figure 864911 864911 2012-03 → — Figure 86A28J 86A28J 2009-03 → 2012-03 Figure 864912 864912 2012-03 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011Q Condenser, Radio Setting
86011R Condenser, Radio Setting
86011V Condenser, Radio Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86130A Receiver Assy, Multi-media Module
86190C Adapter Assy, Stereo Jack, NO.1
861A0 Computer Assy, Multi-media Interface
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
86730C Microphone Assy, Telephone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
