Toyota Lexus RX350/450H(Jpp
2008-12 → 2015-09 · chassis GGL1#,GYL1# · catalogue 521430 · United States
Supported model
Data version 2016-03

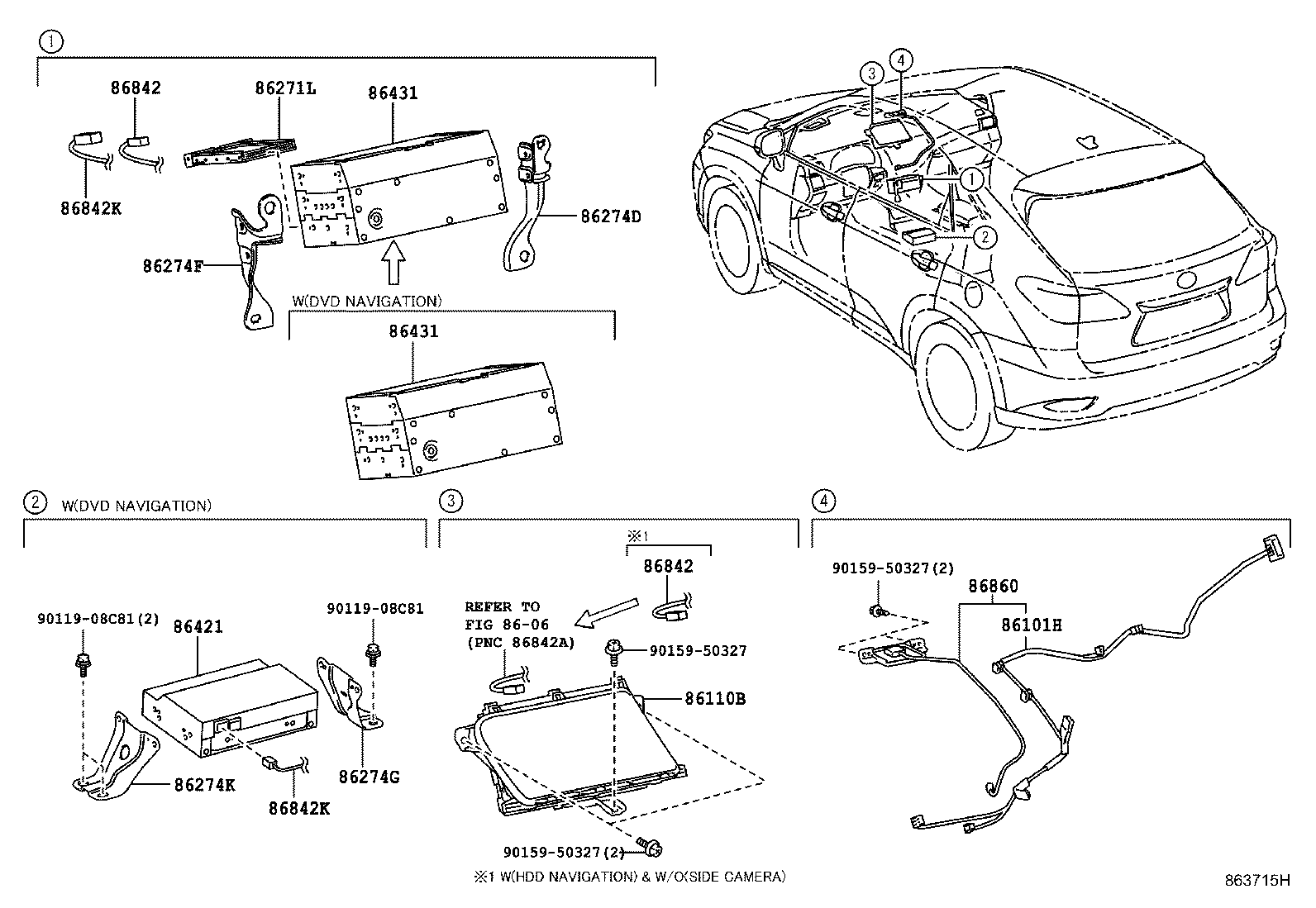

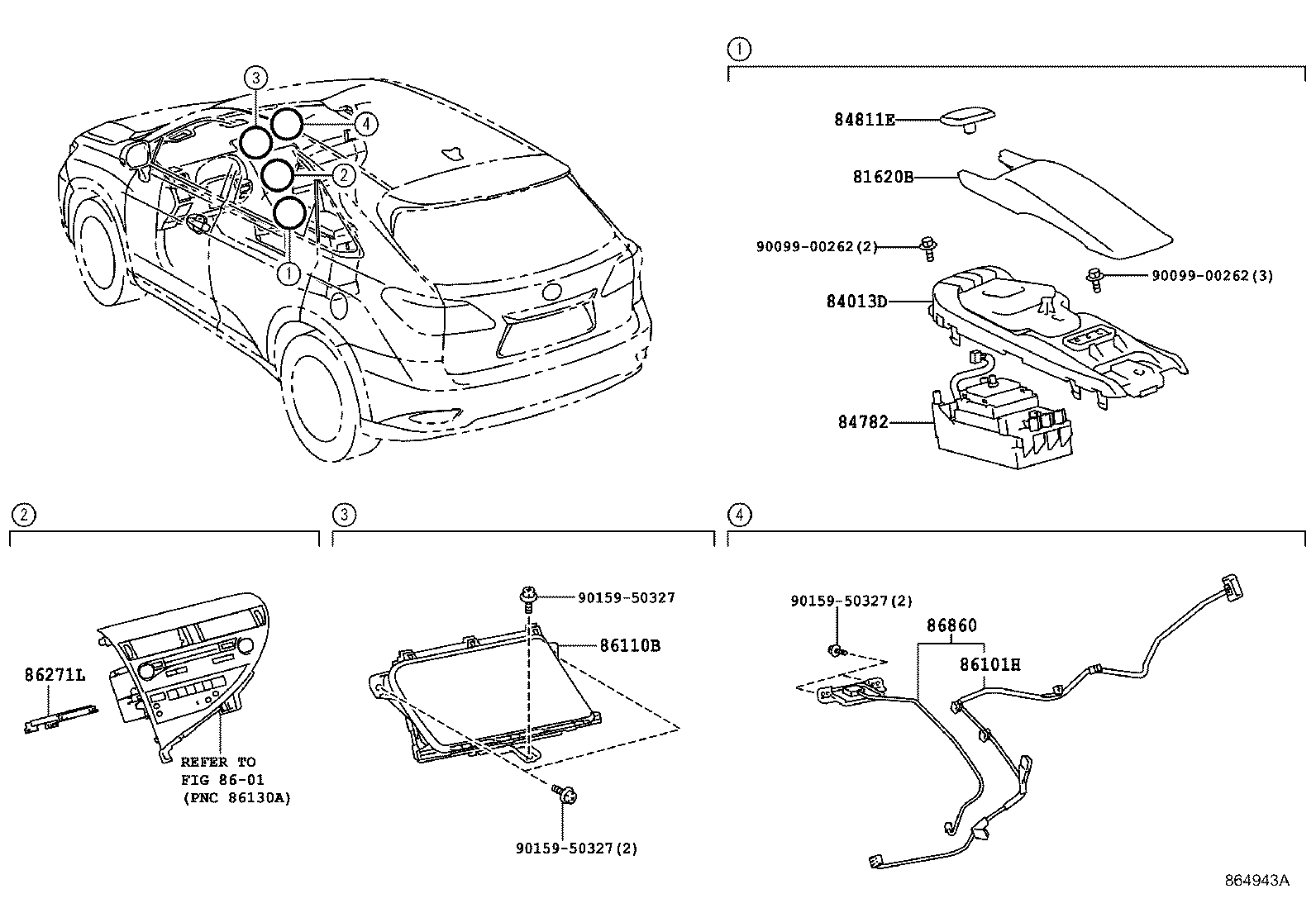

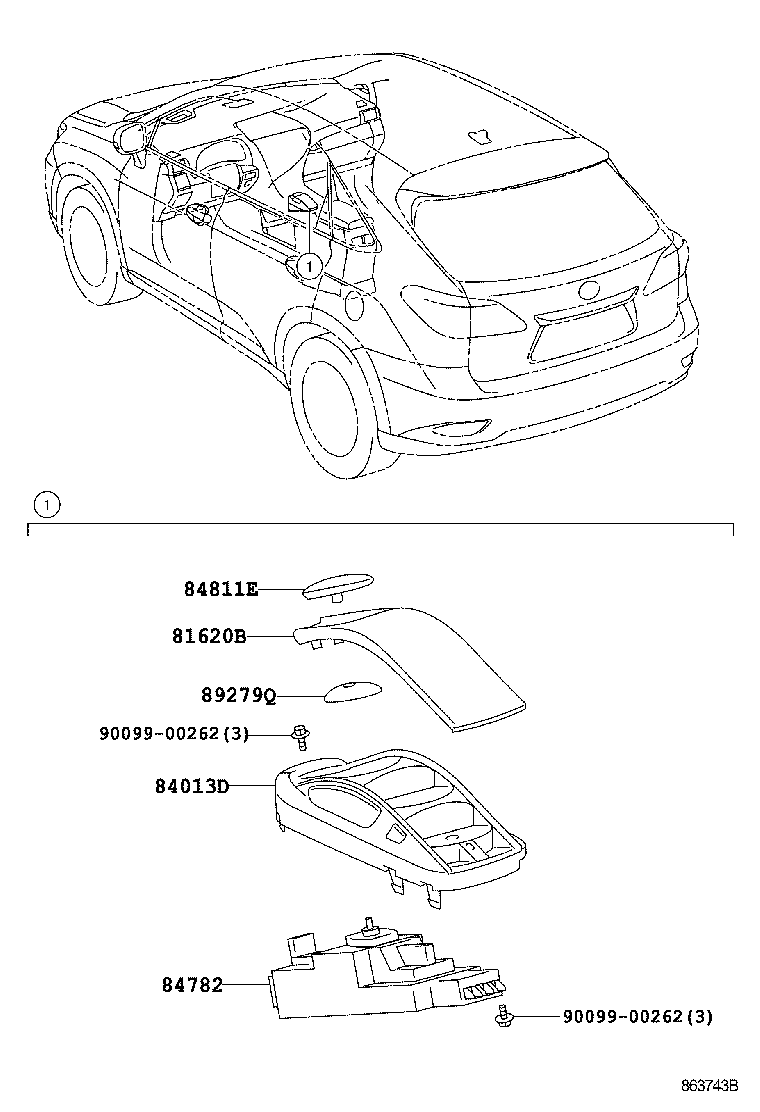

Navigation & Front Monitor Display
19 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 81620B | Cover Assy LH |
| 83290J | Meter Assy, Accessory |
| 84013D | Panel Sub-assy, Integration |
| 84782 | Board, Remote Operation |
| 84811E | Knob, Switch |
| 86101H | Cord Sub-assy, Antenna |
| 86110B | Multi-display Assy |
| 86271L | Hard Disc |
| 86274D | Bracket, Disc Player |
| 86274F | Bracket, Disc Player, NO.2 |
| 86274G | Bracket, Disc Player, NO.3 |
| 86274K | Bracket, Disc Player, NO.4 |
| 86421 | Board, Navigation Module |
| 86431 | Display, Display & Navigation Module |

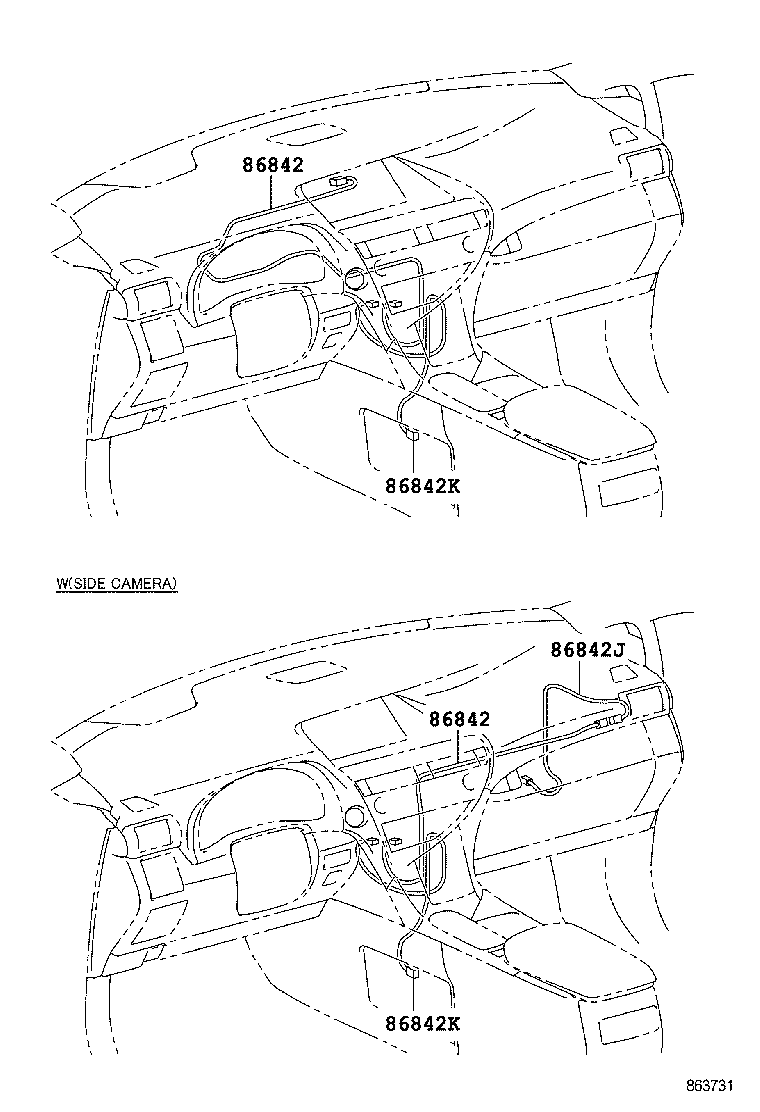

| 86842 | Wire, Navigation, NO.1 |
| 86842J | Wire, Navigation, NO.2 |
| 86842K | Wire, Navigation, NO.3 |
| 86860 | Antenna Assy, Navigation |
| 89279Q | Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
