Toyota Lexus RX450H/350(Jpp

2015-09 → 2022-09 · chassis GGL25,GYL25 · catalogue 521450 · United States

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

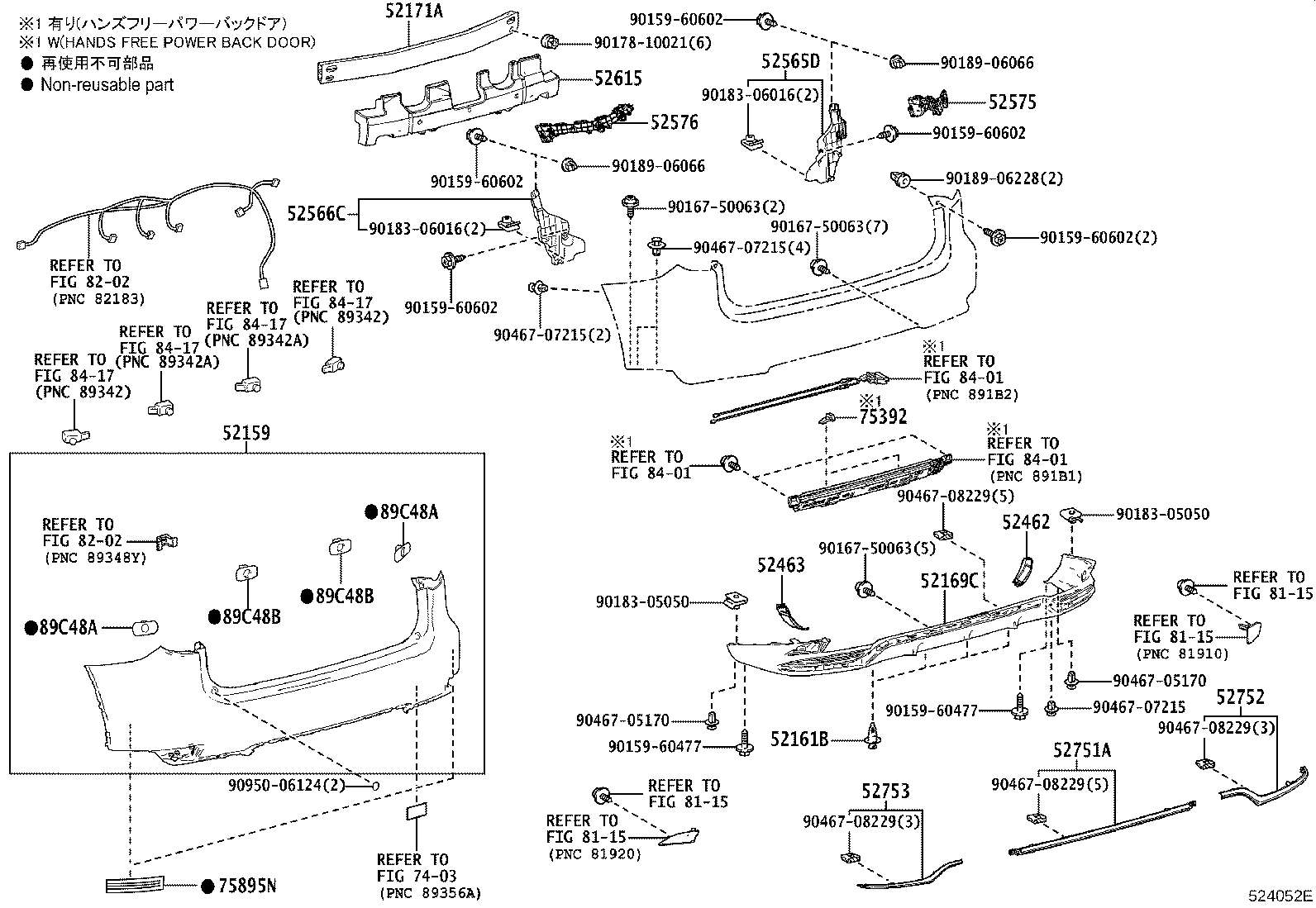

Exploded illustration 524052E 8417 — not listed in this catalogue 8417 — not listed in this catalogue 8417 — not listed in this catalogue 8202 — not listed in this catalogue 8202 — not listed in this catalogue 8417 — not listed in this catalogue 8401 — not listed in this catalogue 8115 — not listed in this catalogue 8115 — not listed in this catalogue 8401 — not listed in this catalogue 8115 — not listed in this catalogue 75895N — TAPE, MOULDING, NO.1 (1 parts) 52565D — RETAINER, REAR BUMPER, LOWER RH (2 parts) 9018306016 — not listed in this catalogue 52566C — RETAINER, REAR BUMPER, LOWER LH (2 parts) 9018306016 — not listed in this catalogue 52575 — RETAINER, REAR BUMPER SIDE, RH (2 parts) 52576 — RETAINER, REAR BUMPER SIDE, LH (2 parts) 9015960477 — not listed in this catalogue 9015960477 — not listed in this catalogue 9015960602 — not listed in this catalogue 9018906228 — not listed in this catalogue 9015960602 — not listed in this catalogue 9015960602 — not listed in this catalogue 9018906066 — not listed in this catalogue 9015960602 — not listed in this catalogue 9018906066 — not listed in this catalogue 9015960602 — not listed in this catalogue 9046707215 — not listed in this catalogue 52159 — COVER, REAR BUMPER (10 parts) 9095006124 — not listed in this catalogue 9046707215 — not listed in this catalogue 9016750063 — not listed in this catalogue 9016750063 — not listed in this catalogue 52615 — ABSORBER, REAR BUMPER ENERGY (4 parts) 9017810021 — not listed in this catalogue 52171A — REINFORCEMENT, REAR BUMPER, NO.1 (4 parts) 75392 — RETAINER, OUTSIDE MOULDING (3 parts) 52161B — PIECE, REAR BUMPER (2 parts) 7403 — not listed in this catalogue 8401 — not listed in this catalogue 8115 — not listed in this catalogue 9018305050 — not listed in this catalogue 9018305050 — not listed in this catalogue 52462 — PAD, REAR BUMPER, RH (1 parts) 52752 — MOULDING, REAR BUMPER SIDE, RH (2 parts) 52751A — MOULDING, REAR BUMPER, CENTER (2 parts) 52463 — PAD, REAR BUMPER, LH (1 parts) 52169C — COVER, REAR BUMPER, LOWER (1 parts) 9046708229 — not listed in this catalogue 9046708229 — not listed in this catalogue 9046708229 — not listed in this catalogue 52753 — MOULDING, REAR BUMPER SIDE, LH (2 parts) 9046708229 — not listed in this catalogue 9016750063 — not listed in this catalogue 9046705170 — not listed in this catalogue 9046705170 — not listed in this catalogue 9046707215 — not listed in this catalogue 89C48A — RETAINER, ULTRASONIC SENSOR, REAR CORNER (28 parts) 89C48A — RETAINER, ULTRASONIC SENSOR, REAR CORNER (28 parts) 89C48B — RETAINER, ULTRASONIC SENSOR, REAR CENTER (4 parts) 89C48B — RETAINER, ULTRASONIC SENSOR, REAR CENTER (4 parts)
524052E · 20 callouts, 42 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
73 parts on this figure
Part number Description Fitment Price
52159 — Cover, Rear Bumper
52159-48921 note Cover, Rear Bumper
2015-09 → 2016-01 ended
GGL25,GYL25 A —
52159-48921 note Cover, Rear Bumper
2015-09 → 2016-01 ended
GGL25 A —
52159-48924 note Cover, Rear Bumper
2015-09 → 2019-08 ended
GGL25,GYL25 A —
52159-48925 note Cover, Rear Bumper
2015-09 → 2016-01 ended
GGL25 B —
52159-48931 note Cover, Rear Bumper
2016-01 → 2019-08 ended
GGL25 A —
52159-48931 note Cover, Rear Bumper
2016-01 → 2019-08 ended
GGL25,GYL25 A —
52159-48931 note Cover, Rear Bumper
2016-08 → 2019-08 ended
GGL25 B —
52159-48932 note Cover, Rear Bumper
2016-01 → 2016-08 ended
GGL25 B —
52159-48949 note Cover, Rear Bumper
2019-08 → —
GGL25,GYL25 —
52159-48950 note Cover, Rear Bumper
2019-08 → —
GGL25,GYL25 —
52161B — Piece, Rear Bumper
52161-16010 Piece, Rear Bumper
2015-09 → 2019-08 ended
GGL25,GYL25 —
52161-16010 Piece, Rear Bumper
2019-08 → —
GGL25,GYL25 —
52169C — Cover, Rear Bumper, Lower
52169-48150 note Cover, Rear Bumper, Lower
2019-08 → —
GYL25 —
52171A — Reinforcement, Rear Bumper, NO.1
52171-0E120 Reinforcement, Rear Bumper, NO.1
2015-09 → 2019-08 ended
GGL25 B —
52171-48220 Reinforcement, Rear Bumper, NO.1
2015-09 → 2019-08 ended
GGL25,GYL25 A —
52171-0E120 Reinforcement, Rear Bumper, NO.1
2019-08 → —
GGL25 B —
52171-48220 Reinforcement, Rear Bumper, NO.1
2019-08 → —
GGL25,GYL25 A —
52462 — Pad, Rear Bumper, RH
52462-48020 Pad, Rear Bumper, RH
2019-08 → —
GYL25 —
52463 — Pad, Rear Bumper, LH
52463-48010 Pad, Rear Bumper, LH
2019-08 → —
GYL25 —
52565D — Retainer, Rear Bumper, Lower RH
52565-48040 Retainer, Rear Bumper, Lower RH
2015-09 → 2019-08 ended
GGL25,GYL25 —
52565-48040 Retainer, Rear Bumper, Lower RH
2019-08 → —
GGL25,GYL25 —
52566C — Retainer, Rear Bumper, Lower LH
52566-48030 Retainer, Rear Bumper, Lower LH
2015-09 → 2019-08 ended
GGL25,GYL25 —
52566-48030 Retainer, Rear Bumper, Lower LH
2019-08 → —
GGL25,GYL25 —
52575 — Retainer, Rear Bumper Side, RH
52575-48050 Retainer, Rear Bumper Side, RH
2015-09 → 2019-08 ended
GGL25,GYL25 —
52575-48050 Retainer, Rear Bumper Side, RH
2019-08 → —
GGL25,GYL25 —
52576 — Retainer, Rear Bumper Side, LH
52576-48050 Retainer, Rear Bumper Side, LH
2015-09 → 2019-08 ended
GGL25,GYL25 —
52576-48050 Retainer, Rear Bumper Side, LH
2019-08 → —
GGL25,GYL25 —
52615 — Absorber, Rear Bumper Energy
52615-48181 Absorber, Rear Bumper Energy
2015-09 → 2019-08 ended
GGL25,GYL25 A —
52615-48211 Absorber, Rear Bumper Energy
2015-09 → 2019-08 ended
GGL25 B —
52615-48280 Absorber, Rear Bumper Energy
2019-08 → —
GGL25,GYL25 A —
52615-48300 Absorber, Rear Bumper Energy
2019-08 → —
GGL25 B —
52751A — Moulding, Rear Bumper, Center
52751-48070 Moulding, Rear Bumper, Center
2019-08 → —
GYL25 —
52751-48090 note Moulding, Rear Bumper, Center
2019-08 → —
GYL25 —
52752 — Moulding, Rear Bumper Side, RH
52752-48010 Moulding, Rear Bumper Side, RH
2019-08 → —
GYL25 —
52752-48050 note Moulding, Rear Bumper Side, RH
2019-08 → —
GYL25 —
52753 — Moulding, Rear Bumper Side, LH
52753-48010 Moulding, Rear Bumper Side, LH
2019-08 → —
GYL25 —
52753-48050 note Moulding, Rear Bumper Side, LH
2019-08 → —
GYL25 —
75392 — Retainer, Outside Moulding
75392-35220 Retainer, Outside Moulding
2015-09 → 2019-08 ended
GGL25,GYL25 —
75392-35220 note Retainer, Outside Moulding
2019-08 → 2021-07 ended
GGL25 A —
75392-35220 note Retainer, Outside Moulding
2019-08 → —
GGL25,GYL25 —
75895N — Tape, Moulding, NO.1
75895-53010 Tape, Moulding, NO.1
2019-08 → —
GGL25,GYL25 —
89C48A — Retainer, Ultrasonic Sensor, Rear Corner
89348-48020-A0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-09 → 2019-08 ended
GGL25,GYL25 A —
89348-48020-A1 note Retainer, Ultrasonic Sensor, Rear Corner
2015-09 → 2019-08 ended
GGL25 B —
89348-48020-A1 note Retainer, Ultrasonic Sensor, Rear Corner
2015-09 → 2019-08 ended
GGL25,GYL25 A —
89348-48020-B0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-09 → 2019-08 ended
GGL25,GYL25 A —
89348-48020-B2 note Retainer, Ultrasonic Sensor, Rear Corner
2015-09 → 2019-08 ended
GGL25,GYL25 A —
89348-48020-B2 note Retainer, Ultrasonic Sensor, Rear Corner
2015-09 → 2019-08 ended
GGL25,GYL25 A —
89348-48020-B2 note Retainer, Ultrasonic Sensor, Rear Corner
2015-09 → 2019-08 ended
GGL25 B —
89348-48020-B3 note Retainer, Ultrasonic Sensor, Rear Corner
2015-09 → 2019-08 ended
GGL25 B —
89348-48020-B3 note Retainer, Ultrasonic Sensor, Rear Corner
2015-09 → 2019-08 ended
GGL25,GYL25 A —
89348-48020-B3 note Retainer, Ultrasonic Sensor, Rear Corner
2015-09 → 2019-08 ended
GGL25,GYL25 A —
89348-48020-C0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-09 → 2019-08 ended
GGL25 B —
89348-48020-C0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-09 → 2019-08 ended
GGL25,GYL25 A —
89348-48020-C0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-09 → 2019-08 ended
GGL25,GYL25 A —
89348-48020-C1 note Retainer, Ultrasonic Sensor, Rear Corner
2015-09 → 2019-08 ended
GGL25,GYL25 A —
89348-48020-C1 note Retainer, Ultrasonic Sensor, Rear Corner
2015-09 → 2019-08 ended
GGL25 B —
89348-48020-C1 note Retainer, Ultrasonic Sensor, Rear Corner
2015-09 → 2019-08 ended
GGL25,GYL25 A —
89348-48020-D0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-09 → 2019-08 ended
GGL25 B —
89348-48020-D0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-09 → 2019-08 ended
GGL25,GYL25 A —
89348-48020-D0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-09 → 2019-08 ended
GGL25,GYL25 A —
89348-48020-E0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-09 → 2019-08 ended
GGL25 B —
89348-48020-E0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-09 → 2019-08 ended
GGL25,GYL25 A —
89348-48020-E1 note Retainer, Ultrasonic Sensor, Rear Corner
2015-09 → 2019-01 ended
GGL25 B —
89348-48020-E1 note Retainer, Ultrasonic Sensor, Rear Corner
2015-09 → 2019-08 ended
GGL25,GYL25 A —
89348-48020-J0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-09 → 2019-08 ended
GGL25 B —
89348-48020-J0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-09 → 2019-08 ended
GGL25,GYL25 A —
89348-48020-J0 note Retainer, Ultrasonic Sensor, Rear Corner
2015-09 → 2019-08 ended
GGL25,GYL25 A —
89348-48020-J1 note Retainer, Ultrasonic Sensor, Rear Corner
2016-08 → 2019-08 ended
GGL25,GYL25 A —
89348-50130 Retainer, Ultrasonic Sensor, Rear Corner
2019-08 → —
GGL25,GYL25 —
89C48B — Retainer, Ultrasonic Sensor, Rear Center
89348-48010 Retainer, Ultrasonic Sensor, Rear Center
2015-09 → 2019-08 ended
GGL25 B —
89348-48010 note Retainer, Ultrasonic Sensor, Rear Center
2015-09 → 2019-08 ended
GGL25,GYL25 A —
89348-48010 note Retainer, Ultrasonic Sensor, Rear Center
2015-09 → 2019-08 ended
GGL25,GYL25 A —
89348-50130 Retainer, Ultrasonic Sensor, Rear Center
2019-08 → —
GGL25,GYL25 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
