Toyota Lexus RX450H/350(Jpp

2015-09 → 2022-09 · chassis GGL25,GYL25 · catalogue 521450 · United States

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

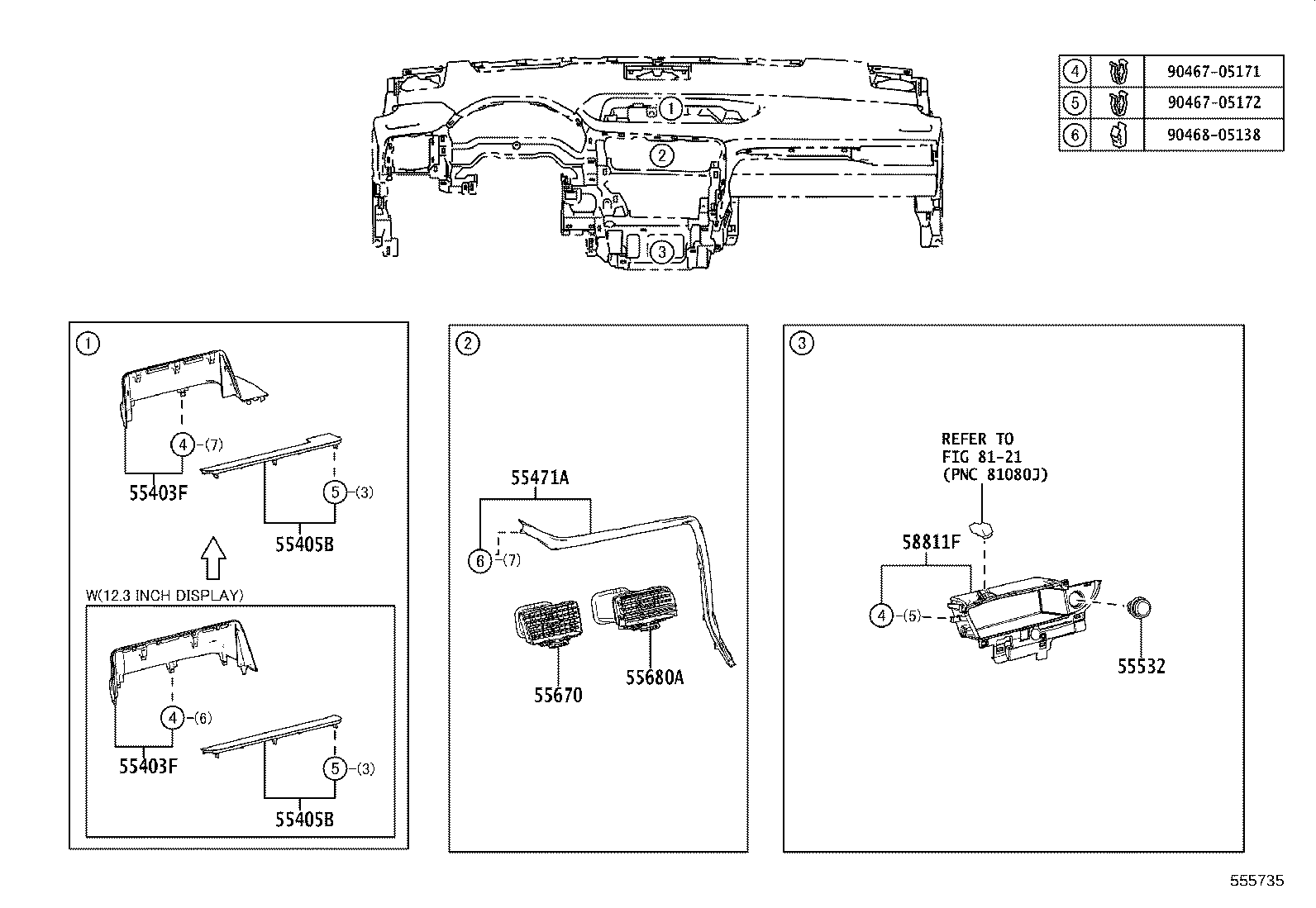

Exploded illustration 555735 58811F — BOX, CONSOL (4 parts) 9046705172 — not listed in this catalogue 9046705171 — not listed in this catalogue 9046805138 — not listed in this catalogue 55403F — PANEL SUB-ASSY, INSTRUMENT PANEL FINISH (10 parts) 55403F — PANEL SUB-ASSY, INSTRUMENT PANEL FINISH (10 parts) 55405B — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER (17 parts) 55405B — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER (17 parts) 55471A — ORNAMENT, INSTRUMENT CLUSTER FINISH PANEL (2 parts) 55532 — COVER, CIGAR LIGHTER HOLE (2 parts) 55670 — REGISTER ASSY, INSTRUMENT PANEL, NO.3 (2 parts) 55680A — REGISTER ASSY, INSTRUMENT PANEL, NO.4 (2 parts) 8121 — not listed in this catalogue
555735 · 9 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
39 parts on this figure
Part number Description Fitment Price
55403F — Panel Sub-assy, Instrument Panel Finish
55403-48090-C0 note Panel Sub-assy, Instrument Panel Finish
2015-09 → 2019-08 ended
GGL25 B —
55403-48090-E0 note Panel Sub-assy, Instrument Panel Finish
2015-09 → 2019-08 ended
GGL25 B —
55403-48100-C0 note Panel Sub-assy, Instrument Panel Finish
2015-09 → 2019-08 ended
GGL25 B —
55403-48100-C0 note Panel Sub-assy, Instrument Panel Finish
2015-09 → 2019-08 ended
GGL25,GYL25 A —
55403-48100-E0 note Panel Sub-assy, Instrument Panel Finish
2015-09 → 2019-08 ended
GGL25,GYL25 A —
55403-48100-E0 note Panel Sub-assy, Instrument Panel Finish
2015-09 → 2019-08 ended
GGL25 B —
55403-48130-C0 note Panel Sub-assy, Instrument Panel Finish
2019-08 → —
GGL25 B —
55403-48130-C0 note Panel Sub-assy, Instrument Panel Finish
2019-08 → —
GGL25,GYL25 A —
55403-48130-E0 note Panel Sub-assy, Instrument Panel Finish
2019-08 → —
GGL25 B —
55403-48130-E0 note Panel Sub-assy, Instrument Panel Finish
2019-08 → —
GGL25,GYL25 A —
55405B — Panel Sub-assy, Instrument Cluster Finish, Center
55405-48200-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2015-09 → 2019-08 ended
GGL25 B —
55405-48200-E0 note Panel Sub-assy, Instrument Cluster Finish, Center
2015-09 → 2019-08 ended
GGL25 B —
55405-48210-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2015-09 → 2019-08 ended
GGL25,GYL25 A —
55405-48210-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2015-09 → 2019-08 ended
GGL25 B —
55405-48210-E0 note Panel Sub-assy, Instrument Cluster Finish, Center
2015-09 → 2019-08 ended
GGL25,GYL25 A —
55405-48210-E0 note Panel Sub-assy, Instrument Cluster Finish, Center
2015-09 → 2019-08 ended
GGL25 B —
55405-48290-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2019-08 → 2020-07 ended
GGL25 B —
55405-48290-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2019-08 → 2020-07 ended
GGL25 A —
55405-48290-E0 note Panel Sub-assy, Instrument Cluster Finish, Center
2019-08 → 2020-07 ended
GGL25 A —
55405-48290-E0 note Panel Sub-assy, Instrument Cluster Finish, Center
2019-08 → 2020-07 ended
GGL25 B —
55405-48291-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2020-08 → —
GGL25 B —
55405-48291-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2020-08 → —
GGL25 A —
55405-48291-E0 note Panel Sub-assy, Instrument Cluster Finish, Center
2020-08 → —
GGL25 A —
55405-48300-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2019-08 → 2020-07 ended
GYL25 —
55405-48300-E0 note Panel Sub-assy, Instrument Cluster Finish, Center
2019-08 → 2020-07 ended
GYL25 —
55405-48301-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2020-08 → —
GYL25 —
55405-48301-E0 note Panel Sub-assy, Instrument Cluster Finish, Center
2020-08 → —
GYL25 —
55471A — Ornament, Instrument Cluster Finish Panel
55471-48040 Ornament, Instrument Cluster Finish Panel
2015-09 → 2019-08 ended
GGL25,GYL25 —
55471-48040 Ornament, Instrument Cluster Finish Panel
2019-08 → —
GGL25,GYL25 —
55532 — Cover, Cigar Lighter Hole
55532-48010 Cover, Cigar Lighter Hole
2015-09 → 2019-08 ended
GGL25,GYL25 —
55532-48010 Cover, Cigar Lighter Hole
2019-08 → —
GGL25,GYL25 —
55670 — Register Assy, Instrument Panel, NO.3
55670-48130 Register Assy, Instrument Panel, NO.3
2015-09 → 2019-08 ended
GGL25,GYL25 —
55670-48130 Register Assy, Instrument Panel, NO.3
2019-08 → —
GGL25,GYL25 —
55680A — Register Assy, Instrument Panel, NO.4
55680-48080 Register Assy, Instrument Panel, NO.4
2015-09 → 2019-08 ended
GGL25,GYL25 —
55680-48080 Register Assy, Instrument Panel, NO.4
2019-08 → —
GGL25,GYL25 —
58811F — Box, Consol
58813-48060 Box, Consol
2015-09 → 2019-08 ended
GGL25,GYL25 A —
58813-48060 note Box, Consol
2015-09 → 2019-08 ended
GGL25,GYL25 A —
58813-48090 Box, Consol
2015-09 → 2019-08 ended
GGL25 B —
58813-48050 Box, Consol
2019-08 → —
GGL25,GYL25 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
