Toyota Lexus RX450H/350(Jpp
2015-09 → 2022-09 · chassis GGL25,GYL25 · catalogue 521450 · United States
Supported model
Data version 2023-09

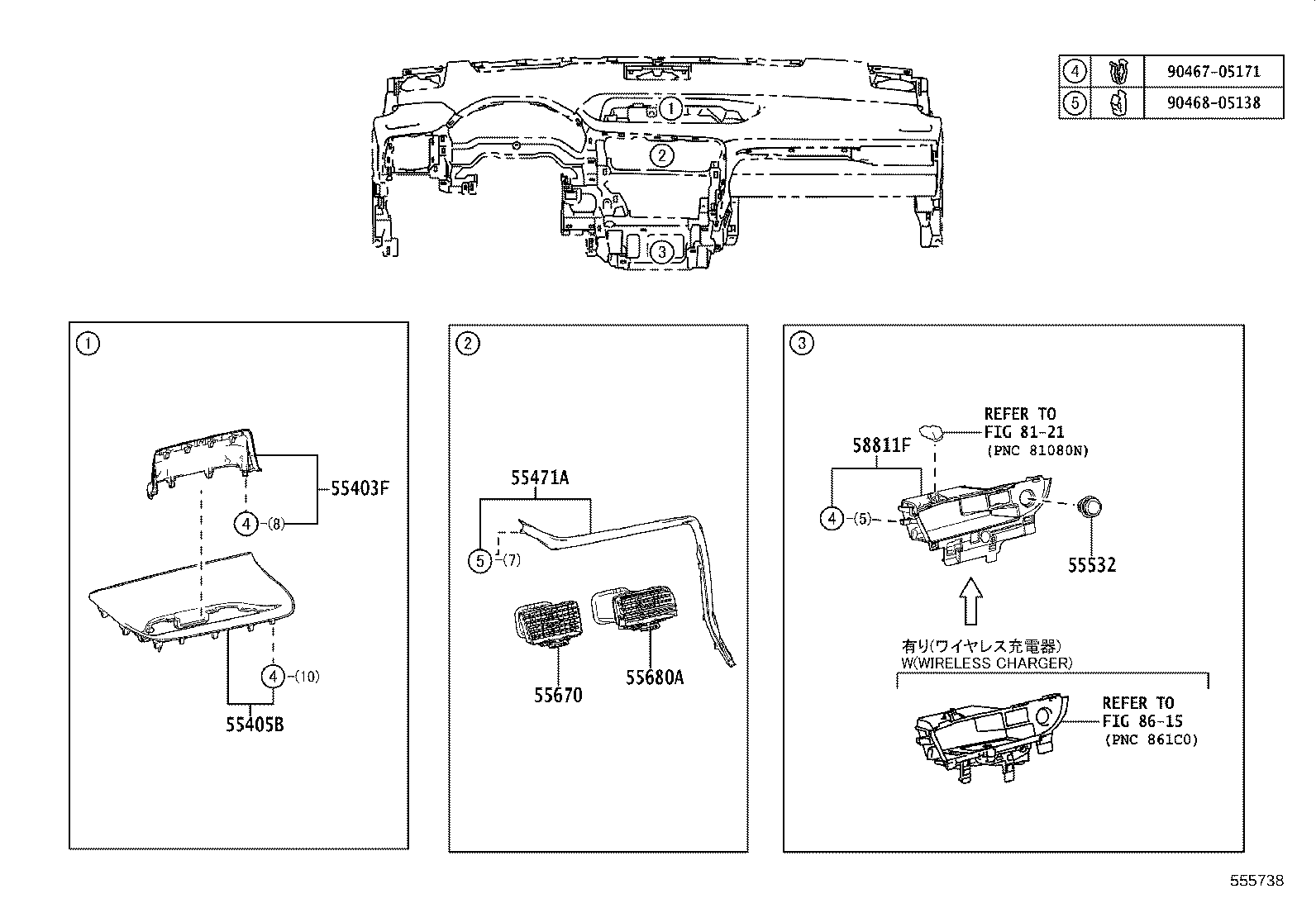

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55403F — Panel Sub-assy, Instrument Panel Finish | ||||
| 55403-48090-C0 note |
Panel Sub-assy, Instrument Panel Finish
2015-09 → 2019-08
ended
|
GGL25 B | — | |
| 55403-48090-E0 note |
Panel Sub-assy, Instrument Panel Finish
2015-09 → 2019-08
ended
|
GGL25 B | — | |
| 55403-48100-C0 note |
Panel Sub-assy, Instrument Panel Finish
2015-09 → 2019-08
ended
|
GGL25 B | — | |
| 55403-48100-C0 note |
Panel Sub-assy, Instrument Panel Finish
2015-09 → 2019-08
ended
|
GGL25,GYL25 A | — | |
| 55403-48100-E0 note |
Panel Sub-assy, Instrument Panel Finish
2015-09 → 2019-08
ended
|
GGL25,GYL25 A | — | |
| 55403-48100-E0 note |
Panel Sub-assy, Instrument Panel Finish
2015-09 → 2019-08
ended
|
GGL25 B | — | |
| 55403-48130-C0 note |
Panel Sub-assy, Instrument Panel Finish
2019-08 → —
|
GGL25 B | — | |
| 55403-48130-C0 note |
Panel Sub-assy, Instrument Panel Finish
2019-08 → —
|
GGL25,GYL25 A | — | |
| 55403-48130-E0 note |
Panel Sub-assy, Instrument Panel Finish
2019-08 → —
|
GGL25 B | — | |
| 55403-48130-E0 note |
Panel Sub-assy, Instrument Panel Finish
2019-08 → —
|
GGL25,GYL25 A | — | |
| 55405B — Panel Sub-assy, Instrument Cluster Finish, Center | ||||
| 55405-48200-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2015-09 → 2019-08
ended
|
GGL25 B | — | |
| 55405-48200-E0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2015-09 → 2019-08
ended
|
GGL25 B | — | |
| 55405-48210-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2015-09 → 2019-08
ended
|
GGL25,GYL25 A | — | |
| 55405-48210-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2015-09 → 2019-08
ended
|
GGL25 B | — | |
| 55405-48210-E0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2015-09 → 2019-08
ended
|
GGL25,GYL25 A | — | |
| 55405-48210-E0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2015-09 → 2019-08
ended
|
GGL25 B | — | |
| 55405-48290-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2019-08 → 2020-07
ended
|
GGL25 B | — | |
| 55405-48290-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2019-08 → 2020-07
ended
|
GGL25 A | — | |
| 55405-48290-E0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2019-08 → 2020-07
ended
|
GGL25 A | — | |
| 55405-48290-E0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2019-08 → 2020-07
ended
|
GGL25 B | — | |
| 55405-48291-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2020-08 → —
|
GGL25 B | — | |
| 55405-48291-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2020-08 → —
|
GGL25 A | — | |
| 55405-48291-E0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2020-08 → —
|
GGL25 A | — | |
| 55405-48300-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2019-08 → 2020-07
ended
|
GYL25 | — | |
| 55405-48300-E0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2019-08 → 2020-07
ended
|
GYL25 | — | |
| 55405-48301-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2020-08 → —
|
GYL25 | — | |
| 55405-48301-E0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2020-08 → —
|
GYL25 | — | |
| 55471A — Ornament, Instrument Cluster Finish Panel | ||||
| 55471-48040 |
Ornament, Instrument Cluster Finish Panel
2015-09 → 2019-08
ended
|
GGL25,GYL25 | — | |
| 55471-48040 |
Ornament, Instrument Cluster Finish Panel
2019-08 → —
|
GGL25,GYL25 | — | |
| 55532 — Cover, Cigar Lighter Hole | ||||
| 55532-48010 |
Cover, Cigar Lighter Hole
2015-09 → 2019-08
ended
|
GGL25,GYL25 | — | |
| 55532-48010 |
Cover, Cigar Lighter Hole
2019-08 → —
|
GGL25,GYL25 | — | |
| 55670 — Register Assy, Instrument Panel, NO.3 | ||||
| 55670-48130 |
Register Assy, Instrument Panel, NO.3
2015-09 → 2019-08
ended
|
GGL25,GYL25 | — | |
| 55670-48130 |
Register Assy, Instrument Panel, NO.3
2019-08 → —
|
GGL25,GYL25 | — | |
| 55680A — Register Assy, Instrument Panel, NO.4 | ||||
| 55680-48080 |
Register Assy, Instrument Panel, NO.4
2015-09 → 2019-08
ended
|
GGL25,GYL25 | — | |
| 55680-48080 |
Register Assy, Instrument Panel, NO.4
2019-08 → —
|
GGL25,GYL25 | — | |
| 58811F — Box, Consol | ||||
| 58813-48060 |
Box, Consol
2015-09 → 2019-08
ended
|
GGL25,GYL25 A | — | |
| 58813-48060 note |
Box, Consol
2015-09 → 2019-08
ended
|
GGL25,GYL25 A | — | |
| 58813-48090 |
Box, Consol
2015-09 → 2019-08
ended
|
GGL25 B | — | |
| 58813-48050 |
Box, Consol
2019-08 → —
|
GGL25,GYL25 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
