Toyota Lexus RX450H/350(Jpp

2015-09 → 2022-09 · chassis GGL25,GYL25 · catalogue 521450 · United States

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 6 illustrations

Illustrations

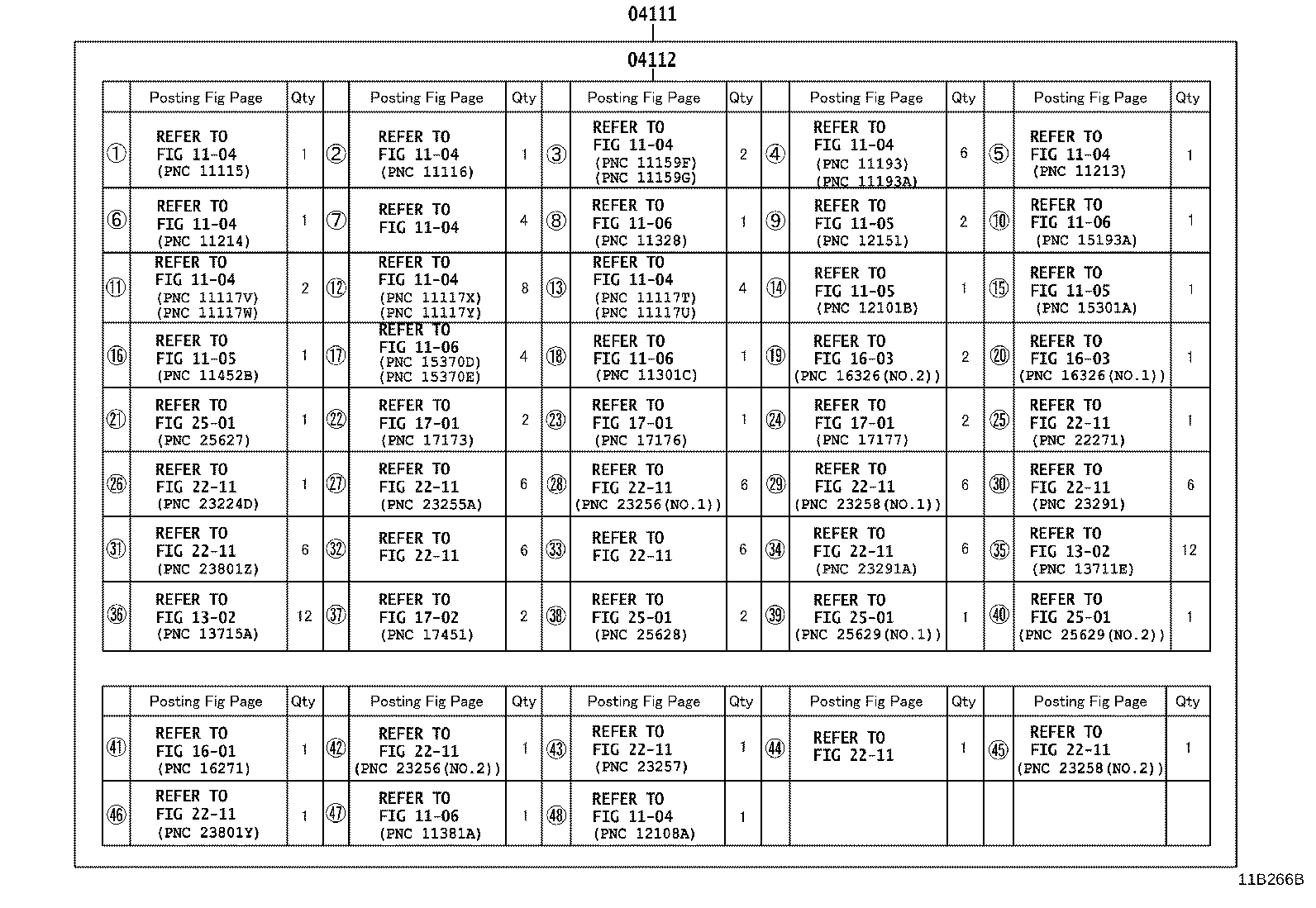

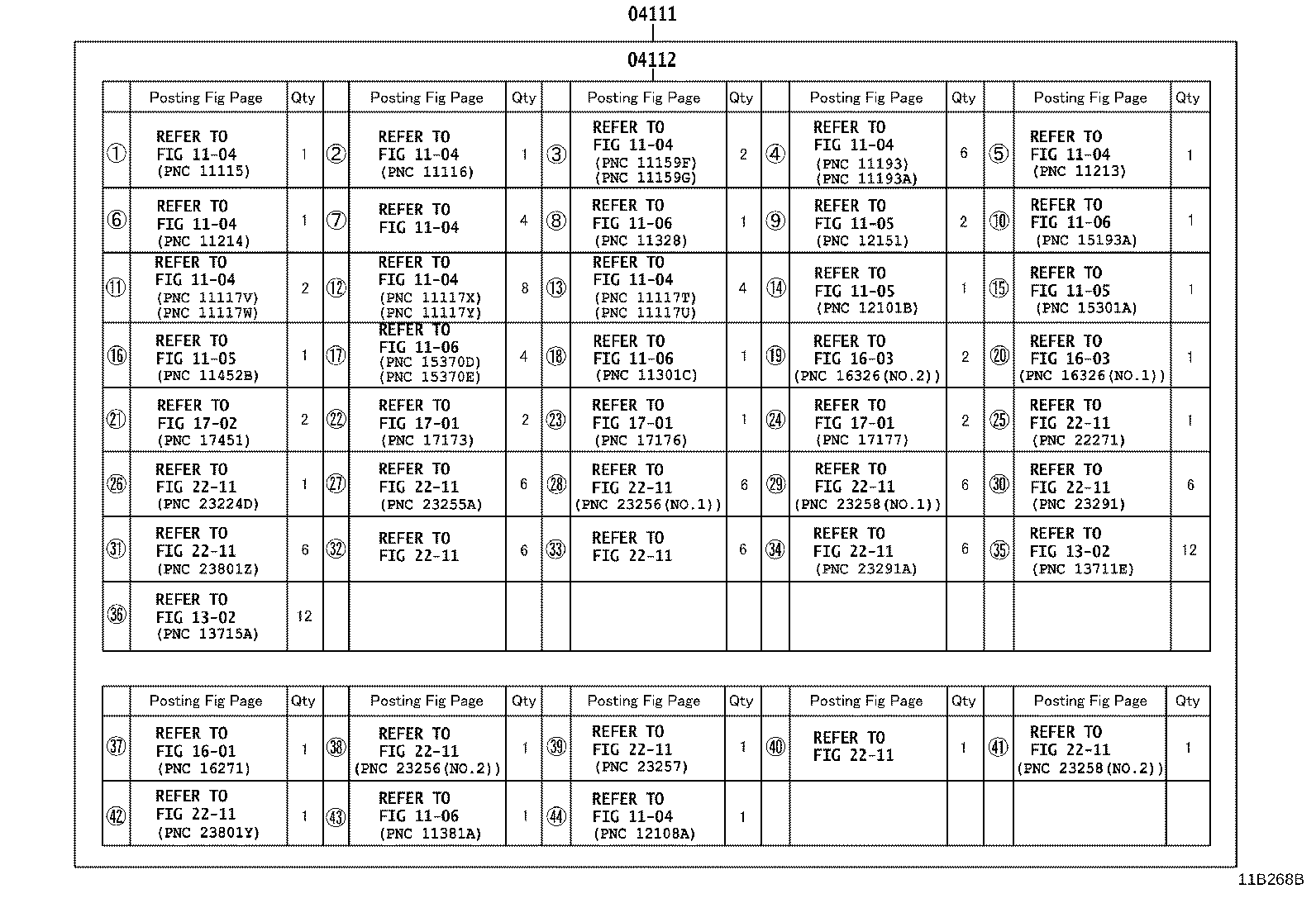

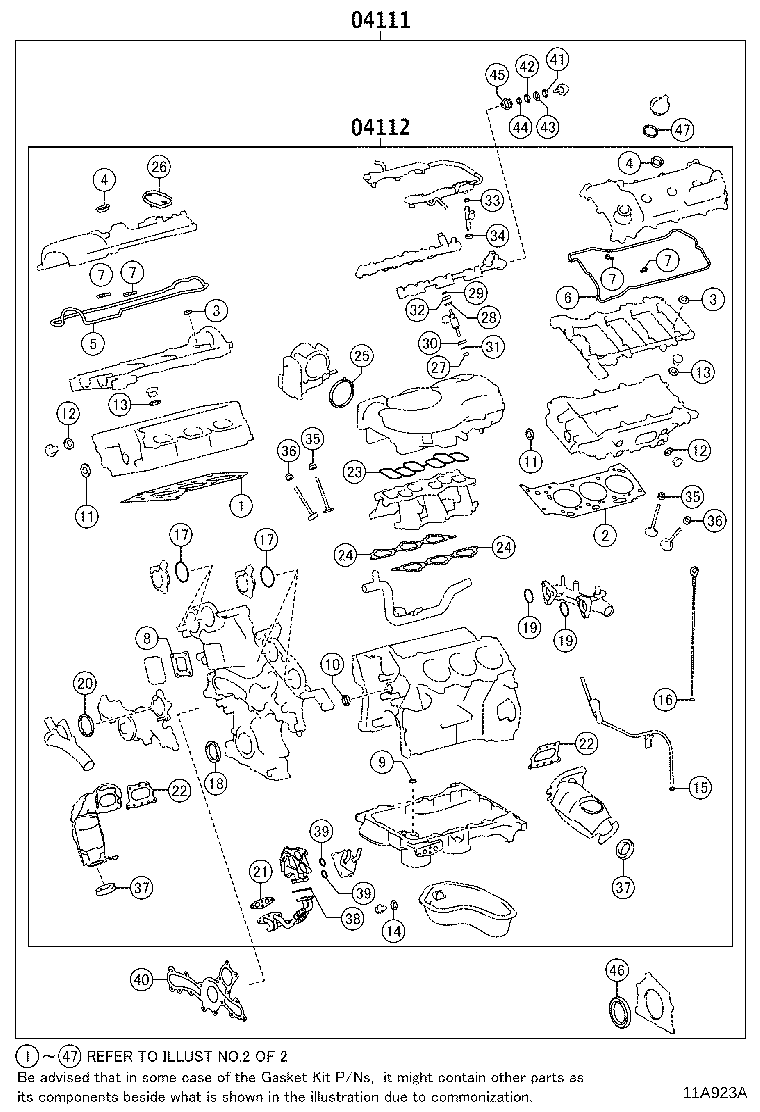

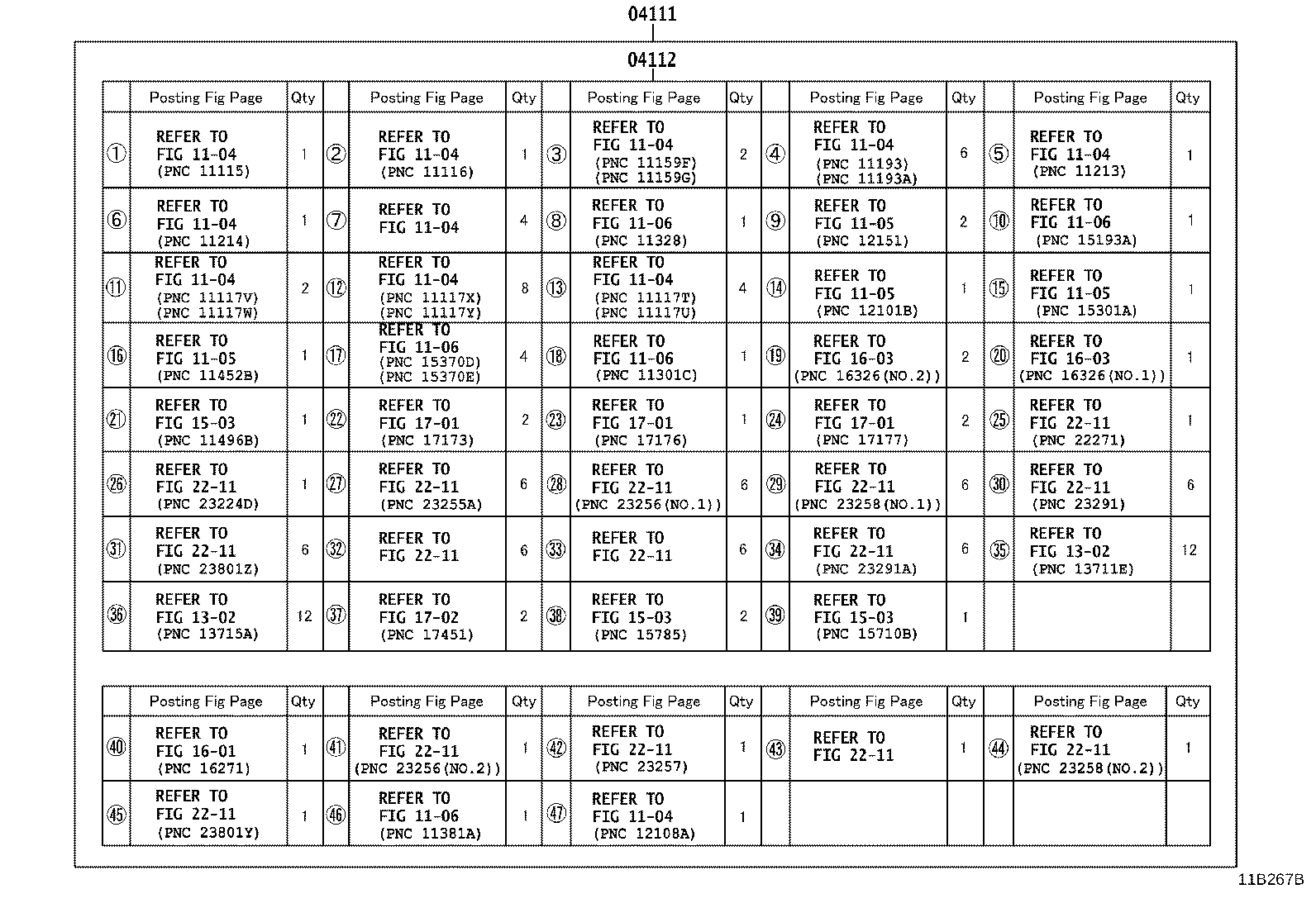

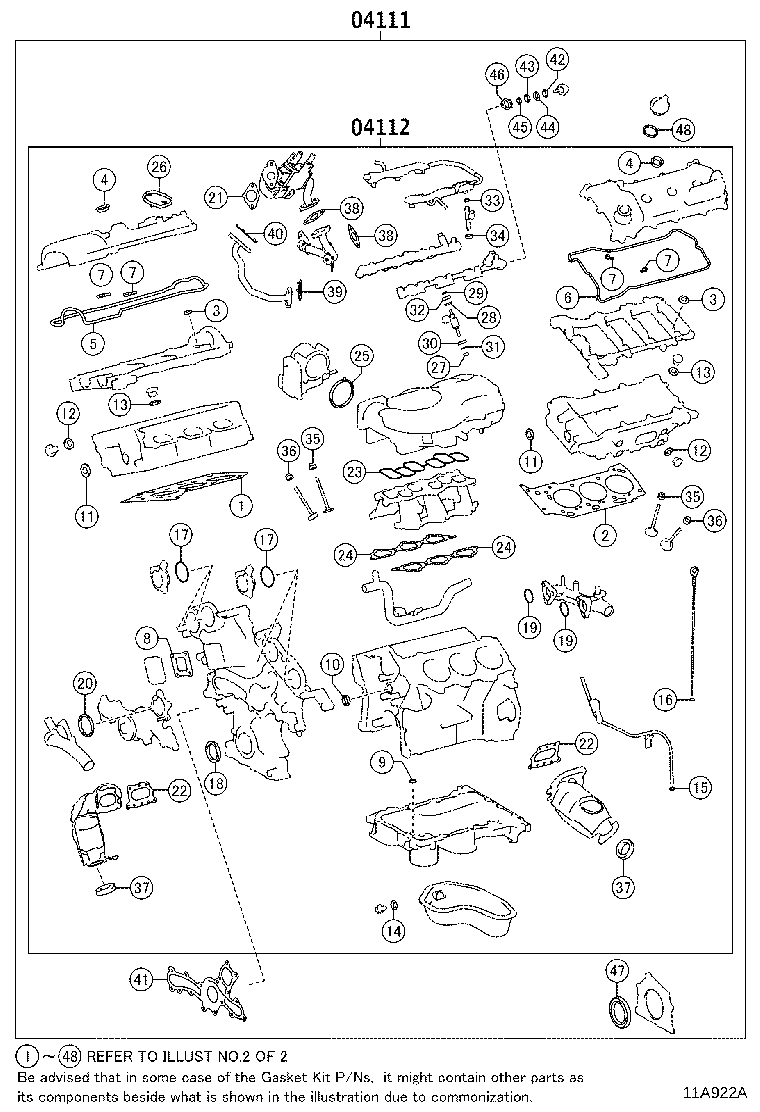

Figure 11A924A 11A924A 2015-09 → — Figure 11A923A 11A923A 2015-09 → — Figure 11A922A 11A922A 2015-10 → — Figure 11B268B 11B268B 2015-09 → — Figure 11B267B 11B267B 2015-09 → — Figure 11B266B 11B266B 2015-10 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
