Toyota Lexus RX450H/350(Jpp
2015-09 → 2022-09 · chassis GGL25,GYL25 · catalogue 521450 · United States
Supported model
Data version 2023-09

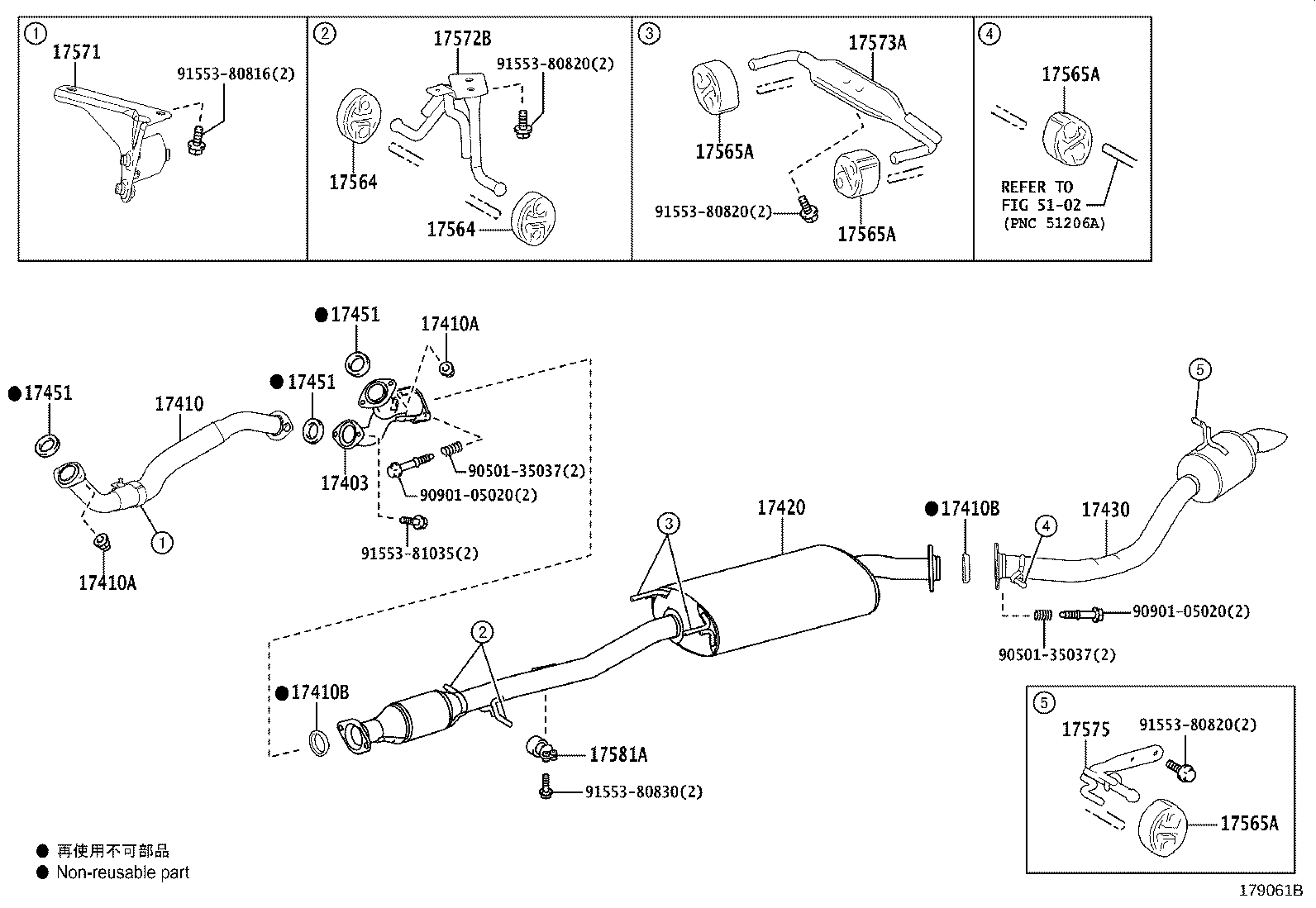

Exhaust Pipe
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17403 | Pipe Sub-assy, Exhaust, Front NO.3 |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17420 | Pipe Assy, Exhaust, Center |
| 17420X | Gasket, Exhaust Pipe, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17440A | Pipe Assy, Exhaust Tail, NO.2 |
| 17451 | Gasket, Exhaust Pipe |
| 17451A | Gasket, Exhaust Pipe, NO.2 |
| 17563A | Support, Exhaust Pipe, NO.3 |
| 17564 | Support,Exhaust Pipe, NO.4 |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17570 | Bracket Assy, Exhaust Pipe Support |
| 17571 | Bracket, Exhaust Pipe Support, NO.1 |
| 17572B | Bracket, Exhaust Pipe Support, NO.2 |
| 17573A | Bracket, Exhaust Pipe Support, NO.3 |
| 17575 | Bracket, Exhaust Pipe Support, NO.5 |
| 17576A | Bracket, Exhaust Pipe Support, NO.6 |
| 17581A | Damper, Exhaust Pipe |
| 17584B | Bracket, Exhaust Pipe NO.1 Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
