Toyota Lexus RX450H/350(Jpp

2015-09 → 2022-09 · chassis GGL25,GYL25 · catalogue 521450 · United States

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

8 part groups · 2 illustrations

Illustrations

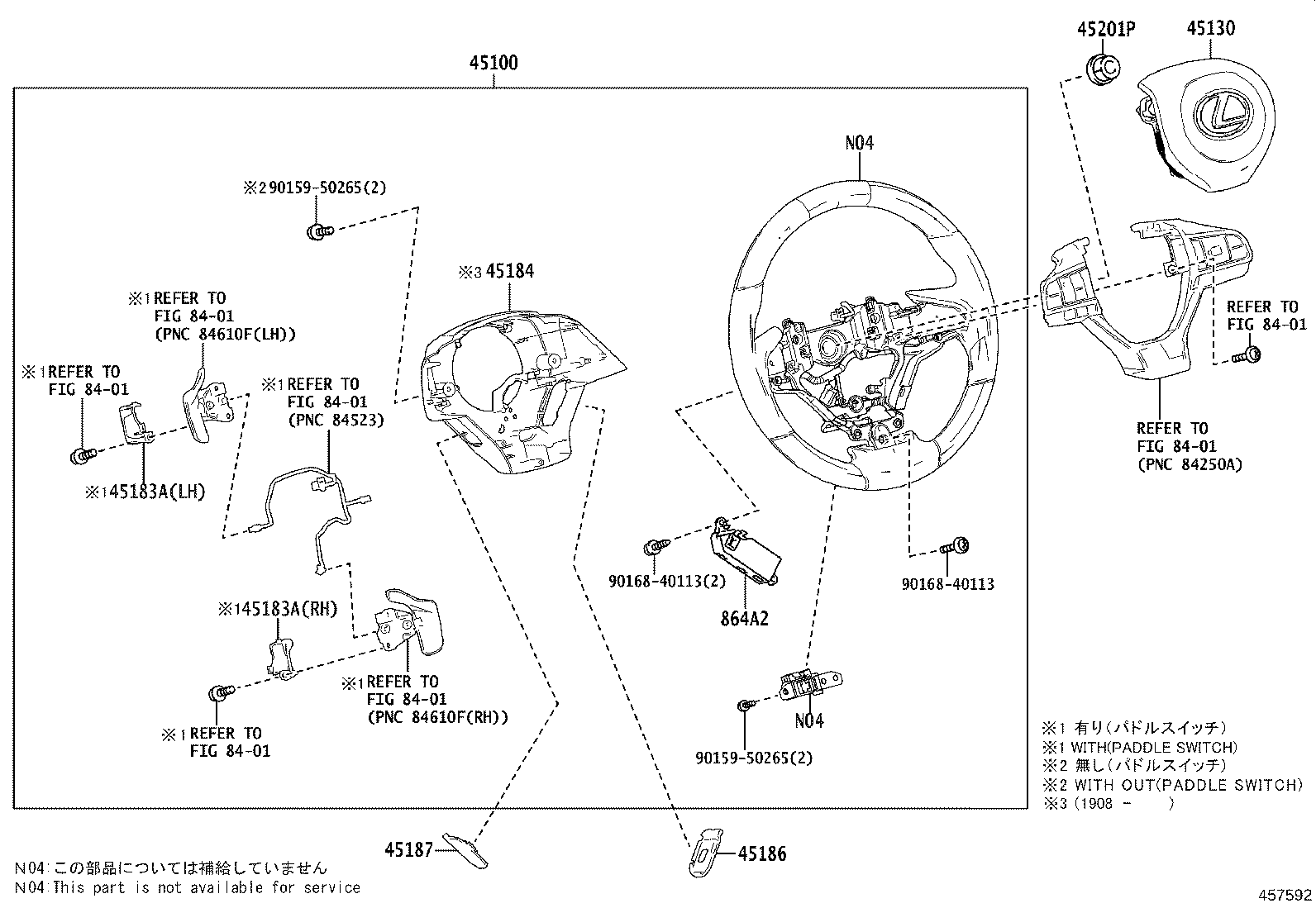

Figure 457501A 457501A 2018-12 → — Figure 457592 457592 2015-09 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45130 Button Assy, Horn
45183A Cover, Steering Wheel Boss, Lower NO.1
45184 Cover, Steering Wheel Boss, Lower
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45201P Nut, Steering Wheel Set
864A2 Computer, Steering Vibration
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
