Toyota Lexus RX450H/350(Jpp

2015-09 → 2022-09 · chassis GGL25,GYL25 · catalogue 521450 · United States

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

25 part groups · 2 illustrations

Illustrations

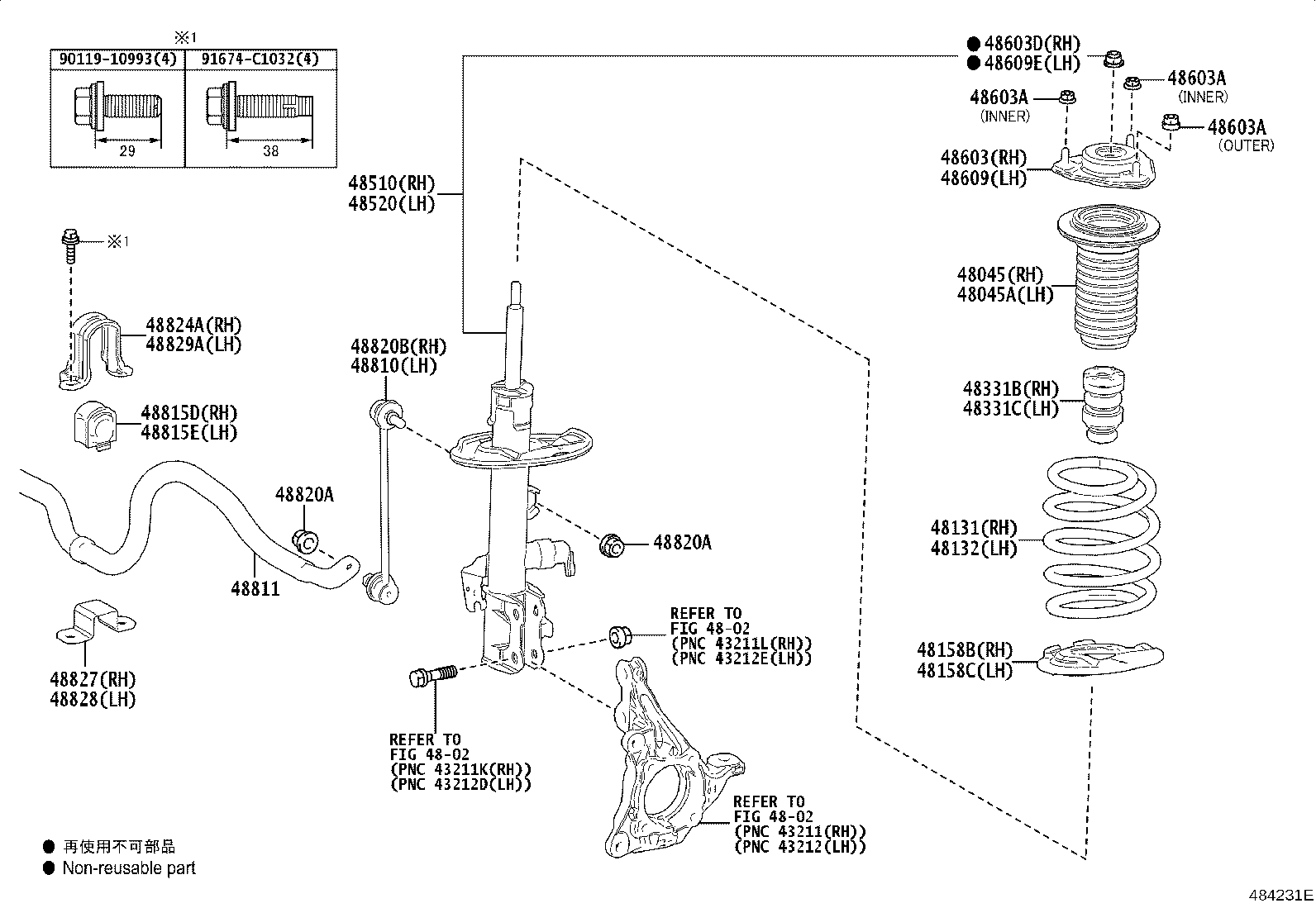

Figure 484245E 484245E 2015-09 → — Figure 484231E 484231E 2015-09 → —

Part groups

PNCDescription
48045 Seat Sub-assy, Front Spring RH, W/Insulator
48045A Seat Sub-assy, Front Spring LH, W/Insulator
48131 Spring, Front Coil, RH
48132 Spring, Front Coil, LH
48158B Insulator, Front Coil Spring, Lower RH
48158C Insulator, Front Coil Spring, Lower LH
48331B Bumper, Front Spring, RH
48331C Bumper, Front Spring, LH
48510 Absorber Assy, Shock, Front RH
48520 Absorber Assy, Shock, Front LH
48603 Support Sub-assy, Front Suspension, RH
48603A Nut(FOR FRONT SUSPENSION SUPPORT)
48603D Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609 Support Sub-assy, Front Suspension, LH
48609E Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48810 Link Assy, Front Stabilizer, LH
48811 Bar, Stabilizer, Front
48815D Bush, Front Stabilizer Bar, RH
48815E Bush, Front Stabilizer Bar, LH
48820A Nut(FOR FRONT STABILIZER LINK)
48820B Link Assy, Front Stabilizer, RH
48824A Bracket, Front Stabilizer, NO.1 RH
48827 Bracket, Front Stabilizer, NO.2 RH
48828 Bracket, Front Stabilizer, NO.2 LH
48829A Bracket, Front Stabilizer, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
