Toyota Lexus RX450H/350(Jpp
2015-09 → 2022-09 · chassis GGL25,GYL25 · catalogue 521450 · United States
Supported model
Data version 2023-09

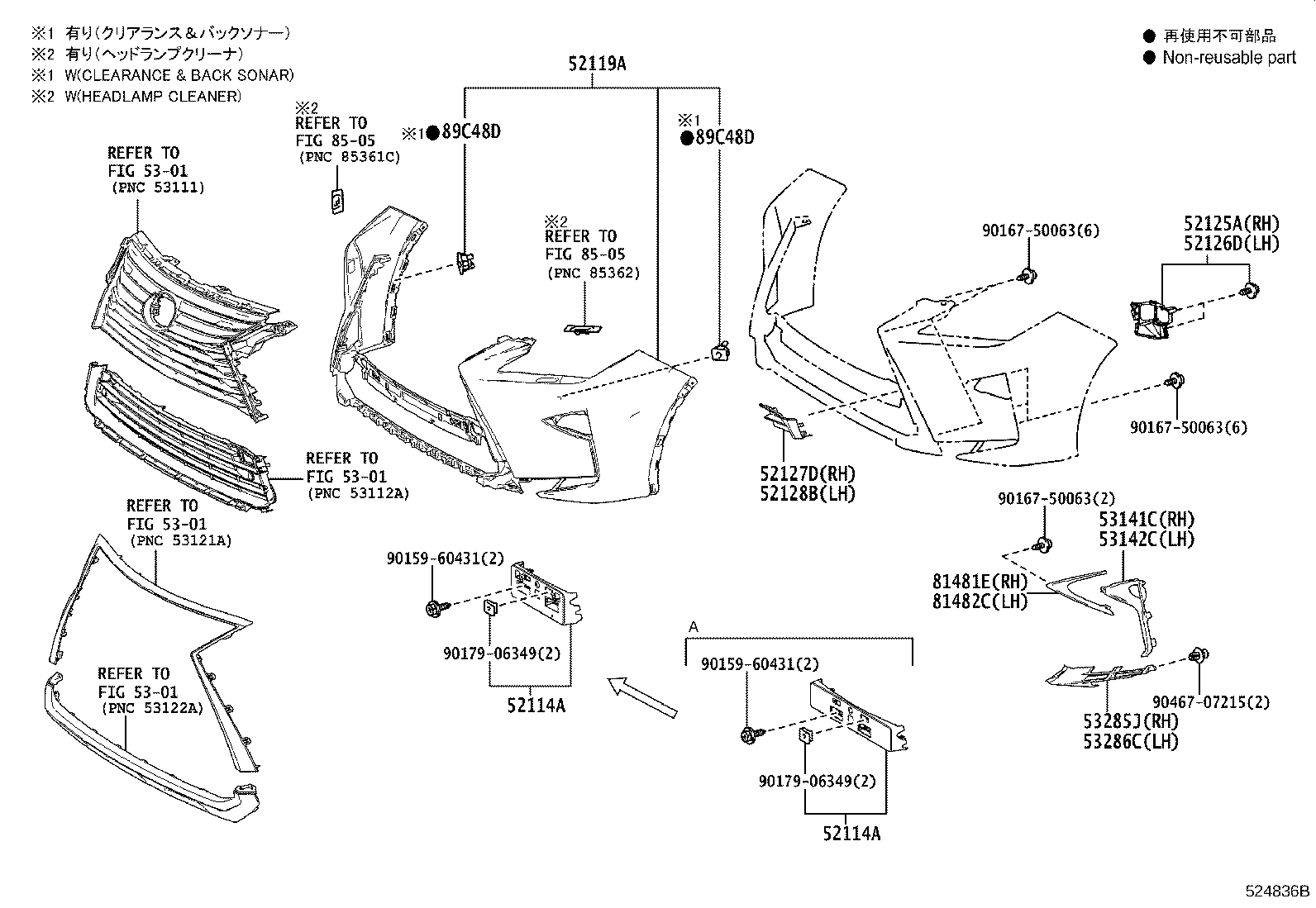

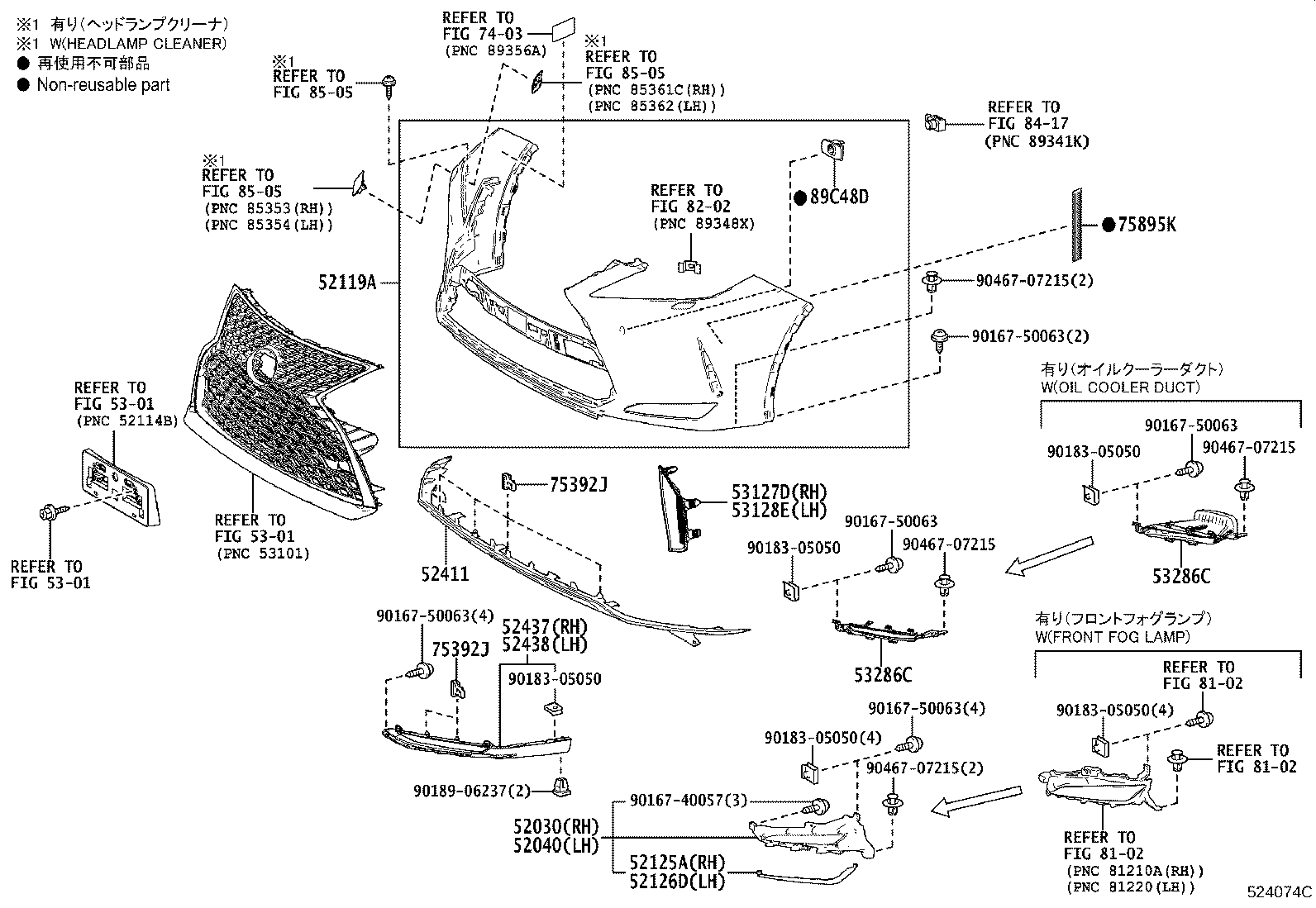

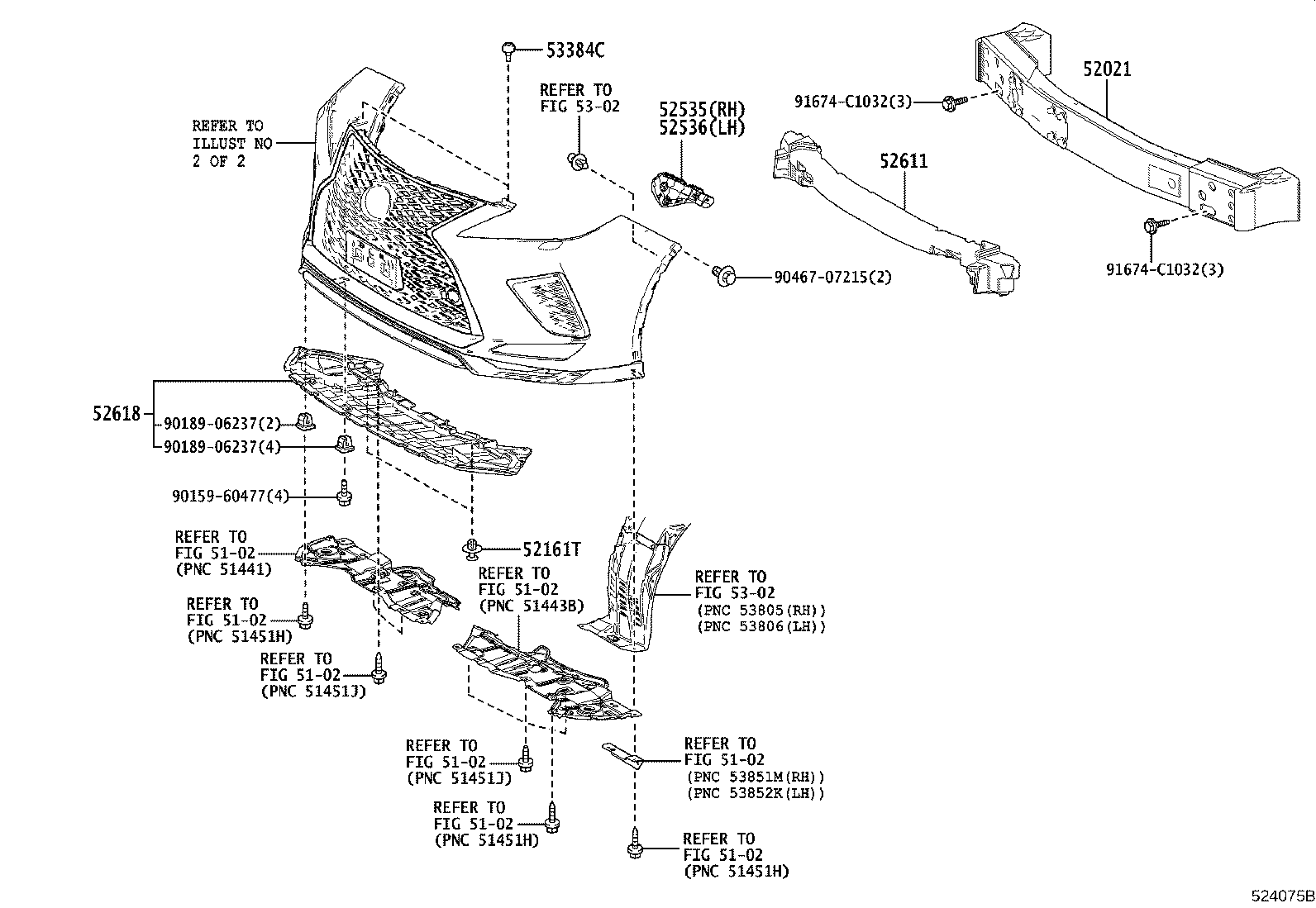

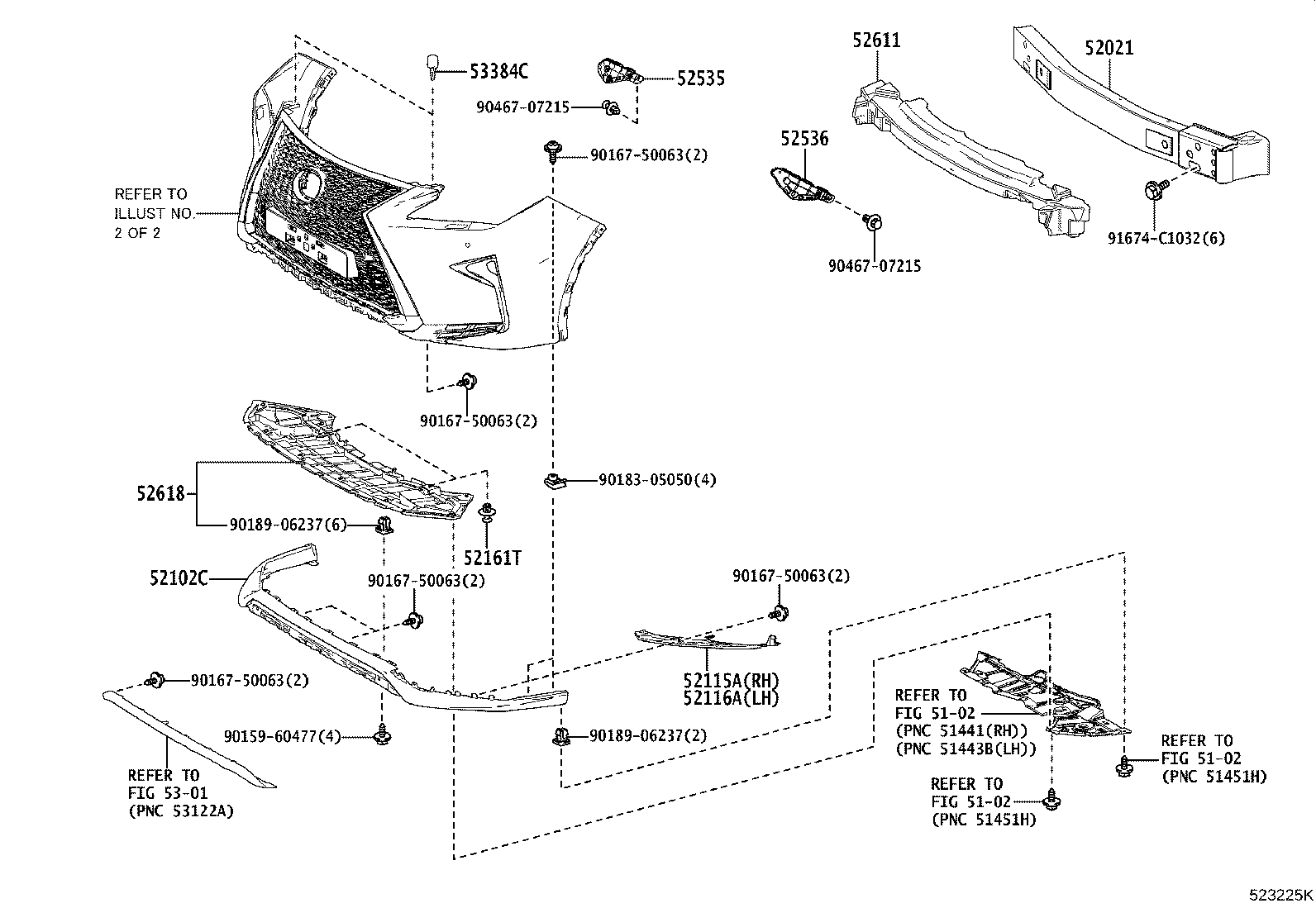

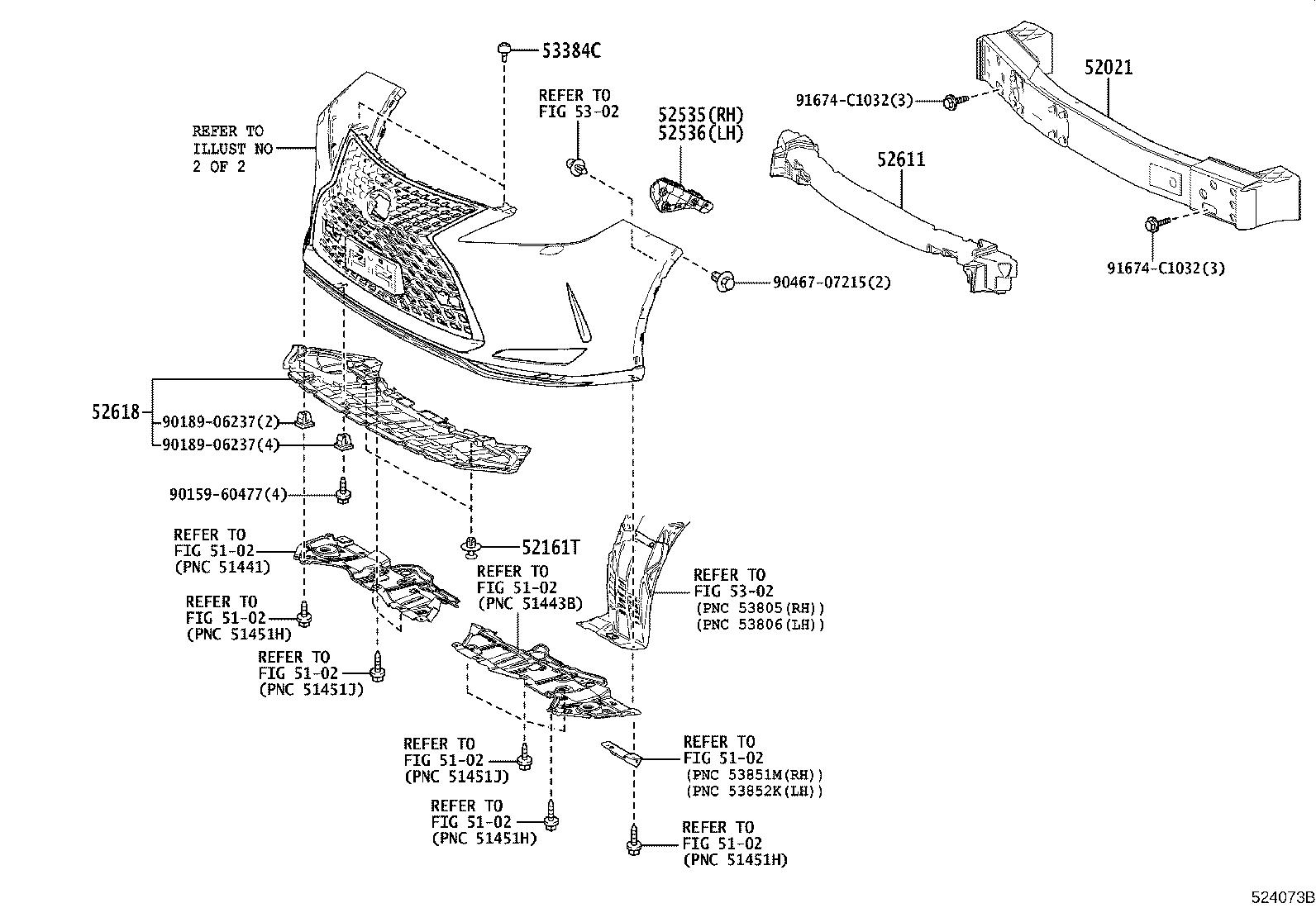

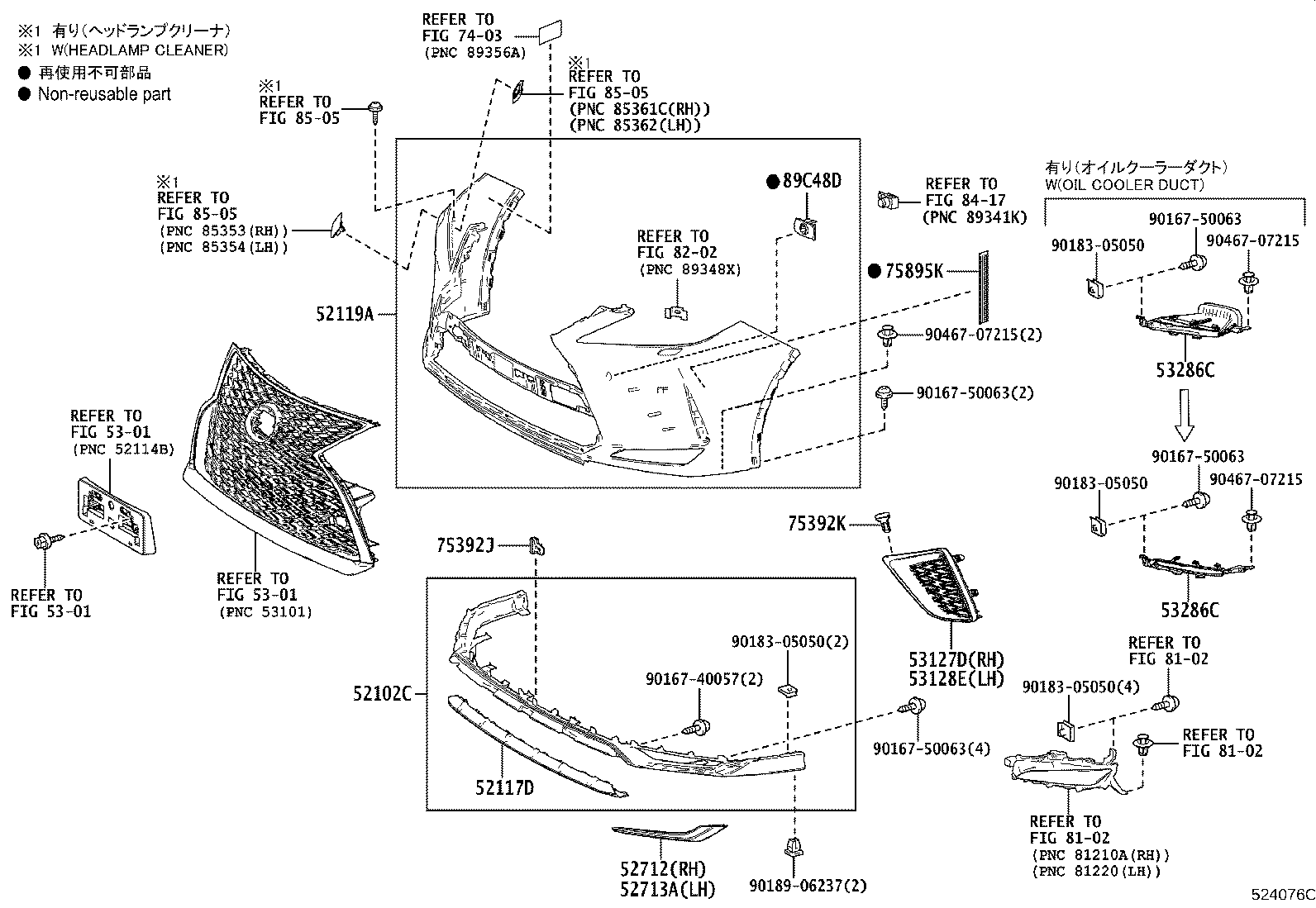

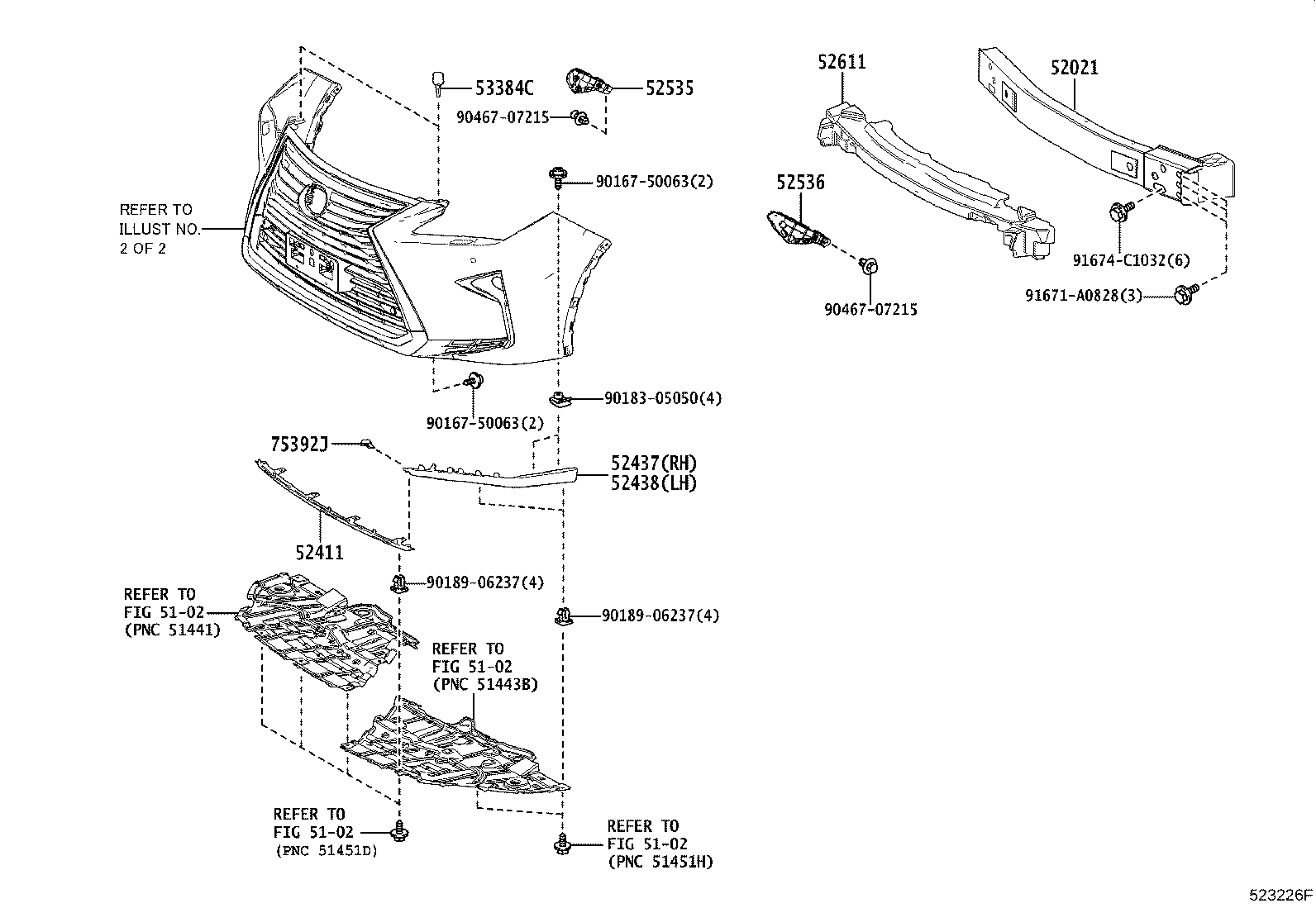

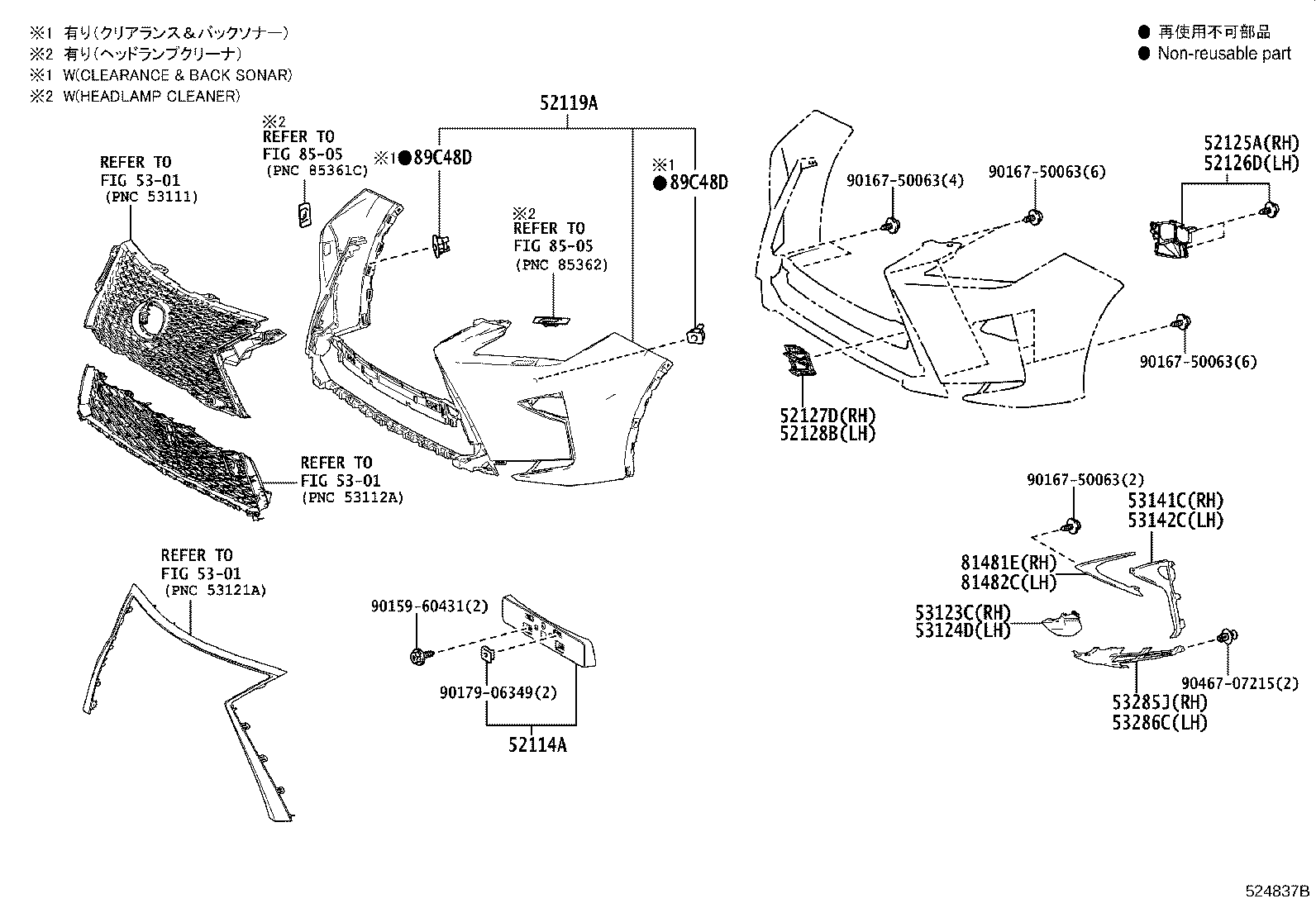

Front Bumper & Bumper Stay
38 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52030 | Cover Assy, Front Bumper Hole, RH |
| 52040 | Cover Assy, Front Bumper Hole, LH |
| 52102C | Extension Sub-assy, Front Bumper |
| 52114A | Bracket, Front Bumper Extension Mounting |
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52117D | Support, Front Bumper Side, Lower |
| 52119A | Cover, Front Bumper |
| 52125A | Bracket, Fog Lamp Mounting, RH |
| 52126D | Bracket, Fog Lamp Mounting, LH |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128B | Cover, Front Bumper Hole, LH |
| 52161T | Piece, Front Bumper |
| 52411 | Guard, Front Bumper |
| 52437 | Cover, Front Bumper Guard, RH |
| 52438 | Cover, Front Bumper Guard, LH |
| 52535 | Retainer, Front Bumper Side, RH |
| 52536 | Retainer, Front Bumper Side, LH |
| 52611 | Absorber, Front Bumper Energy |
| 52618 | Absorber, Front Bumper, Lower |
| 52712 | Moulding, Front Bumper Side, RH |
| 52713A | Moulding, Front Bumper Side, LH |
| 53123C | Moulding, Radiator Grille, Lower RH |
| 53124D | Moulding, Radiator Grille, Lower LH |
| 53127D | Grille, Radiator, Lower Side RH |
| 53128E | Grille, Radiator, Lower Side LH |
| 53141C | Garnish, Radiator Grille |
| 53142C | Garnish, Radiator Grille, NO.2 |
| 53285J | Cover, Front Bumper Arm Hole, RH |
| 53286C | Cover, Front Bumper Arm Hole, LH |
| 53384C | Cushion, Hood, Center |
| 75392J | Retainer, Outside Moulding |
| 75392K | Retainer, Outside Moulding, NO.2 |
| 75895K | Tape, Moulding, NO.1 |
| 81481E | Cover, Fog Lamp, RH |
| 81482C | Cover, Fog Lamp, LH |
| 89C48D | Retainer, Ultrasonic Sensor, Front Corner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
