Toyota Lexus RX450H/350(Jpp

2015-09 → 2022-09 · chassis GGL25,GYL25 · catalogue 521450 · United States

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

16 part groups · 2 illustrations

Illustrations

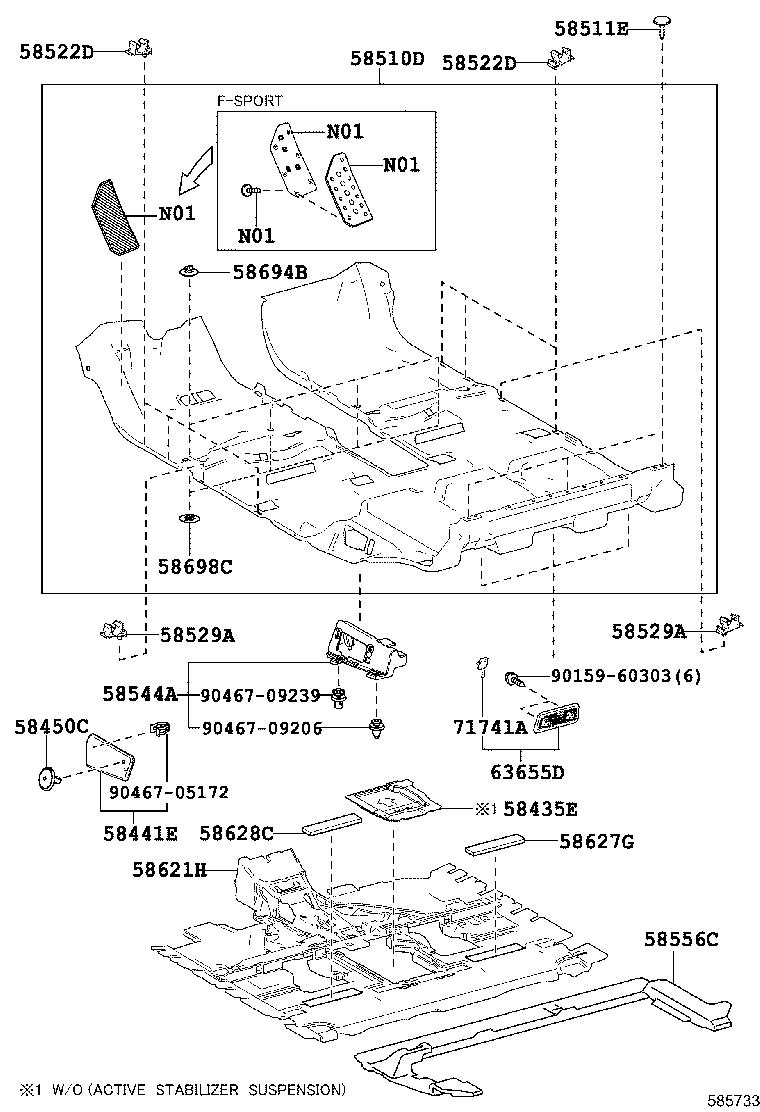

Figure 585732 585732 2015-09 → — Figure 585733 585733 2015-10 → —

Part groups

PNCDescription
58435E Silencer, Front Floor, Center
58441E Cover, Battery Service Hole
58450C Clip
58510D Carpet Assy, Floor, Front
58511E Clip(FOR FRONT FLOOR MAT)
58522D Hook, Floor Carpet, NO.2
58529A Hook, Floor Carpet, NO.3
58544A Bracket, Floor Carpet, LH
58556C Silencer, Rear Floor
58621H Pad, Front Floor Silencer
58627G Pad, Center Floor Silencer, Rear RH
58628C Pad, Center Floor Silencer, Rear LH
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
63655D Cover, Air Intake
71741A Cover, Air Hole
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
