Toyota Lexus RX450H/350(Jpp
2015-09 → 2022-09 · chassis GGL25,GYL25 · catalogue 521450 · United States
Supported model
Data version 2023-09

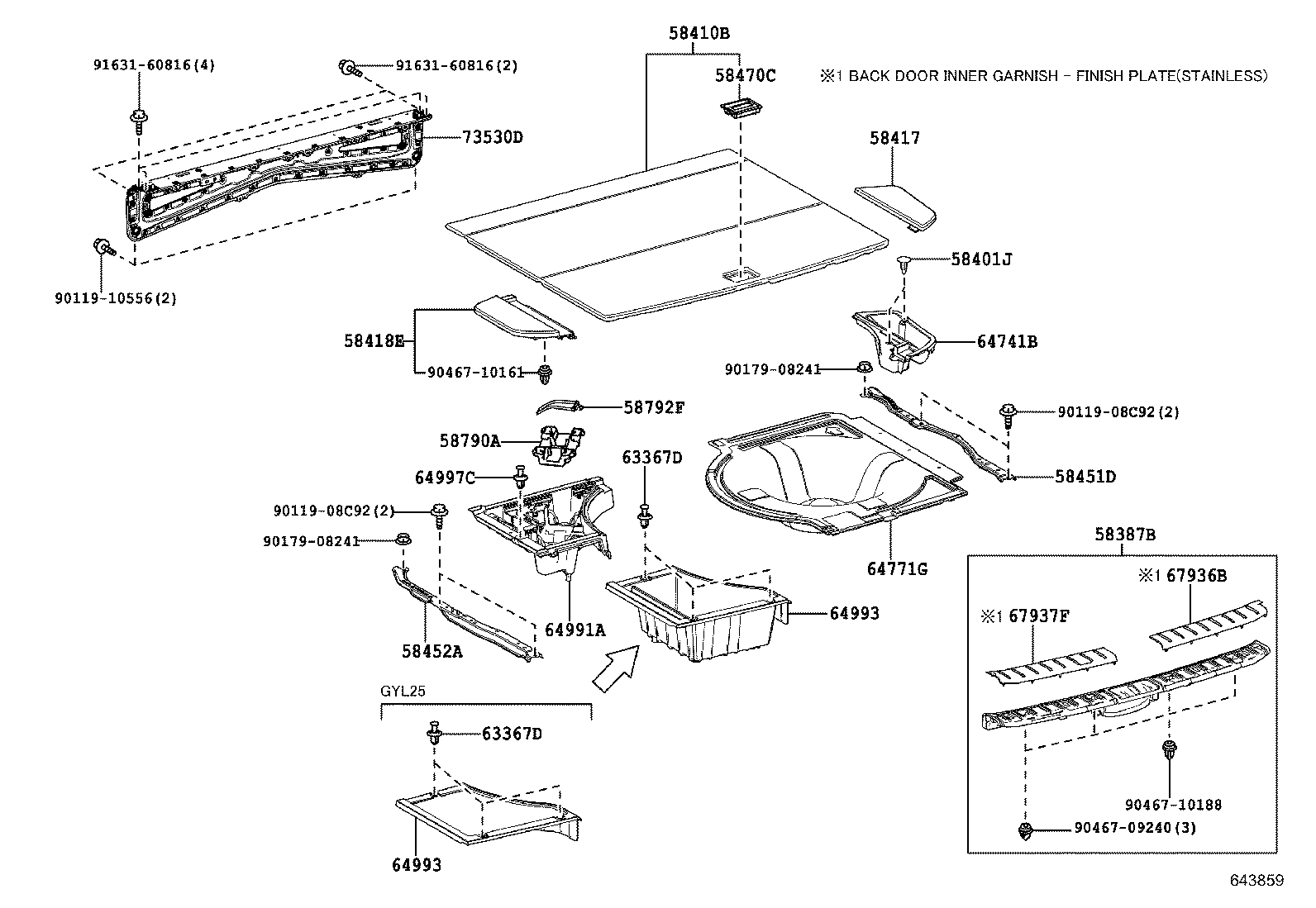

Deck Board & Deck Trim Cover
35 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387B | Plate, Rear Floor Finish |
| 58401J | Clip(FOR DECK BOAD) |
| 58410B | Board Assy, Deck |
| 58417 | Board, Rear Floor, NO.3 |
| 58418E | Board, Rear Floor, NO.4 |
| 58451D | Reinforcement, Deck Board, NO.1 |
| 58452A | Reinforcement, Deck Board, NO.2 |
| 58470C | Handle Assy, Deck Board |
| 58790A | Carrier Assy, Jack |
| 58792F | Support, Jack Carrier |
| 62521C | Cover, Quarter Trim RH |
| 62522B | Cover, Quarter Trim LH |
| 63367D | Clip(FOR DECK FLOOR BOX) |
| 64328A | Cover, Package Tray Trim Clamp |
| 64348A | Knob, Package Tray Trim |
| 64716D | Cover, Deck Trim, Rear |
| 64725F | Hook, Luggage Compartment Trim, NO.1 |
| 64726B | Clip, Deck Rear Trim |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64741B | Box, Deck Side Trim, RH |
| 64753C | Plate, Rear Floor Finish Side, RH |
| 64754C | Plate, Rear Floor Finish Side, LH |
| 64771G | Cover, Spare Wheel |
| 64910J | Cover Assy, Tonneau |
| 64933A | Bracket, Tonneau Cover Holder, RH |
| 64938 | Hook, Tonneau Cover, A |
| 64946 | Hook, Tonneau Cover, B |
| 64991A | Box, Deck Floor, FR |
| 64993 | Box, Deck Floor, Rear |
| 64997C | Clip(FOR DECK FLOOR BOX) |
| 66310H | Hook Assy, Rope |
| 67936B | Cover, Back Door Scuff Side, RH |
| 67937F | Cover, Back Door Scuff Side, LH |
| 73530D | Panel Assy, Rear Seat Sub Floor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
