Toyota Lexus RX450H/350(Jpp
2015-09 → 2022-09 · chassis GGL25,GYL25 · catalogue 521450 · United States
Supported model
Data version 2023-09
Headlamp

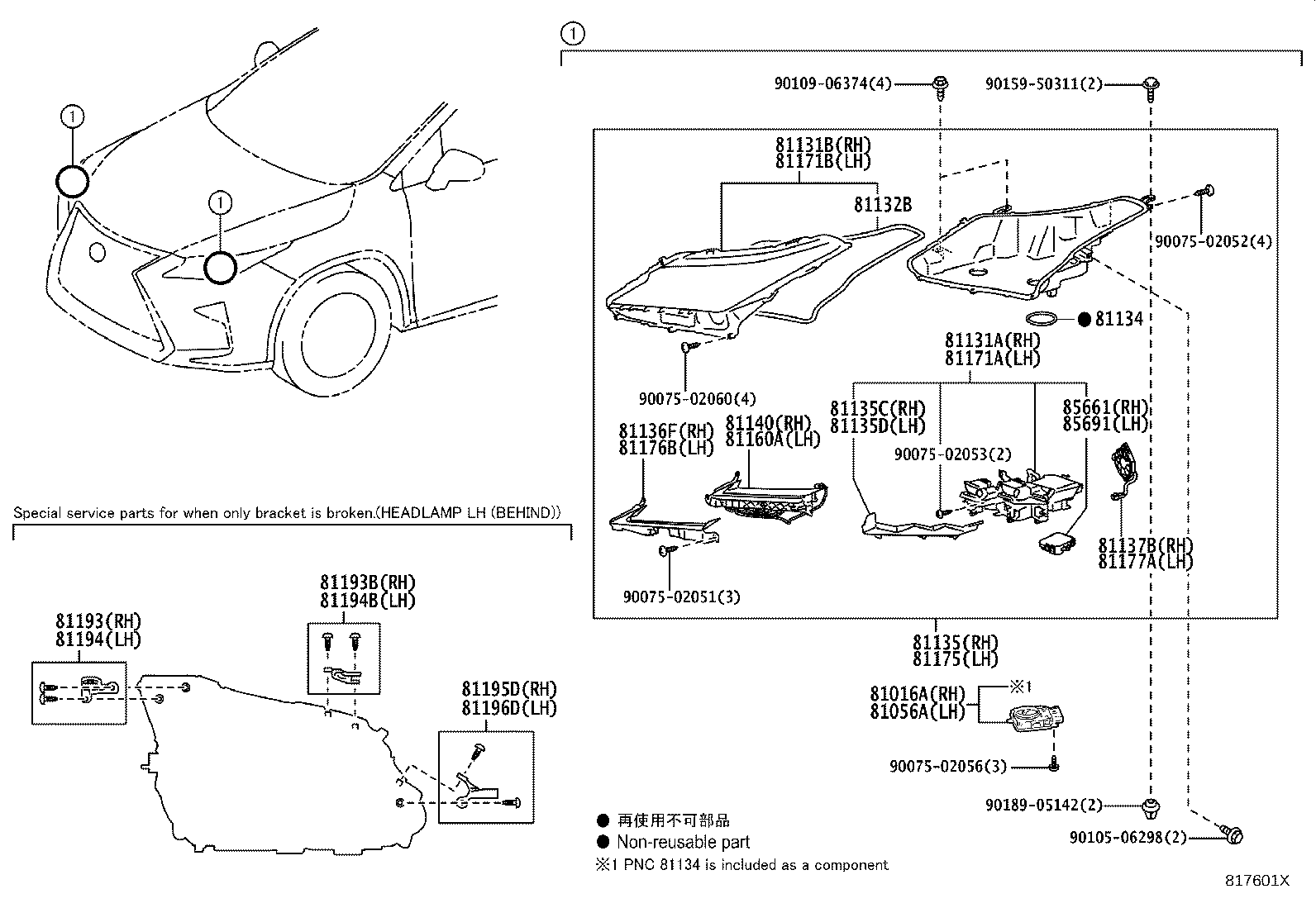

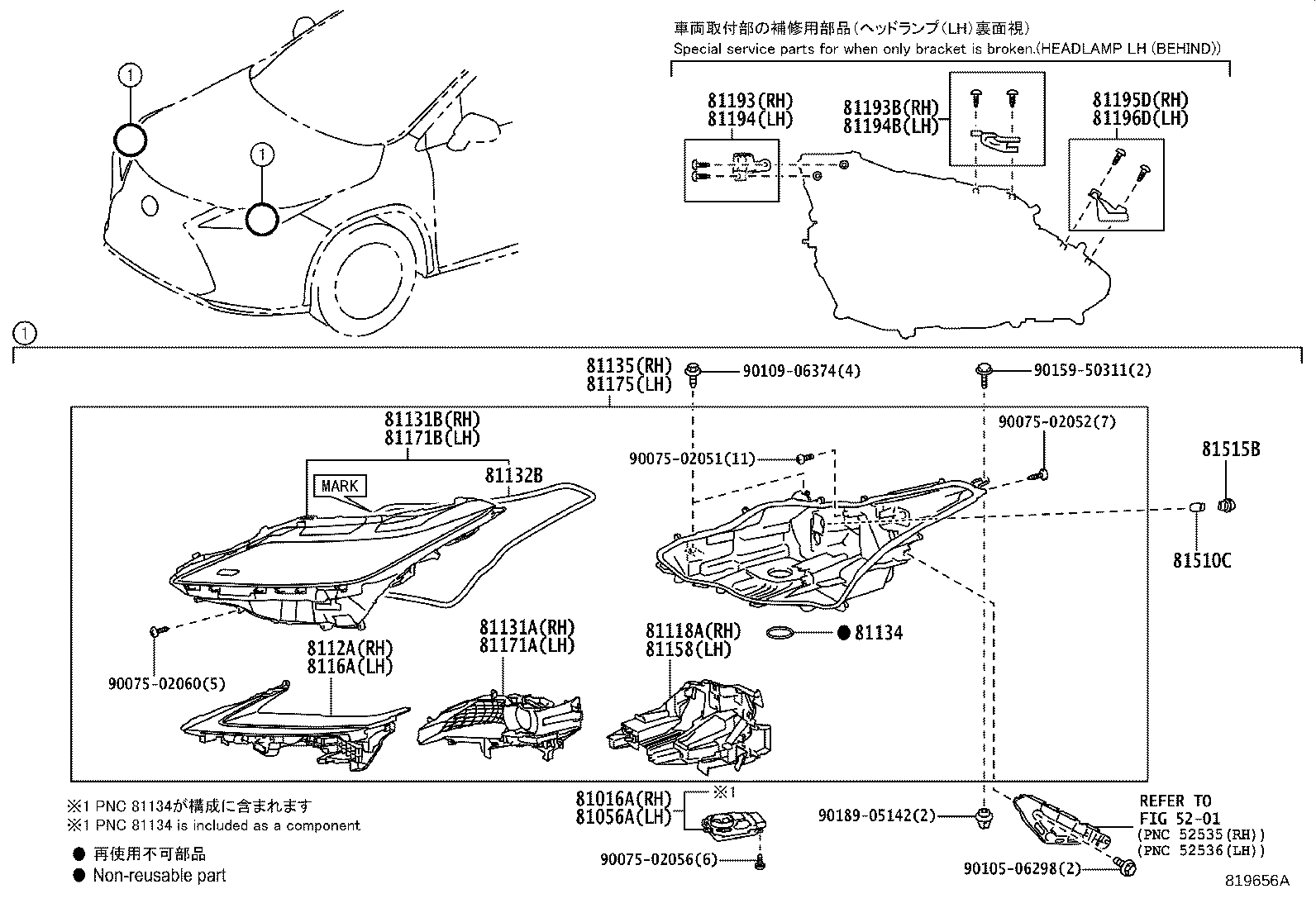

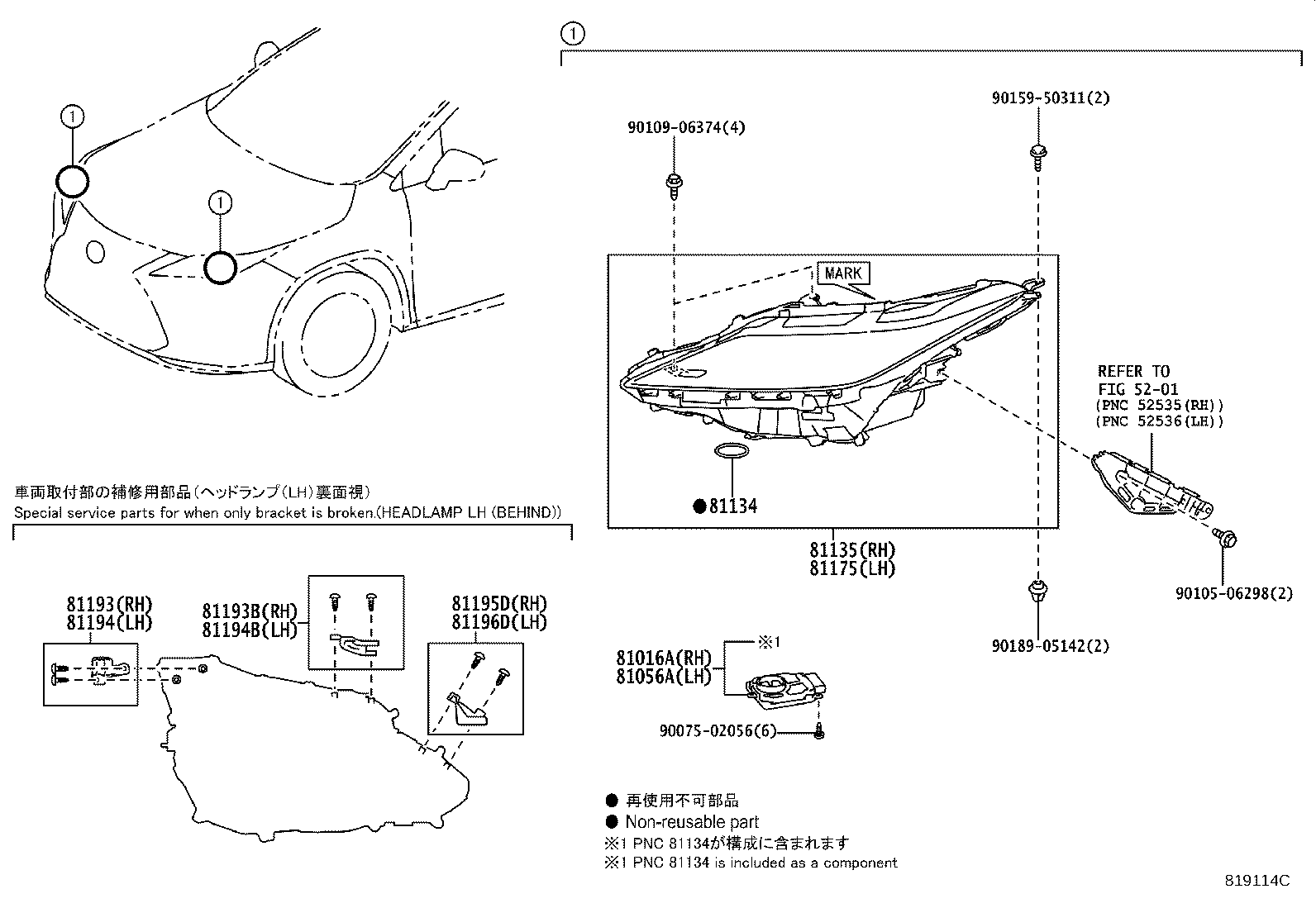

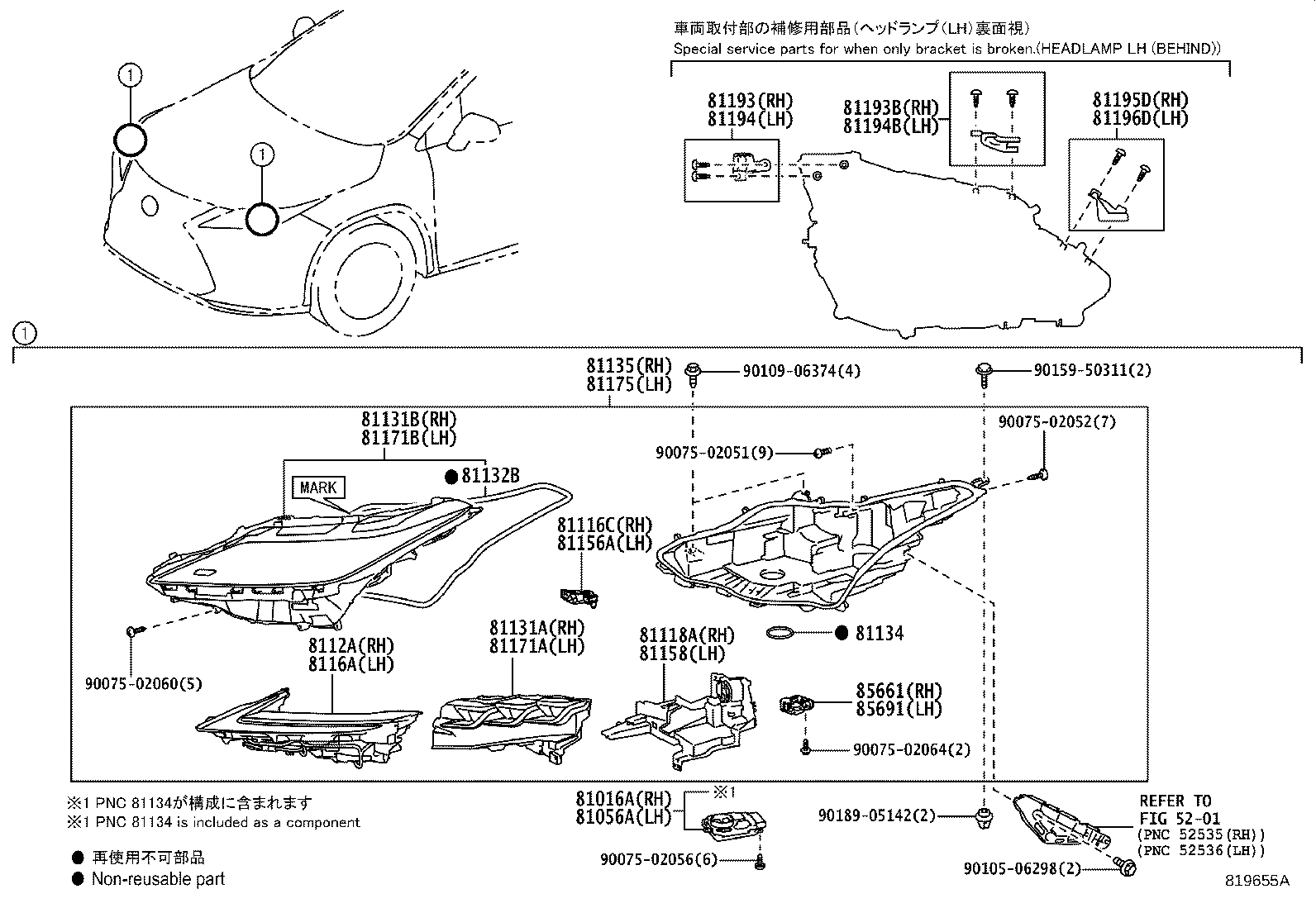

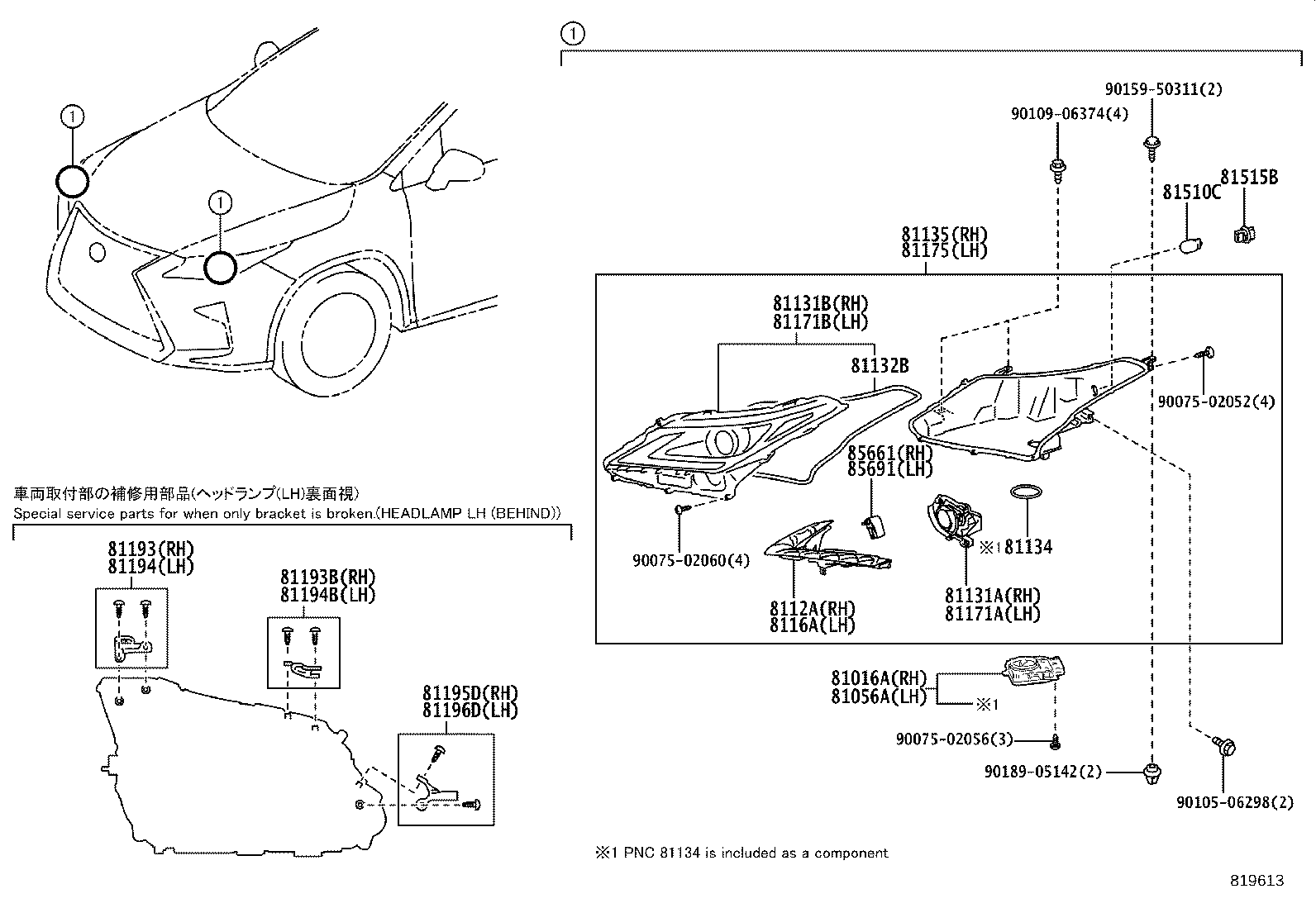

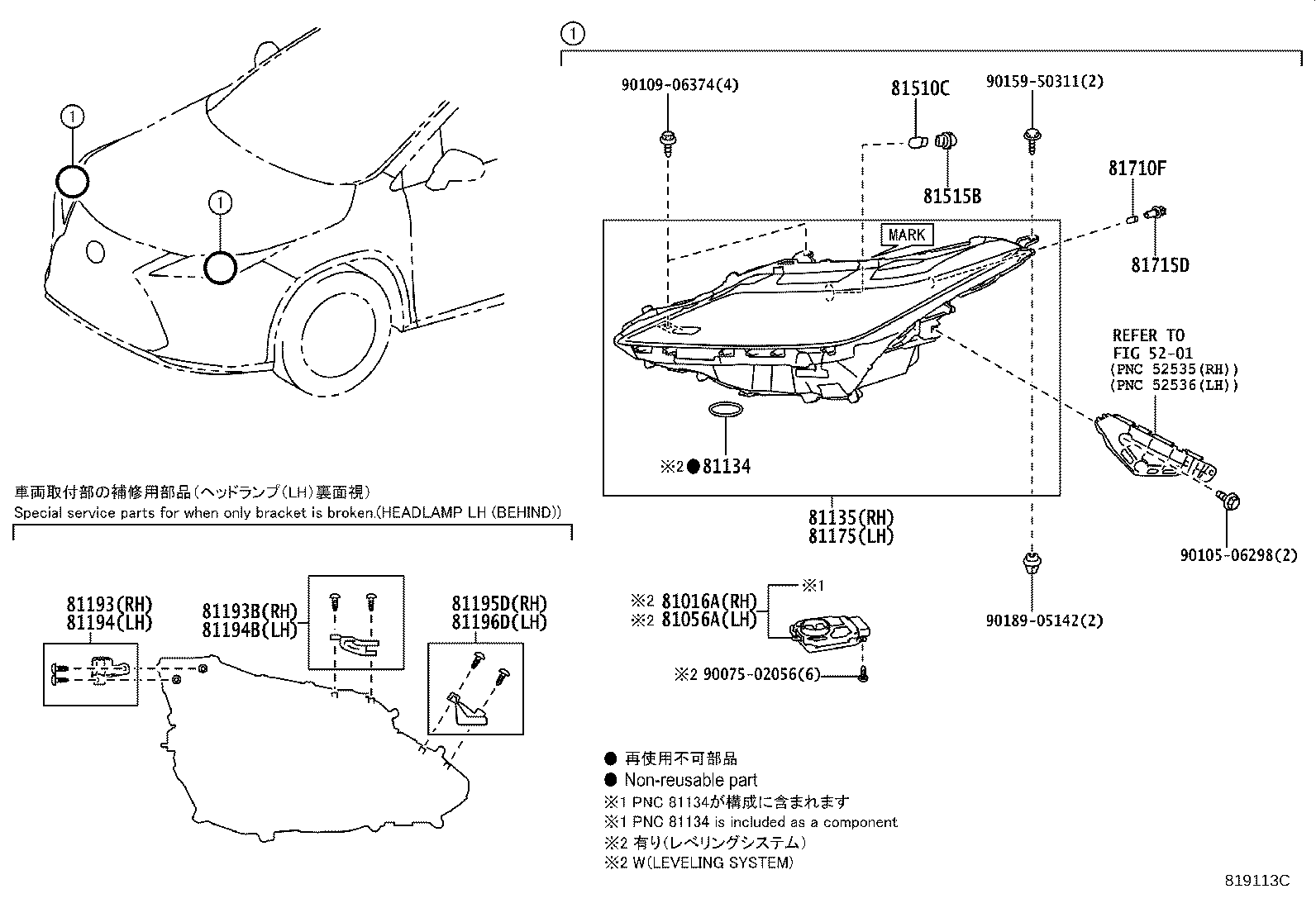

37 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 81016A | Computer Sub-assy, Headlamp, RH |
| 81056A | Computer Sub-assy, Headlamp, LH |
| 81116C | Bracket, Headlamp, RH |
| 81118A | Bracket, Headlamp, RH |
| 8112A | Unit, Headlamp Clearance Led, NO.1 RH |
| 81131A | Unit, Headlamp, RH |
| 81131B | Head Lamp Lens, RH |
| 81132B | Gasket, Headlamp Lens |
| 81134 | Gasket, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81135C | Cover, Headlamp Back, NO.1 |
| 81135D | Cover, Headlamp Back, NO.2 |
| 81136F | Cover, Headlamp, NO.2 RH |
| 81137B | Fan, Headlamp, RH |
| 81140 | Unit Assy, Headlamp Led, RH |
| 81156A | Bracket, Headlamp, LH |
| 81158 | Bracket, Headlamp, LH |
| 81160A | Unit Assy, Headlamp Led, LH |
| 8116A | Unit, Headlamp Clearance Led, NO.1 LH |
| 81171A | Unit, Headlamp, LH |
| 81171B | Head Lamp Lens, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81176B | Cover, Headlamp, NO.2 LH |
| 81177A | Fan, Headlamp, LH |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81193B | Retainer, Headlamp Protector, Upper RH NO.2 |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81194B | Retainer, Headlamp Protector, Upper LH NO.2 |
| 81195D | Retainer, Headlamp Protector, Lower RH NO.2 |
| 81196D | Retainer, Headlamp Protector, Lower LH NO.2 |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 81710F | Bulb, Front Side Maker Lamp |
| 81715B | Socket & Wire, Front Side Marker Lamp |
| 81715D | Socket Plug, Front Marker Lamp |
| 85661 | Motor, Headlamp Leveling, RH |
| 85691 | Motor, Headlamp Leveling, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
