Toyota Lexus RX450H/350(Jpp
2015-09 → 2022-09 · chassis GGL25,GYL25 · catalogue 521450 · United States
Supported model
Data version 2023-09
Battery & Battery Cable
24 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

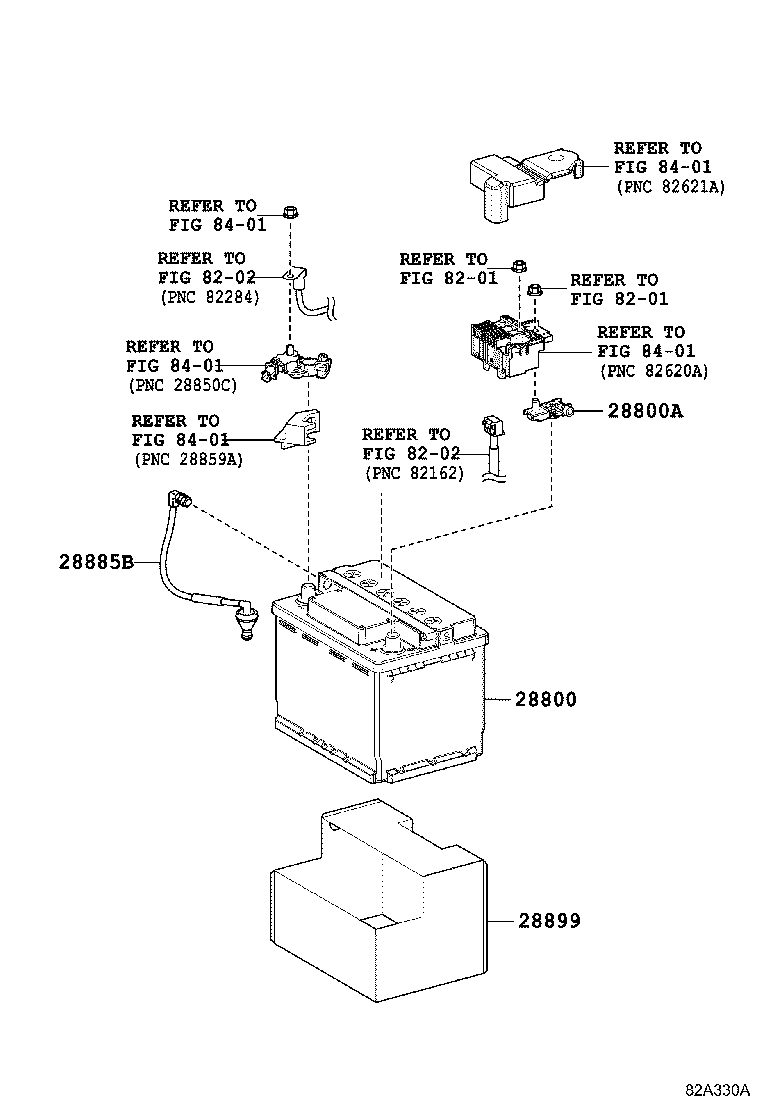

| 28800 | Battery |
| 28800A | Terminal, Battery Positive |
| 28800D | Cover, Connector(FOR BATTERY TERMINAL) |
| 28800J | Terminal, Battery Negative |
| 28885B | Hose, Battery |
| 28898 | Plate, Battery |
| 28899 | Insulator, Battery |

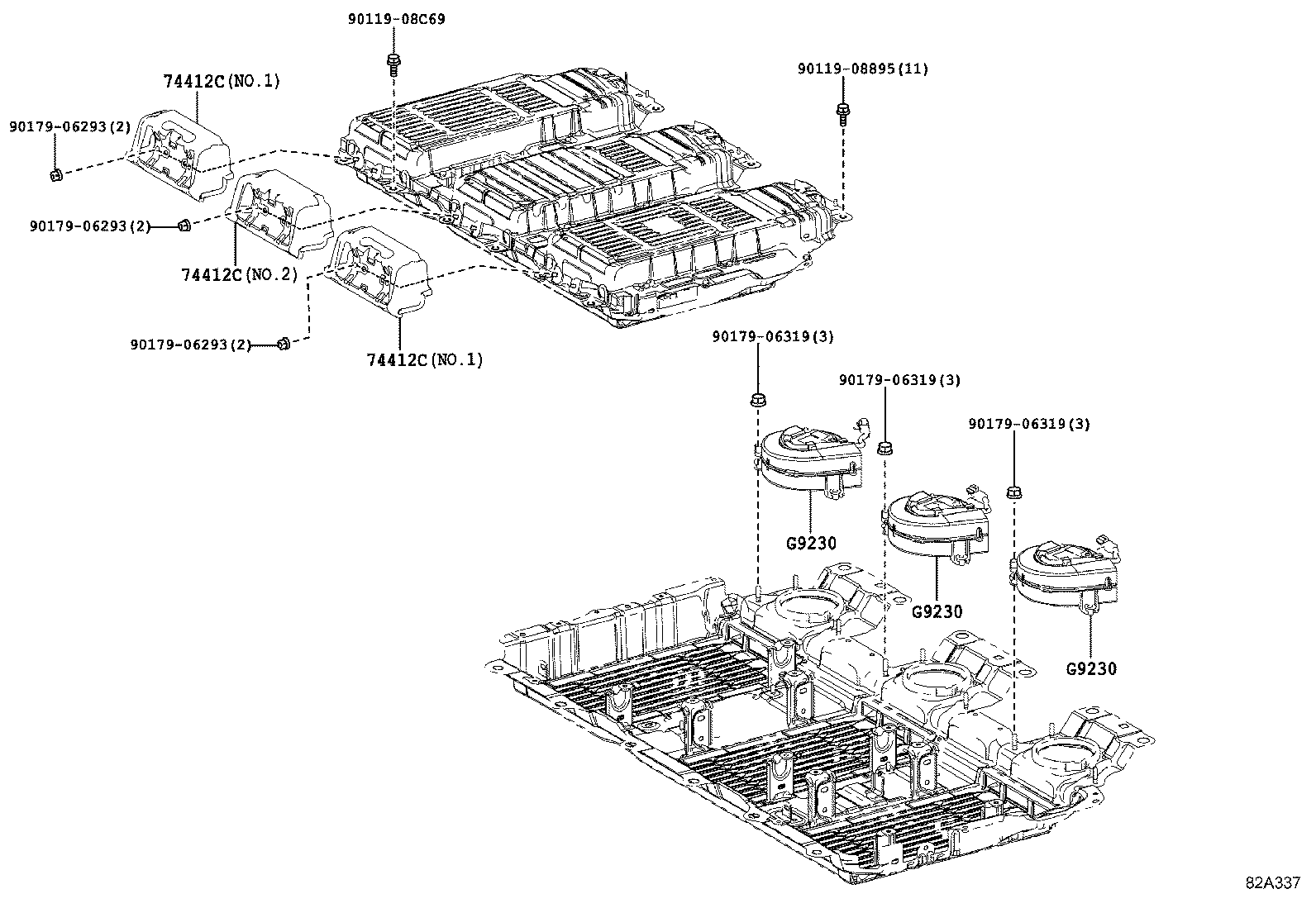

| 74412C | Duct, Battery Carrier |
| 82685E | Plate, Service Plug Caution |
| 89892A | Sensor, Battery Voltage |

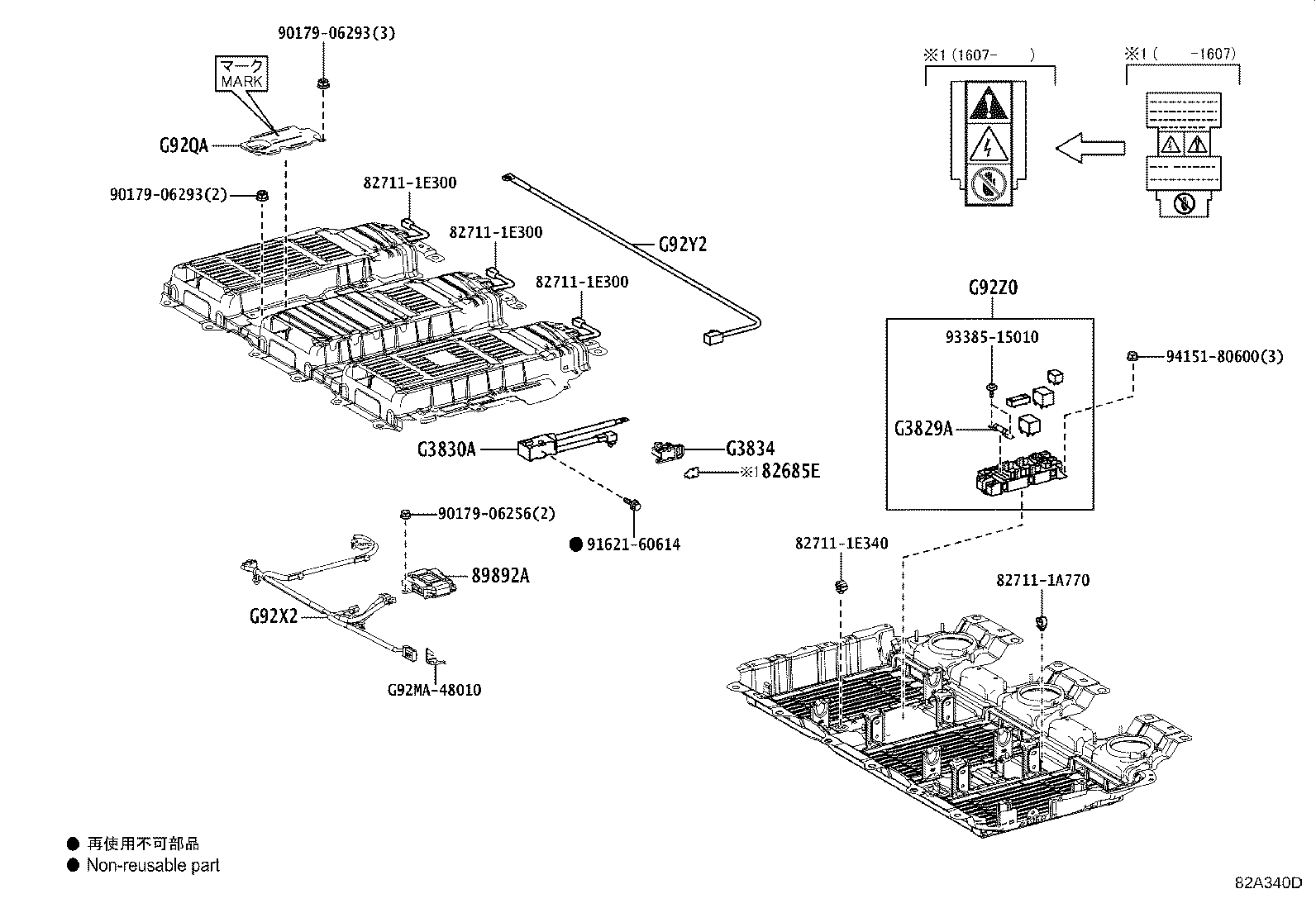

| G3829A | Fuse, Electric Vehicle |
| G3830A | Plug Assy, Electric Vehicle Battery |
| G3834 | Grip, Service Plug |
| G9230 | Blower Assy, Battery Cooling |
| G9288 | Label, Battery Charging Notice |
| G9290A | Hose Assy, Hybrid Battery |
| G9295B | Striker, Battery Cover Lock |
| G9298 | Clamp, HV Battery |
| G92J3 | Sheet, HV Battery Carrier, NO.3 |
| G92QA | Panel, HV Battery Shield, NO.8 |
| G92X2 | Wire, HV Battery Pack, NO.2 |
| G92Y2 | Cable, HV Battery Pack, NO.2 |
| G92Z0 | Block Assy, HV Battery Junction |

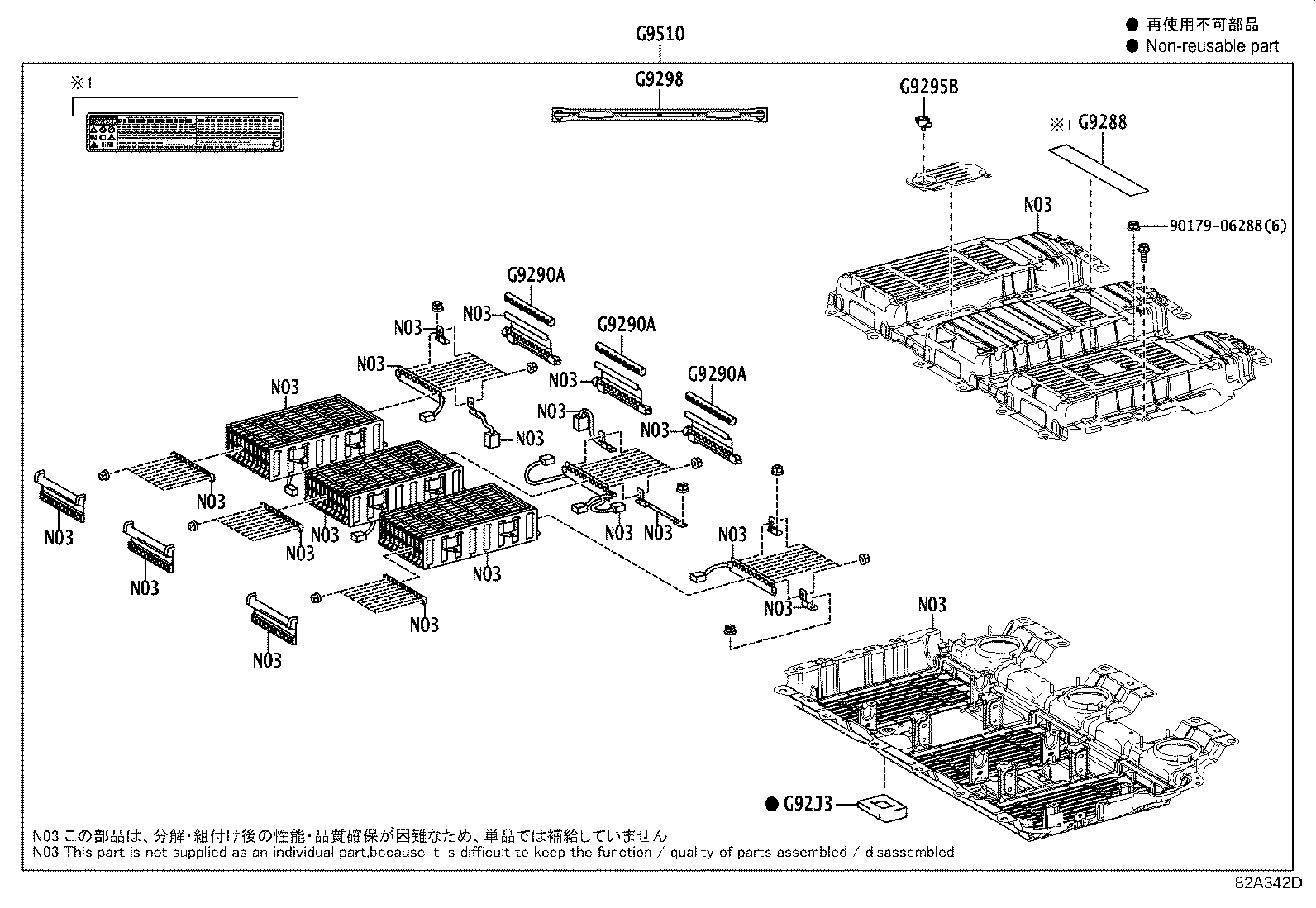

| G9510 | Battery Assy, HV Supply |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
