Toyota Lexus RX450H/350(Jpp
2015-09 → 2022-09 · chassis GGL25,GYL25 · catalogue 521450 · United States
Supported model
Data version 2023-09

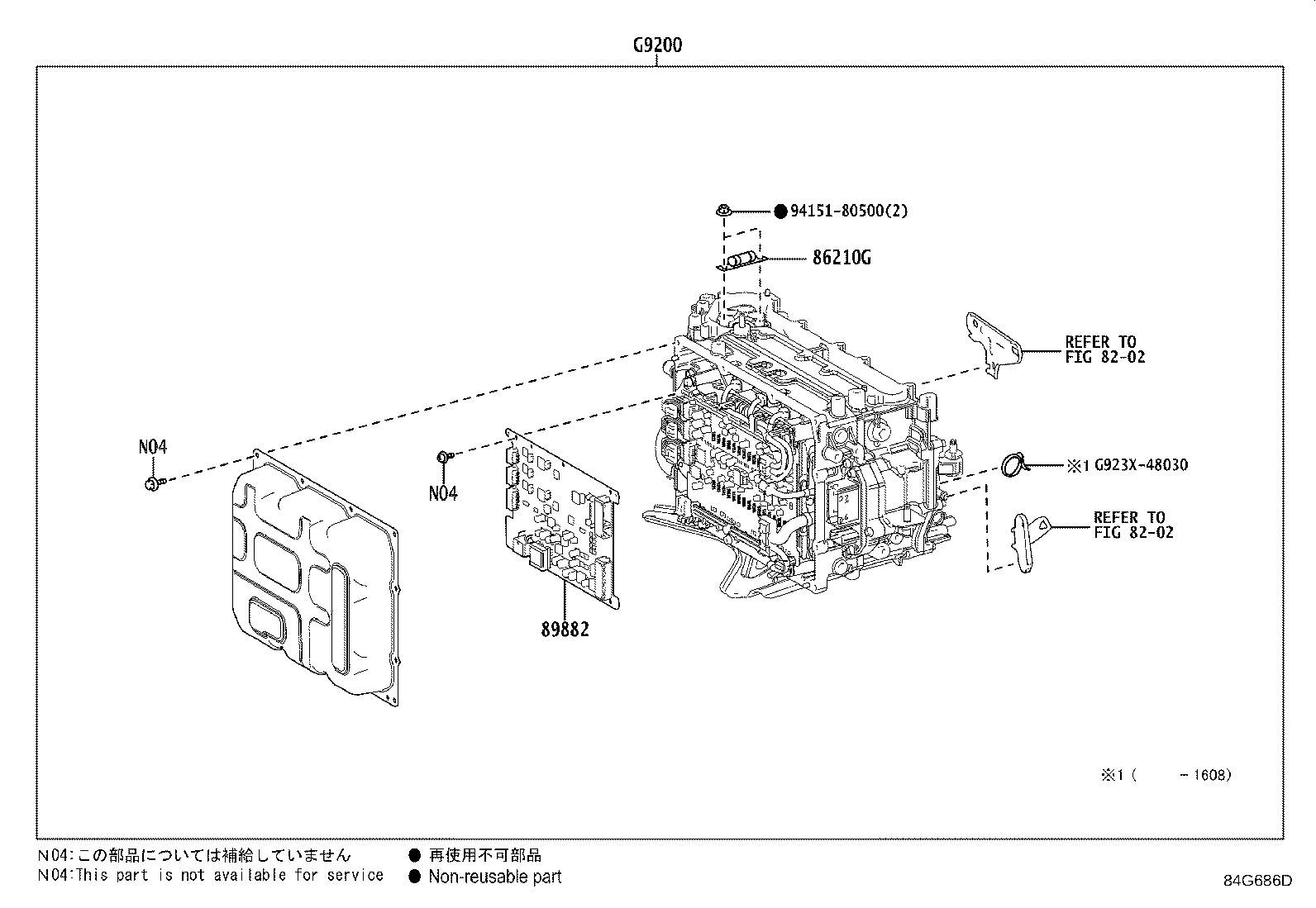

Hev Inverter
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86210G | Fuse, High Voltage |
| 89882 | Computer, Motor Generator Control |
| G9019 | Bracket Sub-assy, Inverter Tray |
| G9200 | Inverter Assy, W/Converter |
| G9216 | Bracket, Inverter, NO.3 |
| G9223 | Cover, Inverter Terminal |
| G9225J | Hose, Inverter Cooling, NO.1 |
| G922B | Hose, Inverter Cooling Inlet, NO.2 |
| G9237B | Hose, Inverter Drain |
| G9238A | Pipe, Inverter Cooling |
| G925B | Bracket, Inverter, NO.6 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
