Toyota Lexus RX450H/350(Jpp

2015-09 → 2022-09 · chassis GGL25,GYL25 · catalogue 521450 · United States

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

8 part groups · 3 illustrations

Illustrations

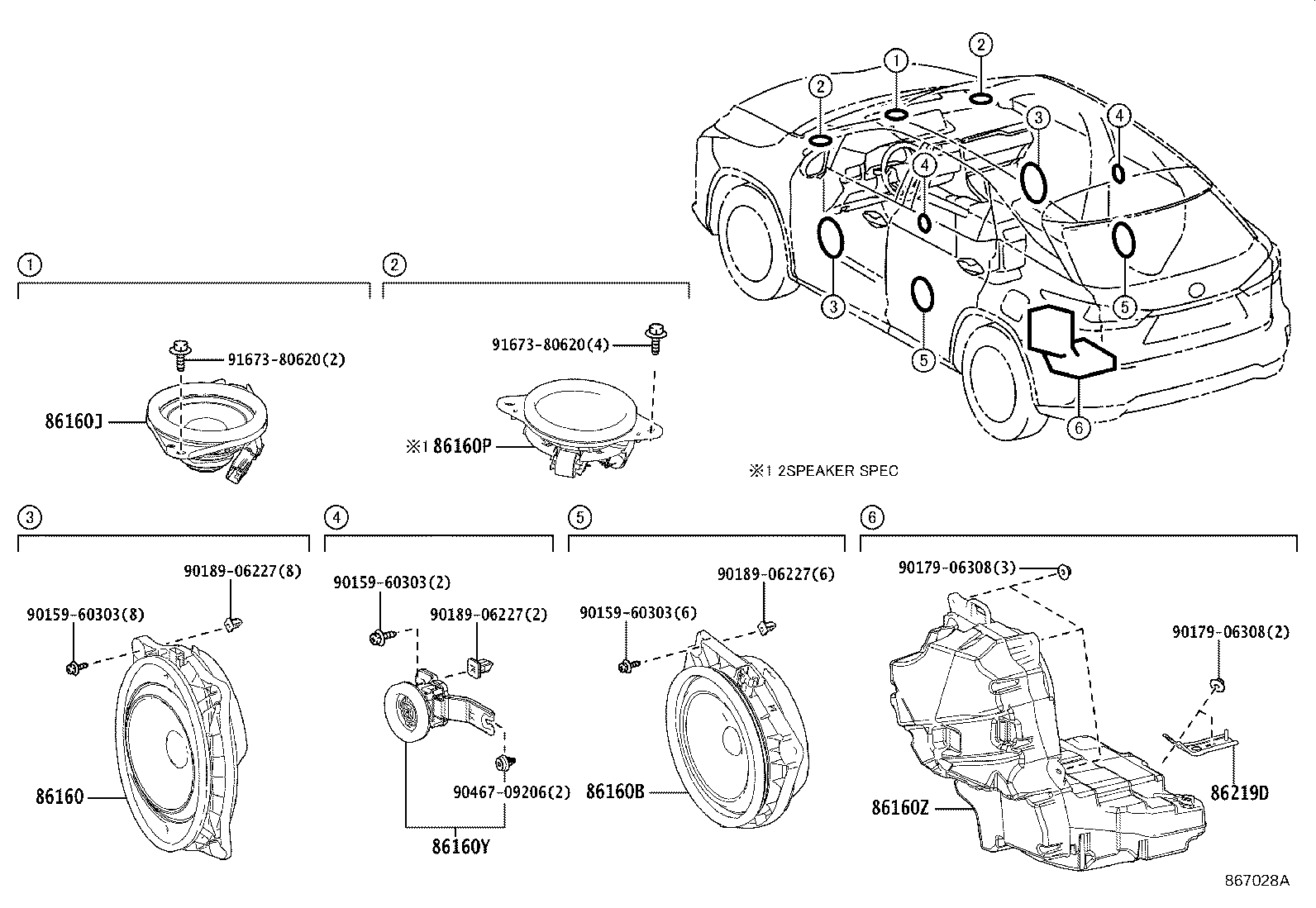

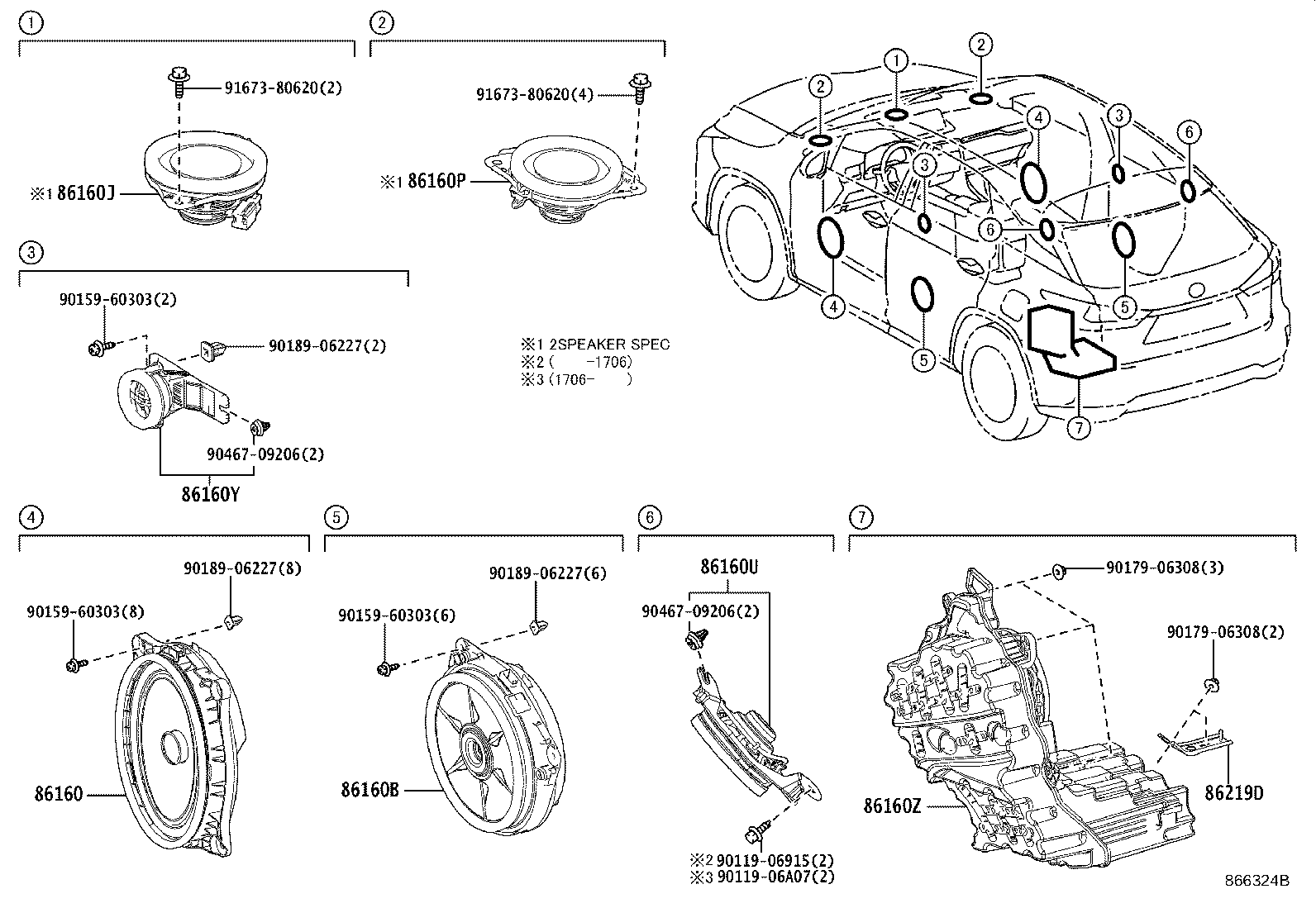

Figure 866322B 866322B 2015-09 → 2019-08 Figure 867028A 867028A 2015-09 → — Figure 866324B 866324B 2015-09 → —

Part groups

PNCDescription
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86160J Speaker Assy, Front NO.3
86160P Speaker Assy, Front NO.2
86160U Speaker Assy, Quarter Side
86160Y Speaker Assy, Rear NO.2
86160Z Speaker Assy, Rear NO.3
86219D Bracket, Speaker, Rear NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
