Toyota Lexus RX Series(JPP)
2022-11 → present · chassis AALH1#,TALA10,TALH17 · catalogue 521460 · United States
Supported model
Data version 2022-10

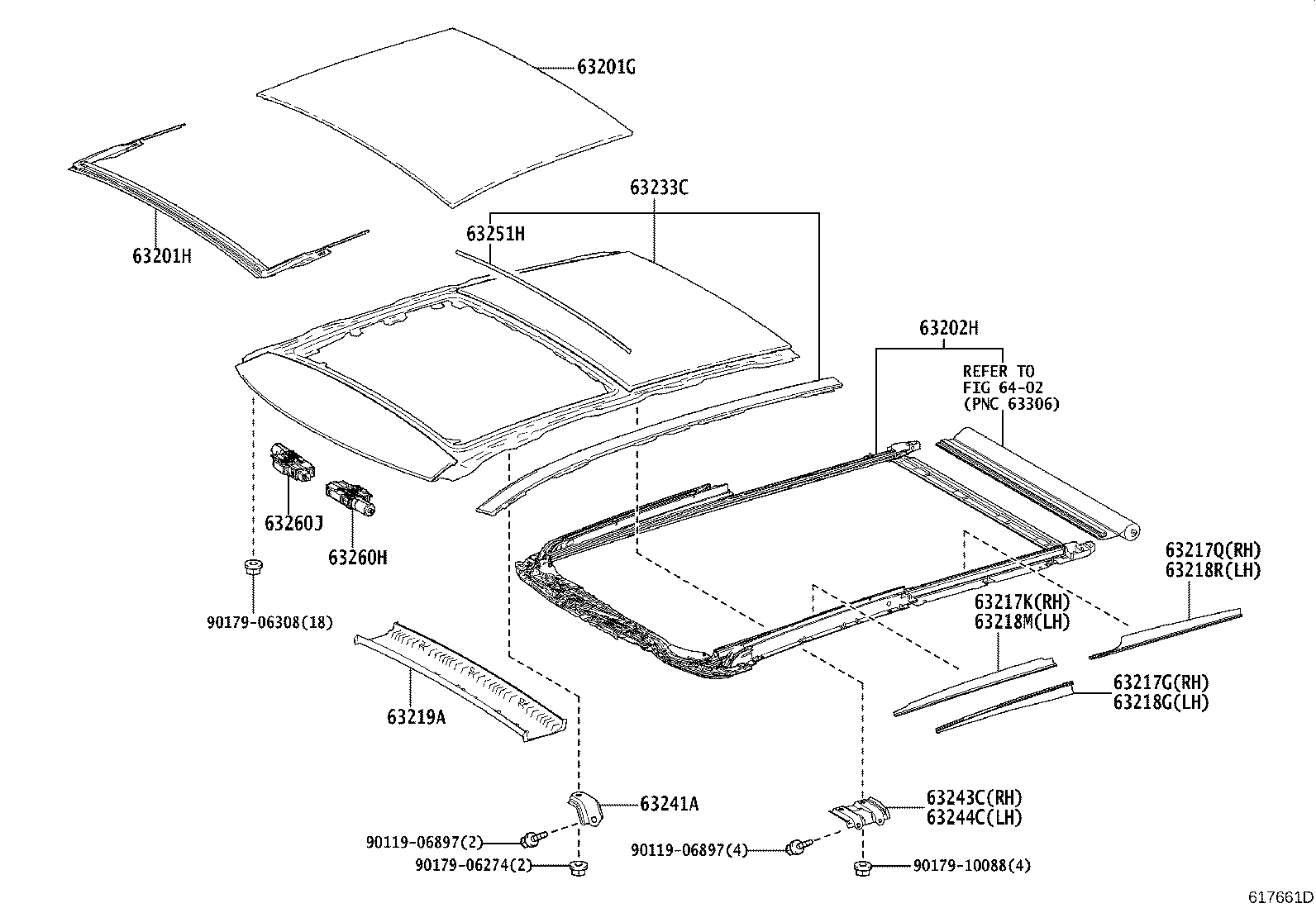

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63201G — Glass Sub-assy, Sliding Roof | ||||
| 63201-48290 |
Glass Sub-assy, Sliding Roof
2022-11 → 2024-10
ended
|
AALH15,TALH17 | — | |
| 63201-48290 note |
Glass Sub-assy, Sliding Roof
2022-11 → 2023-10
ended
|
AALH15,TALH17 | — | |
| 63201-48290 note |
Glass Sub-assy, Sliding Roof
2022-11 → —
|
AALH16 | — | |
| 63201-48290 |
Glass Sub-assy, Sliding Roof
2022-11 → —
|
AALH16,TALA10 | — | |
| 63201-48300 note |
Glass Sub-assy, Sliding Roof
2022-11 → 2024-10
ended
|
AALH15,TALH17 | — | |
| 63201-48300 note |
Glass Sub-assy, Sliding Roof
2022-11 → —
|
AALH16 | — | |
| 63201-48300 |
Glass Sub-assy, Sliding Roof
2024-10 → —
|
AALH15,TALH17 | — | |
| 63201H — Panel Sub-assy, Slide Roof | ||||
| 63201-48380 note |
Panel Sub-assy, Slide Roof
2022-11 → 2024-10
ended
|
AALH15,TALH17 | — | |
| 63201-48380 note |
Panel Sub-assy, Slide Roof
2022-11 → —
|
AALH16 | — | |
| 63201-48380 |
Panel Sub-assy, Slide Roof
2024-10 → —
|
AALH15,TALH17 | — | |
| 63202H — Rail Sub-assy, Slide Roof | ||||
| 63202-48140-A0 note |
Rail Sub-assy, Slide Roof
2022-11 → 2024-10
ended
|
AALH1# | — | |
| 63202-48140-A1 note |
Rail Sub-assy, Slide Roof
2024-10 → —
|
AALH15 | — | |
| 63202-48140-A1 note |
Rail Sub-assy, Slide Roof
2024-10 → —
|
AALH16 | — | |
| 63202-48140-C0 note |
Rail Sub-assy, Slide Roof
2022-11 → —
|
AALH16 | — | |
| 63202-48140-C0 note |
Rail Sub-assy, Slide Roof
2024-10 → —
|
AALH15 | — | |
| 63202-48140-C0 note |
Rail Sub-assy, Slide Roof
2024-10 → —
|
TALH17 | — | |
| 63202-48140-C0 note |
Rail Sub-assy, Slide Roof
2022-11 → 2024-10
ended
|
AALH15 | — | |
| 63202-48140-C0 note |
Rail Sub-assy, Slide Roof
2022-11 → 2024-10
ended
|
TALH17 | — | |
| 63217G — Garnish, Sliding Roof Side, RH | ||||
| 63217-48130 note |
Garnish, Sliding Roof Side, RH
2022-11 → 2024-10
ended
|
AALH15,TALH17 | — | |
| 63217-48130 |
Garnish, Sliding Roof Side, RH
2024-10 → —
|
AALH15,TALH17 | — | |
| 63217-48130 note |
Garnish, Sliding Roof Side, RH
2022-11 → —
|
AALH16 | — | |
| 63217-48170 note |
Garnish, Sliding Roof Side, RH
2022-11 → 2023-10
ended
|
AALH15,TALH17 | — | |
| 63217-48170 note |
Garnish, Sliding Roof Side, RH
2022-11 → —
|
AALH16 | — | |
| 63217-48170 |
Garnish, Sliding Roof Side, RH
2022-11 → —
|
AALH16,TALA10 | — | |
| 63217-48170 |
Garnish, Sliding Roof Side, RH
2022-11 → 2024-10
ended
|
AALH15,TALH17 | — | |
| 63217K — Garnish, Sliding Roof Side, RH | ||||
| 63217-48140 note |
Garnish, Sliding Roof Side, RH
2022-11 → 2024-10
ended
|
AALH15,TALH17 | — | |
| 63217-48140 note |
Garnish, Sliding Roof Side, RH
2022-11 → —
|
AALH16 | — | |
| 63217-48140 |
Garnish, Sliding Roof Side, RH
2024-10 → —
|
AALH15,TALH17 | — | |
| 63217Q — Garnish, Sliding Roof Side, RH | ||||
| 63217-48150 note |
Garnish, Sliding Roof Side, RH
2022-11 → 2024-10
ended
|
AALH15,TALH17 | — | |
| 63217-48150 note |
Garnish, Sliding Roof Side, RH
2022-11 → —
|
AALH16 | — | |
| 63217-48150 |
Garnish, Sliding Roof Side, RH
2024-10 → —
|
AALH15,TALH17 | — | |
| 63218G — Garnish, Sliding Roof Side, LH | ||||
| 63217-48170 note |
Garnish, Sliding Roof Side, LH
2022-11 → —
|
AALH16 | — | |
| 63217-48170 |
Garnish, Sliding Roof Side, LH
2022-11 → —
|
AALH16,TALA10 | — | |
| 63217-48170 |
Garnish, Sliding Roof Side, LH
2022-11 → 2024-10
ended
|
AALH15,TALH17 | — | |
| 63217-48170 note |
Garnish, Sliding Roof Side, LH
2022-11 → 2023-10
ended
|
AALH15,TALH17 | — | |
| 63218-48130 note |
Garnish, Sliding Roof Side, LH
2022-11 → —
|
AALH16 | — | |
| 63218-48130 |
Garnish, Sliding Roof Side, LH
2024-10 → —
|
AALH15,TALH17 | — | |
| 63218-48130 note |
Garnish, Sliding Roof Side, LH
2022-11 → 2024-10
ended
|
AALH15,TALH17 | — | |
| 63218M — Garnish, Sliding Roof Side, LH | ||||
| 63218-48140 note |
Garnish, Sliding Roof Side, LH
2022-11 → 2024-10
ended
|
AALH15,TALH17 | — | |
| 63218-48140 note |
Garnish, Sliding Roof Side, LH
2022-11 → —
|
AALH16 | — | |
| 63218-48140 |
Garnish, Sliding Roof Side, LH
2024-10 → —
|
AALH15,TALH17 | — | |
| 63218R — Garnish, Sliding Roof Side, LH | ||||
| 63218-48150 note |
Garnish, Sliding Roof Side, LH
2022-11 → —
|
AALH16 | — | |
| 63218-48150 |
Garnish, Sliding Roof Side, LH
2024-10 → —
|
AALH15,TALH17 | — | |
| 63218-48150 note |
Garnish, Sliding Roof Side, LH
2022-11 → 2024-10
ended
|
AALH15,TALH17 | — | |
| 63219A — Garnish, Sliding Roof, Rear | ||||
| 63219-48040 note |
Garnish, Sliding Roof, Rear
2022-11 → 2024-10
ended
|
AALH15,TALH17 | — | |
| 63219-48040 note |
Garnish, Sliding Roof, Rear
2022-11 → —
|
AALH16 | — | |
| 63219-48040 |
Garnish, Sliding Roof, Rear
2024-10 → —
|
AALH15,TALH17 | — | |
| 63233C — Panel, Sliding Roof Housing | ||||
| 63233-48150 note |
Panel, Sliding Roof Housing
2022-11 → 2024-10
ended
|
AALH15,TALH17 | — | |
| 63233-48150 note |
Panel, Sliding Roof Housing
2022-11 → —
|
AALH16 | — | |
| 63233-48150 |
Panel, Sliding Roof Housing
2024-10 → —
|
AALH15,TALH17 | — | |
| 63241A — Bracket, Sliding Roof Housing Front Mounting, RH | ||||
| 63241-48140 note |
Bracket, Sliding Roof Housing Front Mounting, RH
2022-11 → 2024-10
ended
|
AALH15,TALH17 | — | |
| 63241-48140 |
Bracket, Sliding Roof Housing Front Mounting, RH
2024-10 → —
|
AALH15,TALH17 | — | |
| 63241-48140 note |
Bracket, Sliding Roof Housing Front Mounting, RH
2022-11 → —
|
AALH16 | — | |
| 63243C — Bracket, Sliding Roof Housing Center Mounting, RH | ||||
| 63243-48120 note |
Bracket, Sliding Roof Housing Center Mounting, RH
2022-11 → 2024-10
ended
|
AALH15,TALH17 | — | |
| 63243-48120 note |
Bracket, Sliding Roof Housing Center Mounting, RH
2022-11 → —
|
AALH16 | — | |
| 63243-48120 |
Bracket, Sliding Roof Housing Center Mounting, RH
2024-10 → —
|
AALH15,TALH17 | — | |
| 63244C — Bracket, Sliding Roof Housing Center Mounting, LH | ||||
| 63244-48080 note |
Bracket, Sliding Roof Housing Center Mounting, LH
2022-11 → 2024-10
ended
|
AALH15,TALH17 | — | |
| 63244-48080 note |
Bracket, Sliding Roof Housing Center Mounting, LH
2022-11 → —
|
AALH16 | — | |
| 63244-48080 |
Bracket, Sliding Roof Housing Center Mounting, LH
2024-10 → —
|
AALH15,TALH17 | — | |
| 63251H — Weatherstrip, Sliding Roof | ||||
| 63251-48080 note |
Weatherstrip, Sliding Roof
2022-11 → 2024-10
ended
|
AALH15,TALH17 | — | |
| 63251-48080 note |
Weatherstrip, Sliding Roof
2022-11 → —
|
AALH16 | — | |
| 63251-48080 |
Weatherstrip, Sliding Roof
2024-10 → —
|
AALH15,TALH17 | — | |
| 63260H — Gear Assy, Sliding Roof Drive | ||||
| 63260-48220 note |
Gear Assy, Sliding Roof Drive
2022-11 → 2024-10
ended
|
AALH15,TALH17 | — | |
| 63260-48220 note |
Gear Assy, Sliding Roof Drive
2022-11 → —
|
AALH16 | — | |
| 63260-48220 |
Gear Assy, Sliding Roof Drive
2024-10 → —
|
AALH15,TALH17 | — | |
| 63260J — Gear Assy, Sliding Roof Drive | ||||
| 63260-48230 note |
Gear Assy, Sliding Roof Drive
2022-11 → 2024-10
ended
|
AALH15,TALH17 | — | |
| 63260-48230 note |
Gear Assy, Sliding Roof Drive
2022-11 → —
|
AALH16 | — | |
| 63260-48230 |
Gear Assy, Sliding Roof Drive
2024-10 → —
|
AALH15,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
