Toyota Lexus RX Series(JPP)
2022-11 → present · chassis AALH1#,TALA10,TALH17 · catalogue 521460 · United States
Supported model
Data version 2022-10
Standard Tool
12 part groups · 1 illustrations

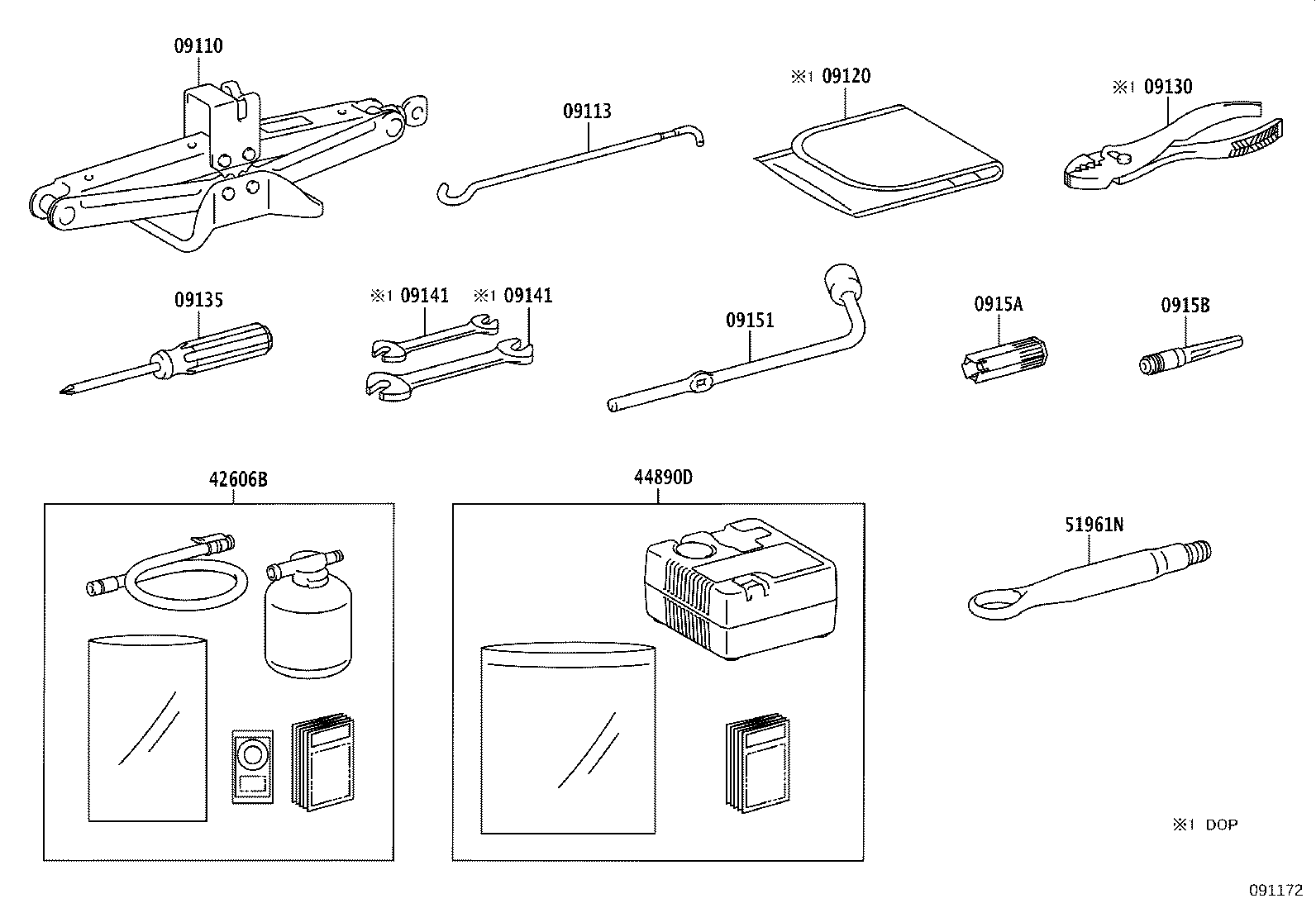

Illustrations
Part groups
| PNC | Description |
|---|---|
| 09110 | Jack Assy |
| 09113 | Handle, Jack |
| 09120 | Bag, Tool |
| 09130 | Pliers |
| 09135 | Driver, Screw |
| 09141 | Spanner |
| 09151 | Wrench, Hub Bolt Box |
| 0915A | Socket, Hub Bolt Temporary Setting |
| 0915B | Pin, Wheel Guide |
| 42606B | Repair Kit, Tubeless Tire |
| 44890D | Compressor Assy, Air |
| 51961N | Hook, Transport |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
