Toyota Lexus RX Series(JPP)
2022-11 → present · chassis AALH1#,TALA10,TALH17 · catalogue 521460 · United States
Supported model
Data version 2022-10
Ventilation Hose

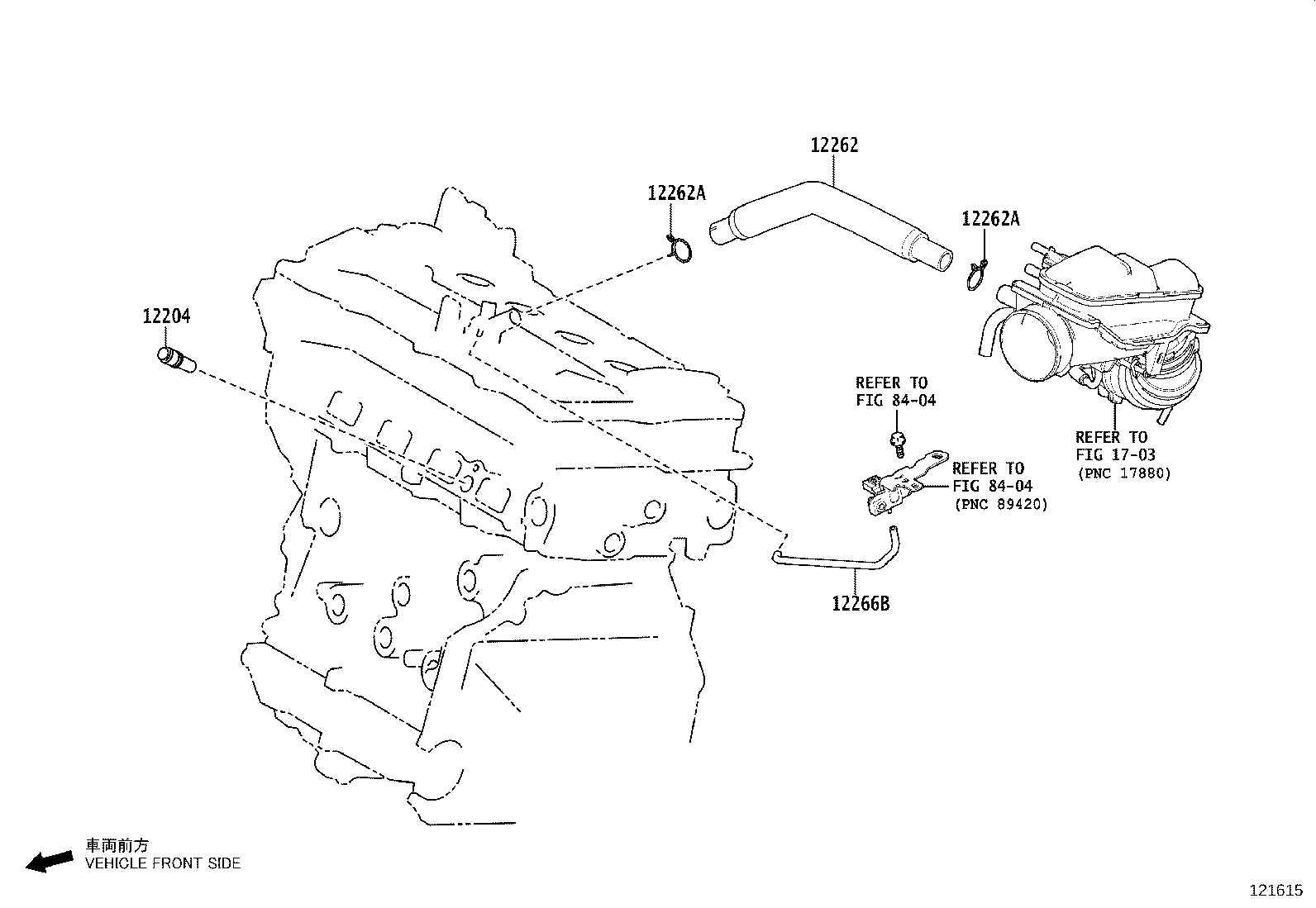

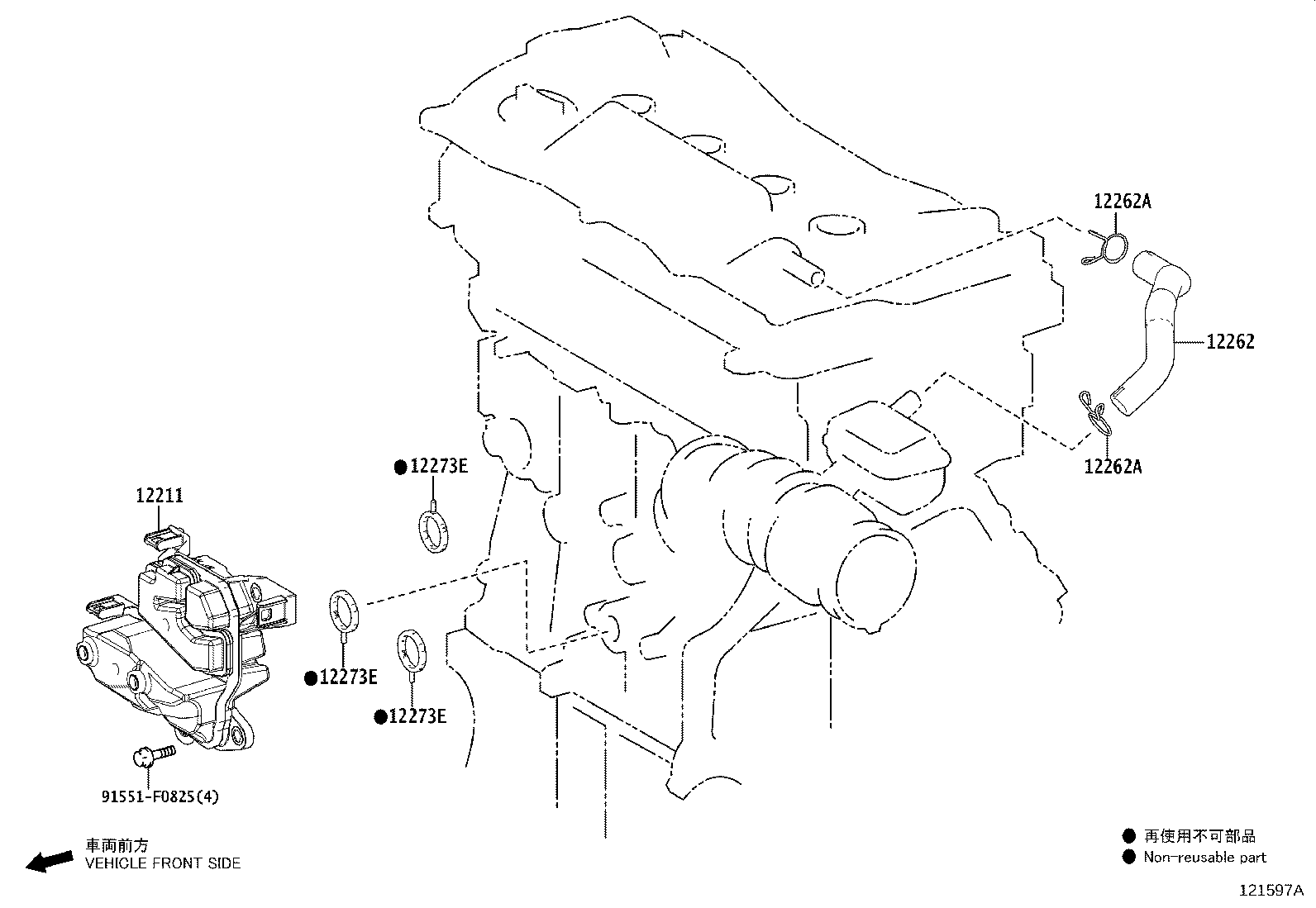

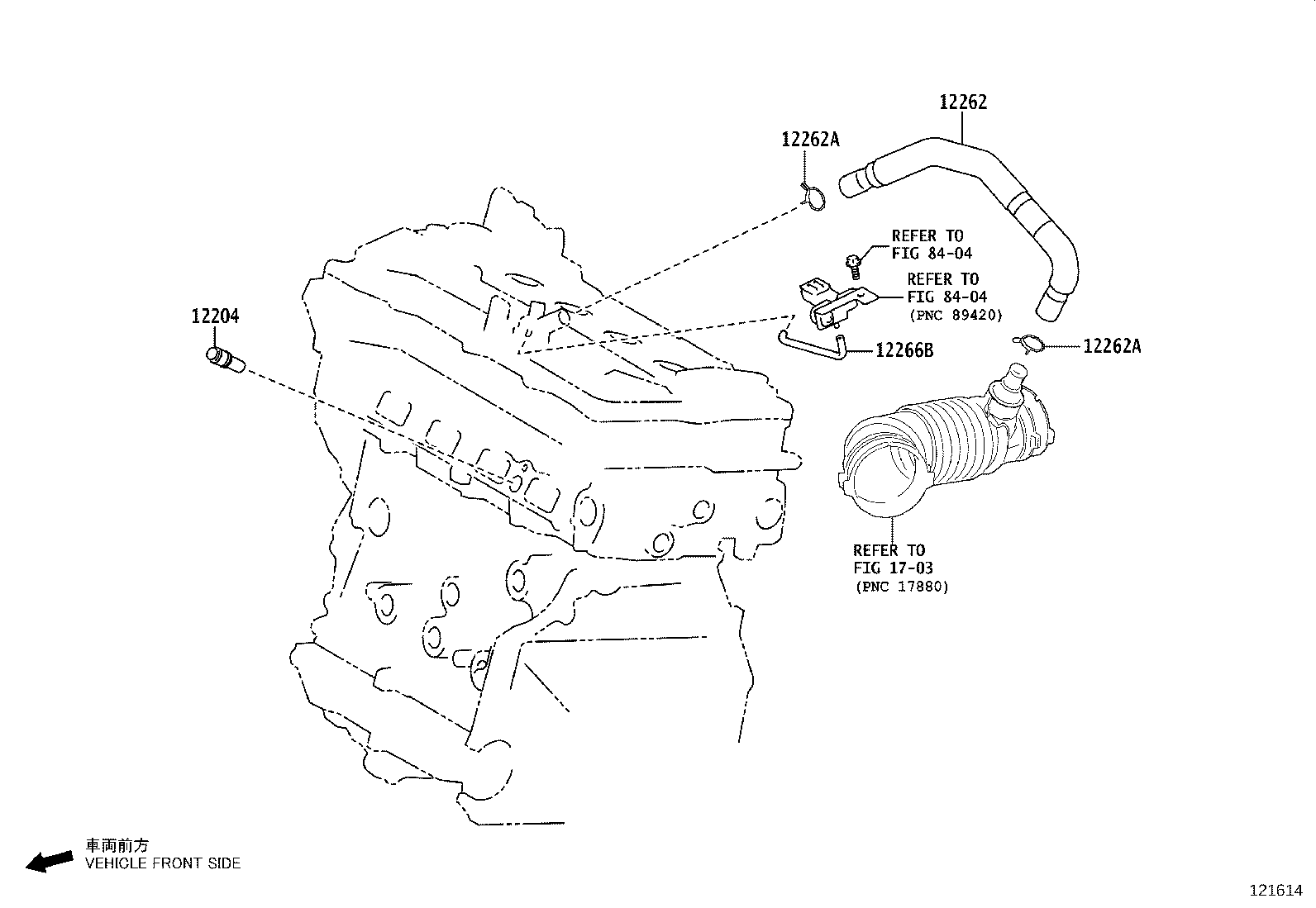

6 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 12204 | Valve Sub-assy, Ventilation |
| 12211 | Case, Ventilation, NO.1 |
| 12262 | Hose, Ventilation, NO.2 |
| 12262A | Clip(FOR VENTILATION HOSE NO.2) |
| 12266B | Hose, Ventilation Pressure Sensor, NO.1 |
| 12273E | Gasket(FOR VENTILATION CASE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
