Toyota Lexus RX Series(JPP)
2022-11 → present · chassis AALH1#,TALA10,TALH17 · catalogue 521460 · United States
Supported model
Data version 2022-10

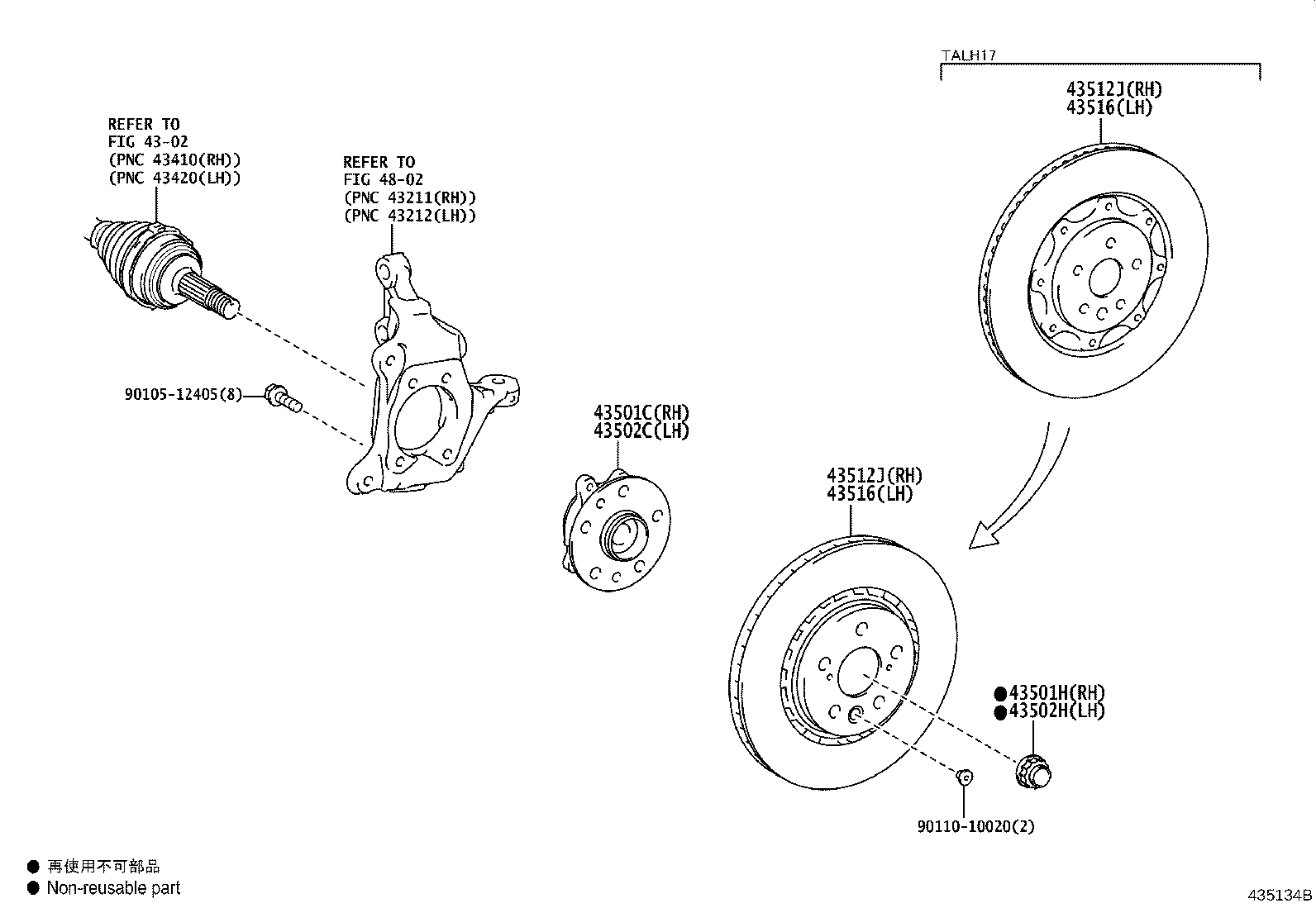

Front Axle Hub
6 part groups · 1 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 43501C | Hub Sub-assy, Front Axle, RH |
| 43501H | Nut (FOR FRONT AXLE SHAFT RH) |
| 43502C | Hub Sub-assy, Front Axle, LH |
| 43502H | Nut (FOR FRONT AXLE SHAFT LH) |
| 43512J | Disc, Front RH |
| 43516 | Disc, Front LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
