Toyota Lexus RX Series(JPP)
2022-11 → present · chassis AALH1#,TALA10,TALH17 · catalogue 521460 · United States
Supported model
Data version 2022-10

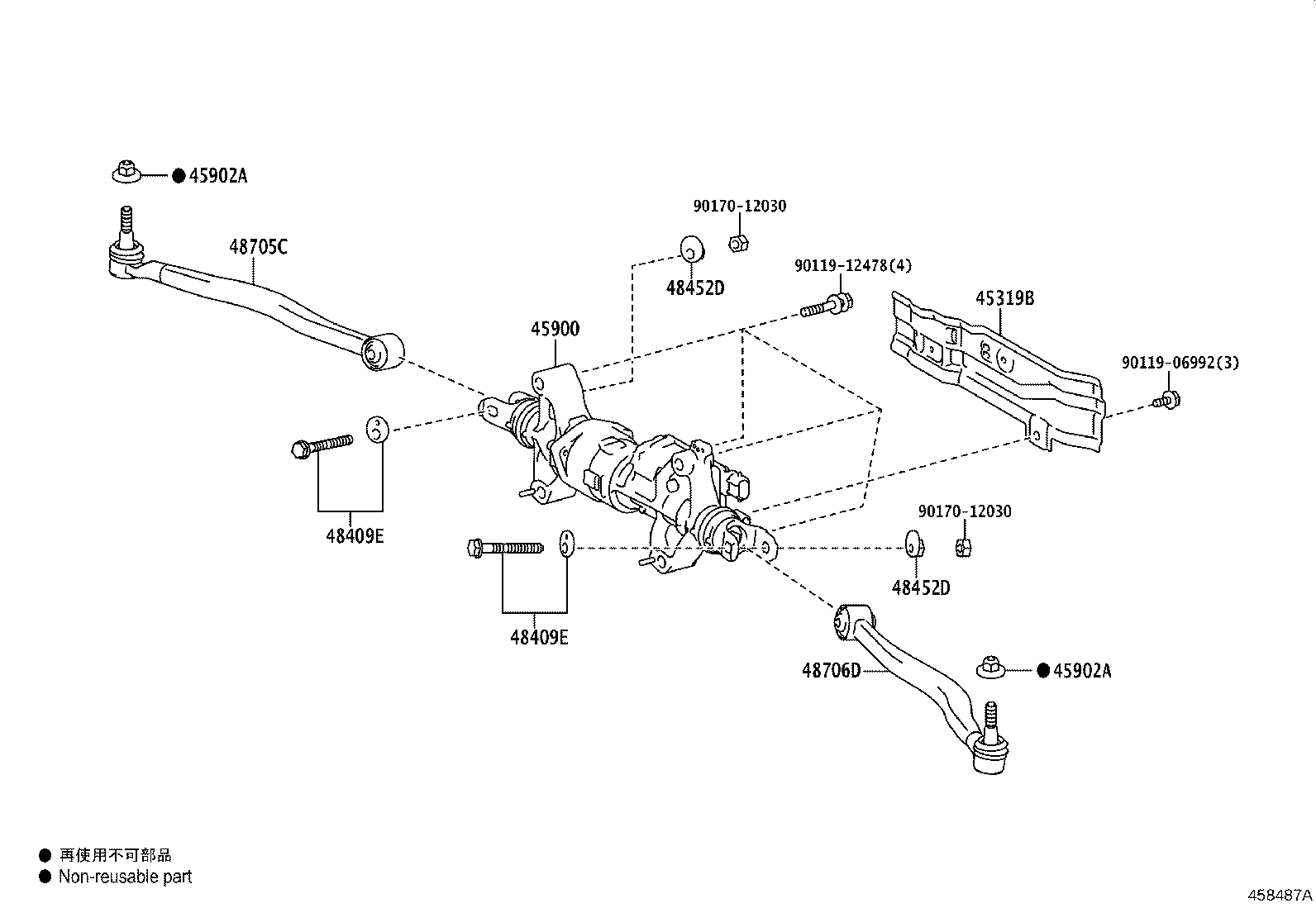

Rear Steering Gear (4WS)
7 part groups · 1 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 45319B | Insulator, Steering Gear Heat |
| 45900 | Link Assy, Rear Steering |
| 45902A | Nut, Castle(FOR REAR STEERING TIE ROD END) |
| 48409E | Cam Sub-assy, Toe Adjust |
| 48452D | Plate, Toe Adjust |
| 48705C | Link Sub-assy Set, Toe Control, RH |
| 48706D | Link Sub-assy Set, Toe Control, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
