Toyota Lexus RX Series(JPP)

2022-11 → present · chassis AALH1#,TALA10,TALH17 · catalogue 521460 · United States

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Pedal & Bracket

5 part groups · 2 illustrations

Illustrations

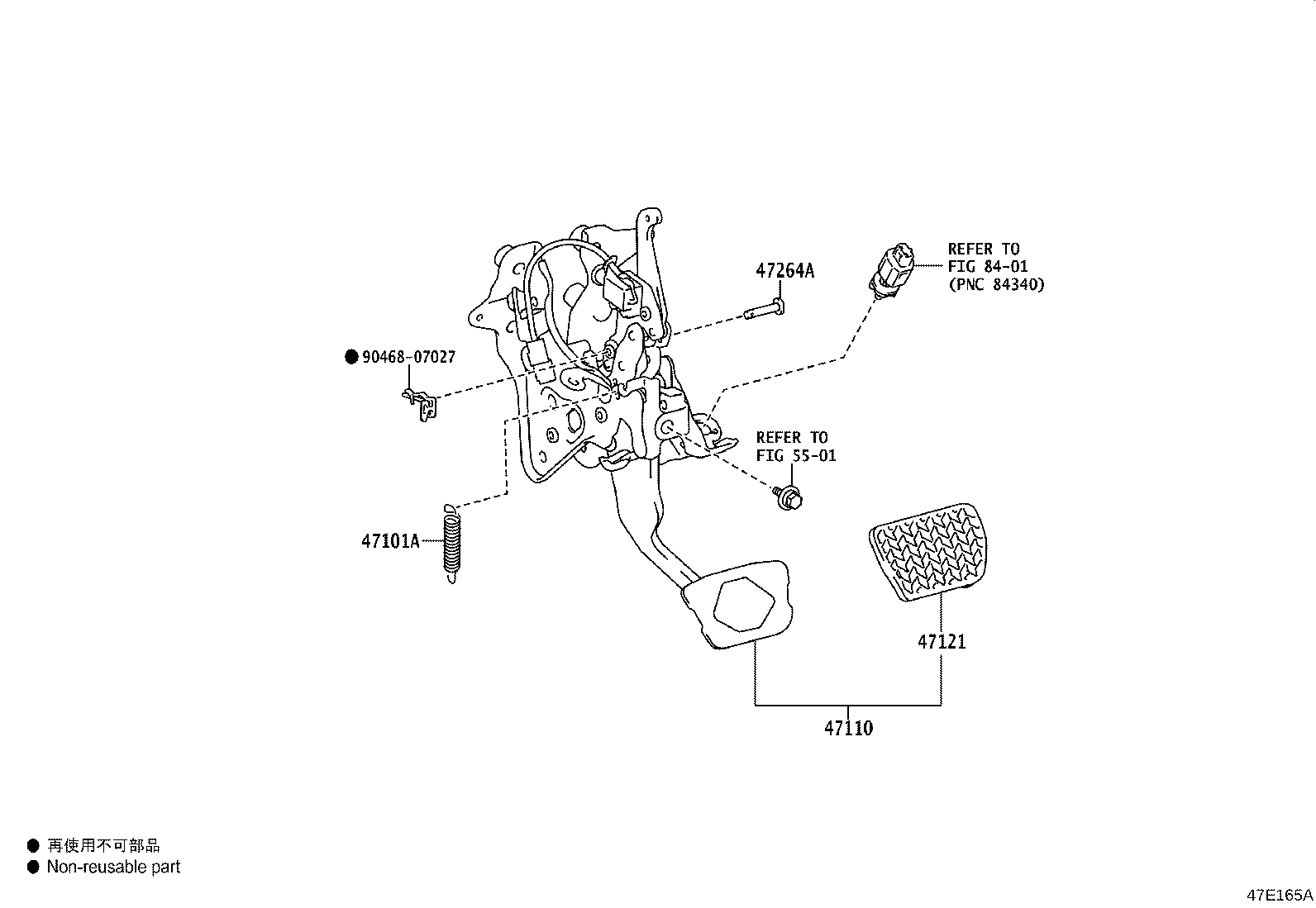

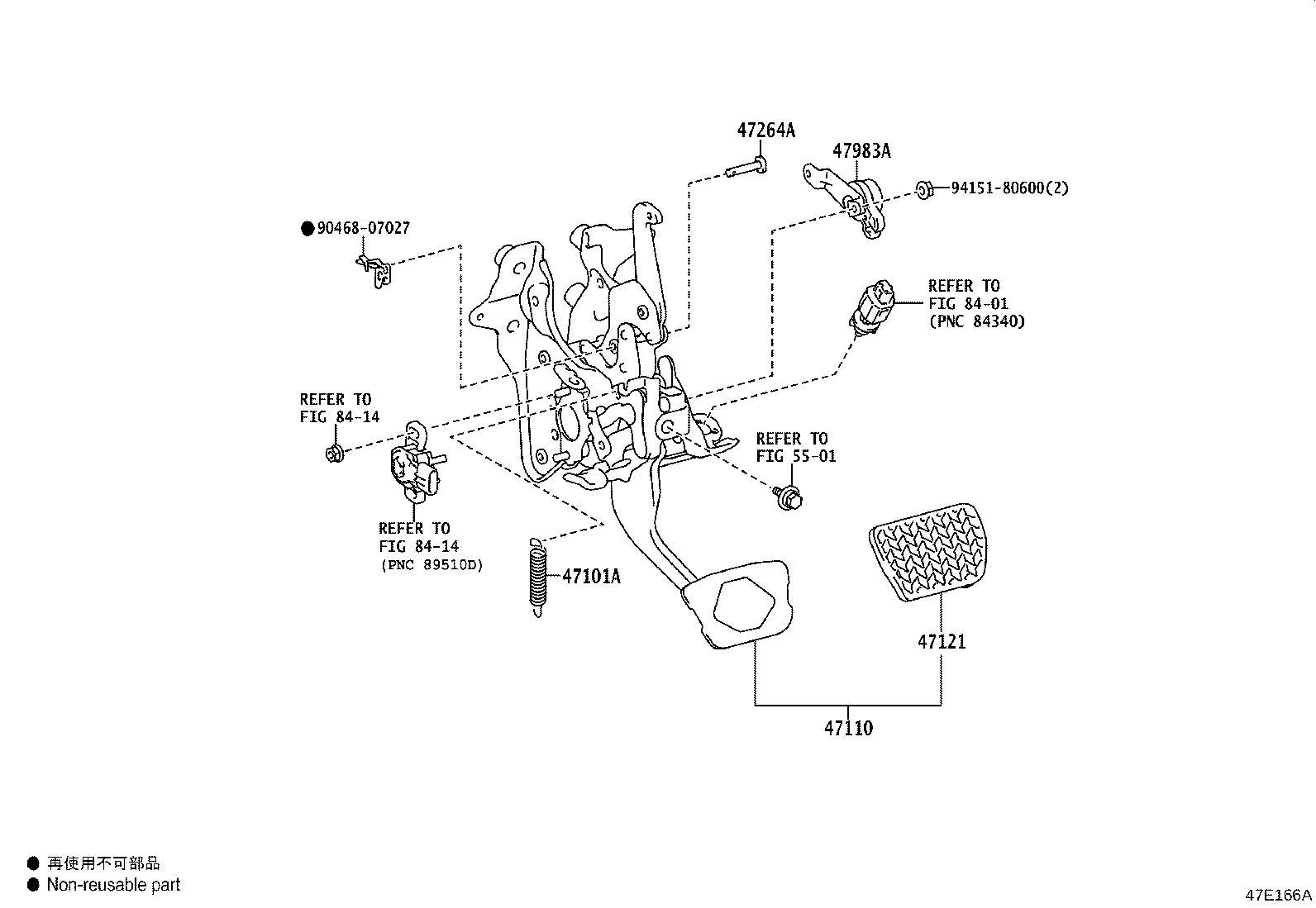

Figure 47E166A 47E166A 2022-11 → — Figure 47E165A 47E165A 2022-11 → —

Part groups

PNCDescription
47101A Spring(FOR BRAKE PEDAL RETURN)
47110 Support Assy, Brake Pedal
47121 Pad, Brake Pedal
47264A Pin(FOR PUSH ROD)
47983A Damper, Brake Traction
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
