Toyota Lexus RX Series(JPP)
2022-11 → present · chassis AALH1#,TALA10,TALH17 · catalogue 521460 · United States
Supported model
Data version 2022-10

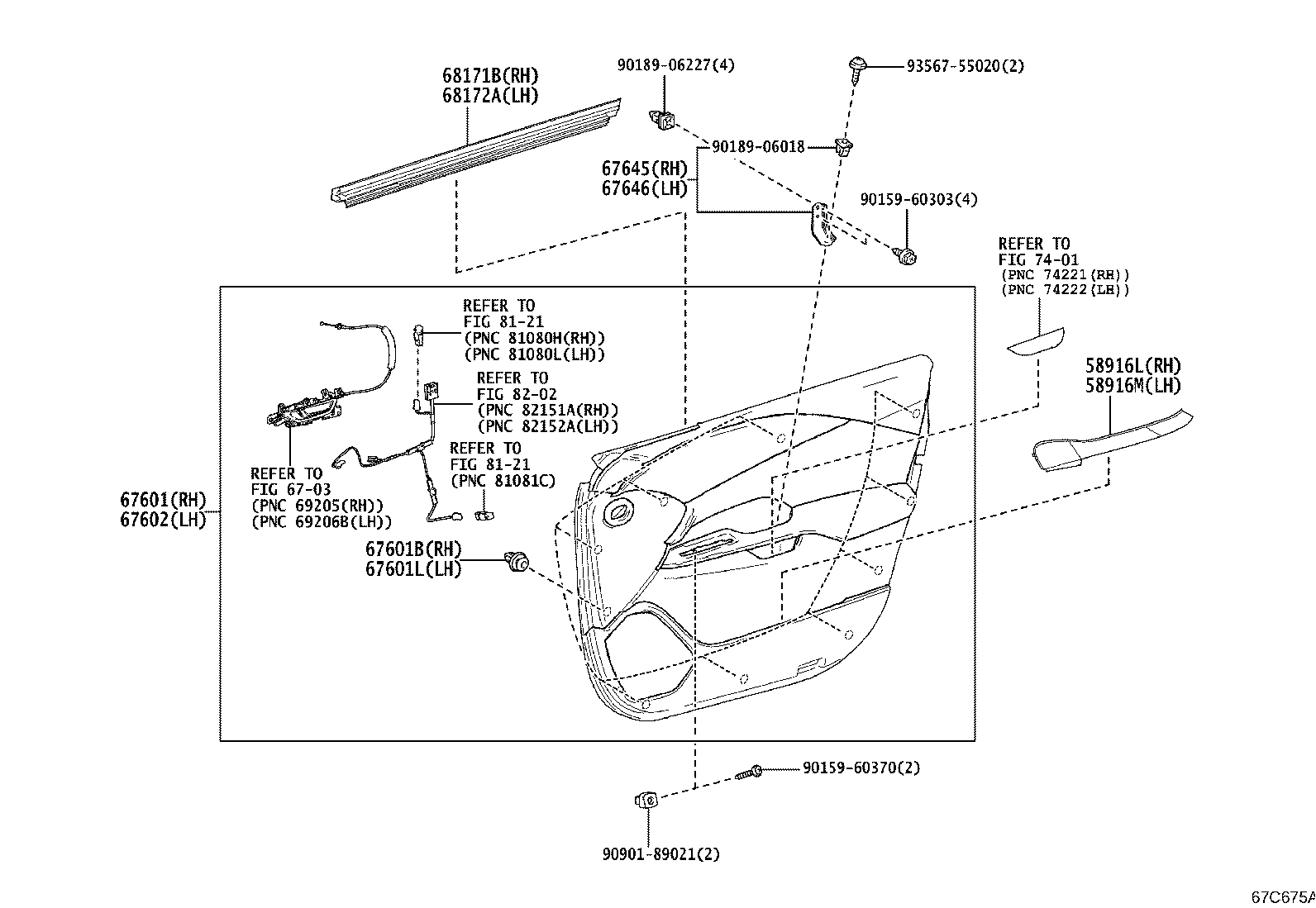

Front Door Panel & Glass
54 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58916L | Mat, Box Bottom, RH |
| 58916M | Mat, Box Bottom, LH |
| 67001 | Panel Sub-assy, Front Door, RH |
| 67001B | Plug, Hole(FOR FRONT DOOR PANEL) |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67111 | Panel, Front Door, Outer RH |
| 67112 | Panel, Front Door, Outer LH |
| 67401F | Frame Sub-assy, Front Door, Front Lower RH |
| 67402F | Frame Sub-assy, Front Door, Front Lower LH |
| 67403F | Frame Sub-assy, Front Door, Rear Lower RH |
| 67404F | Frame Sub-assy, Front Door, Rear Lower LH |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601B | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67601L | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67645 | Bracket, Front Door Armrest Set, RH |
| 67646 | Bracket, Front Door Armrest Set, LH |
| 67663 | Garnish, Door Frame, Upper RH |
| 67664 | Garnish, Door Frame, Upper LH |
| 67811 | Pad, Front Door Silencer |
| 67831 | Cover, Front Door Service Hole, RH |
| 67831D | Clip(FOR FRONT DOOR SERVICE HOLE COVER) |
| 67832 | Cover, Front Door Service Hole, LH |
| 67837A | Seal, Front Door Vent, RH |
| 67837B | Seal, Front Door Dust Proof |
| 67838A | Seal, Front Door Vent, LH |
| 67855B | Protector, Front Door Panel, RH |
| 67856B | Protector, Front Door Panel, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67869B | Clip, Front Door Weatherstrip |
| 67869E | Clip, Front Door Weatherstrip |
| 67927B | Cushion, Separation Door Stiffener, NO.1 |
| 67928B | Cushion, Separation Door Stiffener, NO.2 |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68125 | Glass, Front Door Fix Window, RH |
| 68126 | Glass, Front Door Fix Window, LH |
| 68141C | Run, Front Door Glass, RH |
| 68151D | Run, Front Door Glass, LH |
| 68171B | Weatherstrip, Front Door Glass, Inner RH |
| 68172A | Weatherstrip, Front Door Glass, Inner LH |
| 68194B | Seal, Front Door Belt, Rear RH |
| 68195B | Seal, Front Door Belt, Rear LH |
| 68215 | Weatherstrip, Front Door Fix Window, RH |
| 68216 | Weatherstrip, Front Door Fix Window, LH |
| 68610B | Check Assy, Front Door, RH |
| 68620 | Check Assy, Front Door, LH |
| 75965B | Stripe, Front Door NO.4 RH |
| 75966B | Stripe, Front Door NO.4 LH |
| 75985B | Stripe, Front Door, NO.3 RH |
| 75986B | Stripe, Front Door, NO.3 LH |
| 87963 | Cover, Outer Mirror Install Hole, RH |
| 87964 | Cover, Outer Mirror Install Hole, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
