Toyota Lexus RX Series(JPP)
2022-11 → present · chassis AALH1#,TALA10,TALH17 · catalogue 521460 · United States
Supported model
Data version 2022-10

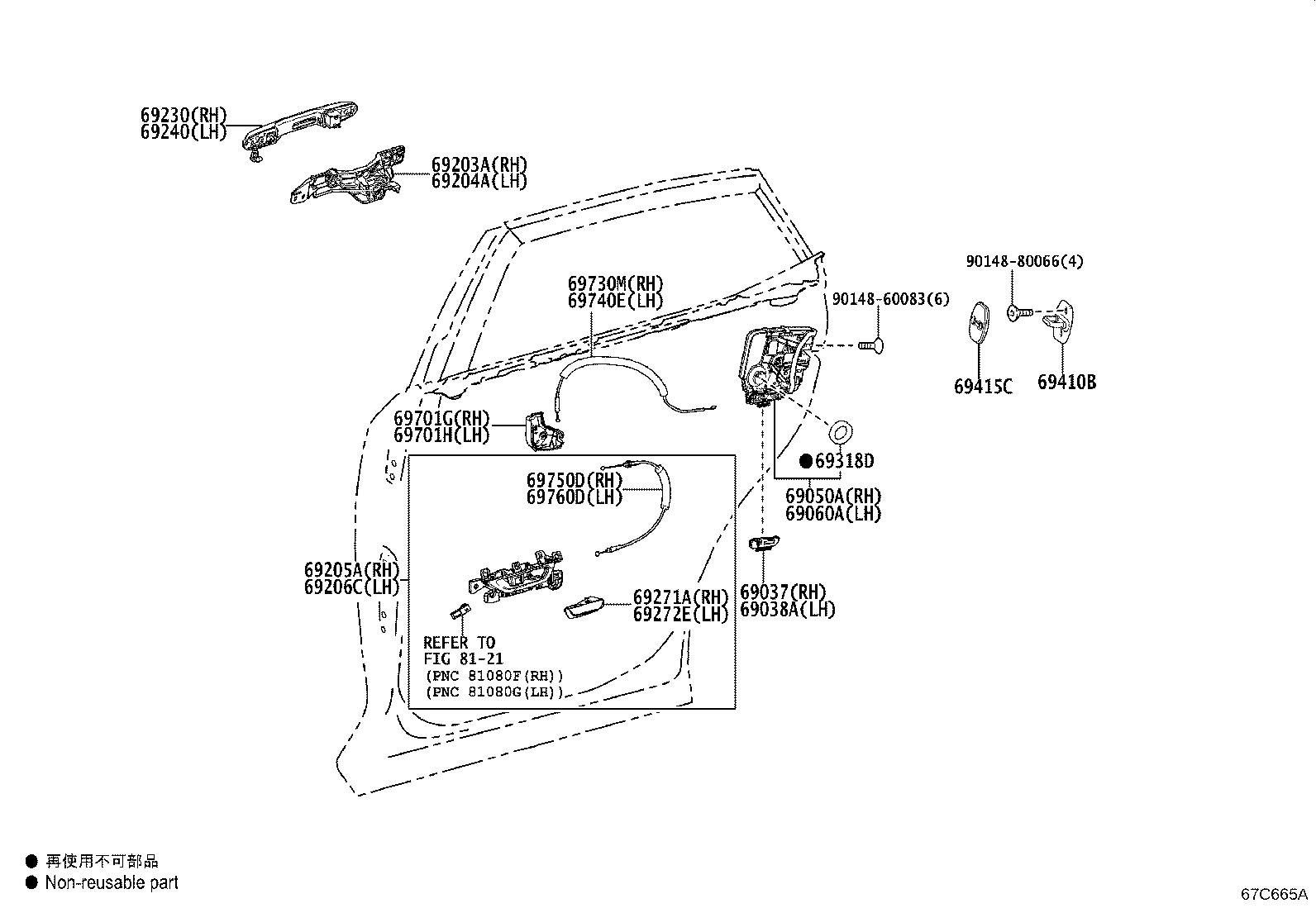

Rear Door Lock & Handle
21 part groups · 1 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 69037 | Cover Sub-assy, Rear Door Lock, RH |
| 69038A | Cover Sub-assy, Rear Door Lock, LH |
| 69050A | Lock Assy, Rear Door W/Motor, RH |
| 69060A | Lock Assy, Rear Door W/Motor, LH |
| 69203A | Frame Sub-assy, Rear Door Outside Handle, RH |
| 69204A | Frame Sub-assy, Rear Door Outside Handle, LH |
| 69205A | Handle Sub-assy, Rear Door Inside, RH |
| 69206C | Handle Sub-assy, Rear Door Inside, LH |
| 69230 | Handle Assy, Rear Door Outside, RH |
| 69240 | Handle Assy, Rear Door Outside, LH |
| 69271A | Handle, Rear Door Inside, RH |
| 69272E | Handle, Rear Door Inside, LH |
| 69318D | Seal, Door Lock Wiring Harness |
| 69410B | Plate Assy, Rear Door Lock Striker |
| 69415C | Cover, Door Lock Striker, Rear |
| 69701G | Bellcrank Sub-assy, Rear Door Lock Control, Upper, RH |
| 69701H | Bellcrank Sub-assy, Rear Door Lock Control, Upper, LH |
| 69730M | Cable, Rear Door Lock Remote Control, RH(FOR OPEN LEVER) |
| 69740E | Cable, Rear Door Lock Remote Control, LH(FOR OPEN LEVER) |
| 69750D | Cable Assy, Rear Door Inside Locking, RH |
| 69760D | Cable Assy, Rear Door Inside Locking, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
