Toyota Lexus RX Series(JPP)

2022-11 → present · chassis AALH1#,TALA10,TALH17 · catalogue 521460 · United States

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

5 part groups · 1 illustrations

Illustrations

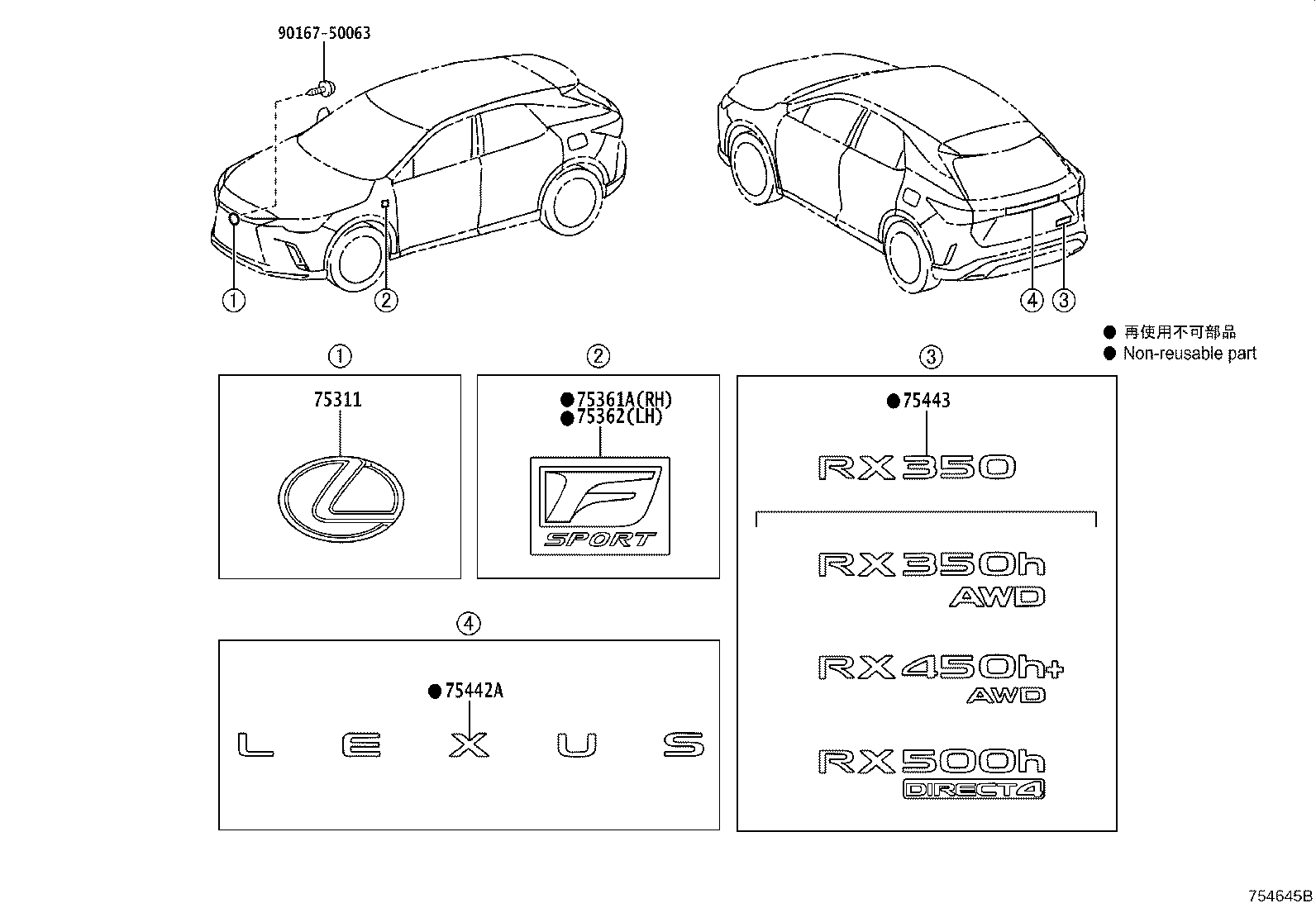

Figure 754645B 754645B 2022-11 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75361A Plate, Front Fender Name, NO.1
75362 Plate, Front Fender Name, NO.2
75442A Plate, Back Door Name, NO.2
75443 Plate, Back Door Name, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
