Toyota Lexus RX Series(JPP)
2022-11 → present · chassis AALH1#,TALA10,TALH17 · catalogue 521460 · United States
Supported model
Data version 2022-10

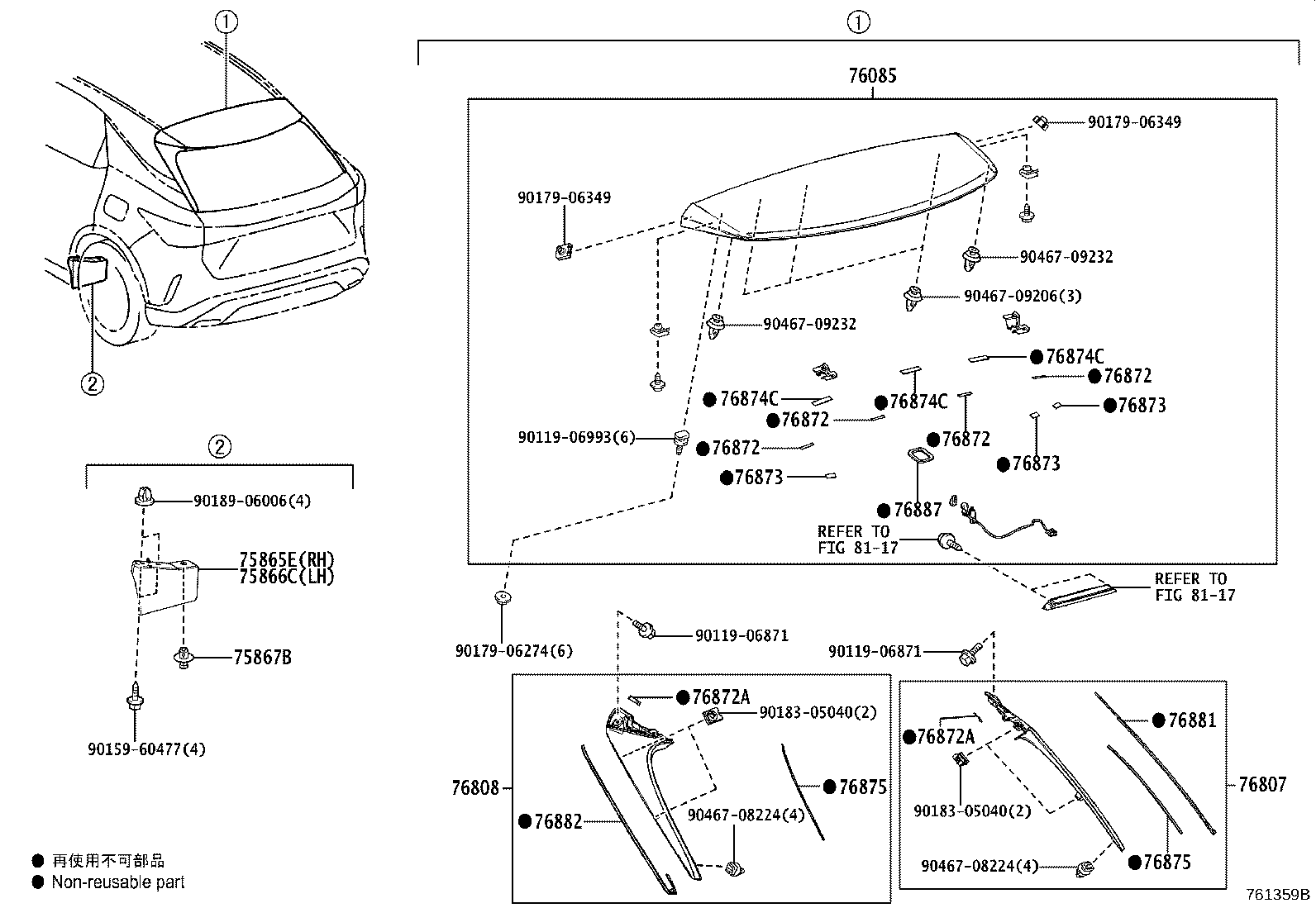

Mudguard & Spoiler
14 part groups · 1 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 75865E | Protector, Rocker Panel Moulding, RH |
| 75866C | Retainer, Rocker Panel Moulding, LH |
| 75867B | Clip, Rocker Panel Moulding |
| 76085 | Spoiler Sub-assy, Rear |
| 76807 | Protector Sub-assy, Rear Spoiler, Side RH |
| 76808 | Protector Sub-assy, Rear Spoiler, Side LH |
| 76872 | Protector, Rear Spoiler, NO.1 |
| 76872A | Protector, Rear Spoiler, NO.1 |
| 76873 | Protector, Rear Spoiler, NO.2 |
| 76874C | Protector, Rear Spoiler, NO.3 |
| 76875 | Protector, Rear Spoiler, NO.4 |
| 76881 | Protector, Rear Spoiler Side, NO.1 RH |
| 76882 | Protector, Rear Spoiler Side, NO.1 LH |
| 76887 | Seal, Rear Spoiler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
