Toyota Lexus RX Series(JPP)

2022-11 → present · chassis AALH1#,TALA10,TALH17 · catalogue 521460 · United States

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Reflex Reflector

2 part groups · 1 illustrations

Illustrations

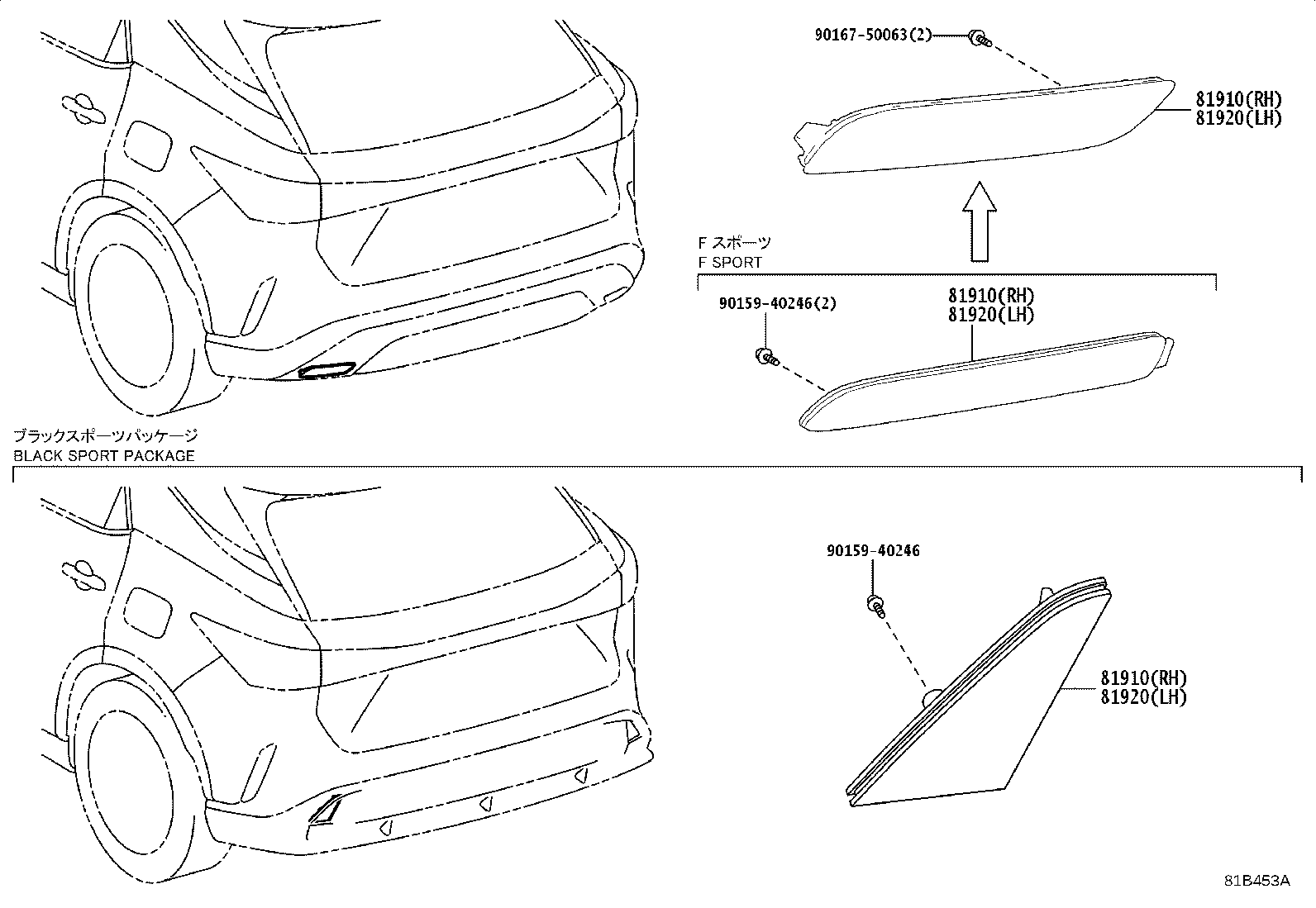

Figure 81B453A 81B453A 2022-11 → —

Part groups

PNCDescription
81910 Reflector Assy, Reflex, RH
81920 Reflector Assy, Reflex, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
