Toyota Lexus RX Series(JPP)

2022-11 → present · chassis AALH1#,TALA10,TALH17 · catalogue 521460 · United States

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

4 part groups · 2 illustrations

Illustrations

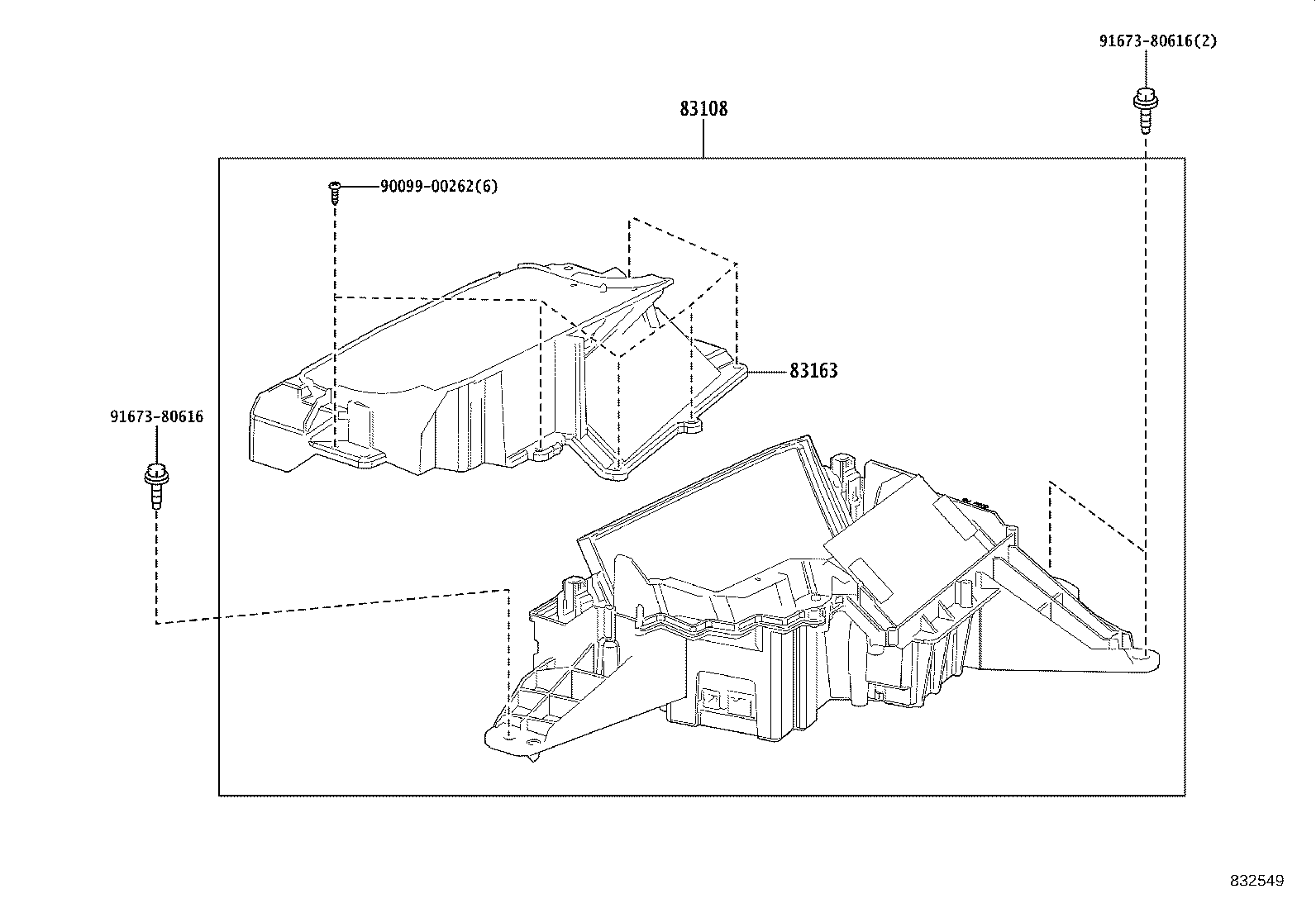

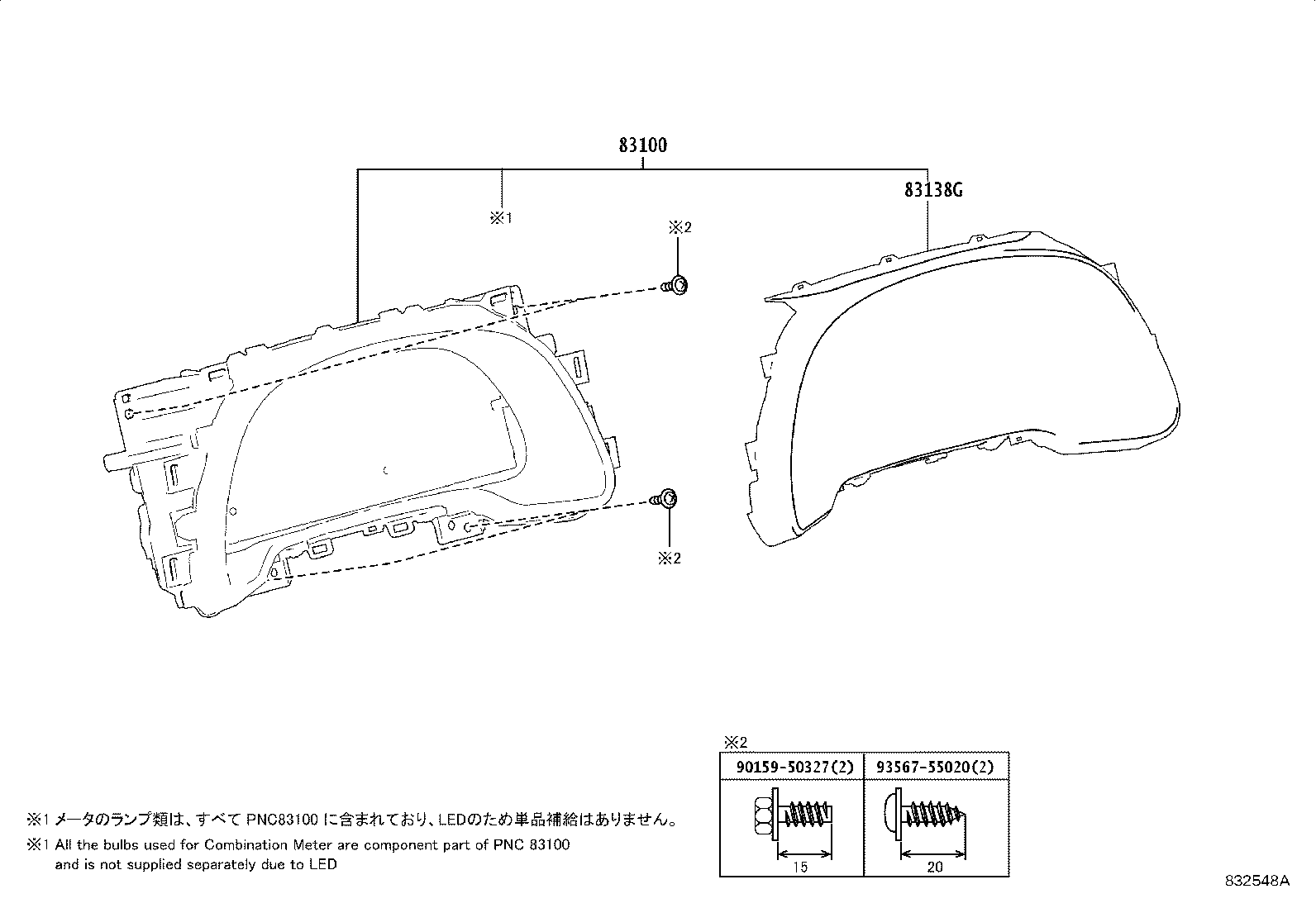

Figure 832548A 832548A 2022-10 → — Figure 832549 832549 2022-10 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83108 Mirror Sub-assy, Meter
83138G Glass, Combination Meter
83163 Plate, Combination Meter Mirror, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
