Toyota Lexus RX Series(JPP)
2022-11 → present · chassis AALH1#,TALA10,TALH17 · catalogue 521460 · United States
Supported model
Data version 2022-10
Navigation & Front Monitor Display
13 part groups · 1 illustrations

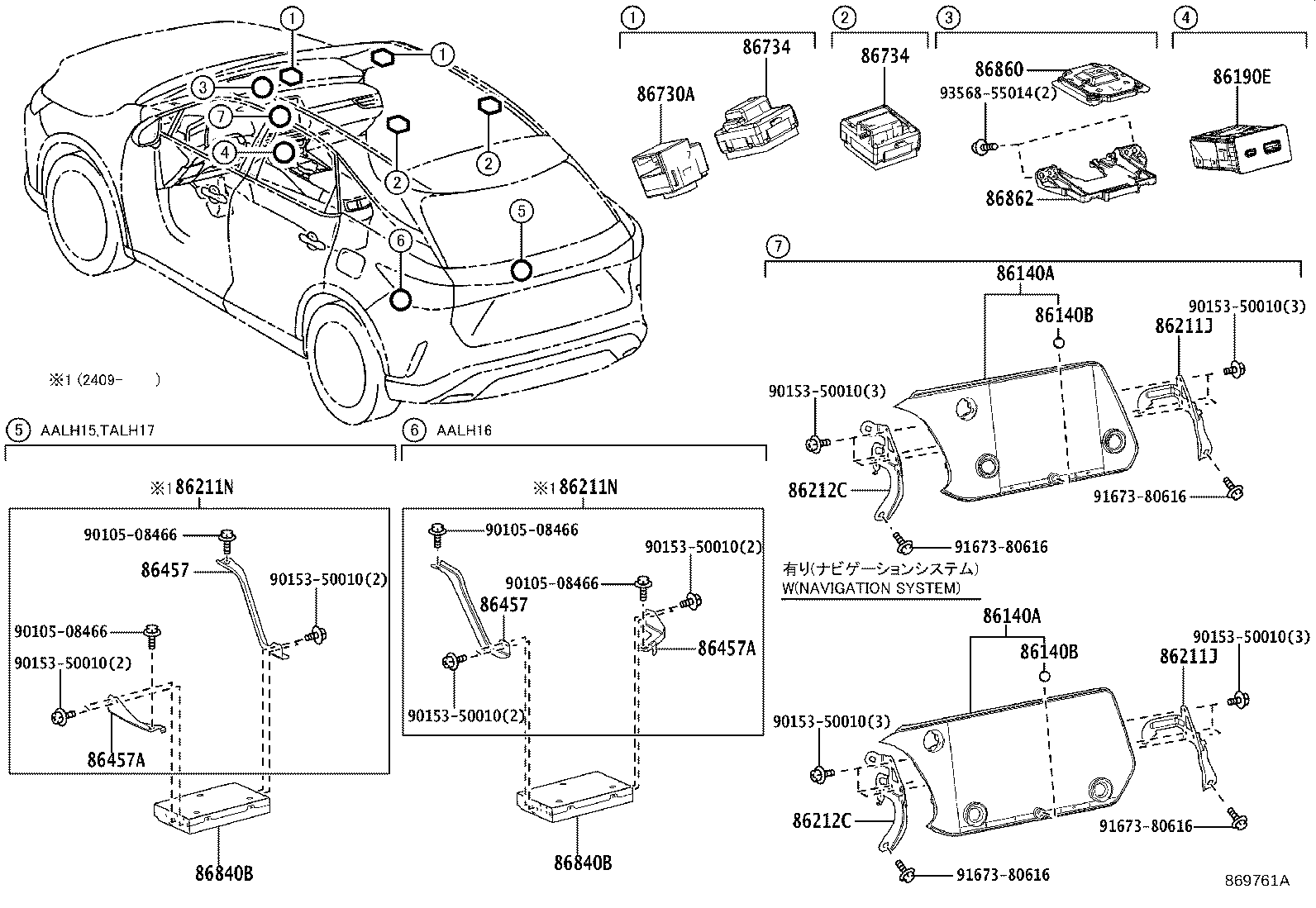

Illustrations
Part groups
| PNC | Description |
|---|---|
| 86140A | Receiver Assy, Radio & Display |
| 86140B | Knob, Radio & Display Receiver Switch |
| 86190E | Adapter Assy, Stereo Jack |
| 86211J | Bracket, Radio Receiver, NO.1 |
| 86211N | Bracket, Navigation Computer, NO.1 |
| 86212C | Bracket, Radio Receiver, NO.2 |
| 86457 | Bracket, Multi-media Module NO.1 |
| 86457A | Bracket, Multi-media Module NO.2 |
| 86730A | Microphone Assy, Telephone |
| 86734 | Microphone, Active Noise Control |
| 86840B | Computer Assy, Navigation |
| 86860 | Antenna Assy, Navigation |
| 86862 | Bracket, Navigation Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
