Toyota Lexus RX Series(JPP)
2022-11 → present · chassis AALH1#,TALA10,TALH17 · catalogue 521460 · United States
Supported model
Data version 2022-10
Antenna
11 part groups · 1 illustrations

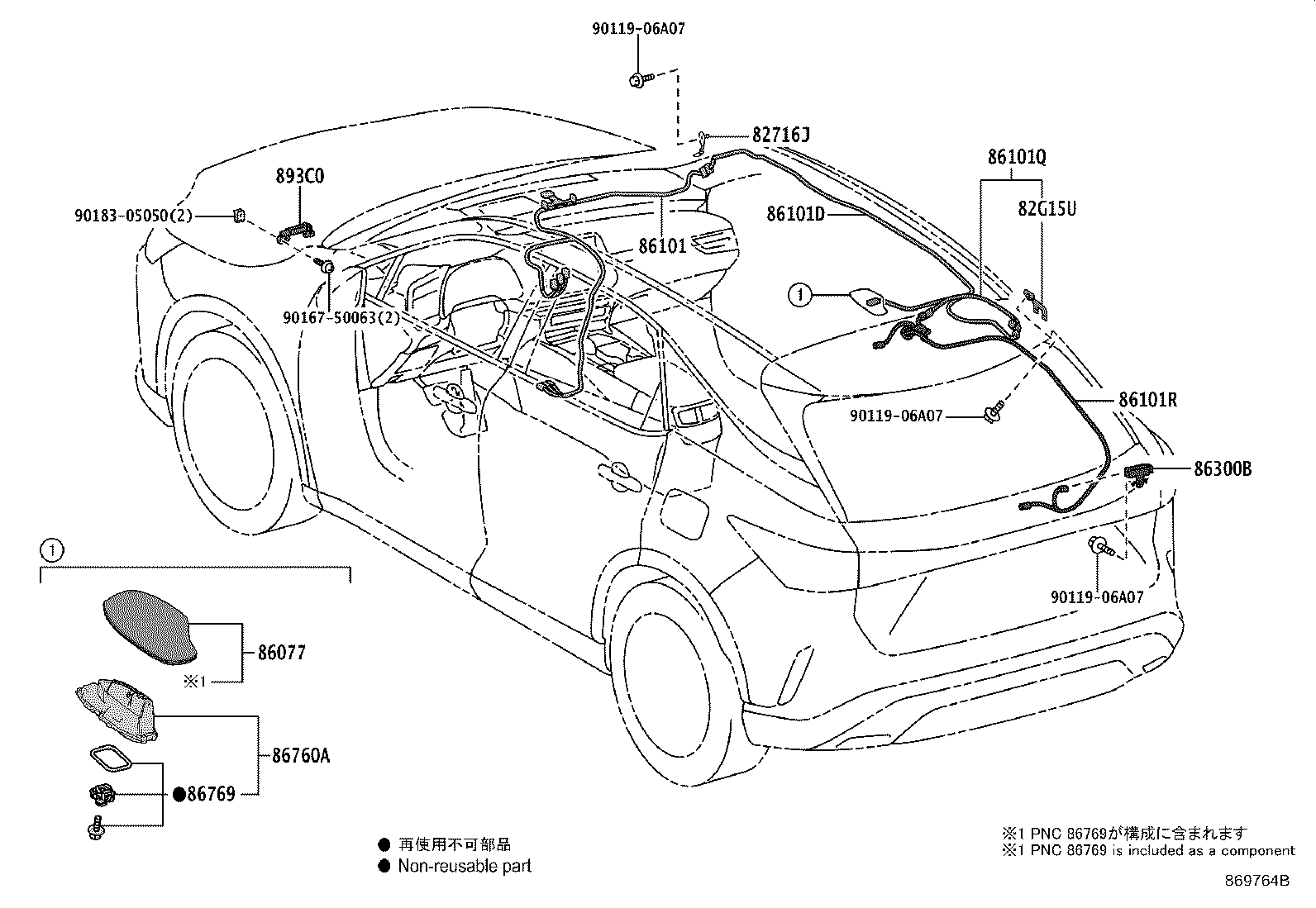

Illustrations
Part groups
| PNC | Description |
|---|---|
| 82716J | Bracket, Wiring Harness Clamp |
| 82G15U | Bracket, Wiring Harness Clamp, NO.2 |
| 86077 | Cover Kit, Antenna |
| 86101 | Cord Sub-assy, Antenna |
| 86101D | Cord Sub-assy, Antenna, NO.3 |
| 86101Q | Cord Sub-assy, Antenna, NO.4 |
| 86101R | Cord Sub-assy, Antenna, NO.5 |
| 86300B | Antenna Assy, Amplifier, NO.1 |
| 86760A | Antenna Assy, Telephone |
| 86769 | Housing, Roof Antenna |
| 893C0 | Antenna Assy, Remote Parking |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
