Heating & Air Conditioning - Compressor

4 part groups · 3 illustrations

Illustrations

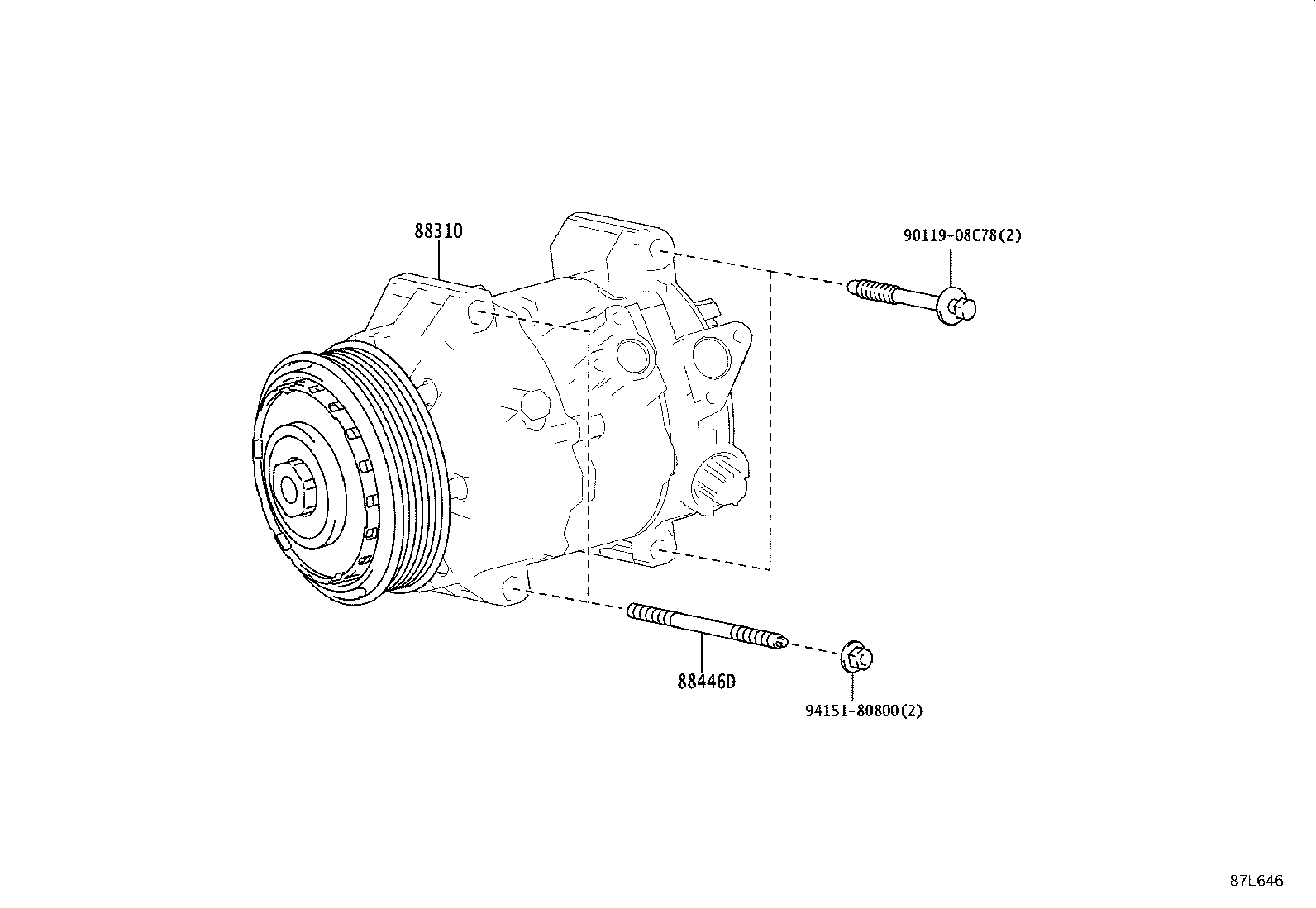

Figure 87L646

87L646 2022-11 → —

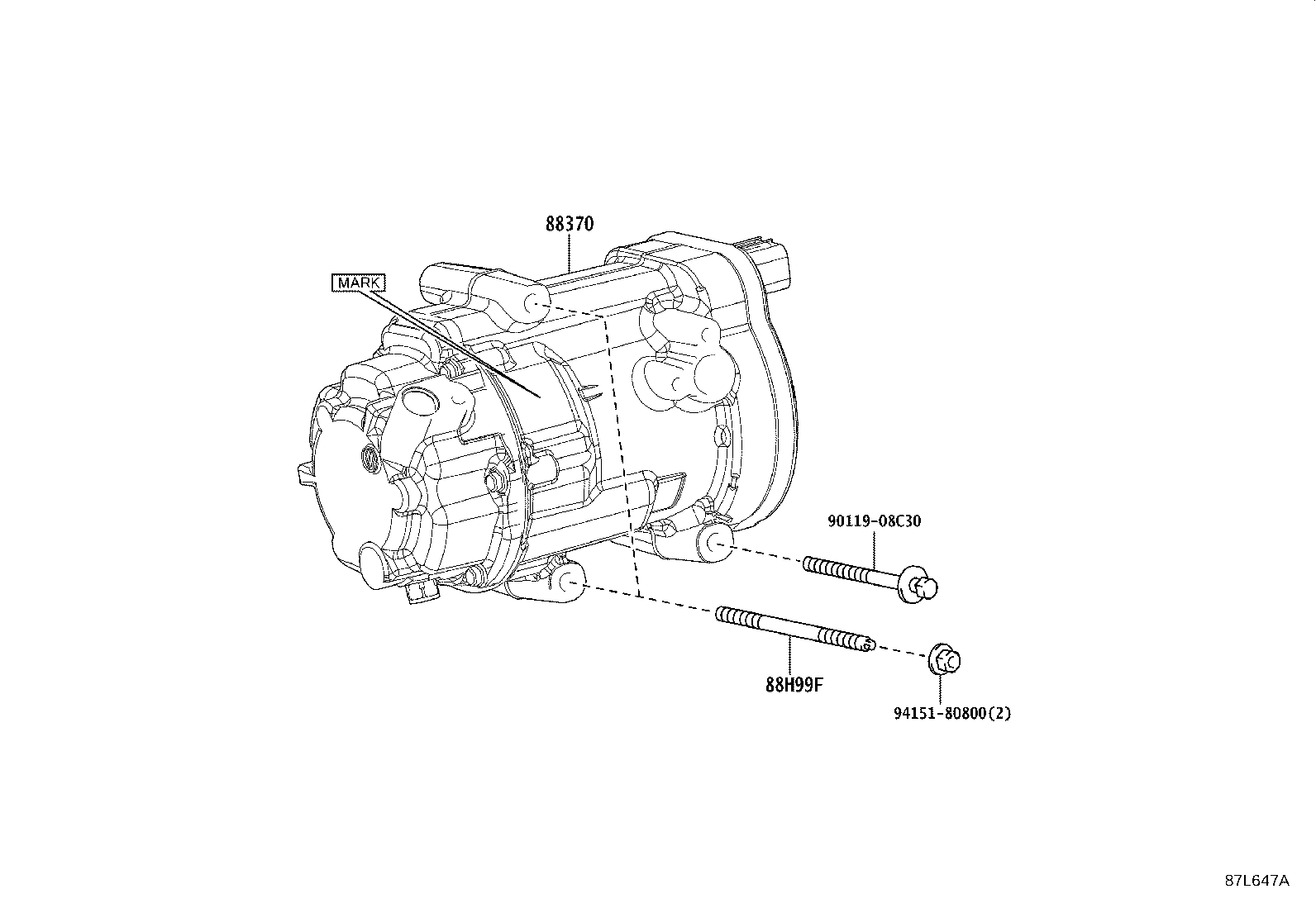

Figure 87L647A

87L647A 2022-11 → —

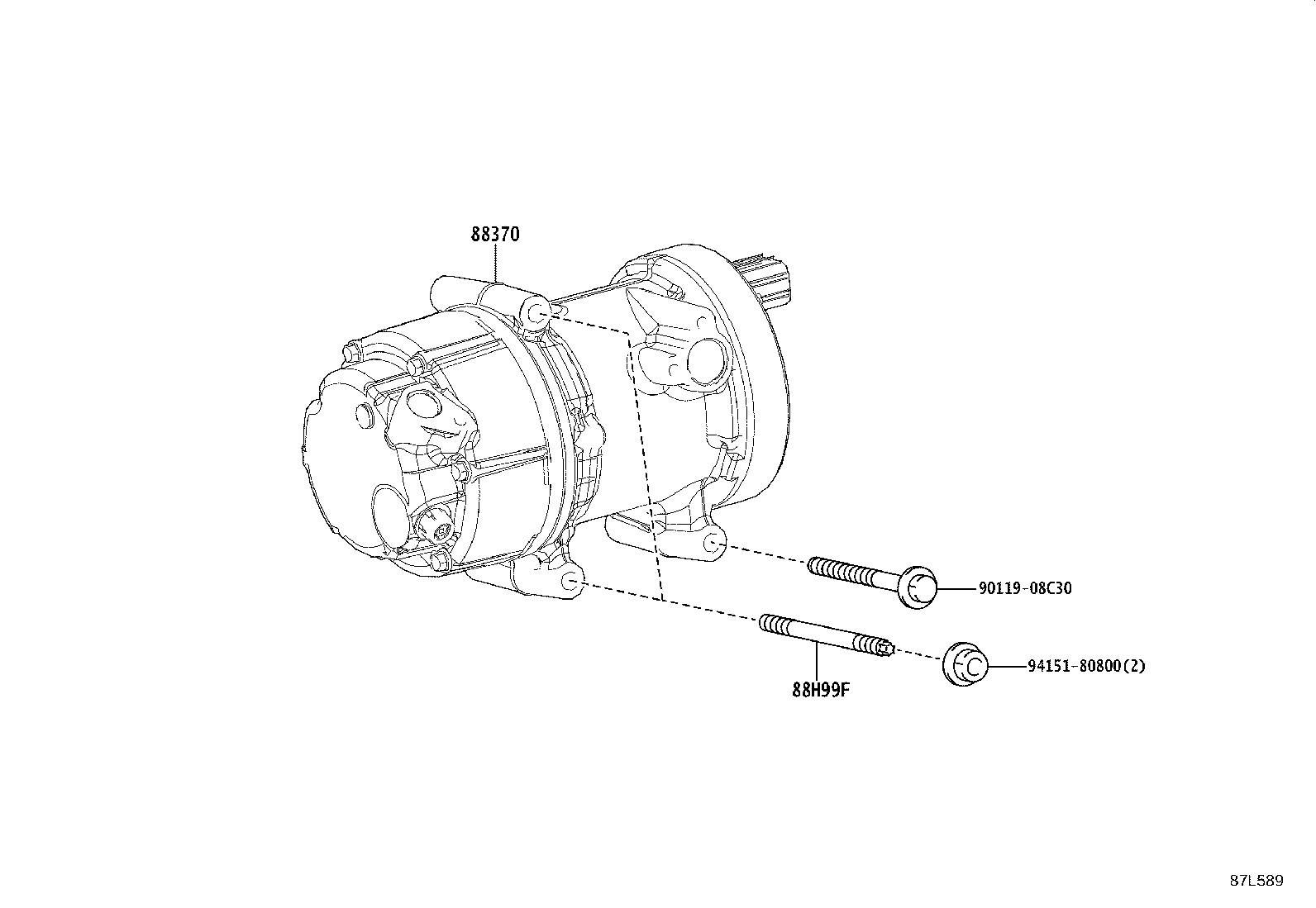

Figure 87L589

87L589 2022-11 → —

Part groups

PNC	Description
88310	Compressor Assy, W/Pulley
88370	Compressor Assy, W/Motor
88446D	Bolt, Cooler
88H99F	Bolt, Stud

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
