Toyota Highlander

2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522410 · United States

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

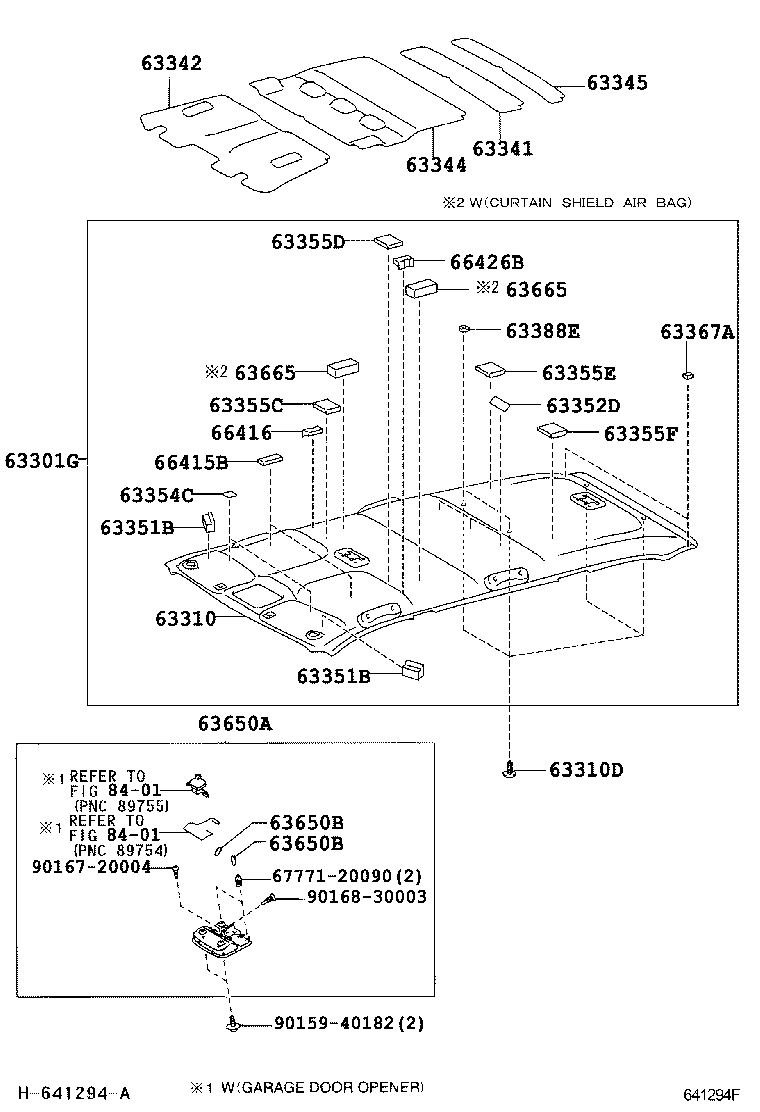

Exploded illustration 641294F 63342 — PAD, ROOF SILENCER, NO.2 (2 parts) 63344 — PAD, ROOF SILENCER, NO.4 (3 parts) 63345 — PAD, ROOF SILENCER, NO.5 (3 parts) 63341 — PAD, ROOF SILENCER, NO.1 (1 parts) 63650A — BOX ASSY, ROOF CONSOLE (10 parts) 6777120090 — not listed in this catalogue 9016830003 — not listed in this catalogue 9015940182 — not listed in this catalogue 9016720004 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 63310 — HEADLINING ASSY, ROOF (14 parts) 63310D — CLIP, ROOF HEADLINING (4 parts) 66415B — SPACER, SIDE RAIL, REAR NO.2 RH (1 parts) 66416 — SPACER, SIDE RAIL, REAR NO.3 RH (1 parts) 66426B — SPACER, SIDE RAIL, REAR NO.3 LH (1 parts) 63665 — SPACER, ROOF HEADLINING (1 parts) 63355C — PAD, ROOF HEADLINING, RH (1 parts) 63355D — PAD, ROOF HEADLINING, LH (1 parts) 63352D — PAD, ROOF HEADLINING, NO.2 (1 parts) 63665 — SPACER, ROOF HEADLINING (1 parts) 63354C — PAD, ROOF HEADLINING FRONT SIDE (2 parts) 63351B — PAD, ROOF HEADLINING (1 parts) 63351B — PAD, ROOF HEADLINING (1 parts) 63355F — PAD, ROOF HEADLINING, NO.2 LH (1 parts) 63367A — SUPPORT, ROOF HEADLINING, C NO.1 (1 parts) 63301G — HEADLINING SUB-ASSY, ROOF, FRONT (16 parts) 63388E — STOPPER, ROOF HEADLINING TRIM CLIP (1 parts) 63355E — PAD, ROOF HEADLINING, NO.2 RH (1 parts) 63650B — BULB, ROOF CONSOLE BOX (2 parts) 63650B — BULB, ROOF CONSOLE BOX (2 parts)
641294F · 25 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
69 parts on this figure
Part number Description Fitment Price
63301G — Headlining Sub-assy, Roof, Front
63301-48190-A0 note Headlining Sub-assy, Roof, Front
2003-08 → 2006-08 ended
ACU2#,MCU2# —
63301-48190-B0 note Headlining Sub-assy, Roof, Front
2003-08 → 2006-08 ended
ACU2#,MCU2# —
63301-48200-A0 note Headlining Sub-assy, Roof, Front
2003-08 → 2006-08 ended
MCU2# —
63301-48200-B0 note Headlining Sub-assy, Roof, Front
2003-08 → 2006-08 ended
MCU2# —
63301-48210-A0 note Headlining Sub-assy, Roof, Front
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63301-48210-B0 note Headlining Sub-assy, Roof, Front
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63301-48220-A0 note Headlining Sub-assy, Roof, Front
2003-08 → 2007-05 ended
MCU2# —
63301-48220-B0 note Headlining Sub-assy, Roof, Front
2003-08 → 2007-05 ended
MCU2# —
63301-48230-A0 note Headlining Sub-assy, Roof, Front
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63301-48230-B0 note Headlining Sub-assy, Roof, Front
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63301-48240-A0 note Headlining Sub-assy, Roof, Front
2003-08 → 2007-05 ended
MCU2# —
63301-48240-B0 note Headlining Sub-assy, Roof, Front
2003-08 → 2007-05 ended
MCU2# —
63301-48250-A0 note Headlining Sub-assy, Roof, Front
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63301-48250-B0 note Headlining Sub-assy, Roof, Front
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63301-48260-A0 note Headlining Sub-assy, Roof, Front
2003-08 → 2007-05 ended
MCU2# —
63301-48260-B0 note Headlining Sub-assy, Roof, Front
2003-08 → 2007-05 ended
MCU2# —
63310 — Headlining Assy, Roof
63310-48090-A0 note Headlining Assy, Roof
2000-11 → 2001-08 ended
ACU2#,MCU2# —
63310-48090-B0 note Headlining Assy, Roof
2000-11 → 2001-08 ended
ACU2#,MCU2# —
63310-48100-A0 note Headlining Assy, Roof
2000-11 → 2001-08 ended
ACU2#,MCU2# —
63310-48100-B0 note Headlining Assy, Roof
2000-11 → 2001-08 ended
ACU2#,MCU2# —
63310-48110-A0 note Headlining Assy, Roof
2001-08 → 2003-08 ended
ACU2#,MCU2# —
63310-48110-B0 note Headlining Assy, Roof
2001-08 → 2003-08 ended
ACU2#,MCU2# —
63310-48120-A0 note Headlining Assy, Roof
2001-08 → 2003-08 ended
ACU2#,MCU2# —
63310-48120-B0 note Headlining Assy, Roof
2001-08 → 2003-08 ended
ACU2#,MCU2# —
63310-48220-A0 note Headlining Assy, Roof
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63310-48220-B0 note Headlining Assy, Roof
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63310-48230-A0 note Headlining Assy, Roof
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63310-48230-B0 note Headlining Assy, Roof
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63310-48240-A0 note Headlining Assy, Roof
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63310-48240-B0 note Headlining Assy, Roof
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63310D — Clip, Roof Headlining
90467-06089-A1 note Clip, Roof Headlining
2000-11 → 2003-08 ended
ACU2#,MCU2# —
90467-06089-B3 note Clip, Roof Headlining
2000-11 → 2003-08 ended
ACU2#,MCU2# —
90467-06089-A1 note Clip, Roof Headlining
2003-08 → 2007-05 ended
ACU2#,MCU2# —
90467-06089-B6 note Clip, Roof Headlining
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63341 — Pad, Roof Silencer, NO.1
63341-48020 Pad, Roof Silencer, NO.1
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63342 — Pad, Roof Silencer, NO.2
63342-48020 Pad, Roof Silencer, NO.2
2000-11 → 2003-08 ended
ACU2#,MCU2# —
63342-48020 Pad, Roof Silencer, NO.2
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63344 — Pad, Roof Silencer, NO.4
63344-48020 Pad, Roof Silencer, NO.4
2000-11 → 2003-08 ended
ACU2#,MCU2# —
63344-48040 Pad, Roof Silencer, NO.4
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63344-48050 note Pad, Roof Silencer, NO.4
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63345 — Pad, Roof Silencer, NO.5
63345-22050 Pad, Roof Silencer, NO.5
2000-11 → 2003-08 ended
ACU2#,MCU2# —
63345-22050 note Pad, Roof Silencer, NO.5
2000-11 → 2003-08 ended
ACU2#,MCU2# —
63345-22050 Pad, Roof Silencer, NO.5
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63351B — Pad, Roof Headlining
63351-48010 Pad, Roof Headlining
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63352D — Pad, Roof Headlining, NO.2
63352-48030 Pad, Roof Headlining, NO.2
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63354C — Pad, Roof Headlining Front Side
63354-48040 Pad, Roof Headlining Front Side
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63354-48050 note Pad, Roof Headlining Front Side
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63355C — Pad, Roof Headlining, RH
63355-48050 Pad, Roof Headlining, RH
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63355D — Pad, Roof Headlining, LH
63355-48050 Pad, Roof Headlining, LH
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63355E — Pad, Roof Headlining, NO.2 RH
63355-48060 Pad, Roof Headlining, NO.2 RH
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63355F — Pad, Roof Headlining, NO.2 LH
63355-48060 Pad, Roof Headlining, NO.2 LH
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63367A — Support, Roof Headlining, C NO.1
63367-48010 Support, Roof Headlining, C NO.1
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63388E — Stopper, Roof Headlining Trim Clip
63388-48010 Stopper, Roof Headlining Trim Clip
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63650A — Box Assy, Roof Console
63650-0W011-A1 note Box Assy, Roof Console
2000-11 → 2003-08 ended
ACU2#,MCU2# —
63650-0W011-B4 note Box Assy, Roof Console
2000-11 → 2003-08 ended
ACU2#,MCU2# —
63650-48010-A0 note Box Assy, Roof Console
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63650-48010-B0 note Box Assy, Roof Console
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63650-48020-A0 note Box Assy, Roof Console
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63650-48020-B0 note Box Assy, Roof Console
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63650-48030-A0 note Box Assy, Roof Console
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63650-48030-B0 note Box Assy, Roof Console
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63650-48040-A0 note Box Assy, Roof Console
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63650-48040-B0 note Box Assy, Roof Console
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63650B — Bulb, Roof Console Box
90084-98049 Bulb, Roof Console Box
2000-11 → 2003-08 ended
ACU2#,MCU2# —
99132-12050 Bulb, Roof Console Box
2003-08 → 2007-05 ended
ACU2#,MCU2# —
63665 — Spacer, Roof Headlining
63665-48010 note Spacer, Roof Headlining
2003-08 → 2007-05 ended
ACU2#,MCU2# —
66415B — Spacer, Side Rail, Rear NO.2 RH
66415-48030 Spacer, Side Rail, Rear NO.2 RH
2003-08 → 2007-05 ended
ACU2#,MCU2# —
66416 — Spacer, Side Rail, Rear NO.3 RH
66416-48030 Spacer, Side Rail, Rear NO.3 RH
2003-08 → 2007-05 ended
ACU2#,MCU2# —
66426B — Spacer, Side Rail, Rear NO.3 LH
66426-48050 Spacer, Side Rail, Rear NO.3 LH
2003-08 → 2007-05 ended
ACU2#,MCU2# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
