Toyota Highlander
2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522410 · United States
Discontinued model
Data version 2007-10

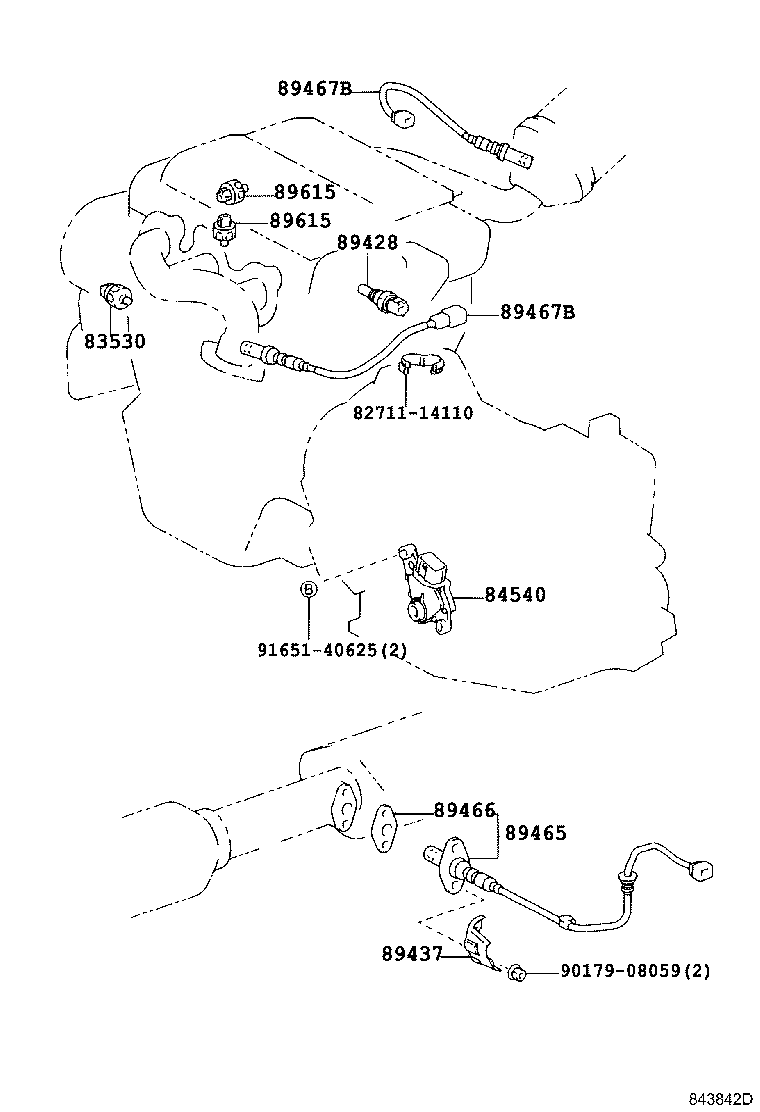

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83530 — Switch Assy, Oil Pressure (FOR ENGINE) | ||||
| 83530-0E010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2002-05 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 83530-AA011 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2003-01 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 83530-0E010 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2003-08 → —
|
ACU2#,MCU2# | — | |
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2003-08 → —
|
ACU2#,MCU2# | — | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2003-08 → —
|
ACU2#,MCU2# | — | |
| 84540 — Switch Assy, Neutral Start | ||||
| 84540-12230 |
Switch Assy, Neutral Start
2000-11 → 2002-02
ended
|
ACU2#,MCU2# | — | |
| 84540-32110 |
Switch Assy, Neutral Start
2002-02 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 84540-0E010 note |
Switch Assy, Neutral Start
2003-08 → 2007-05
ended
|
MCU2# | — | |
| 84540-48010 |
Switch Assy, Neutral Start
2003-08 → 2007-05
ended
|
ACU2# | — | |
| 84540-48010 note |
Switch Assy, Neutral Start
2003-08 → 2007-05
ended
|
MCU2# | — | |
| 89428 — Switch, Temperature Detect, NO.2 | ||||
| 89428-41010 |
Switch, Temperature Detect, NO.2
2000-11 → 2003-08
ended
|
MCU2# | — | |
| 89428-41010 |
Switch, Temperature Detect, NO.2
2003-08 → 2007-05
ended
|
MCU2# | — | |
| 89437 — Cover, Sensor | ||||
| 89437-48010 |
Cover, Sensor
2000-11 → 2003-08
ended
|
MCU2# | — | |
| 89465 — Sensor, Oxygen | ||||
| 89465-48060 note |
Sensor, Oxygen
2000-11 → 2003-08
ended
|
ACU2# | — | |
| 89465-48070 note |
Sensor, Oxygen
2000-11 → 2003-08
ended
|
ACU2# | — | |
| 89465-49075 |
Sensor, Oxygen
2000-11 → 2003-08
ended
|
MCU2# | — | |
| 89466 — Gasket, Oxygen Sensor | ||||
| 89466-20020 |
Gasket, Oxygen Sensor
2000-11 → 2003-08
ended
|
MCU2# | — | |
| 89467B — Sensor, Air Fuel Ratio | ||||
| 89467-48011 |
Sensor, Air Fuel Ratio
2000-11 → 2003-08
ended
|
MCU2# | — | |
| 89467-48020 note |
Sensor, Air Fuel Ratio
2000-11 → 2003-08
ended
|
ACU2# | — | |
| 89467-48030 note |
Sensor, Air Fuel Ratio
2000-11 → 2003-08
ended
|
ACU2# | — | |
| 89467-48050 note |
Sensor, Air Fuel Ratio
2003-08 → —
|
MCU2# | — | |
| 89467-48060 note |
Sensor, Air Fuel Ratio
2003-08 → —
|
MCU2# | — | |
| 89467-48070 |
Sensor, Air Fuel Ratio
2003-08 → —
|
ACU2# | — | |
| 89615 — Sensor, Knock Control | ||||
| 89615-12090 |
Sensor, Knock Control
2000-11 → 2003-08
ended
|
MCU2# | — | |
| 89615-30080 note |
Sensor, Knock Control
2000-11 → 2001-04
ended
|
ACU2# | — | |
| 89615-32030 note |
Sensor, Knock Control
2000-11 → 2001-04
ended
|
ACU2# | — | |
| 89615-44010 |
Sensor, Knock Control
2001-04 → 2003-08
ended
|
ACU2# | — | |
| 89615-20090 |
Sensor, Knock Control
2003-08 → —
|
ACU2# | — | |
| 89615-20090 |
Sensor, Knock Control
2003-08 → —
|
MCU2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
