Toyota Highlander
2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522410 · United States
Discontinued model
Data version 2007-10

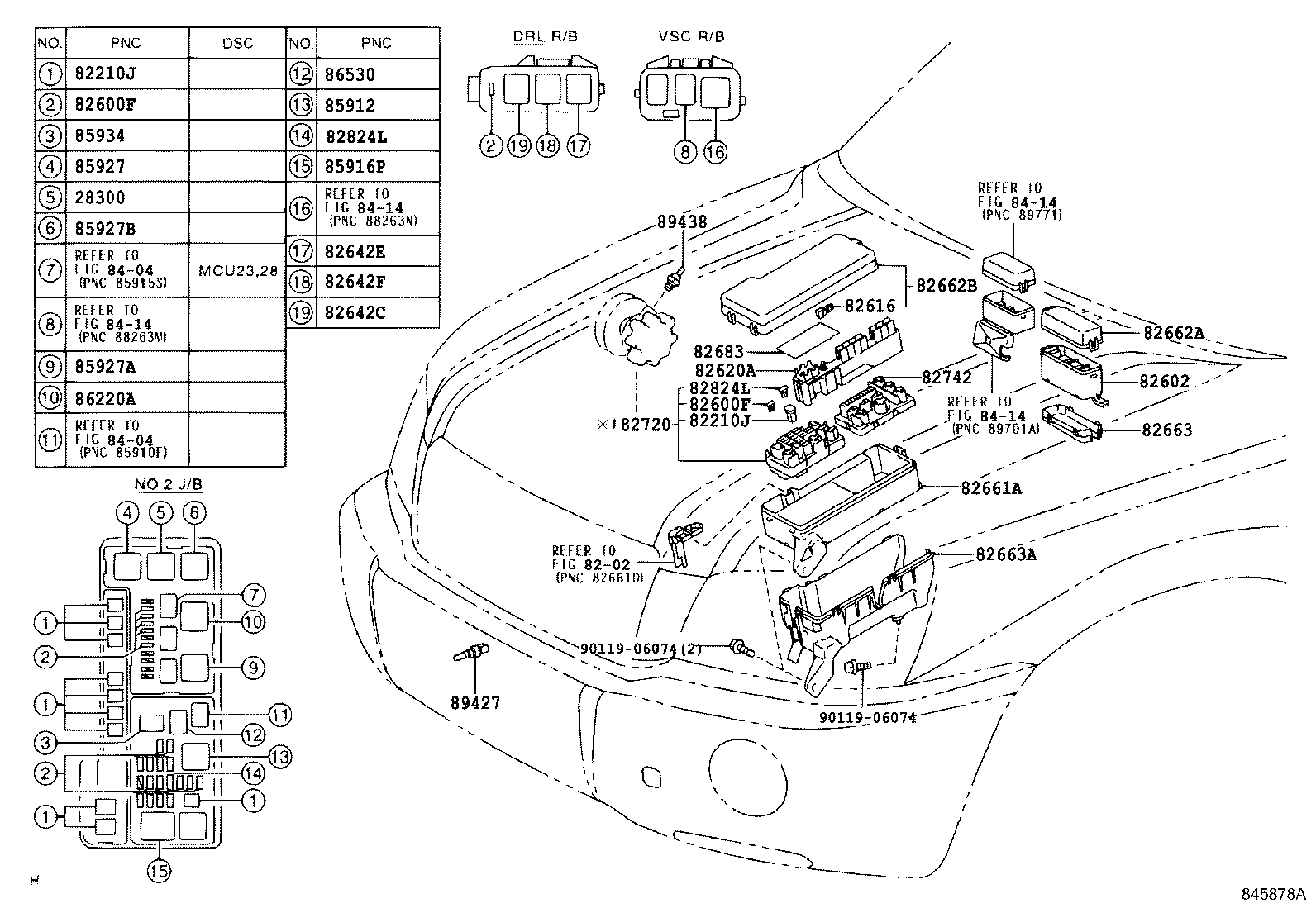

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28300 — Relay Assy, Starter | ||||
| 28300-10020 |
Relay Assy, Starter
2000-11 → 2003-08
ended
|
2AZFE,1MZFE ACU2#,MCU2# | — | |
| 28300-10020 |
Relay Assy, Starter
2003-08 → —
|
2AZFE,3MZFE ACU2#,MCU2# | — | |
| 82210J — Fusible Link | ||||
| 90982-08283 note |
Fusible Link
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 90982-08284 note |
Fusible Link
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 90982-08285 note |
Fusible Link
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 90982-08286 note |
Fusible Link
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 90982-08283 note |
Fusible Link
2003-08 → —
|
ACU2#,MCU2# | — | |
| 90982-08284 note |
Fusible Link
2003-08 → —
|
ACU2#,MCU2# | — | |
| 90982-08285 note |
Fusible Link
2003-08 → —
|
ACU2#,MCU2# | — | |
| 90982-08286 note |
Fusible Link
2003-08 → —
|
ACU2#,MCU2# | — | |
| 82600F — Fuse, Fuse Block | ||||
| 90982-09008 note |
Fuse, Fuse Block
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 90982-09009 note |
Fuse, Fuse Block
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 90982-09010 note |
Fuse, Fuse Block
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 90982-09011 note |
Fuse, Fuse Block
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 90982-09012 note |
Fuse, Fuse Block
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 90080-82020 note |
Fuse, Fuse Block
2006-02 → —
|
ACU2#,MCU2# | — | |
| 90080-82021 note |
Fuse, Fuse Block
2006-02 → —
|
ACU2#,MCU2# | — | |
| 90080-82022 note |
Fuse, Fuse Block
2006-02 → —
|
ACU2#,MCU2# | — | |
| 90080-82023 note |
Fuse, Fuse Block
2006-02 → —
|
ACU2#,MCU2# | — | |
| 90080-82033 note |
Fuse, Fuse Block
2006-02 → —
|
ACU2#,MCU2# | — | |
| 90982-09008 note |
Fuse, Fuse Block
2003-08 → —
|
ACU2#,MCU2# | — | |
| 90982-09009 note |
Fuse, Fuse Block
2003-08 → —
|
ACU2#,MCU2# | — | |
| 90982-09010 note |
Fuse, Fuse Block
2003-08 → —
|
ACU2#,MCU2# | — | |
| 90982-09011 note |
Fuse, Fuse Block
2003-08 → 2006-01
ended
|
ACU2#,MCU2# | — | |
| 90982-09012 note |
Fuse, Fuse Block
2003-08 → —
|
MCU2# | — | |
| 90982-09012 note |
Fuse, Fuse Block
2003-08 → 2006-02
ended
|
ACU2# | — | |
| 82602 — Block Sub-assy, Relay | ||||
| 82602-07010 |
Block Sub-assy, Relay
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 82602-48060 |
Block Sub-assy, Relay
2003-08 → —
|
ACU2# | — | |
| 82602-48060 |
Block Sub-assy, Relay
2006-08 → —
|
MCU2# | — | |
| 82602-48060 |
Block Sub-assy, Relay
2003-08 → 2006-02
ended
|
MCU2# | — | |
| 82616 — Puller, Fuse | ||||
| 82616-20010 |
Puller, Fuse
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 82616-20010 |
Puller, Fuse
2003-08 → —
|
ACU2#,MCU2# | — | |
| 82620A — Block Assy, Fusible Link | ||||
| 82620-48030 |
Block Assy, Fusible Link
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 82620-48030 |
Block Assy, Fusible Link
2003-08 → —
|
ACU2#,MCU2# | — | |
| 82642C — Relay, Day Time Running Light, NO.2 | ||||
| 90987-02006 |
Relay, Day Time Running Light, NO.2
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 90987-02025 |
Relay, Day Time Running Light, NO.2
2003-08 → —
|
ACU2#,MCU2# | — | |
| 82642E — Relay, Day Time Running Light, NO.3 | ||||
| 90987-04002 |
Relay, Day Time Running Light, NO.3
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 90987-04010 |
Relay, Day Time Running Light, NO.3
2003-08 → —
|
ACU2#,MCU2# | — | |
| 82642F — Relay, Day Time Running Light, NO.4 | ||||
| 90987-02006 |
Relay, Day Time Running Light, NO.4
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 90987-02025 |
Relay, Day Time Running Light, NO.4
2003-08 → —
|
ACU2#,MCU2# | — | |
| 82661A — Cover, Relay Block, NO.2 | ||||
| 82661-48010 |
Cover, Relay Block, NO.2
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 82661-48010 |
Cover, Relay Block, NO.2
2003-08 → —
|
ACU2#,MCU2# | — | |
| 82662A — Cover, Relay Block, Upper, NO.1 | ||||
| 82662-48010 |
Cover, Relay Block, Upper, NO.1
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 82662-48010 |
Cover, Relay Block, Upper, NO.1
2003-08 → —
|
ACU2#,MCU2# | — | |
| 82662B — Cover, Relay Block, Upper, NO.2 | ||||
| 82662-48020 |
Cover, Relay Block, Upper, NO.2
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 82662-48020 |
Cover, Relay Block, Upper, NO.2
2003-08 → —
|
ACU2#,MCU2# | — | |
| 82663 — Cover, Relay Block, Lower | ||||
| 82663-07030 |
Cover, Relay Block, Lower
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 82663-07030 |
Cover, Relay Block, Lower
2003-08 → 2006-02
ended
|
MCU2# | — | |
| 82663-07030 |
Cover, Relay Block, Lower
2003-08 → —
|
ACU2# | — | |
| 82663-07030 |
Cover, Relay Block, Lower
2006-08 → —
|
MCU2# | — | |
| 82663A — Cover, Relay Block, Lower, NO.2 | ||||
| 82663-48010 |
Cover, Relay Block, Lower, NO.2
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 82663-48010 |
Cover, Relay Block, Lower, NO.2
2003-08 → —
|
ACU2#,MCU2# | — | |
| 82683 — Plate, Fuse Block Caution | ||||
| 82683-48130 |
Plate, Fuse Block Caution
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 82683-48160 |
Plate, Fuse Block Caution
2003-08 → —
|
ACU2#,MCU2# | — | |
| 82720 — Block Assy, Engine Room Junction | ||||
| 82720-48020 |
Block Assy, Engine Room Junction
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 82720-48021 |
Block Assy, Engine Room Junction
2003-08 → —
|
ACU2#,MCU2# | — | |
| 82742 — Block, Engine Room Relay, NO.2 | ||||
| 82741-48040 |
Block, Engine Room Relay, NO.2
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 82741-48040 |
Block, Engine Room Relay, NO.2
2003-08 → —
|
ACU2#,MCU2# | — | |
| 82824L — Pin, Short | ||||
| 82824-20140 |
Pin, Short
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 82824-20140 |
Pin, Short
2003-08 → —
|
ACU2#,MCU2# | — | |
| 85912 — Relay, Defogger | ||||
| 90987-04003 |
Relay, Defogger
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 90987-04003 |
Relay, Defogger
2003-08 → —
|
ACU2#,MCU2# | — | |
| 85916P — Relay, Headlamp | ||||
| 90987-02006 |
Relay, Headlamp
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 90987-02006 |
Relay, Headlamp
2003-08 → —
|
ACU2#,MCU2# | — | |
| 85927 — Relay, Cooling Fan | ||||
| 90987-02009 |
Relay, Cooling Fan
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 90987-02009 |
Relay, Cooling Fan
2003-08 → —
|
ACU2#,MCU2# | — | |
| 85927A — Relay, Cooling Fan, NO.2 | ||||
| 90987-04003 |
Relay, Cooling Fan, NO.2
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 90987-04003 |
Relay, Cooling Fan, NO.2
2003-08 → —
|
ACU2#,MCU2# | — | |
| 85927B — Relay, Cooling Fan, NO.3 | ||||
| 90987-02009 |
Relay, Cooling Fan, NO.3
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 90987-02009 |
Relay, Cooling Fan, NO.3
2003-08 → —
|
ACU2#,MCU2# | — | |
| 85934 — Relay, Magnet-clutch | ||||
| 90987-02020 |
Relay, Magnet-clutch
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 90987-02022 |
Relay, Magnet-clutch
2003-08 → 2003-09
ended
|
ACU2#,MCU2# | — | |
| 90987-02028 |
Relay, Magnet-clutch
2003-09 → —
|
ACU2#,MCU2# | — | |
| 86220A — Relay, Inverter | ||||
| 90987-02016 |
Relay, Inverter
2003-08 → 2004-06
ended
|
ACU2#,MCU2# | — | |
| 90987-02025 |
Relay, Inverter
2004-06 → —
|
ACU2#,MCU2# | — | |
| 86530 — Relay Assy, Horn | ||||
| 90987-02020 |
Relay Assy, Horn
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 90987-02027 |
Relay Assy, Horn
2003-08 → —
|
ACU2#,MCU2# | — | |
| 89427 — Switch, Temperature Detect | ||||
| 89428-21010 |
Switch, Temperature Detect
2000-11 → 2003-08
ended
|
MCU2# | — | |
| 89428-21010 |
Switch, Temperature Detect
2003-08 → 2007-05
ended
|
MCU2# | — | |
| 89438 — Switch, Power Steering Oil Pressure | ||||
| 89438-33010 |
Switch, Power Steering Oil Pressure
2000-11 → 2003-08
ended
|
ACU2#,MCU2# | — | |
| 89438-33010 |
Switch, Power Steering Oil Pressure
2003-08 → 2007-05
ended
|
ACU2#,MCU2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
