Toyota Highlander
2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522410 · United States
Discontinued model
Data version 2007-10

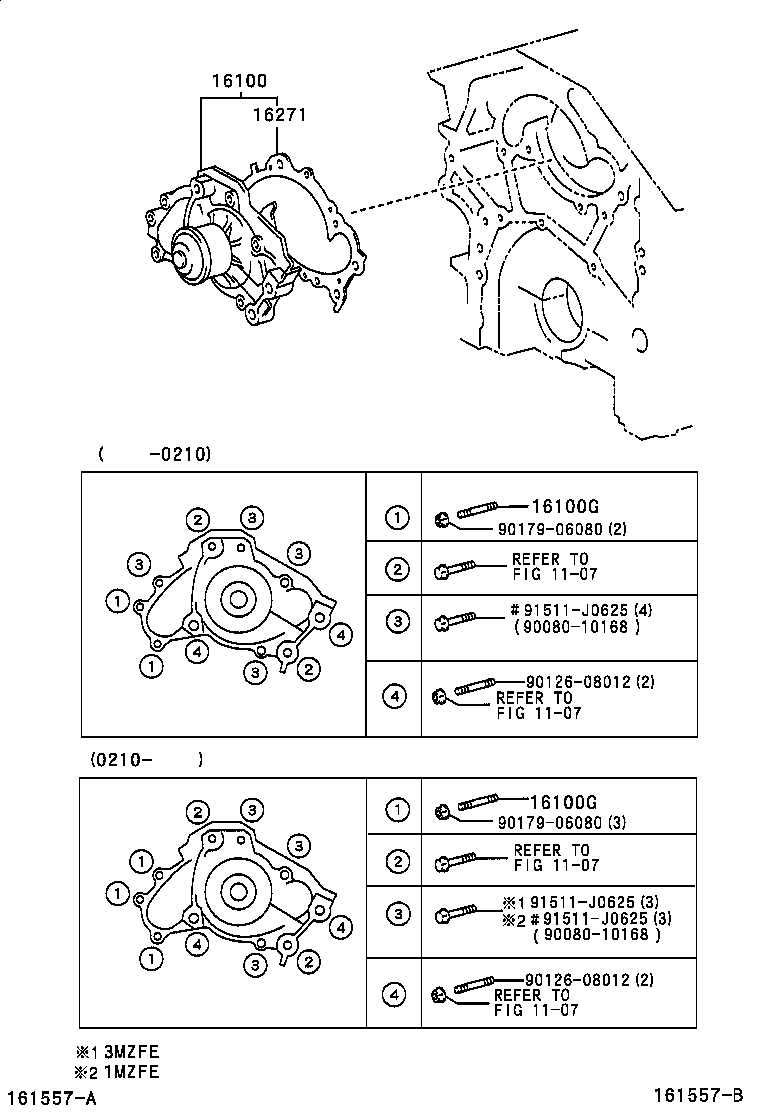

Water Pump
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16100 | Pump Assy, Engine Water |
| 16100G | Bolt, Stud(FOR WATER PUMP SET) |
| 16173 | Pulley, Water Pump |
| 16271 | Gasket, Water Pump |
| 16601 | Tensioner Sub-assy, V-ribbed Belt |
| 16620 | Tensioner Assy, V-ribbed Belt |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
