Toyota Highlander

2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522410 · United States

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

21 part groups · 4 illustrations

Illustrations

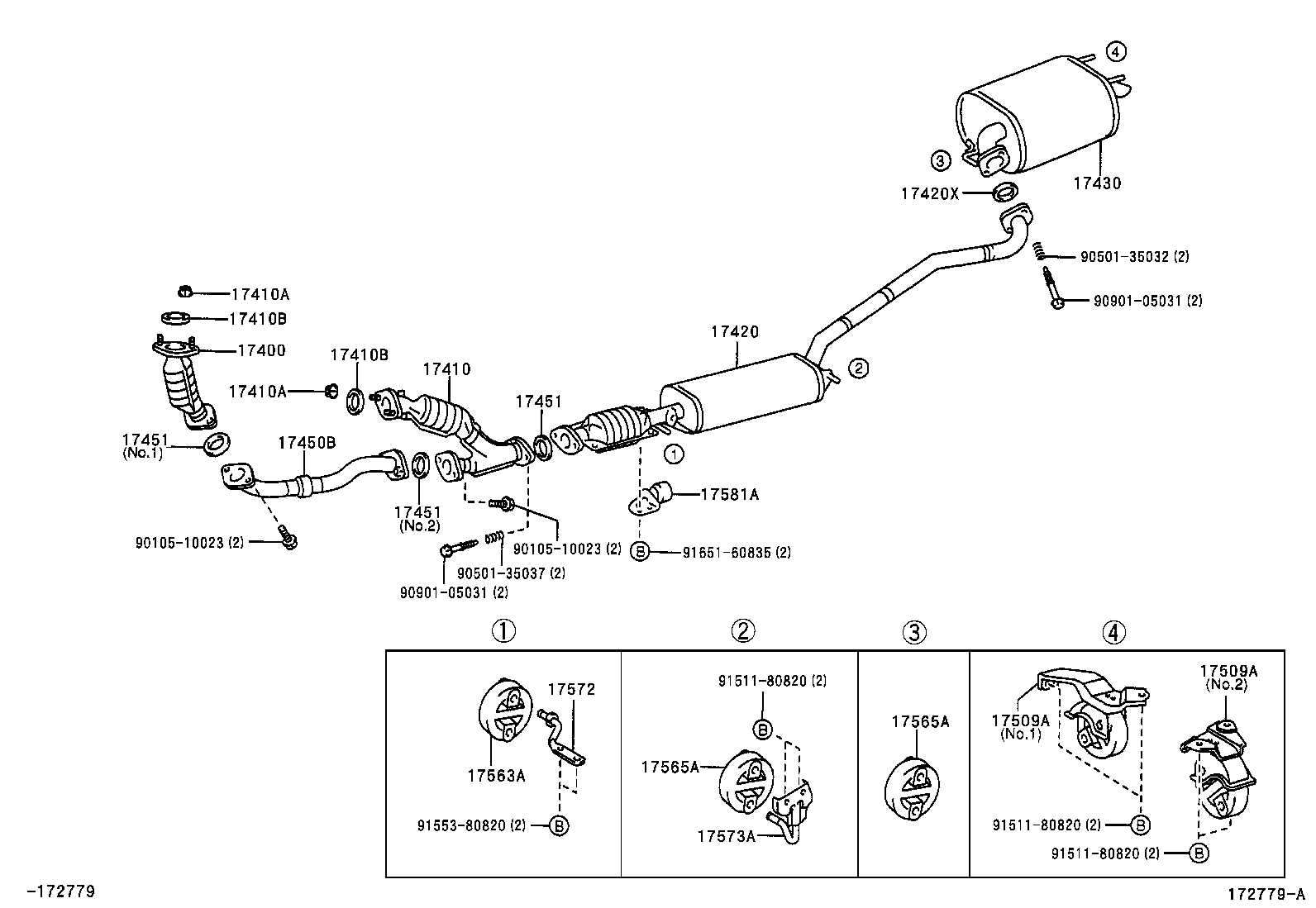

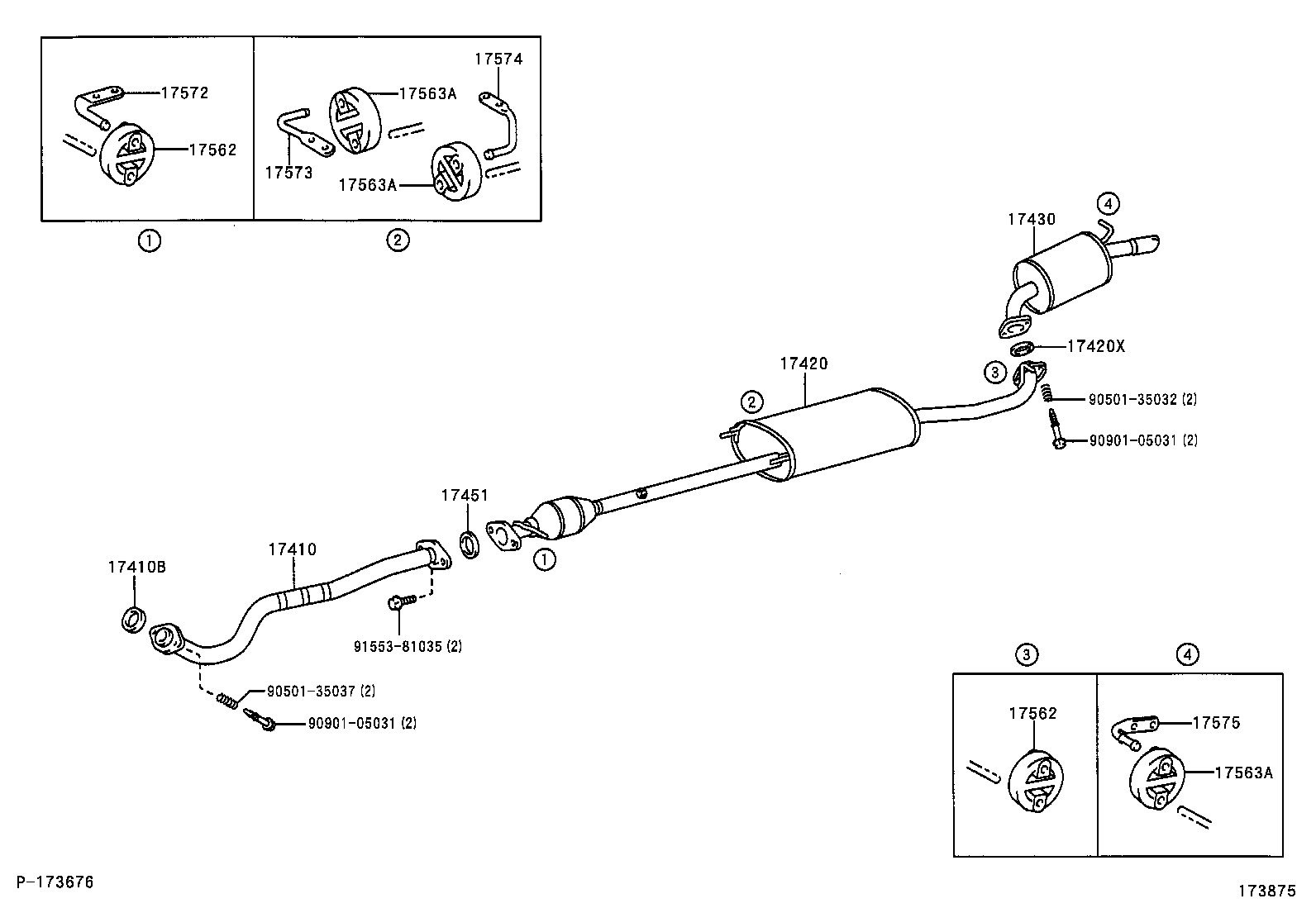

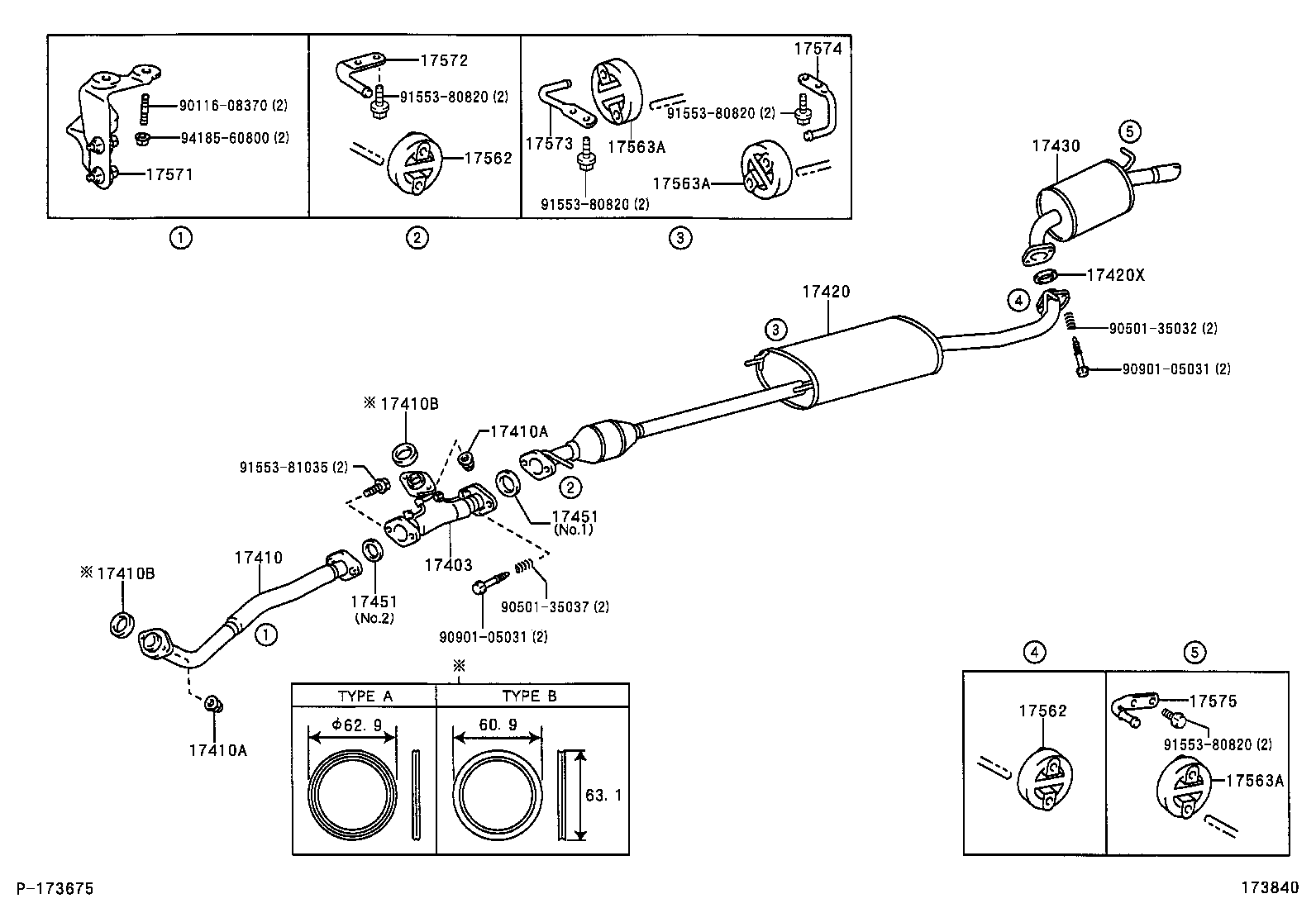

Figure 172778A 172778A 2000-11 → 2003-08 Figure 172779A 172779A 2000-11 → 2003-08 Figure 173875 173875 2003-08 → — Figure 173840 173840 2003-08 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17403 Pipe Sub-assy, Exhaust, Front NO.3
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17450B Pipe Assy, Exhaust, Front NO.2
17451 Gasket, Exhaust Pipe
17509A Bracket Sub-assy, Exhaust Pipe NO.4 Support
17562 Support, Exhaust Pipe, NO.2
17563A Support, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17571 Bracket, Exhaust Pipe Support, NO.1
17572 Bracket, Exhaust Pipe NO.1 Support
17573 Bracket, Exhaust Pipe NO.1 Support, Lower
17573A Bracket, Exhaust Pipe Support, NO.3
17574 Bracket, Exhaust Pipe Support, NO.4
17575 Bracket, Exhaust Pipe Support, NO.5
17581A Damper, Exhaust Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
