Toyota Highlander
2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522410 · United States
Discontinued model
Data version 2007-10

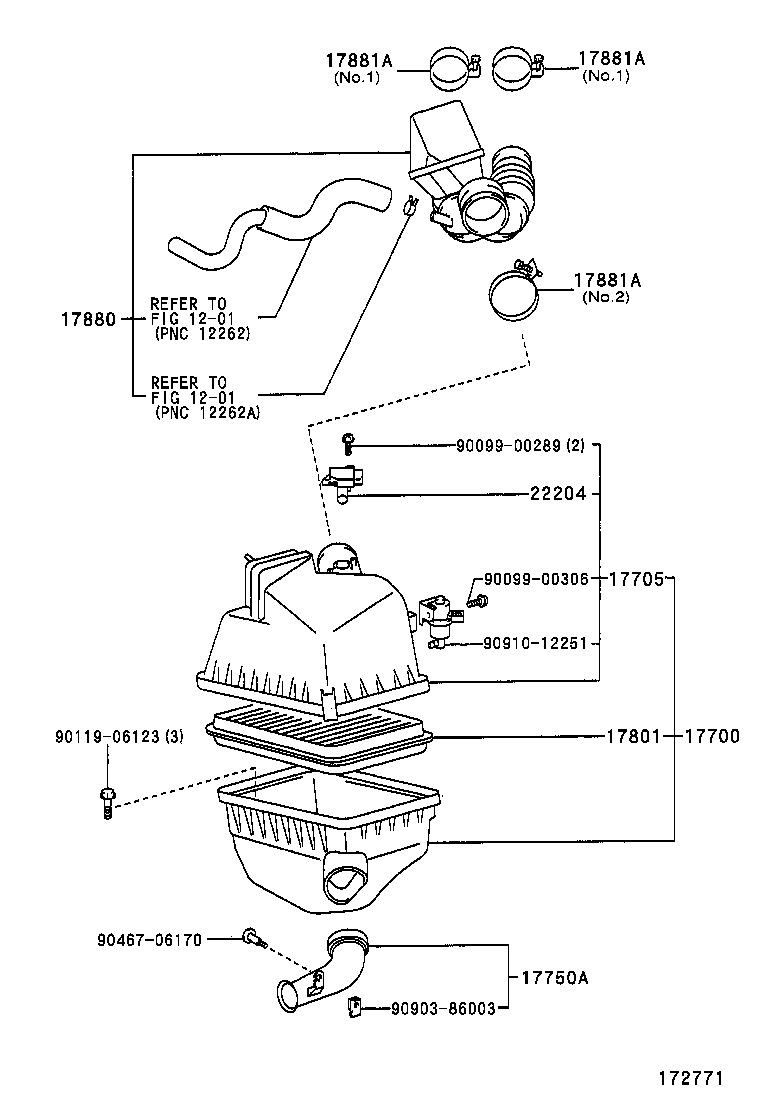

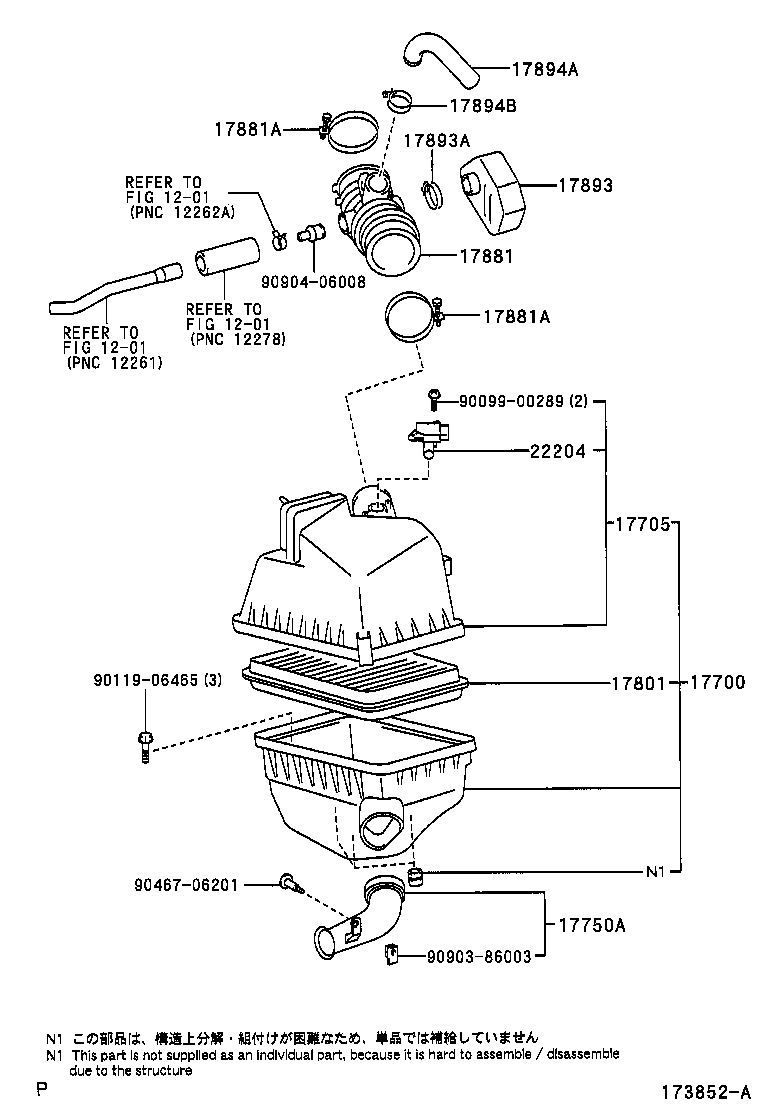

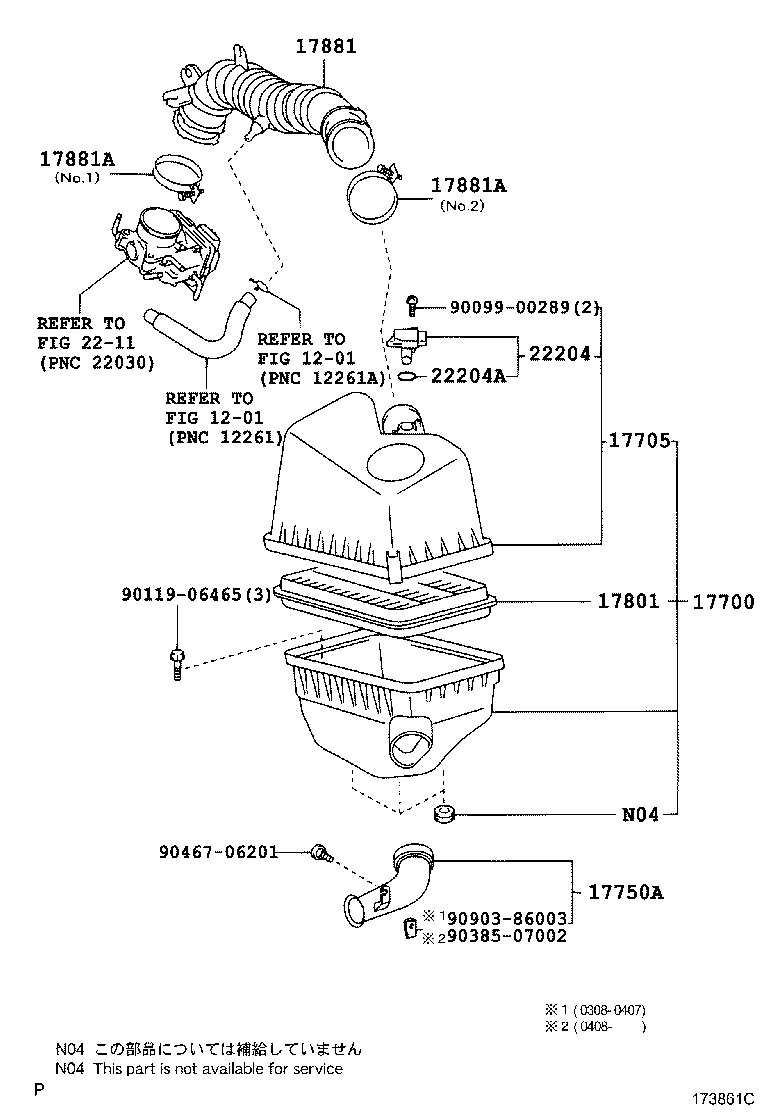

Air Cleaner
13 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17700 | Cleaner Assy, Air |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17750A | Inlet Assy, Air Cleaner |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17880 | Hose Assy, Air Cleaner |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17893 | Resonator, Intake Air |
| 17893A | Clamp, Hose |
| 17894A | Resonator, Intake Air, NO.2 |
| 17894B | Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2) |
| 22204 | Meter Sub-assy, Intake Air Flow |
| 22204A | Ring, O(FOR INTAKE AIR FLOW METER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
