Front Drive Shaft

47 part groups · 7 illustrations

Illustrations

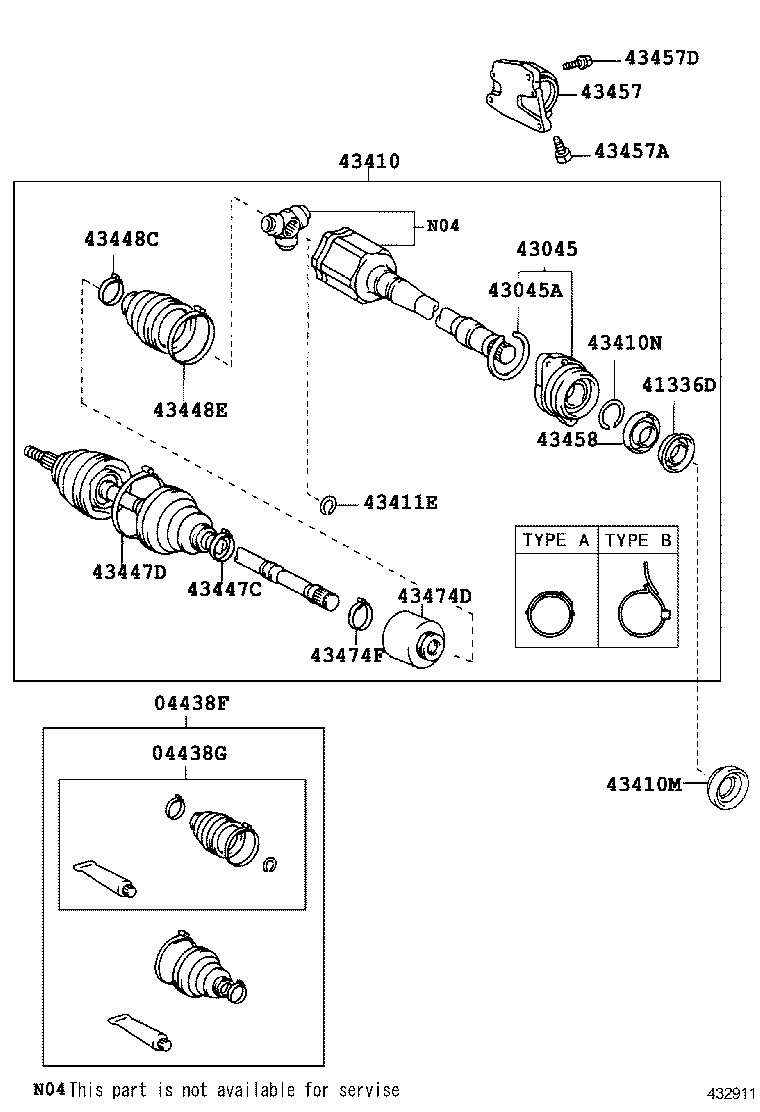

432910 2000-11 → 2003-08

432911 2000-11 → —

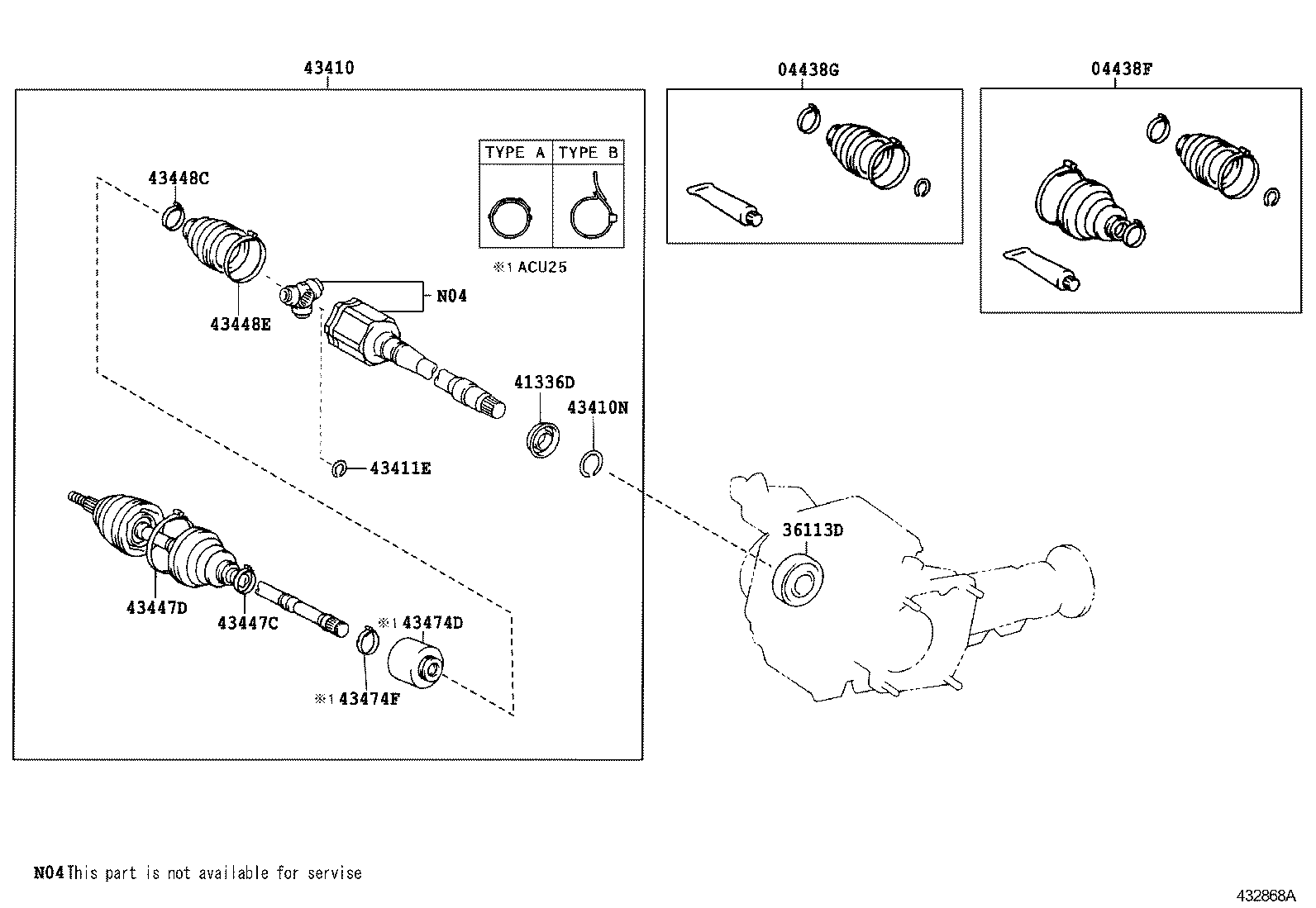

432868A 2000-11 → —

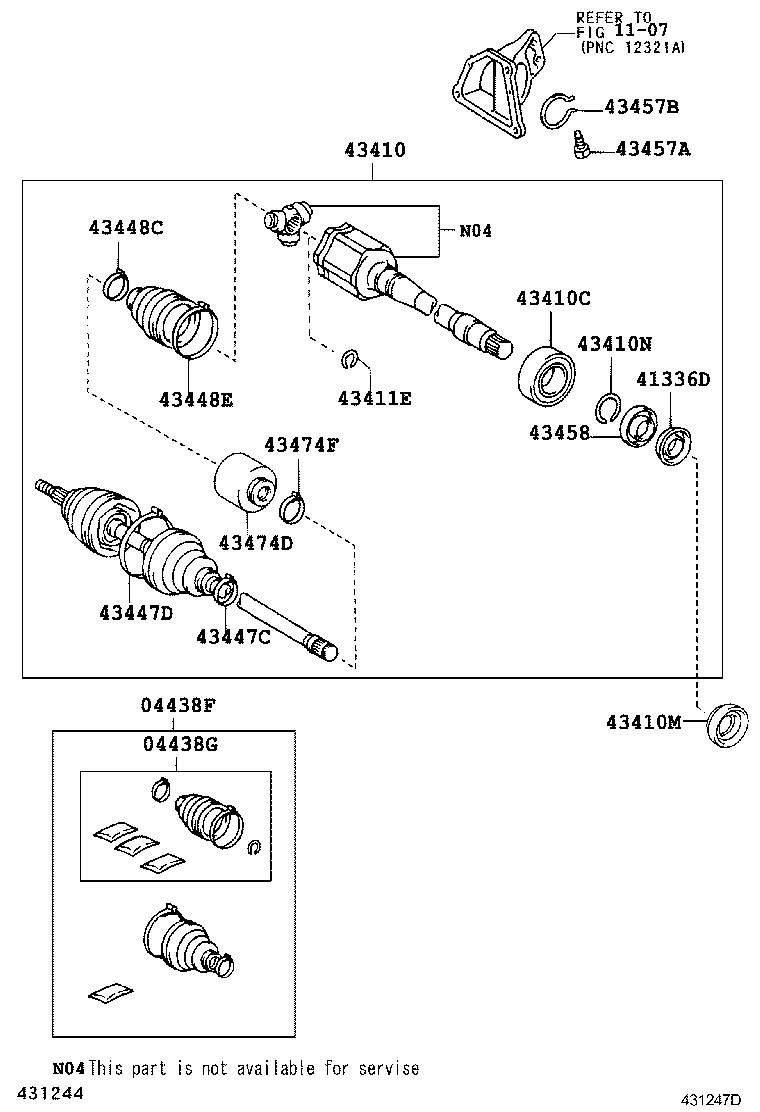

431247D 2003-08 → —

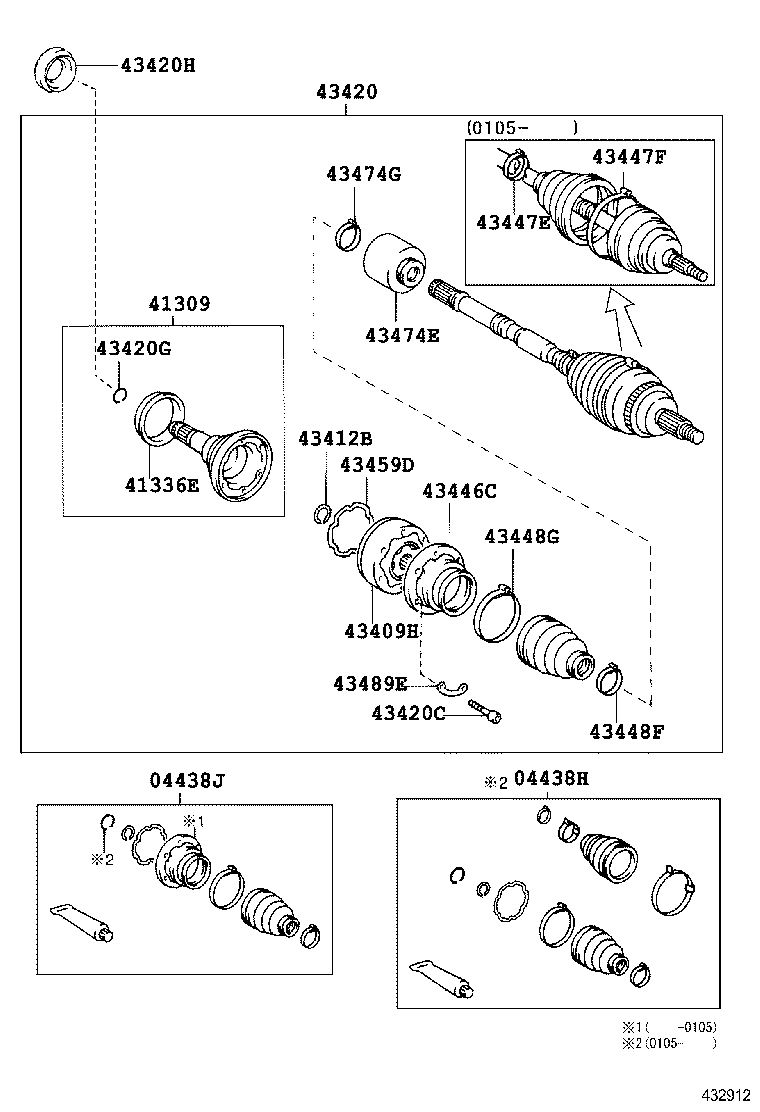

432912 2000-11 → 2003-08

432913 2000-11 → —

431248C 2003-08 → —

Part groups

PNC	Description
04438F	Boot Kit, Front Drive Shaft, IN & Outboard, RH
04438G	Boot Kit, Front Drive Shaft Inboard Joint, RH
04438H	Boot Kit, Front Drive Shaft, IN & Outboard, LH
04438J	Boot Kit, Front Drive Shaft Inboard Joint, LH
36113D	Seal, Oil (FOR TRANSFER CASE RH)
41309	Shaft Sub-assy, Differential Side Gear, LH
41336D	Cover, Front Drive Shaft Dust, RH
41336E	Cover, Front Drive Shaft Dust, LH
43045	Case Sub Assy, Drive Shaft Bearing
43045A	Ring, Snap (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)
43049	Shaft Sub-assy, Front Drive Flange
43409G	Joint Sub-assy, Front Drive Shaft Cross Groove, RH
43409H	Joint Sub-assy, Front Drive Shaft Cross Groove, LH
43410	Shaft Assy, Front Drive, RH
43410C	Bearing (FOR FRONT DRIVE SHAFT)
43410L	Bolt (FOR FRONT DRIVE SHAFT CROSS GROOVE JOINT RH)
43410M	Oil Seal, Front Drive Shaft, RH
43410N	Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
43411E	Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
43412B	Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43420	Shaft Assy, Front Drive, LH
43420C	Bolt (FOR FRONT DRIVE SHAFT CROSS GROOVE JOINT LH)
43420G	Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
43420H	Oil Seal, Front Drive Shaft, LH
43446B	Cover, Front Axle Inboard Joint, RH
43446C	Cover, Front Axle Inboard Joint, LH
43447C	Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447D	Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447E	Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
43447F	Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
43448C	Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448E	Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448F	Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
43448G	Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
43457	Bracket, Drive Shaft Bearing
43457A	Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
43457B	Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
43457D	Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
43458	Cover, Front Drive Shaft Dust
43459C	Gasket, Front Drive Shaft Cross Groove Joint, RH
43459D	Gasket, Front Drive Shaft Cross Groove Joint, LH
43474D	Damper, Front Drive Shaft, RH
43474E	Damper, Front Drive Shaft, LH
43474F	Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
43474G	Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
43489D	Washer, Front Drive Shaft Cross Groove Joint, RH
43489E	Washer, Front Drive Shaft Cross Groove Joint, LH
