Toyota Highlander

2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522410 · United States

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

15 part groups · 2 illustrations

Illustrations

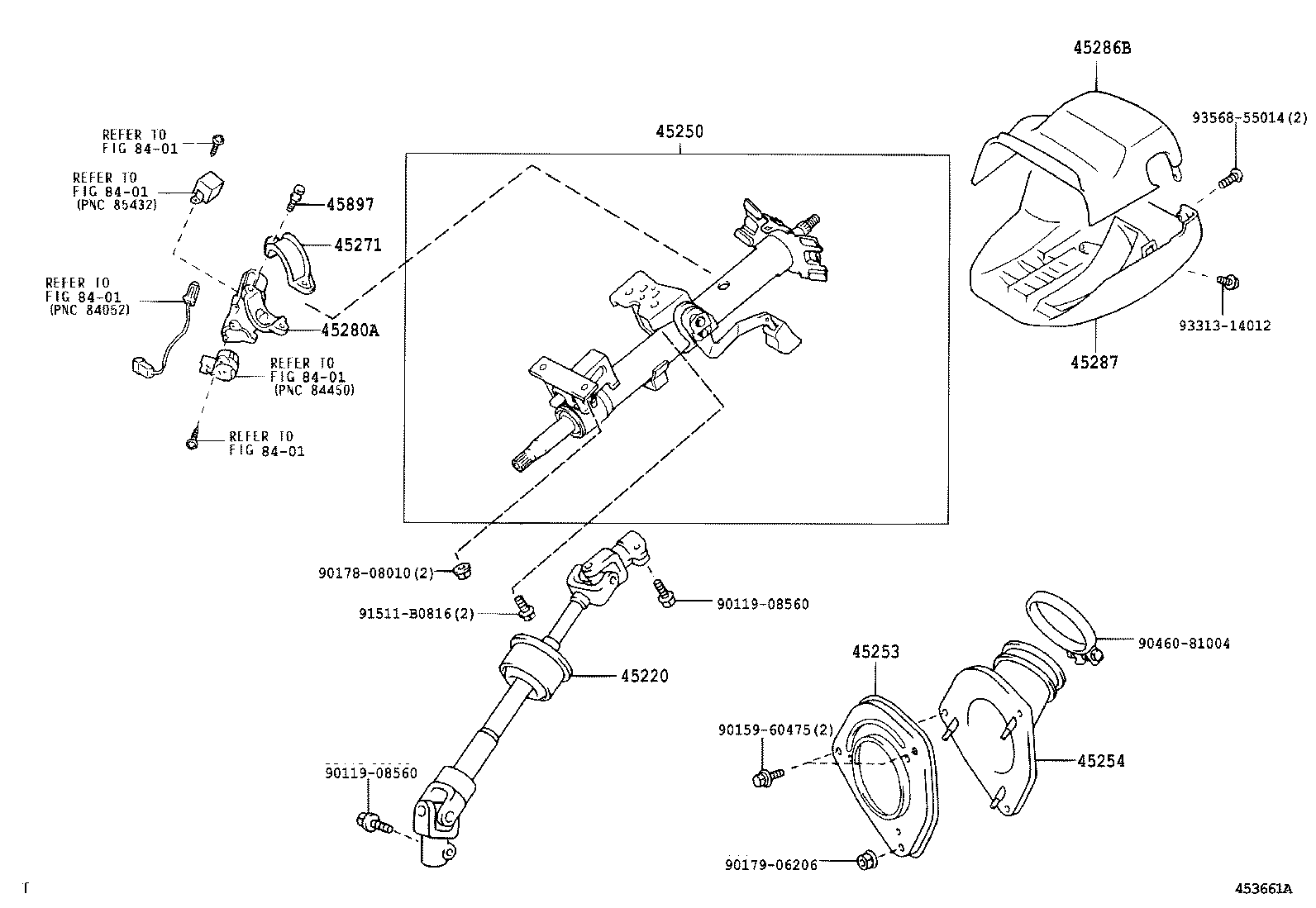

Figure 452477A 452477A 2000-11 → 2003-08 Figure 453661A 453661A 2003-08 → —

Part groups

PNCDescription
45026 Cover Sub-assy, Steering Column Hole, NO.2
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45202 Shaft Sub-assy, Steering Intermediate
45210 Shaft Assy, Steering Main
45220 Shaft Assy, Steering Intermediate
45230B Joint Assy, Steering Shaft Universal
45250 Column Assy, Steering
45253 Cover, Steering Column Hole
45254 Shield, Steering Column Hole
45271 Clamp, Steering Column, Upper
45273 Bush, Steering Main Shaft
45280A Bracket Assy, Steering Column, Upper
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
