Toyota Highlander
2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522410 · United States
Discontinued model
Data version 2007-10

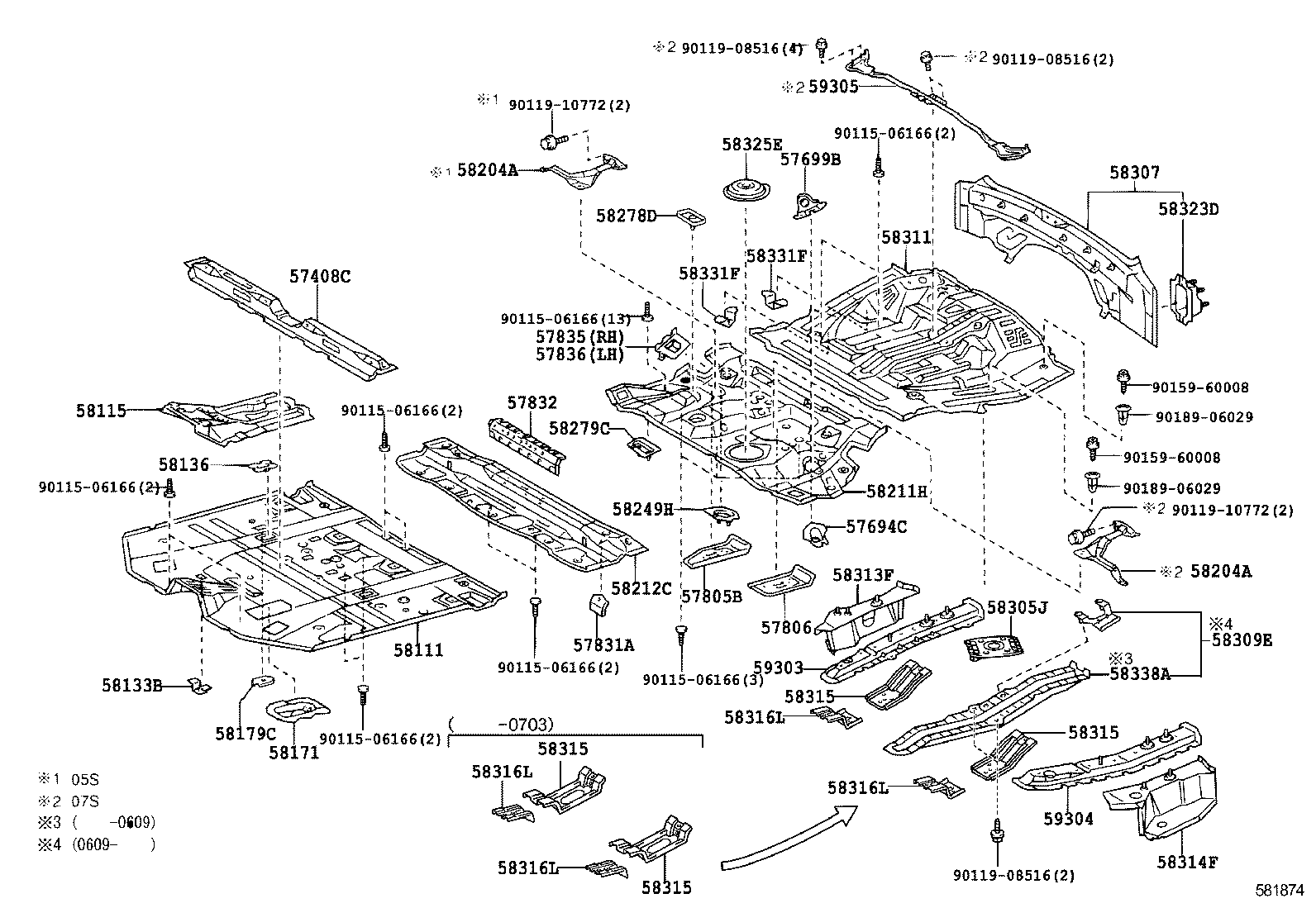

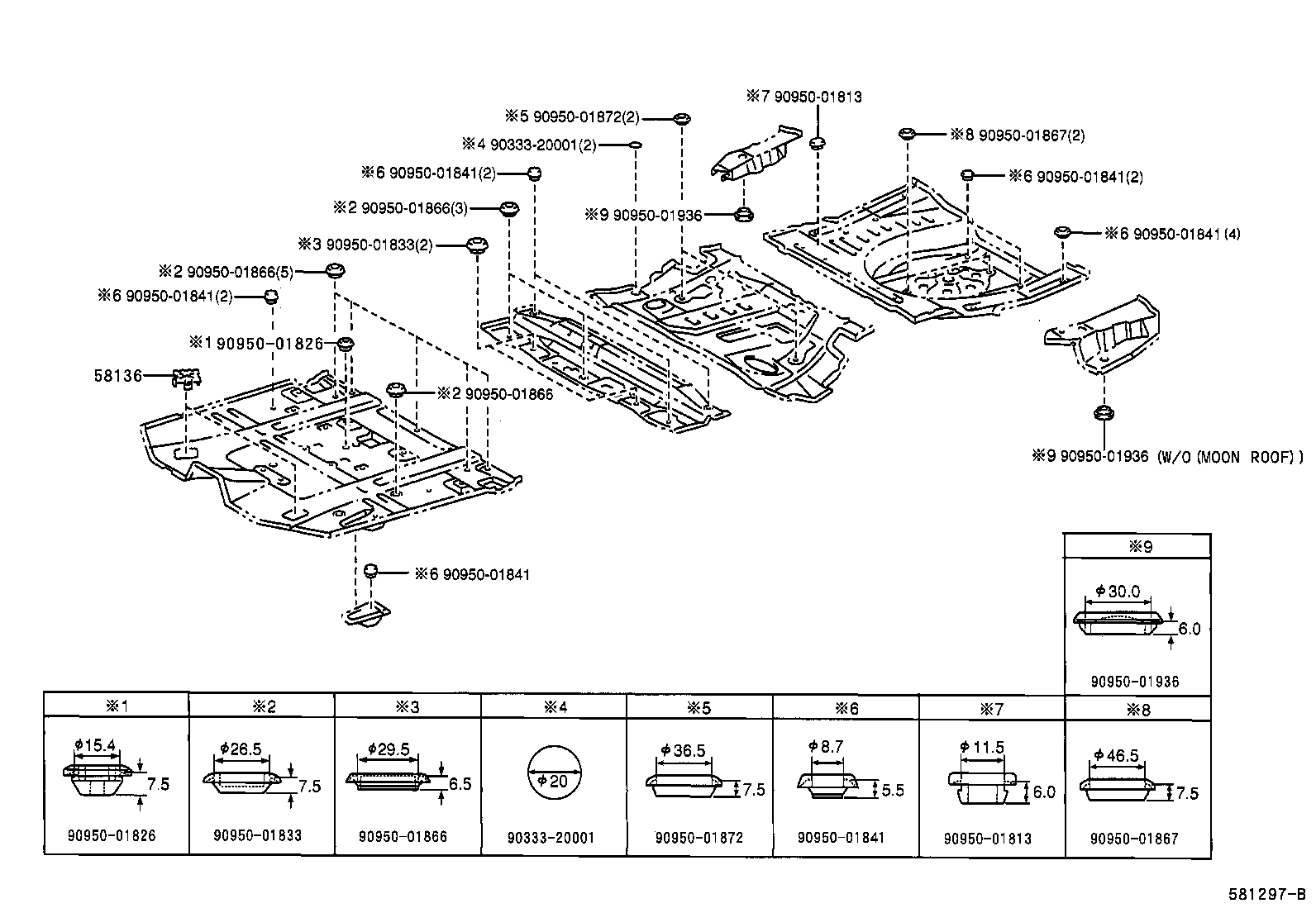

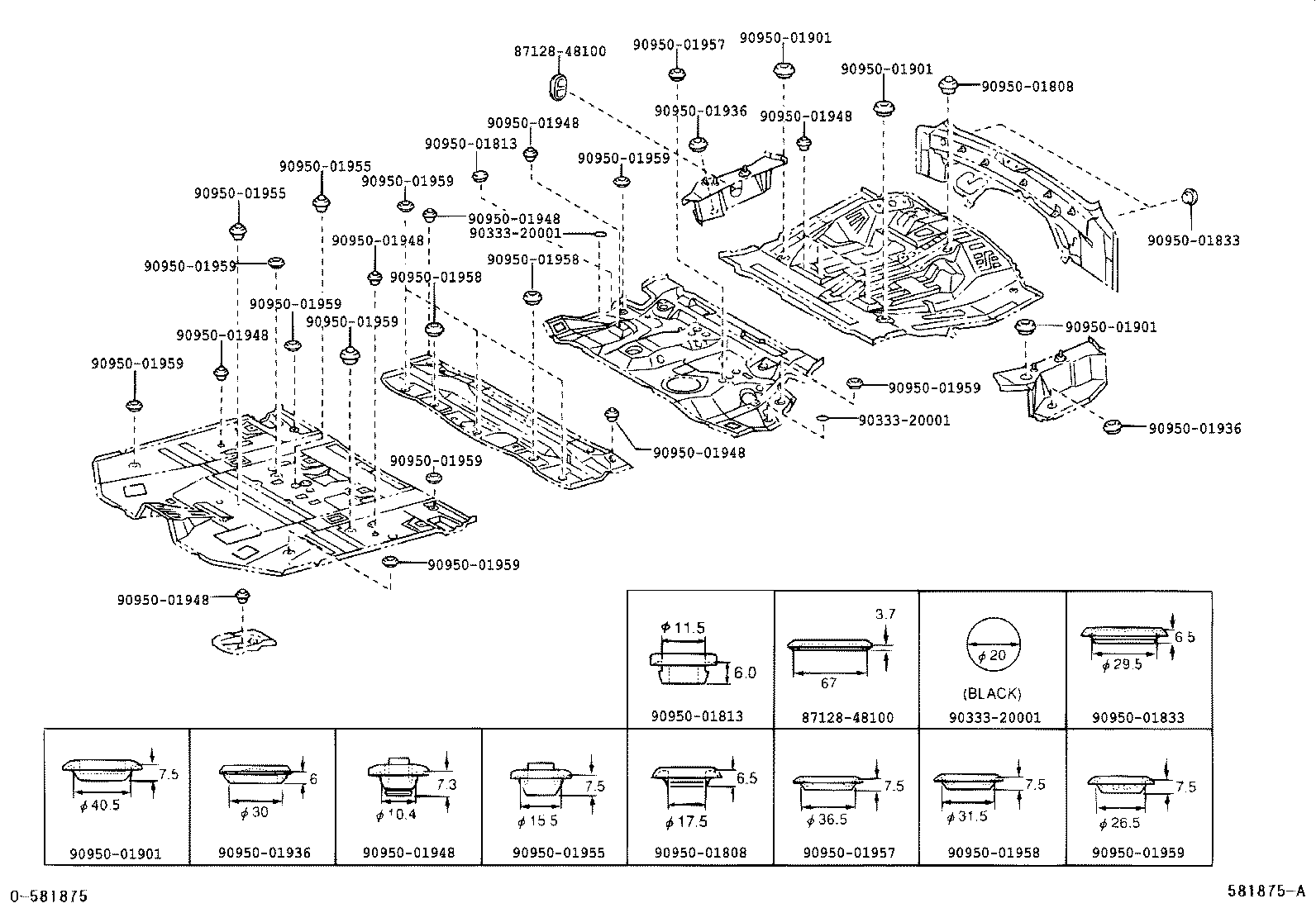

Floor Pan & Lower Back Panel
47 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 57408C | Member Sub-assy, Front Floor Cross |
| 57535 | Brace, Front Floor, RH |
| 57536 | Brace, Front Floor, LH |
| 57694C | Reinforcement, Fuel Tank Mounting Bracket, LH |
| 57699B | Reinforce, Fuel Tank Mounting Bracket, NO.3 |
| 57805B | Reinforcement Sub-assy, Belt Anchor, RH |
| 57806 | Reinforcement Sub-assy, Belt Anchor, LH |
| 57831A | Reinforcement, Rear NO.1 Seat Leg, Front NO.1 |
| 57832 | Reinforcement, Rear NO.1 Seat Leg, Front NO.2 |
| 57835 | Reinforcement, Rear NO.1 Seat Leg, Rear NO.1 |
| 57836 | Reinforcement, Rear NO.1 Seat Leg, Rear NO.2 |
| 58111 | Pan, Front Floor |
| 58115 | Reinforcement, Front Floor Panel, Front |
| 58127 | Patch, Front Floor Panel |
| 58133B | Bracket, Front Floor Heat Insulator, NO.3 |
| 58136 | Cover, Front Floor Hole |
| 58171 | Reinforcement, Parking Brake Base |
| 58179C | Bracket, Clamp Floor |
| 58191 | Footrest, Front Floor |
| 58198 | Clip, Footrest |
| 58204A | Reinforcement Sub-assy, Center Floor Panel, LH |
| 58208 | Pan, Center Floor |
| 58211H | Pan, Center Floor |
| 58212C | Pan, Center Floor, Front |
| 58249H | Bracket, Center Floor Board Support |
| 58278D | Protector, Fuel Tank, Upper |
| 58279C | Protector, Fuel Tank, Upper NO.2 |
| 58305J | Bracket, Spare Wheel Carrier |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58309E | Plate Sub-assy, Rear Floor |
| 58311 | Pan, Rear Floor |
| 58313F | Extension, Rear Floor Pan TO Quarter Panel, RH |
| 58314F | Extension, Rear Floor Pan TO Quarter Panel, LH |
| 58315 | Extension, Rear Floor Panel |
| 58316L | Extension, Rear Floor Side Panel, Rear |
| 58323D | Reinforcement, Rear Bumper Arm Support |
| 58325E | Cover, Rear Floor Service Hole |
| 58329F | Cover, Rear Floor Service Hole, NO.2 |
| 58331F | Bracket, Rear Floor Heat Insulator, NO.3 |
| 58336B | Reinforcement, Rear Floor Pan |
| 58338A | Reinforcement, Rear Floor Pan, NO.2 |
| 58351A | Bracket, Spare Wheel Carrier |
| 58791B | Carrier, Jack |
| 58798C | Cushion, Jack Carrier |
| 59303 | Panel Sub-assy, 3RD Seat Floor Side, RH |
| 59304 | Panel Sub-assy, 3RD Seat Floor Side, LH |
| 59305 | Member Sub-assy, 3RD Seat Floor Cross |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
